ALU-POWER 2 Flute 50°Helix Ball End Mill (EG910)

  • $0.00INC GST $0.00 EX GST
ALU-POWER 2 Flute 50°Helix Ball End Mill (EG910)
ALU-POWER 2 Flute 50°Helix Ball End Mill (EG910)
New

ALU-POWER 2 Flute 50°Helix Ball End Mill (EG910)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: EG910

N
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ALU-POWER 2 Flute 50°Helix Ball End Mill (EG910) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Excellent cutting qualities on stainless steel, aluminum, copper.
  • Increased tool life and higher cutting accuracy.
  • Mirror face
    -excellent surface finish.
Product Data
Workpiece Material N
Ball Radius Tolerance 0.01
Cutting Shape Ball Nose
Helix Angle Square 50
No. Flutes 2
Operation Profiling, Side Milling, Small Part
Shank Type Plain
Surface Treatment Titanium Carbon Nitride Coating
Tool Material Carbide
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EG910060 6 6 5.5 55 ±0.02 h5 2 EG910080 8 8 7 65 ±0.02 h5 2 EG910100 10 10 8.5 75 ±0.02 h5 2 EG910120 12 12 10.5 75 ±0.02 h5 2 EG910160 16 16 14 90 ±0.02 h5 2 EG910200 20 20 17 100 ±0.02 h5 2
Profiling
Side Milling
Small Part
N Aluminium

Excellent

Good Great Excellent
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EG910060 6 6 5.5 55 ±0.02 h5 2 EG910080 8 8 7 65 ±0.02 h5 2 EG910100 10 10 8.5 75 ±0.02 h5 2 EG910120 12 12 10.5 75 ±0.02 h5 2 EG910160 16 16 14 90 ±0.02 h5 2 EG910200 20 20 17 100 ±0.02 h5 2

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand

View the range

Alu-Power Endmills

You Might Also Like

New

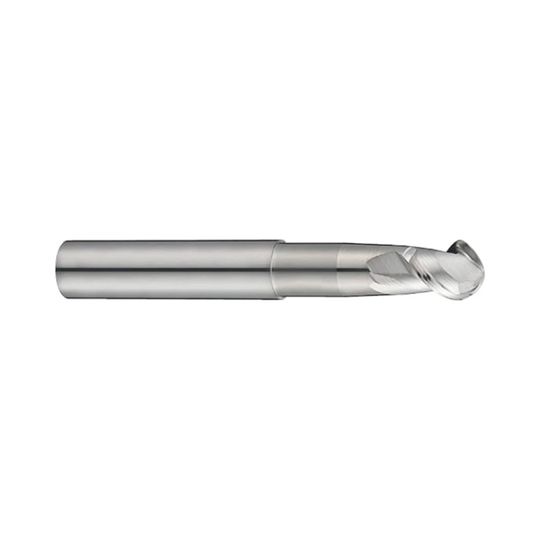

ALU-POWER 2 Flute 50°Helix Ball End Mill (E5910) ALU-POWER 2 Flute 50°Helix Ball End Mill (E5910)
