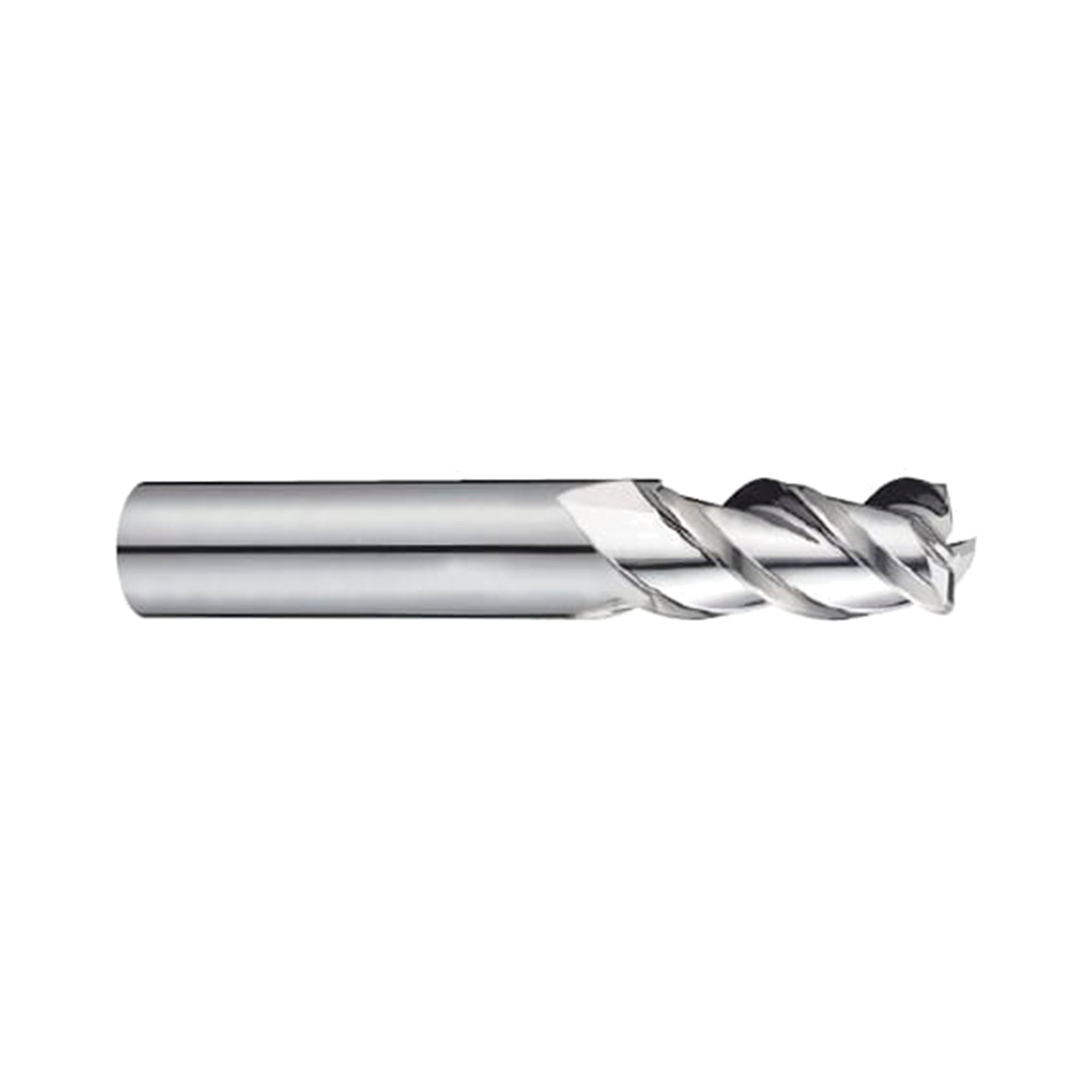

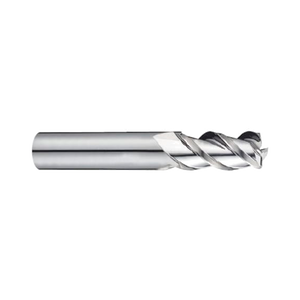

(E5E51) Alu-Power Carbide 3Flute Corner Radius End Mill, Long Length, Plain Shank
Long-Length Carbide Corner Radius End Mills for AluminiumCode: E5E51030
-
Key Features
- Ultra micro grain solid carbide construction
- Three flute corner radius cutting geometry
- Long-length plain-shank configuration
Made in South Korea
Extended reach
Long overall lengths support aluminium features requiring additional reach.
Corner radius choices
R0.5, R1.0 and selected R2.0 options suit varied feature geometry.
Matched series range
Diameters from 3.0 to 20.0 mm provide practical sizing coverage.

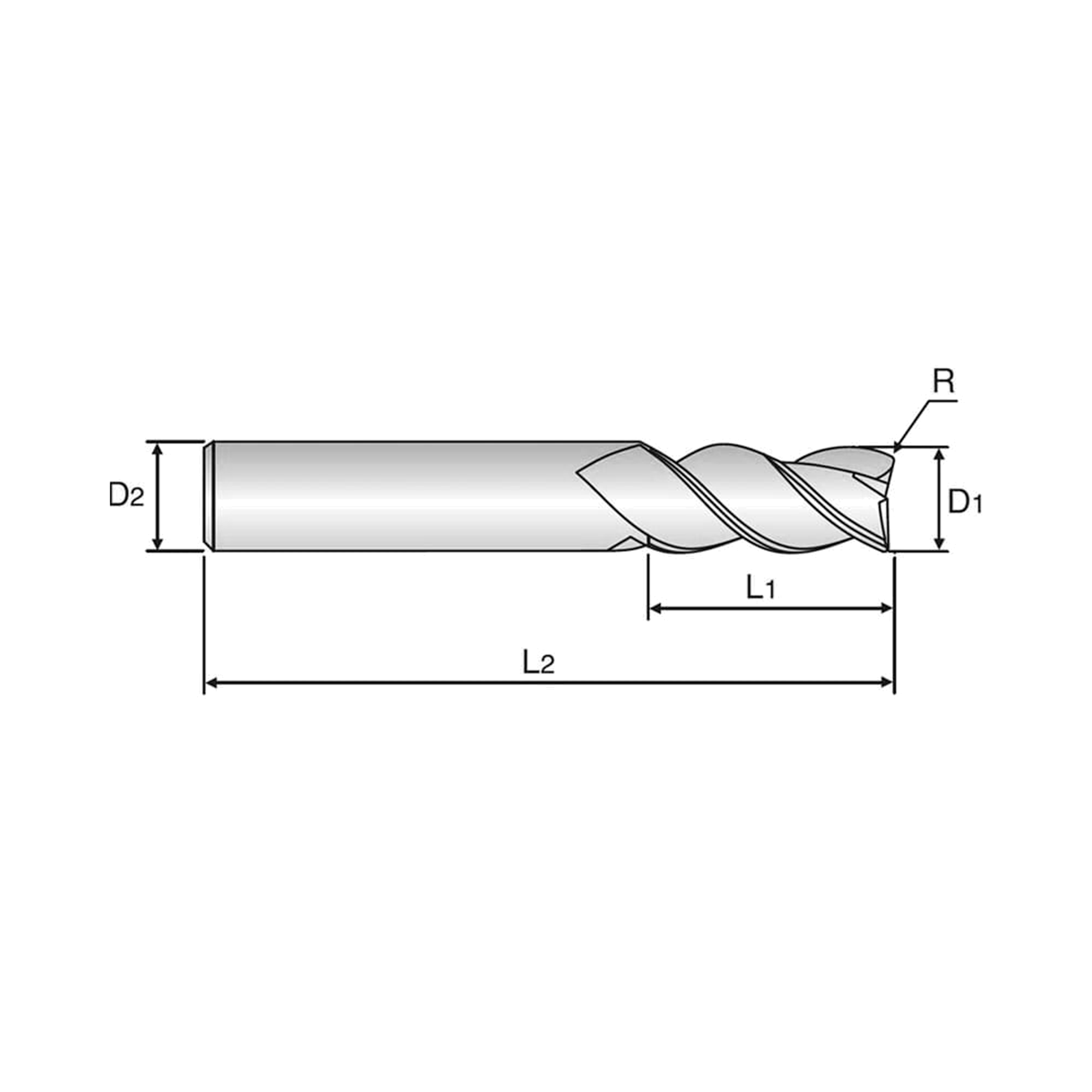

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| E5E51030 | 3.0 | R0.5 | 57.0 | 6.0 | 12.0 | Quantity unavailable | $21.00 | ||
| E5E51901 | 3.0 | R1.0 | 57.0 | 6.0 | 12.0 | In stock | $21.00 | ||
| E5E51040 | 4.0 | R0.5 | 57.0 | 6.0 | 15.0 | Low stock | $31.60 | ||
| E5E51902 | 4.0 | R1.0 | 57.0 | 6.0 | 15.0 | In stock | $31.60 | ||
| E5E51050 | 5.0 | R0.5 | 57.0 | 6.0 | 20.0 | Low stock | $31.60 | ||
| E5E51903 | 5.0 | R1.0 | 57.0 | 6.0 | 20.0 | In stock | $31.60 | ||
| E5E51060 | 6.0 | R0.5 | 65.0 | 6.0 | 20.0 | Low stock | $45.80 | ||
| E5E51904 | 6.0 | R1.0 | 65.0 | 6.0 | 20.0 | In stock | $45.80 | ||
| E5E51080 | 8.0 | R0.5 | 65.0 | 8.0 | 22.0 | Low stock | $63.70 | ||
| E5E51905 | 8.0 | R1.0 | 65.0 | 8.0 | 22.0 | In stock | $59.40 | ||
| E5E51100 | 10.0 | R0.5 | 70.0 | 10.0 | 25.0 | Low stock | $81.40 | ||
| E5E51906 | 10.0 | R1.0 | 70.0 | 10.0 | 25.0 | In stock | $72.70 | ||
| E5E51907 | 10.0 | R2.0 | 70.0 | 10.0 | 25.0 | In stock | $72.70 | ||
| E5E51120 | 12.0 | R0.5 | 75.0 | 12.0 | 25.0 | Low stock | $101.60 | ||
| E5E51908 | 12.0 | R1.0 | 75.0 | 12.0 | 25.0 | In stock | $101.60 | ||
| E5E51909 | 12.0 | R2.0 | 75.0 | 12.0 | 25.0 | In stock | $101.60 | ||
| E5E51160 | 16.0 | R0.5 | 90.0 | 16.0 | 35.0 | Low stock | $170.00 | ||
| E5E51910 | 16.0 | R1.0 | 90.0 | 16.0 | 35.0 | Low stock | $170.00 | ||
| E5E51911 | 16.0 | R2.0 | 90.0 | 16.0 | 35.0 | In stock | $170.00 | ||
| E5E51200 | 20.0 | R0.5 | 100.0 | 20.0 | 40.0 | No stock | $288.10 | ||
| E5E51912 | 20.0 | R1.0 | 100.0 | 20.0 | 40.0 | No stock | $288.10 | ||
| E5E51913 | 20.0 | R2.0 | 100.0 | 20.0 | 40.0 | Low stock | $288.10 |
Add (E5E51) Alu-Power Carbide 3Flute Corner Radius End Mill, Long Length, Plain Shank to comparison
View Comparison- Overview
- Speeds & Feeds
- Reviews
YG-1 E5E51 Alu-Power carbide three-flute corner radius end mills provide long-length reach for aluminium machining. Their radiused cutting profile supports machining operations requiring a defined corner radius and extended tool reach. The plain-shank design is offered in 3.0 to 20.0 mm cutting diameters. Corner radius options include R0.5 and R1.0, with R2.0 available from 10.0 mm. Lengths of cut extend from 12 to 40 mm across the series. Overall tool lengths range from 57 to 100 mm for longer-reach aluminium features. Ultra micro grain solid carbide construction defines the Alu-Power series. Select diameter and corner radius to match the required component geometry.
- Ultra micro grain solid carbide construction
- Three flute corner radius cutting geometry
- Long-length plain-shank configuration
- 3.0 to 20.0 mm cutting diameter range
- R0.5 and R1.0 radii plus selected R2.0 options
- 12 to 40 mm lengths of cut with 57 to 100 mm overall lengths
No specifications available.
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 95 | 0.050 | 10000 | 1490 |
| 4.0 | 125 | 0.061 | 10000 | 1820 |
| 5.0 | 155 | 0.072 | 10000 | 2150 |
| 6.0 | 190 | 0.083 | 10000 | 2480 |
| 8.0 | 200 | 0.125 | 8000 | 3000 |
| 10.0 | 250 | 0.145 | 8000 | 3470 |
| 12.0 | 300 | 0.179 | 8000 | 4290 |
| 16.0 | 300 | 0.220 | 6000 | 3960 |
| 20.0 | 250 | 0.262 | 4000 | 3140 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 95 | 0.039 | 10000 | 1160 |
| 4.0 | 125 | 0.050 | 10000 | 1490 |
| 5.0 | 155 | 0.055 | 10000 | 1650 |
| 6.0 | 190 | 0.066 | 10000 | 1980 |
| 8.0 | 200 | 0.096 | 8000 | 2310 |
| 10.0 | 250 | 0.117 | 8000 | 2810 |
| 12.0 | 300 | 0.145 | 8000 | 3470 |
| 16.0 | 300 | 0.174 | 6000 | 3140 |
| 20.0 | 250 | 0.220 | 4000 | 2640 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
