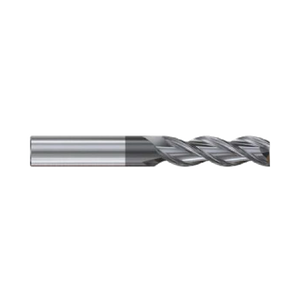

ALU-POWER HPC 3FL 37° Helix Chip-Breaker Corner Radius End Mill (JAH22)

  • $0.00INC GST $0.00 EX GST
ALU-POWER HPC 3FL 37° Helix Chip-Breaker Corner Radius End Mill (JAH22)
ALU-POWER HPC 3FL 37° Helix Chip-Breaker Corner Radius End Mill (JAH22)
New

ALU-POWER HPC 3FL 37° Helix Chip-Breaker Corner Radius End Mill (JAH22)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: JAH22

N
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ALU-POWER HPC 3FL 37° Helix Chip-Breaker Corner Radius End Mill (JAH22) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Speeds & Feeds
Product Description

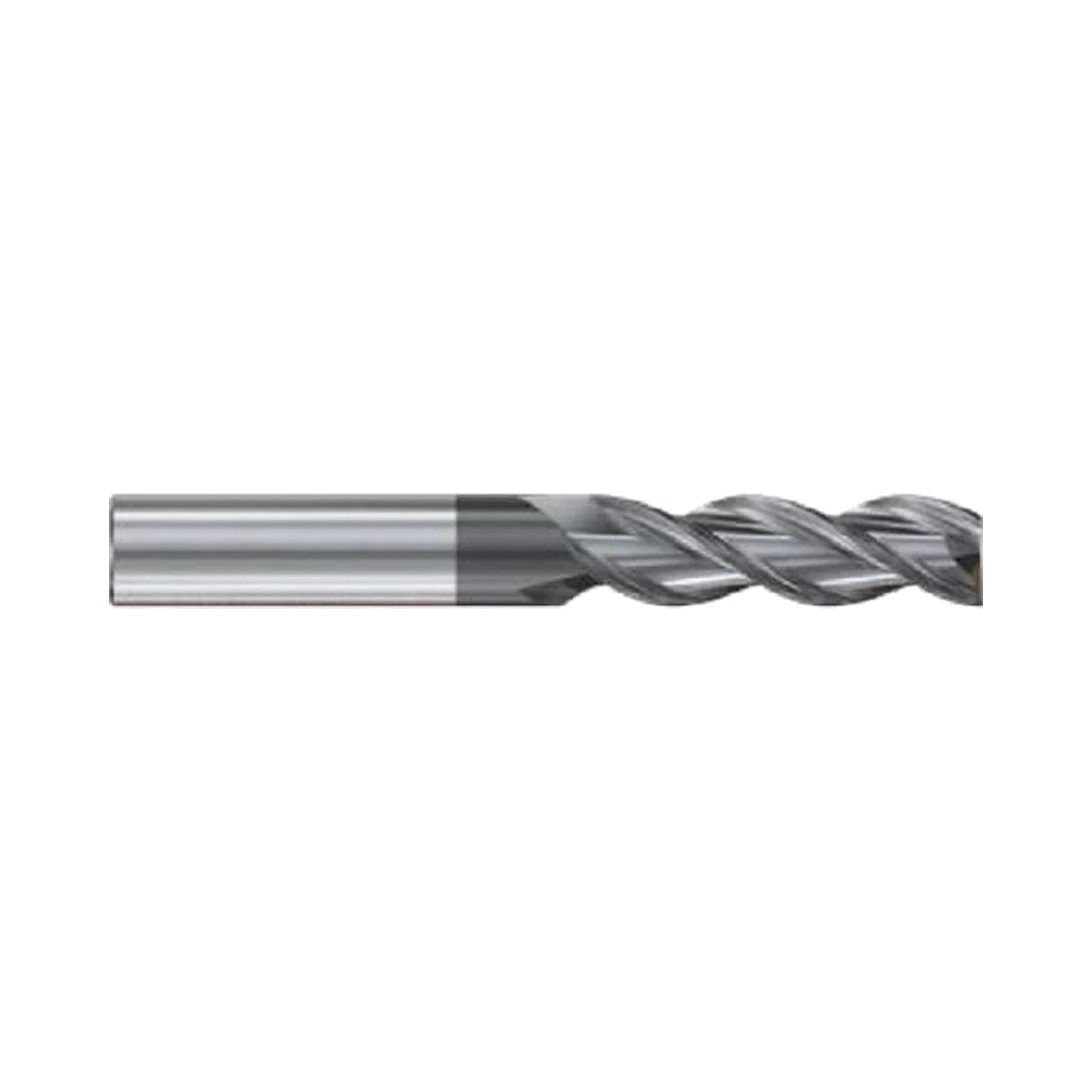

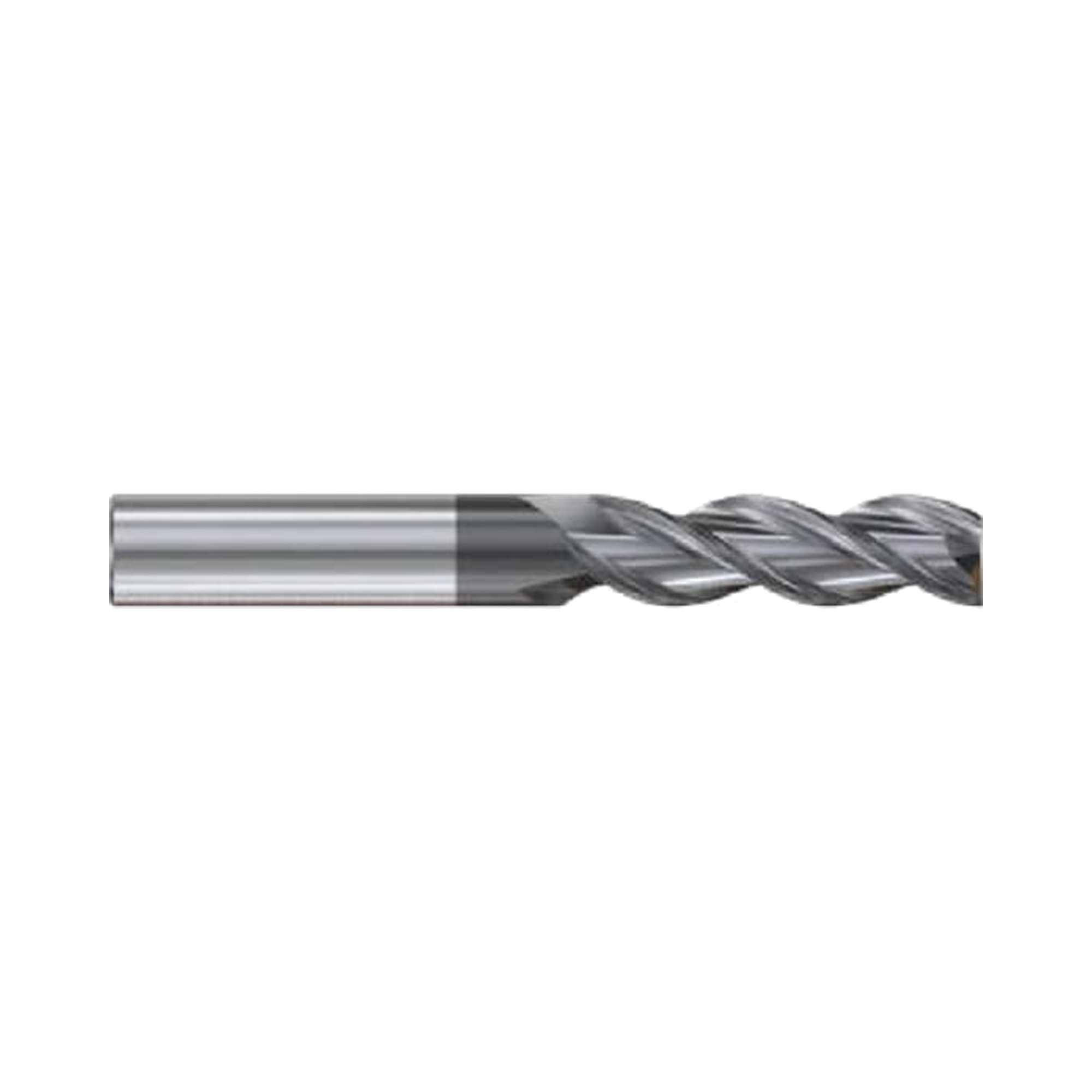

The JAH22 series is available in a choice of flute lengths. The polished DLC (diamond like carbon) coating protects against tool wear in hardwearing aluminium alloys or abrasive plastics. While other 3-flute end mills can muster up the speed for rough cutting aluminium, few can make it through without melting down the aluminum that surrounds the work itself. That’s where the ALU-POWER HPC has a distinct advantage – speed, strength and sharpness. ALU-POWER HPC’s highly polished 3-flute design provides more balanced cutting performance – without excessive heat build up resulting in longer tool life, balanced cutting without vibration, extreme cutting conisations and supreme metal removal rates in aluminium, non-ferrous alloys and plastics.

  • Micrograin carbide substrate
  • Deep flute pockets
  • Extreme metal removal rates
  • Polished flutes for excellent chip flow
  • Effective chip evacuation at high feed rates with lower cutting forces
  • Highly effective in vertical ramping up to 20 degrees and step-over plunging applications
  • 3 flute ‘centre match’ HPC geometry for high feed rates & large depth of cut
  • DLC coating excels in hard aluminum and high speeds
  • To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck)

Specifications

Flutes 3
Helix Angle 37°
Cutting Edge Shape SQUARE
Size Min D3.0
Size Max D25.0
Length

-
Coating Uncoated



Product Data
Workpiece Material N
Cutting Shape Square
Helix Angle Square 37
No. Flutes 3
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment DLC
Tool Material Carbide

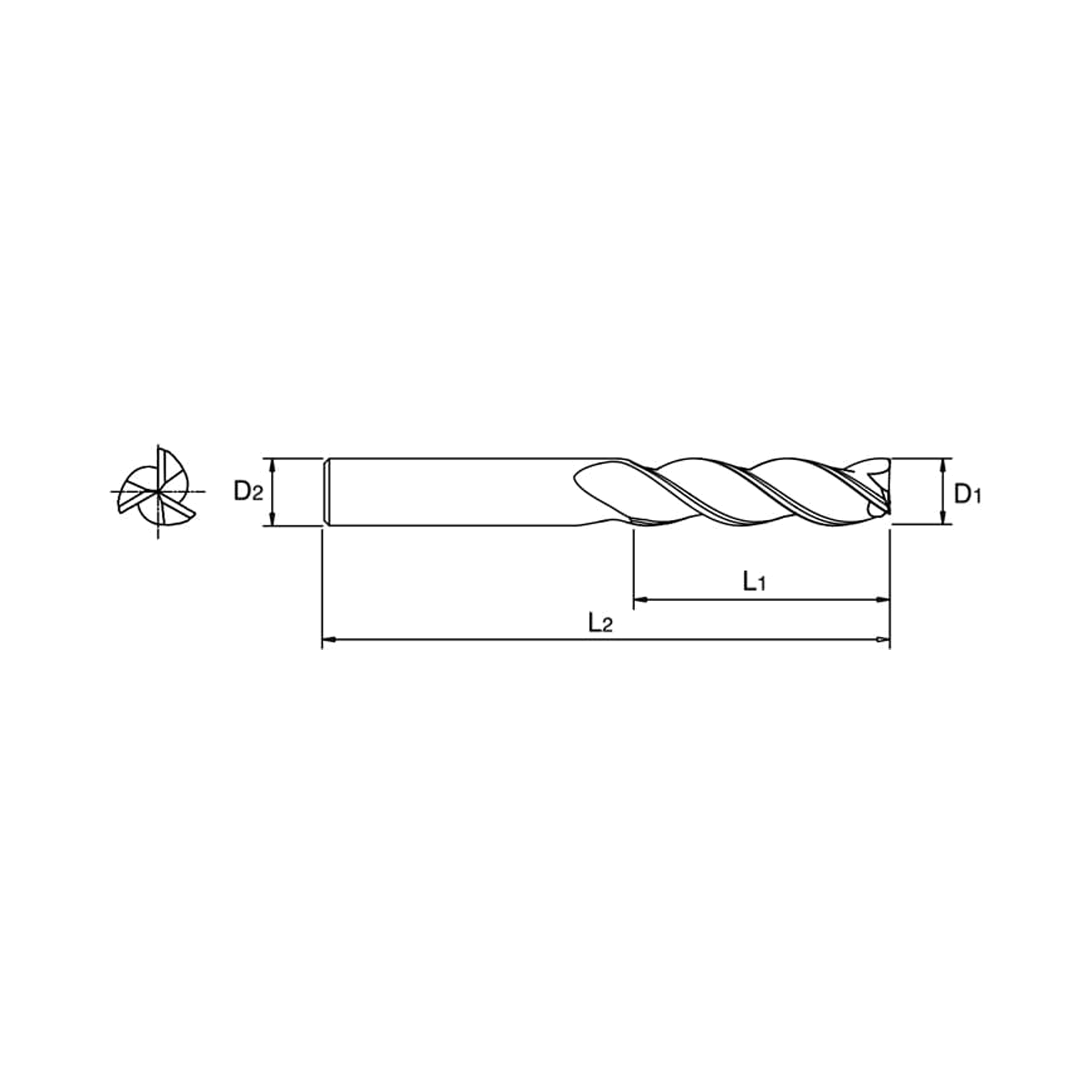

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute JAH22030 3 6 8 52 0~-0.006 h5 3 JAH22040 4 6 11 55 0~-0.008 h5 3 JAH22050 5 6 13 57 0~-0.008 h5 3 JAH22060 6 6 13 57 0~-0.008 h5 3 JAH22080 8 8 19 63 0~-0.009 h5 3 JAH22100 10 10 22 72 0~-0.009 h5 3 JAH22120 12 12 26 83 0~-0.011 h5 3 JAH22140 14 14 30 89 0~-0.011 h5 3 JAH22160 16 16 32 92 0~-0.011 h5 3 JAH22200 20 20 38 104 0~-0.013 h5 3 JAH22250 25 25 50 125 0~-0.013 h5 3 JAH22901 6 6 13 72 0~-0.008 h5 3 JAH22902 6 6 24 75 0~-0.008 h5 3 JAH22903 8 8 32 75 0~-0.009 h5 3 JAH22904 10 10 40 100 0~-0.009 h5 3 JAH22905 12 12 48 100 0~-0.011 h5 3 JAH22906 16 16 64 125 0~-0.011 h5 3 JAH22907 20 20 80 150 0~-0.013 h5 3
Side Milling
Small Part
Slotting
Die Sinking
Facing
N Aluminium

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
N Non-ferrous

Great

Good Great Excellent

Speeds & Feeds

ØVcfzRPMFEED
3.04880.025517783946
6.04880.076258895918
10.04880.114155335326
12.04880.152129455918
16.04880.16897084883
20.04880.19177674439
25.04880.25462134735
ØVcfzRPMFEED
3.01830.025194171480
6.01830.07697082219
10.01830.11458251997
12.01830.15248542219
16.01830.16836411831
20.01830.19129131665
25.01830.25423301775
ØVcfzRPMFEED
3.02680.020284361733
6.02680.051142182167
10.02680.10285312600
12.02680.12771092708
16.02680.14053322235
20.02680.15242651950
25.02680.17834121820
ØVcfzRPMFEED
3.05030.038533706100
6.05030.102266858134
10.05030.191160119150
12.05030.2541334210167
16.05030.279100078388
20.05030.30580057320
25.05030.35664046832
ØVcfzRPMFEED
3.06100.025647234932
6.06100.076323617398
10.06100.114194176658
12.06100.152161817398
16.06100.168121366103
20.06100.19197085548
25.06100.25477675918
ØVcfzRPMFEED
3.02440.025258891973
6.02440.076129452959
10.02440.11477672663
12.02440.15264722959
16.02440.16848542441
20.02440.19138832219
25.02440.25431072367
ØVcfzRPMFEED
3.03510.020372422270
6.03510.051186212838
10.03510.102111733405
12.03510.12793113547
16.03510.14069832927
20.03510.15255862554
25.03510.17844692384
ØVcfzRPMFEED
3.06250.038663147580
6.06250.1023315710106
10.06250.1911989411370
12.06250.2541657912633
16.06250.2791243410422
20.06250.30599479096
25.06250.35679588489
ØVcfzRPMFEED
3.010060.05310674017080
6.010060.1405337022367
10.010060.2673202225621
12.010060.3562668528467
16.010060.3812001422876
20.010060.4191601120131
25.010060.4951280919033
ØVcfzRPMFEED
3.03660.053388346214
6.03660.140194178138
10.03660.267116509321
12.03660.356970810357
16.03660.38172818323
20.03660.41958257324
25.03660.49546606924
ØVcfzRPMFEED
3.05640.043598427752
6.05640.1142992110260
10.05640.2161795311628
12.05640.2921496113110
16.05640.3301122011115
20.05640.35689769576
25.05640.40671818755
ØVcfzRPMFEED
3.010210.08610833128066
6.010210.2295416637147
10.010210.4323249942100
12.010210.5842708347465
16.010210.6352031238695
20.010210.6991625034051
25.010210.8131300031699
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute JAH22030 3 6 8 52 0~-0.006 h5 3 JAH22040 4 6 11 55 0~-0.008 h5 3 JAH22050 5 6 13 57 0~-0.008 h5 3 JAH22060 6 6 13 57 0~-0.008 h5 3 JAH22080 8 8 19 63 0~-0.009 h5 3 JAH22100 10 10 22 72 0~-0.009 h5 3 JAH22120 12 12 26 83 0~-0.011 h5 3 JAH22140 14 14 30 89 0~-0.011 h5 3 JAH22160 16 16 32 92 0~-0.011 h5 3 JAH22200 20 20 38 104 0~-0.013 h5 3 JAH22250 25 25 50 125 0~-0.013 h5 3 JAH22901 6 6 13 72 0~-0.008 h5 3 JAH22902 6 6 24 75 0~-0.008 h5 3 JAH22903 8 8 32 75 0~-0.009 h5 3 JAH22904 10 10 40 100 0~-0.009 h5 3 JAH22905 12 12 48 100 0~-0.011 h5 3 JAH22906 16 16 64 125 0~-0.011 h5 3 JAH22907 20 20 80 150 0~-0.013 h5 3
