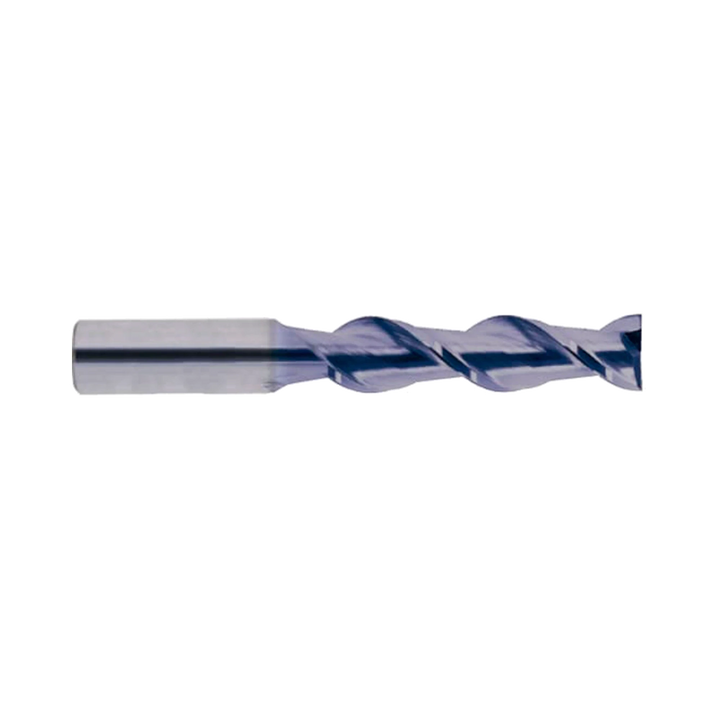

(EG522) Alu-Power Carbide 2Flute End Mill, Long Length, Plain Shank (TiCN Coated)

(EG522) Alu-Power Carbide 2Flute End Mill, Long Length, Plain Shank (TiCN Coated)
$31.35 INC GST $28.50 EX GST
SKU
EG522030
Work materials
N
Tool material Carbide
Surface treatment Titanium Carbon Nitride Coating
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)CAD filesStock Price Qty Add
EG5220303.057.06.08.0STEPDXF 1-2 Weeks $28.50
EG5220404.057.06.011.0STEPDXF In stock $42.00
EG5220505.057.06.013.0STEPDXF 1-2 Weeks $42.00
EG5220606.057.06.013.0STEPDXF 1-2 Weeks $42.00
EG5220808.063.08.019.0STEPDXF 1-2 Weeks $61.50
EG52210010.072.010.022.0STEPDXF 1-2 Weeks $66.50
EG52212012.083.012.026.0STEPDXF 1-2 Weeks $111.50
EG52214014.083.014.026.0STEPDXF 1-2 Weeks $134.60
EG52216016.092.016.032.0STEPDXF 1-2 Weeks $167.40
EG52218018.092.018.032.0STEPDXF 1-2 Weeks $219.20
EG52220020.0104.020.038.0STEPDXF 1-2 Weeks $277.50

Add (EG522) Alu-Power Carbide 2Flute End Mill, Long Length, Plain Shank (TiCN Coated) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Excellent cutting qualities on stainless steel, aluminum, copper.
  • Increased tool life and higher cutting accuracy.
  • Mirror face - excellent surface finish.
Product Data
Workpiece Material N
Cutting Shape Square
Helix Angle Square 45
Length Long
No. Flutes 2
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment Titanium Carbon Nitride Coating
Tool Material Carbide
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EG522030 3 6 8 57 0~-.0.03 h5 2 EG522040 4 6 11 57 0~-.0.03 h5 2 EG522050 5 6 13 57 0~-.0.03 h5 2 EG522060 6 6 13 57 0~-.0.03 h5 2 EG522080 8 8 19 63 0~-.0.03 h5 2 EG522100 10 10 22 72 0~-.0.03 h5 2 EG522120 12 12 26 83 0~-.0.03 h5 2 EG522140 14 14 26 83 0~-.0.03 h5 2 EG522160 16 16 32 92 0~-.0.03 h5 2 EG522180 18 18 32 92 0~-.0.03 h5 2 EG522200 20 20 38 104 0~-.0.03 h5 2
Side Milling
Small Part
Slotting
Die Sinking
Facing

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Non-ferrous materials

5 grades
Wrought aluminium
ExcellentVDI 21–22
Cast aluminium
ExcellentVDI 23–25
VDI grade reference5 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
21NWrought aluminiumExcellent60-
22NWrought aluminiumExcellent100-
23NCast aluminiumExcellent75-
24NCast aluminiumExcellent90-
25NCast aluminiumExcellent130-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EG522030 3 6 8 57 0~-.0.03 h5 2 EG522040 4 6 11 57 0~-.0.03 h5 2 EG522050 5 6 13 57 0~-.0.03 h5 2 EG522060 6 6 13 57 0~-.0.03 h5 2 EG522080 8 8 19 63 0~-.0.03 h5 2 EG522100 10 10 22 72 0~-.0.03 h5 2 EG522120 12 12 26 83 0~-.0.03 h5 2 EG522140 14 14 26 83 0~-.0.03 h5 2 EG522160 16 16 32 92 0~-.0.03 h5 2 EG522180 18 18 32 92 0~-.0.03 h5 2 EG522200 20 20 38 104 0~-.0.03 h5 2
