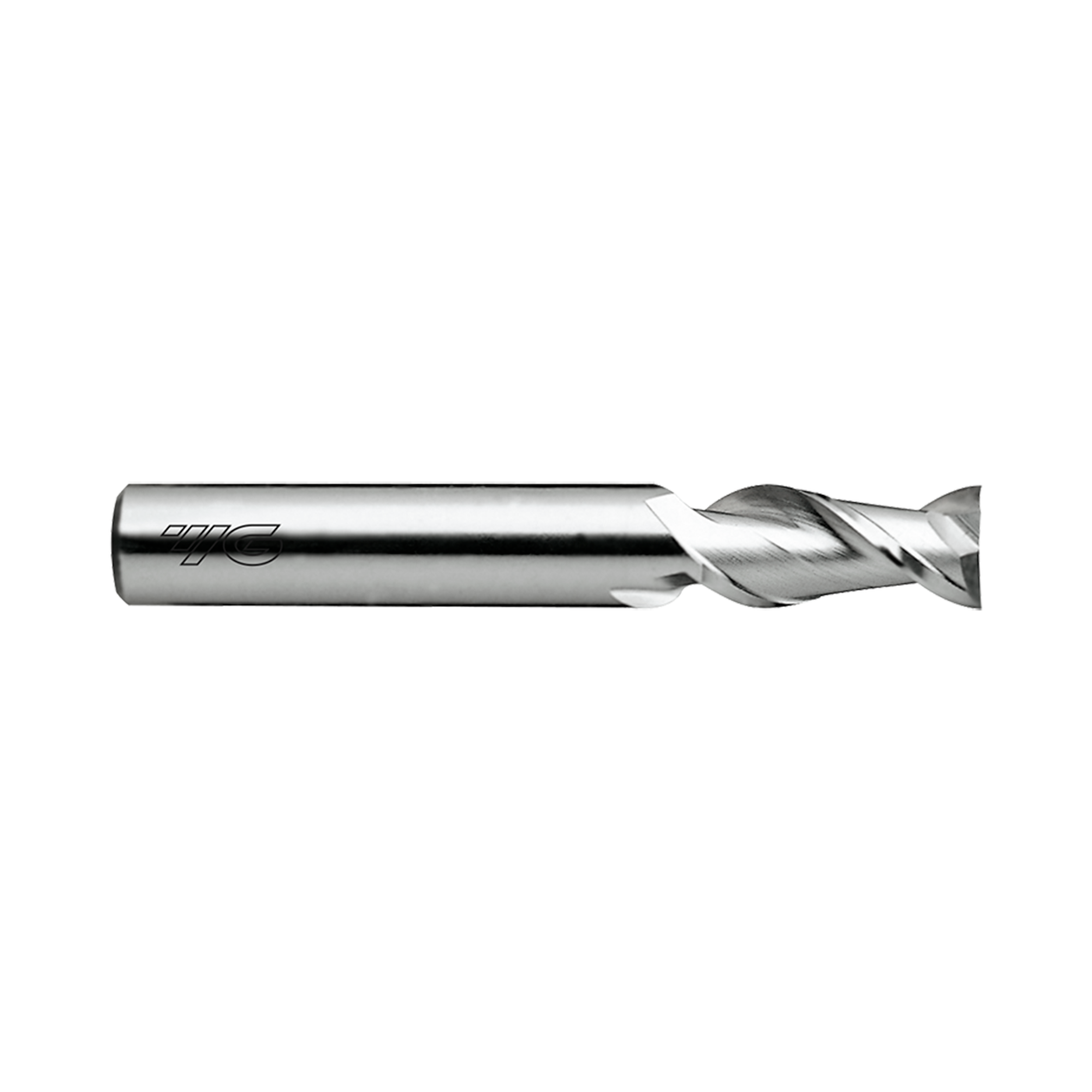

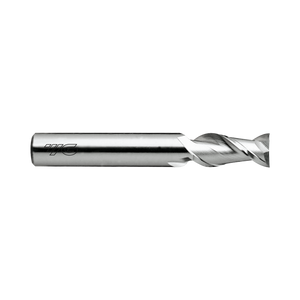

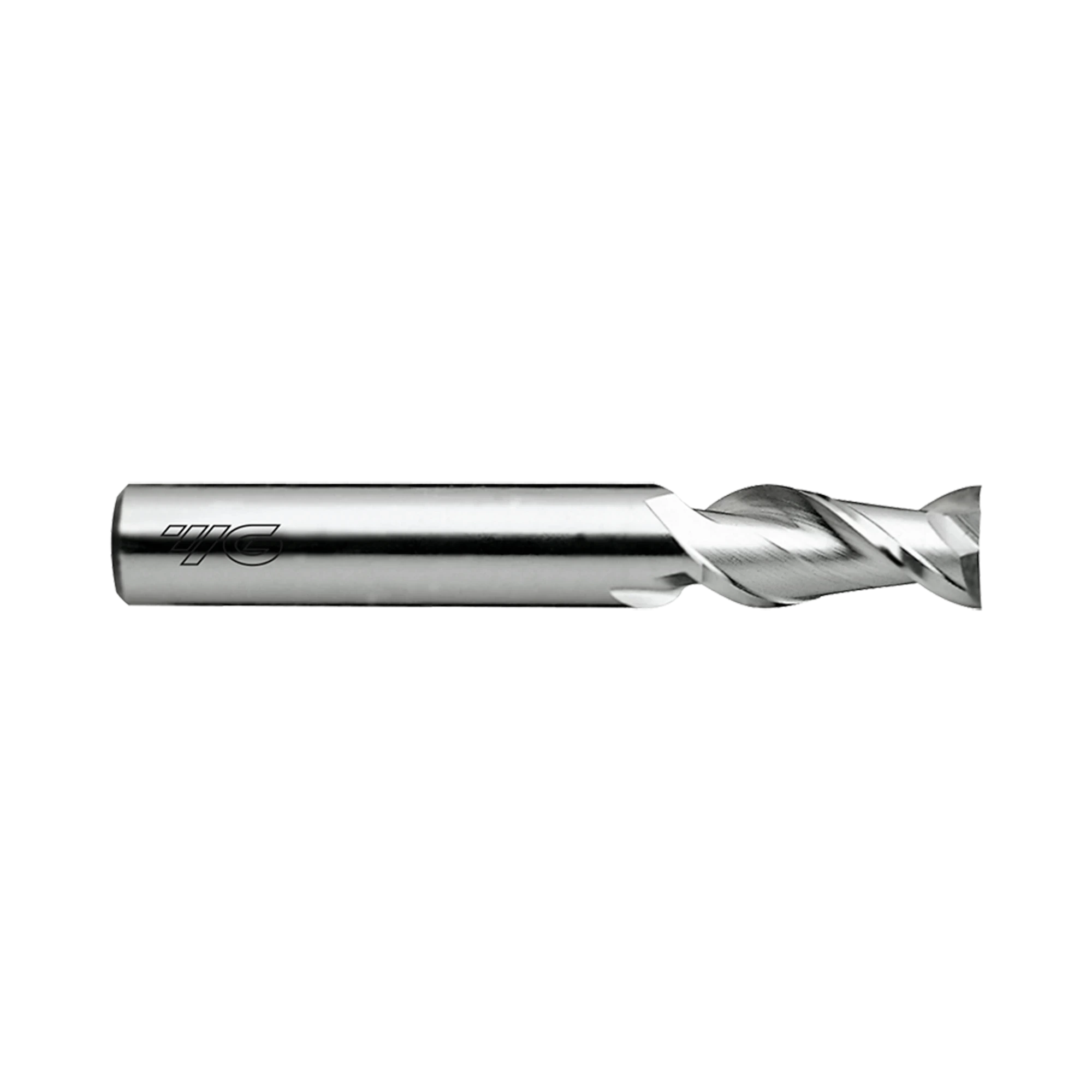

Long-Length 2 Flute 45° Helix Carbide End Mill
Buy now from our online retailers:
Select your preferred distributor:
Mirror surface flutes support chip flow for aluminium and copper alloy milling.
Mill diameters from 3.0 to 20.0 mm provide useful long-length options.
The h5 shank tolerance is specified at zero to minus 0.015 mm.

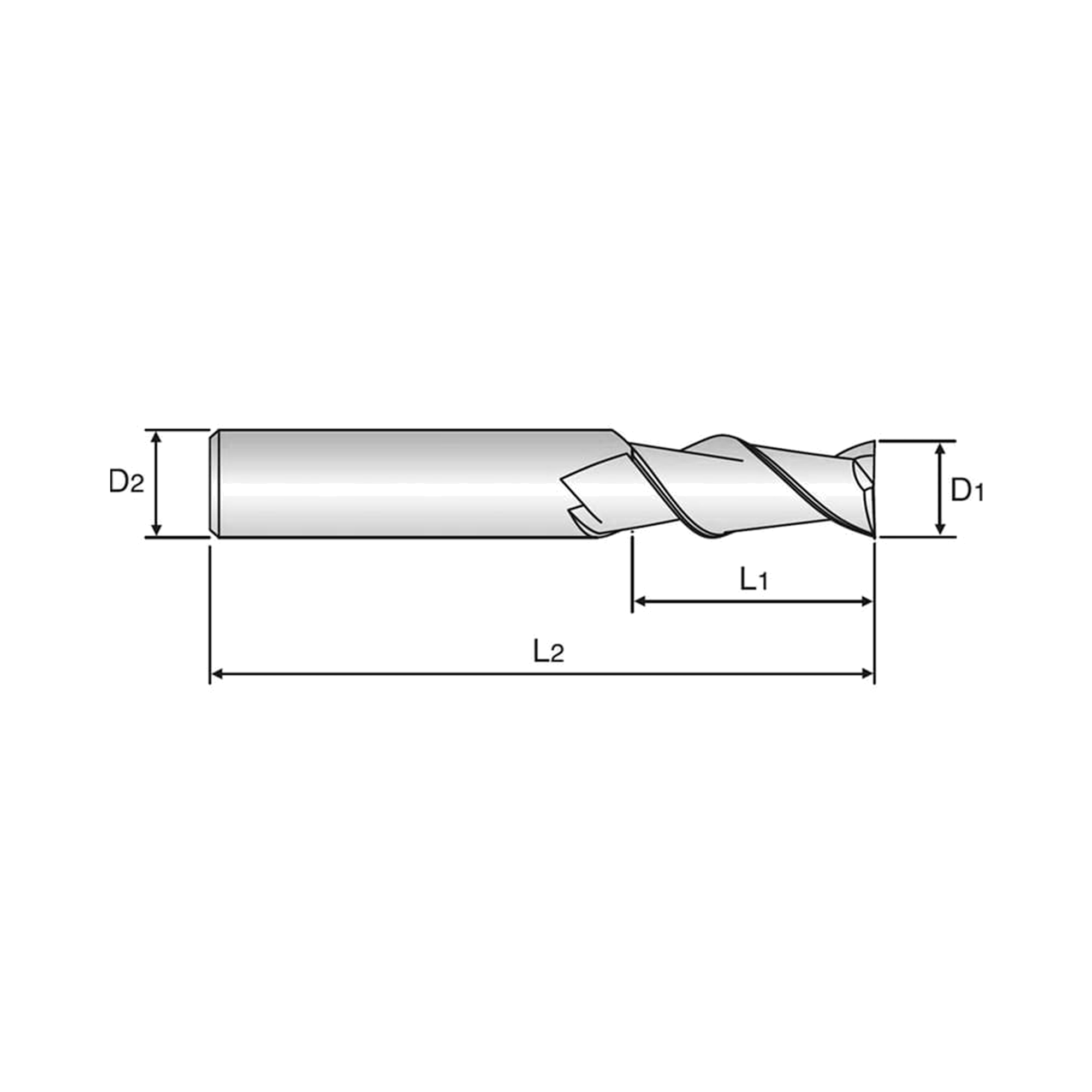

| SKU | Mill Diameter (mm) | Length of Cut (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| E5522015 | 1.5 | 7.0 | 38.0 | 6.0 | - | – | 1-2 Weeks | $35.90 | ||
| E5522020 | 2.0 | 7.0 | 38.0 | 3.0 | - | – | In stock | $15.73 | ||
| E5522025 | 2.5 | 8.0 | 38.0 | 3.0 | - | – | 1-2 Weeks | $23.50 | ||
| E5522030 | 3.0 | 8.0 | 57.0 | 6.0 | 8.0 | STEPDXF | In stock | $14.99 | ||
| E5522035 | 3.5 | 10.0 | 57.0 | 6.0 | - | – | 1-2 Weeks | $36.50 | ||
| E5522040 | 4.0 | 11.0 | 57.0 | 6.0 | - | STEPDXF | In stock | $31.25 | ||
| E5522045 | 4.5 | 11.0 | 57.0 | 6.0 | - | – | 1-2 Weeks | $35.20 | ||
| E5522050 | 5.0 | 13.0 | 57.0 | 6.0 | - | STEPDXF | In stock | $23.89 | ||
| E5522905 | 5.0 | 17.0 | 55.0 | 6.0 | - | STEPDXF | 1-2 Weeks | $40.39 | ||
| E5522906 | 5.0 | 22.0 | 60.0 | 6.0 | - | STEPDXF | 1-2 Weeks | $40.39 | ||
| E5522060 | 6.0 | 13.0 | 57.0 | 6.0 | - | STEPDXF | In stock | $27.57 | ||
| E5522070 | 7.0 | 16.0 | 63.0 | 8.0 | - | – | 1-2 Weeks | $56.20 | ||
| E5522080 | 8.0 | 19.0 | 63.0 | 8.0 | - | STEPDXF | In stock | $46.73 | ||
| E5522910 | 8.0 | 22.0 | 70.0 | 8.0 | - | STEPDXF | 1-2 Weeks | $56.70 | ||
| E5522911 | 8.0 | 30.0 | 80.0 | 8.0 | - | STEPDXF | 1-2 Weeks | $56.70 | ||
| E5522090 | 9.0 | 19.0 | 72.0 | 10.0 | - | – | 1-2 Weeks | $84.70 | ||
| E5522100 | 10.0 | 22.0 | 72.0 | 10.0 | - | STEPDXF | In stock | $51.20 | ||
| E5522912 | 10.0 | 27.0 | 75.0 | 10.0 | - | STEP | 1-2 Weeks | $62.10 | ||
| E5522913 | 10.0 | 35.0 | 90.0 | 10.0 | - | STEP | 1-2 Weeks | $62.10 | ||
| E5522110 | 11.0 | 26.0 | 83.0 | 12.0 | - | – | 1-2 Weeks | $118.70 | ||
| E5522120 | 12.0 | 26.0 | 83.0 | 12.0 | - | STEPDXF | In stock | $74.00 | ||
| E5522140 | 14.0 | 26.0 | 83.0 | 14.0 | - | STEPDXF | In stock | $78.17 | ||
| E5522160 | 16.0 | 32.0 | 92.0 | 16.0 | - | STEPDXF | In stock | $127.48 | ||
| E5522180 | 18.0 | 32.0 | 92.0 | 18.0 | - | STEPDXF | Low stock | $109.35 | ||
| E5522200 | 20.0 | 38.0 | 104.0 | 20.0 | - | STEPDXF | Low stock | $141.54 |
Add (E5522) Alu-Power Carbide 2Flute End Mill, Long Length, Plain Shank to comparison
View ComparisonYG-1 ALU-POWER E5522 is a long-length, plain-shank solid carbide end mill with two 45° helix flutes. Designed for aluminium and copper alloys, it provides excellent chip evacuation and surface finish. Mirror surface flutes support chip flow, while optimised cutting edges are intended for increased tool life. The cylindrical margin, eccentric primary relief and chip pocket geometry support the series design. Plain-shank sizes cover 3.0 to 20.0 mm mill diameters for varied milling requirements. Cutting lengths run from 8 to 38 mm, with overall lengths from 57 to 104 mm. The h5 shank tolerance is specified at zero to minus 0.015 mm.
| Cutting Shape | Square |
| Length | Long |
| No. Flutes | 2 |
| Tool Material | Carbide |
VDI 3323 recommendations for this tool.
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 21 | NWrought aluminium | Excellent | 60 | - |
| 22 | NWrought aluminium | Excellent | 100 | - |
| 23 | NCast aluminium | Excellent | 75 | - |
| 24 | NCast aluminium | Excellent | 90 | - |
| 25 | NCast aluminium | Good | 130 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
