Bandsaw Machine Semi-Automatic 90o with double vice

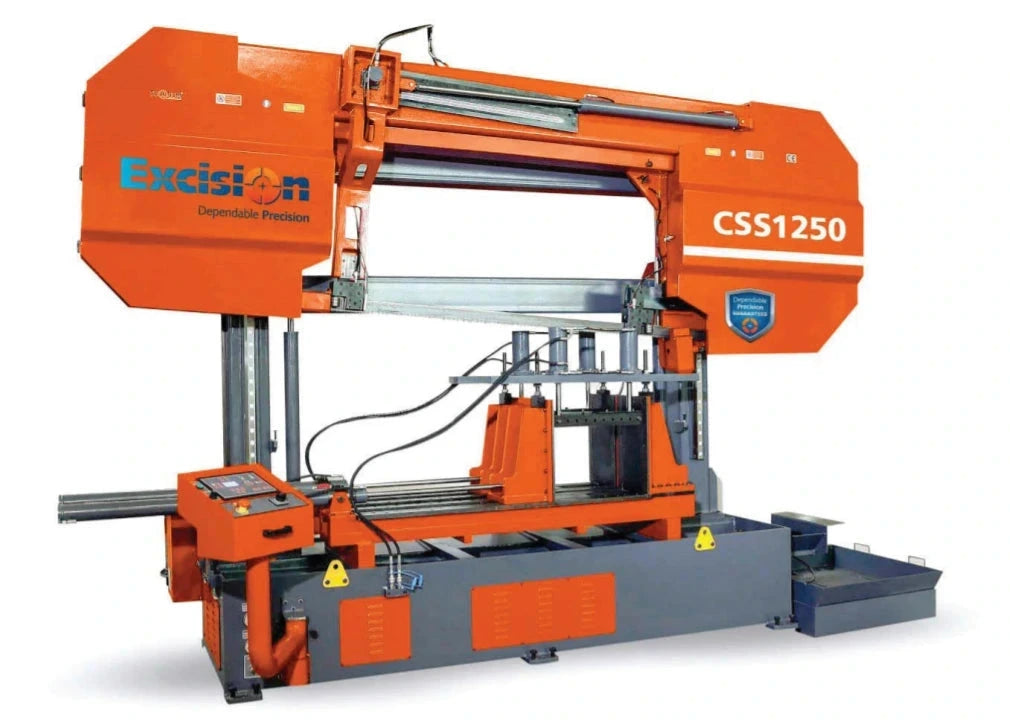

CSS1250 model is a semi automatic bandsaw machine with double column body design. The Machine is designed for straight cutting. Precision cutting capability has been gained with linear guides. Body up-down movements are done as hydraulic. The cut material can be easily tightened thanks to hydraulic vises. Feeding material is manual. The machine is controlled on digital control panel.
FEATURES:
- Inverter - Provides to adjust blade speed up to workpiece diameter, thickness and hardness.
- Blade Bedding - with Carbide and Bearings
- Swarf Brush - Removes swarfs to keep clean the wheels and blade.
- Bevel Helical Gearbox
Technical description:
- Main Motor: 7.5 kW
- Gearbox: Bevel Helical PKD 2390 High Efficiency
- Hydraulic Motor: 1.5 kW
- Coolant Motor: 0.25 kW
- Blade Speed: 25 - 90 m/min
- Blade Dimensions: 9,180 x 67 x 1.6mm
- Machine Weight: 7,500 kg
- Machine Dimensions: 1500W x 4400L x 2700H mm
- Table Working Height: 785mm
| Cutting Capacity | |||
|---|---|---|---|
| 0° | 845mm | 800mm | 1250mm |
| Brand | Excision |
| Capacity Rectangle | 800x1250mm |
| Capacity Round | 845mm |
| Capacity Square | 800mm |
| Category | Semi-Automatic |
| Power | 415V |
| Type | Semi-Automatic |
