New

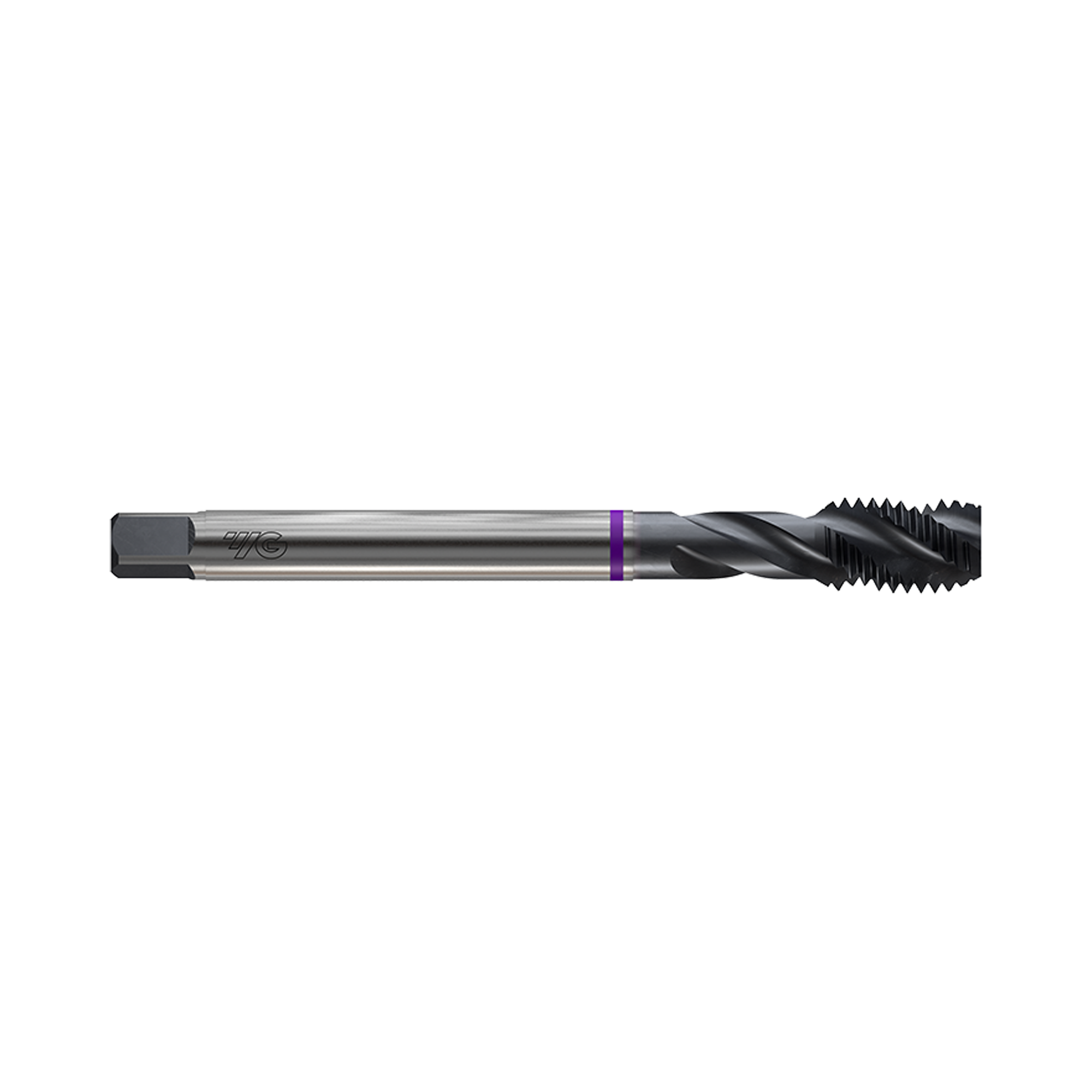

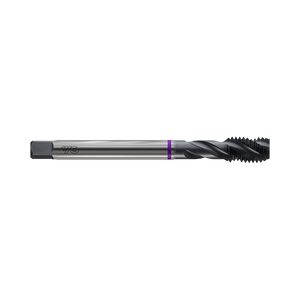

DIN371/DIN376 Spiral Flute Steam Homo(TQ833)

DIN371/DIN376 Spiral Flute Steam Homo(TQ833)
DIN371/DIN376 Spiral Flute Steam Homo(TQ833)
New

DIN371/DIN376 Spiral Flute Steam Homo(TQ833)

Product Code: TQ833

YG-1 LEGEND 6H Thread Class: 6H YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND M Thread Shape: M YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND STEAM HOMO Surface Treatment: Steam Oxide Coating YG-1 LEGEND HSS PM Tool Material: HSS PM YG-1 LEGEND DIN 371-376 Tool Standard: DIN 371-376 YG-1 LEGEND HELIX SQUARE 40 Helix Angle: Square 40°
Buy Local
  • Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
Product Data
Workpiece Material P S H
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Steam Oxide Coating
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape M
Tool Material HSS PM
Tool Standard DIN 371-376
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN376 Spiral Flute Steam Homo(TQ833) to comparison

View Comparison
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TQ833136 M2 0.4 8 45 13 2.8 2.1 5 3 TQ833156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TQ833176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TQ833206 M3 0.5 6 56 18 3.5 2.7 6 3 TQ833226 M3.5 0.6 7 56 20 4 3 6 3 TQ833246 M4 0.7 7 63 21 4.5 3.4 6 3 TQ833266 M4.5 0.75 8 70 25 6 4.9 8 3 TQ833286 M5 0.8 8 70 25 6 4.9 8 3 TQ833316 M6 1 10 80 30 6 4.9 8 3 TQ833346 M7 1 10 80 30 7 5.5 8 3 TQ833366 M8 1.25 13 90 35 8 6.2 9 3 TQ833426 M10 1.5 15 100 39 10 8 11 3 TQ833506 M12 1.75 18 110 44 9 7 10 3

Operation

Blind Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Great

Good Great Excellent
S Titanium

Excellent

Good Great Excellent
S Nickel

Great

Good Great Excellent
H Hardened Steels (HRc30~45)

Great

Good Great Excellent
