(TM933) HSS-PM, Metric Spiral Flute for Ni
Bright metric taps for nickel alloysCode: TM933136
-
Key Features
- Bright finish for nickel alloys and heat-resistant alloy steels
- ISO metric coarse thread form to DIN 13
- Metric sizes from M2 × 0.4 to M20 × 2.5
Made in South Korea
Nickel alloy application
Specified for tapping nickel alloys and heat-resistant alloy steels used in aerospace and chemical industry work.
Metric coarse coverage
Covers common ISO metric coarse threads from M2 × 0.4 through M20 × 2.5.
Series-specific formats
DIN 371 covers M2 to M10, with DIN 376 formats supplied in larger listed sizes.
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TM933136 | M2 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.6 | 5 days | $43.60 | ||
| TM933176 | M2.5 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.05 | 5 days | $36.20 | ||
| TM933206 | M3 | 0.5 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | 5 days | $29.10 | ||
| TM933246 | M4 | 0.7 | 7.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | 5 days | $29.90 | ||
| TM933286 | M5 | 0.8 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | 5 days | $31.50 | ||
| TM933316 | M6 | 1 | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | 5 days | $31.70 | ||
| TM933366 | M8 | 1.25 | 13.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.8 | 5 days | $42.00 | ||
| TM933426 | M10 | 1.5 | 15.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 3 | 8.5 | 5 days | $52.60 | ||
| TM933506 | M12 | 1.75 | 18.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | 5 days | $71.00 | ||
| TM933546 | M14 | 2 | 20.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | 5 days | $90.60 | ||
| TM933606 | M16 | 2 | 20.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 14.0 | 5 days | $113.90 | ||
| TM933706 | M20 | 2.5 | 25.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | 5 days | $187.80 |
Add (TM933) HSS-PM, Metric Spiral Flute for Ni to comparison
View Comparison- Overview
- Specifications
- Reviews

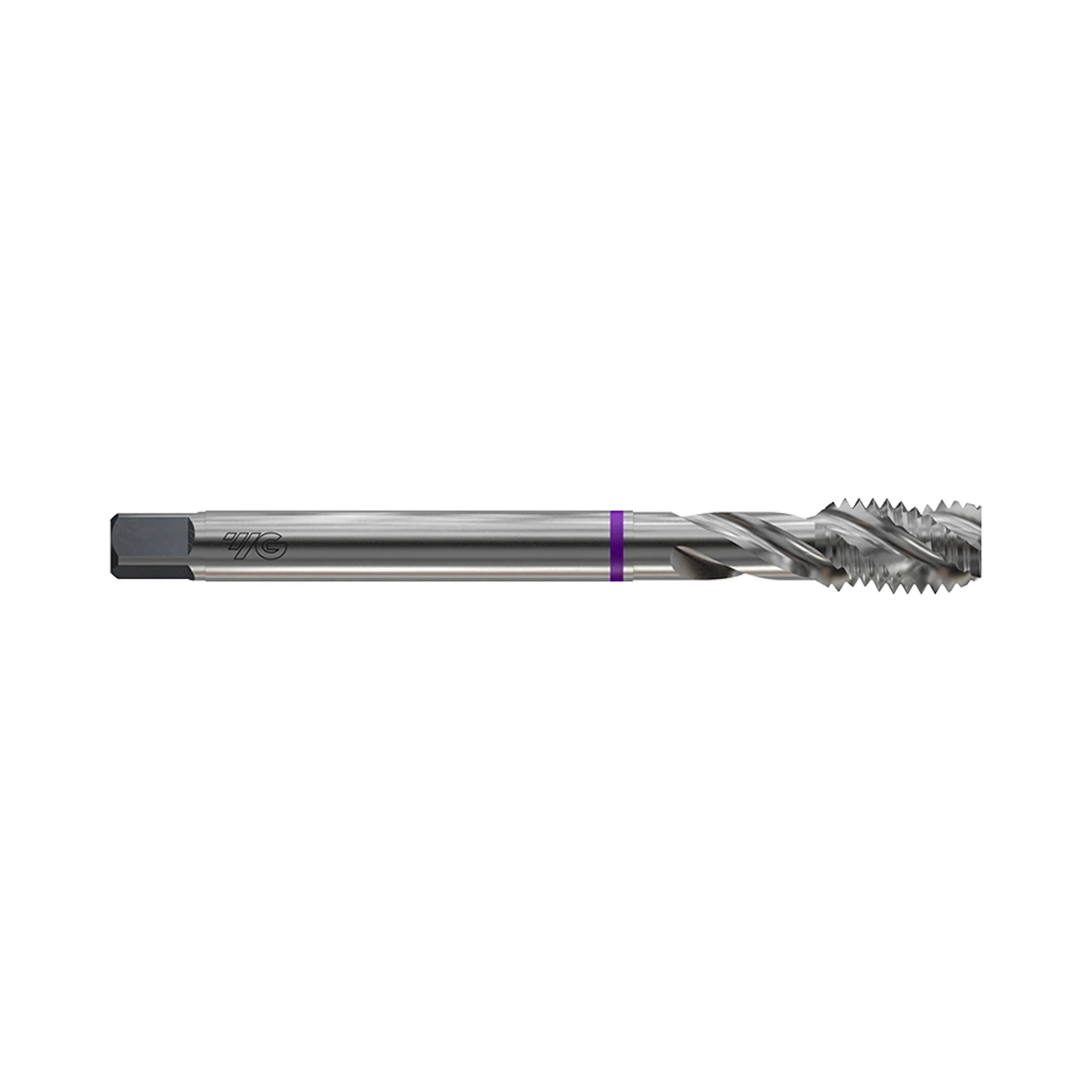

YG-1 TM933 is a bright metric spiral flute machine tap for nickel-alloy threading. Designed for internal ISO metric coarse threads, it taps nickel alloys and heat-resistant alloy steels. These materials are used in aerospace and chemical industry applications. The bright-finish range covers M2 × 0.4 through M20 × 2.5 metric coarse sizes. Sizes M2 to M10 use DIN 371, while supplied larger sizes use DIN 376. Each listed tap provides three flutes, except the M20 × 2.5 variant, which has four. The series supports machining where nickel alloy and heat-resistant alloy steel threads are required. Select the appropriate tap size and tapping drill diameter for the required thread.
- Bright finish for nickel alloys and heat-resistant alloy steels
- ISO metric coarse thread form to DIN 13
- Metric sizes from M2 × 0.4 to M20 × 2.5
- DIN 371 sizes from M2 to M10
- DIN 376 sizes from M12 to M20
- Three flutes on most sizes with four flutes on M20 × 2.5
