DIN374 Spiral Flute Bright (TC963)

DIN374 Spiral Flute Bright (TC963)
DIN374 Spiral Flute Bright (TC963)
New

DIN374 Spiral Flute Bright (TC963)

Product Code: TC963

YG-1 LEGEND 6H Thread Class: 6H YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND MF Thread Shape: MF YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND BRIGHT Surface Treatment: Bright YG-1 LEGEND HSS-E Tool Material: HSS-E YG-1 LEGEND DIN 374 Tool Standard: DIN 374 YG-1 LEGEND HELIX SQUARE 45 Helix Angle: Square 45°
Buy Local
  • Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
Product Data
Workpiece Material P N
Helix Angle Square 45
Operation Blind Drilling
Surface Treatment Bright
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape MF
Tool Material HSS-E
Tool Standard DIN 374
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN374 Spiral Flute Bright (TC963) to comparison

View Comparison
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TC963256 M4 0.5 5 63 21 2.8 2.1 5 3 TC963296 M5 0.5 5 70 25 3.5 2.7 6 3 TC963326 M6 0.75 8 80 30 4.5 3.4 6 3 TC963336 M6 0.5 5 80 30 4.5 3.4 6 3 TC963356 M7 0.75 10 80 30 5.5 4.3 7 3 TC963376 M8 1 10 90 36 6 4.9 8 3 TC963386 M8 0.75 8 80 30 6 4.9 8 3 TC963436 M10 1.25 16 100 40 7 5.5 8 3 TC963446 M10 1 10 90 36 7 5.5 8 3 TC963456 M10 0.75 10 90 36 7 5.5 8 3 TC963516 M12 1.5 15 100 40 9 7 10 3 TC963526 M12 1.25 15 100 40 9 7 10 3 TC963536 M12 1 11 100 40 9 7 10 3 TC963556 M14 1.5 15 100 40 11 9 12 3 TC963566 M14 1.25 15 100 40 11 9 12 3 TC963616 M16 1.5 15 100 40 12 9 12 3 TC963676 M18 1.5 17 110 44 14 11 14 4 TC963726 M20 1.5 17 125 50 16 12 15 4 TC963766 M22 1.5 17 125 50 18 14.5 17 4 TC963806 M24 1.5 20 140 54 18 14.5 17 4

Operation

Blind Drilling

Work Material

P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
N Bronze

Great

Good Great Excellent
N Copper

Great

Good Great Excellent
N Plastic

Great

Good Great Excellent

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand

View the range

YG TAP ALU

You Might Also Like

New
DIN371/DIN376 Straight Flute TiAlN (TY433) DIN371/DIN376 Straight Flute TiAlN (TY433)

DIN371/DIN376 Straight Flute TiAlN (TY433)

TY433

YG-1 LEGEND 6H YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND TiAIN YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376
View Comparison
New
Excision

DIN371/DIN376 Spiral Flute Nitride (TE953)

TE953

YG-1 LEGEND 6H YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New
DIN371/DIN376 Straight Flute Nitride_Steam Homo (TE443) DIN371/DIN376 Straight Flute Nitride_Steam Homo (TE443)

DIN371/DIN376 Straight Flute Nitride_Steam Homo (TE443)

TE443

YG-1 LEGEND 6HX YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND NITRIDE STEAM HOMO YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376
View Comparison
New
DIN371/DIN376 Straight Flute Bright (TC433) DIN371/DIN376 Straight Flute Bright (TC433)

DIN371/DIN376 Straight Flute Bright (TC433)

TC433

YG-1 LEGEND 6H YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND BRIGHT YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376
View Comparison
New
DIN371/DIN374 Spiral Flute Bright (TC170) DIN371/DIN374 Spiral Flute Bright (TC170)

DIN371/DIN374 Spiral Flute Bright (TC170)

TC170

YG-1 LEGEND FORM C YG-1 LEGEND UNF YG-1 LEGEND 60° YG-1 LEGEND BRIGHT YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-374 YG-1 LEGEND HELIX SQUARE 45
View Comparison
New

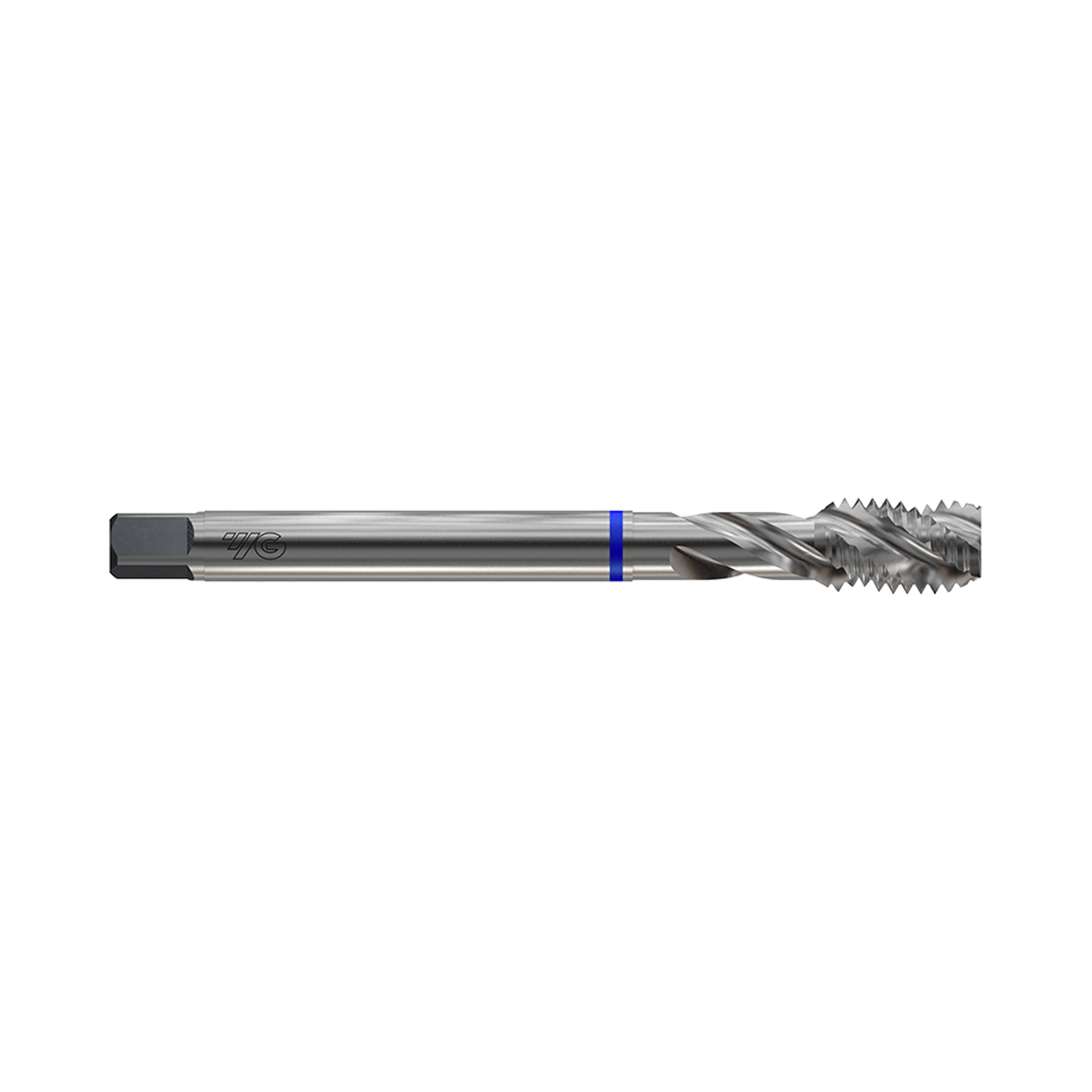

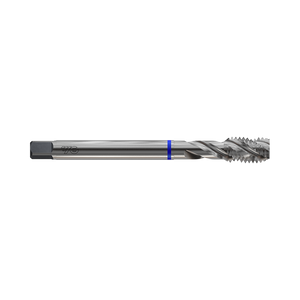

DIN371/DIN376 Spiral Flute Bright (TC163) DIN371/DIN376 Spiral Flute Bright (TC163)
