(G9D67) X-Speed rougher, 4&5Flute Multiple Helix Corner Radius Roughing End Mill, Short Length, Flat

Short-Length Carbide X-Coated Roughing End Mill

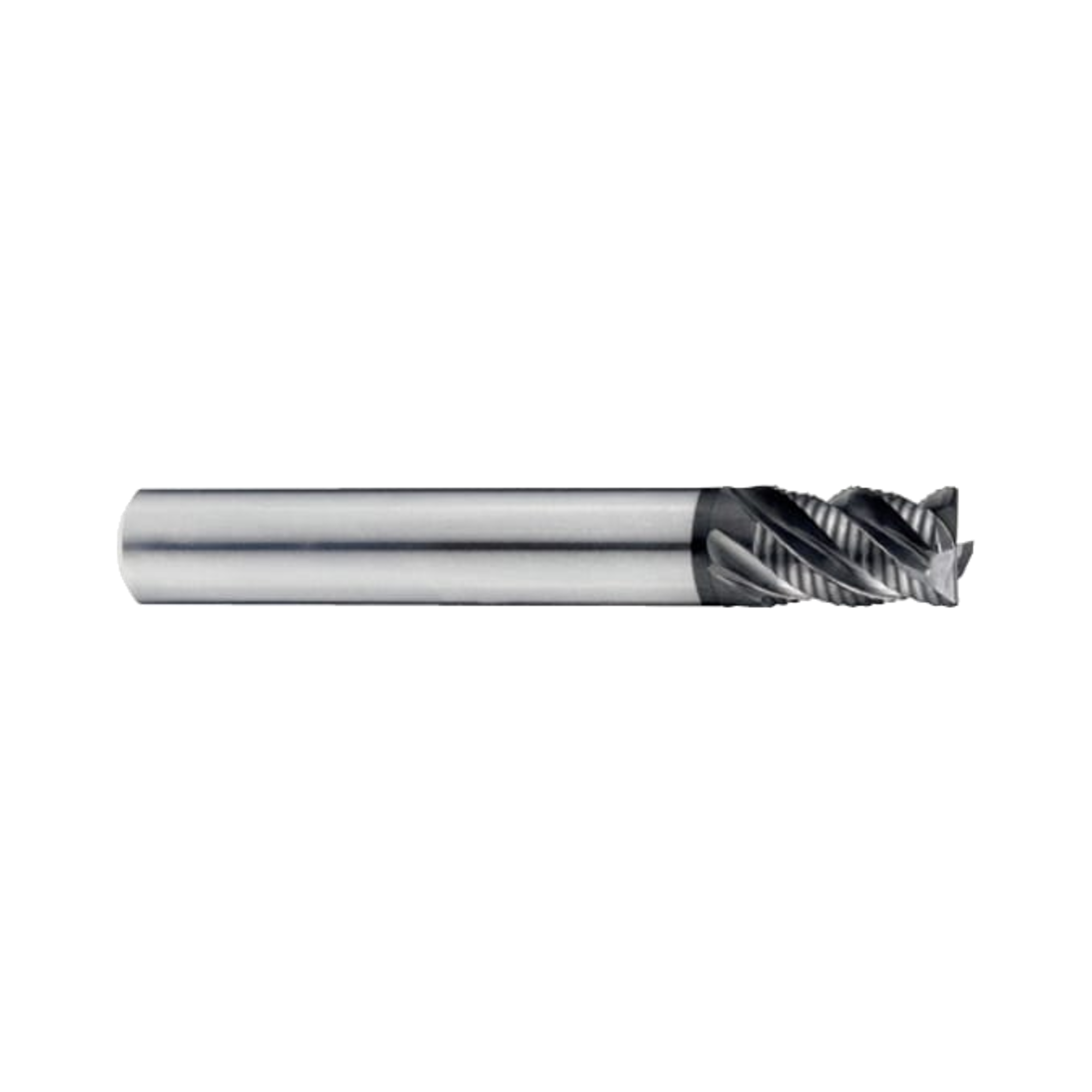

YG-1 G9D67 official product photograph · transparent
$116.05 INC GST $105.50 EX GST
SKU
G9D67060
Work materials
PKH

Key features

  • Carbide X Coating supports long tool life and chip evacuation
  • Four flute geometry in 6 to 12 mm diameters
  • Five flute geometry in 16 and 20 mm diameters
Mill Diameter (mm)
Corner Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Efficient chip control

Unique flute geometry helps evacuate chips and reduce vibration during demanding roughing.

Reduced cutting forces

The optimised roughing tooth profile is designed to reduce cutting forces.

Plunge and pocket milling

Strong end teeth support plunge and pocket milling operations.

SKUMill Diameter (mm)Corner Radius (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)Stock Price Qty Add
G9D670606.0R0.5057.06.049.0 1-2 Weeks $105.50
G9D670808.0R0.5063.08.0412.0 1-2 Weeks $120.10
G9D6710010.0R0.5072.010.0415.0 1-2 Weeks $177.60
G9D6712012.0R0.5083.012.0418.0 1-2 Weeks $249.60
G9D6716016.0R1.092.016.0524.0 1-2 Weeks $356.60
G9D6720020.0R1.0104.020.0530.0 1-2 Weeks $575.60

Add (G9D67) X-Speed rougher, 4&5Flute Multiple Helix Corner Radius Roughing End Mill, Short Length, Flat to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 G9D67 X-Speed Rougher is a carbide corner-radius roughing end mill with X Coating. Its short-length flat-shank design supports high-feed heavy cutting, plunge milling and pocket milling. Multiple-helix geometry uses four flutes from 6 to 12 mm diameters. Larger 16 and 20 mm tools use five flutes for robust roughing operations. A unique flute design promotes chip evacuation while helping reduce vibration during machining. The optimal roughing tooth profile is designed to reduce cutting forces. Strong end teeth support controlled entry for plunge and pocket milling applications. The series offers 6 to 20 mm cutting diameters with R0.5 and R1.0 corner radii.

  • Carbide X Coating supports long tool life and chip evacuation
  • Four flute geometry in 6 to 12 mm diameters
  • Five flute geometry in 16 and 20 mm diameters
  • 44° to 45° multiple helix geometry
  • Short length design with flat shank
  • R0.5 and R1.0 corner radius options
Product Data
Cutting Shape Corner Radius
Length Short
No. Flutes 5
EDP No. Radius Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9D67060 R0.50 6 6 9 57 0~-0.050 h5 4 G9D67060 R0.50 6 6 9 57 0~-0.050 h5 4 G9D67080 R0.50 8 8 12 63 0~-0.050 h5 4 G9D67080 R0.50 8 8 12 63 0~-0.050 h5 4 G9D67100 R0.50 10 10 15 72 0~-0.050 h5 4 G9D67100 R0.50 10 10 15 72 0~-0.050 h5 4 G9D67120 R0.50 12 12 18 83 0~-0.050 h5 4 G9D67120 R0.50 12 12 18 83 0~-0.050 h5 4 G9D67160 R1.0 16 16 24 92 0~-0.050 h5 5 G9D67160 R1.0 16 16 24 92 0~-0.050 h5 5 G9D67200 R1.0 20 20 30 104 0~-0.050 h5 5 G9D67200 R1.0 20 20 30 104 0~-0.050 h5 5

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 4–5
GoodVDI 1–3
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Hardened materials

3 grades
Hardened steel
GoodVDI 38
Chilled cast iron
ExcellentVDI 40
Hardened cast iron
GoodVDI 41

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20
VDI grade reference20 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelGood25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
38HHardened steelGood55055
40HChilled cast ironExcellent40042
41HHardened cast ironGood55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
