HIGH FEED 4 Flute 0°Helix Stub Corner Radius Mill (G8B59)

High Feed Corner Radius for HRc45–70

HIGH FEED 4 Flute 0°Helix Stub Corner Radius Mill (G8B59)
$97.97 INC GST $89.07 EX GST
SKU
G8B5902005
Work materials
PH

Key features

  • Use hydraulic, shrink, HP3/GSK, or power milling chucks
  • Heat resistance to 1400°
  • Strong negative land for high hardness machining
Tool material Carbide
Surface treatment Blue
Mill Diameter (mm)
Corner Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

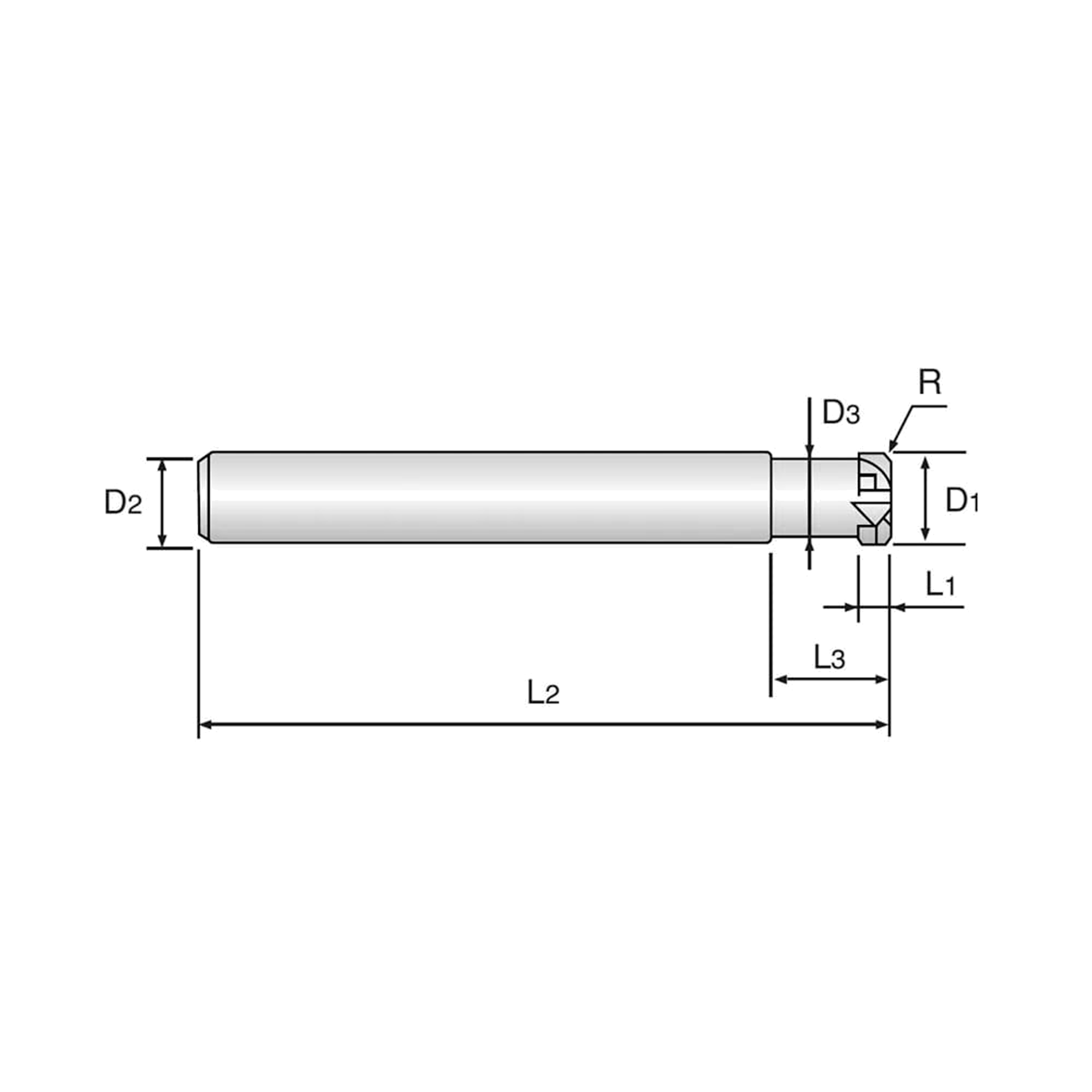

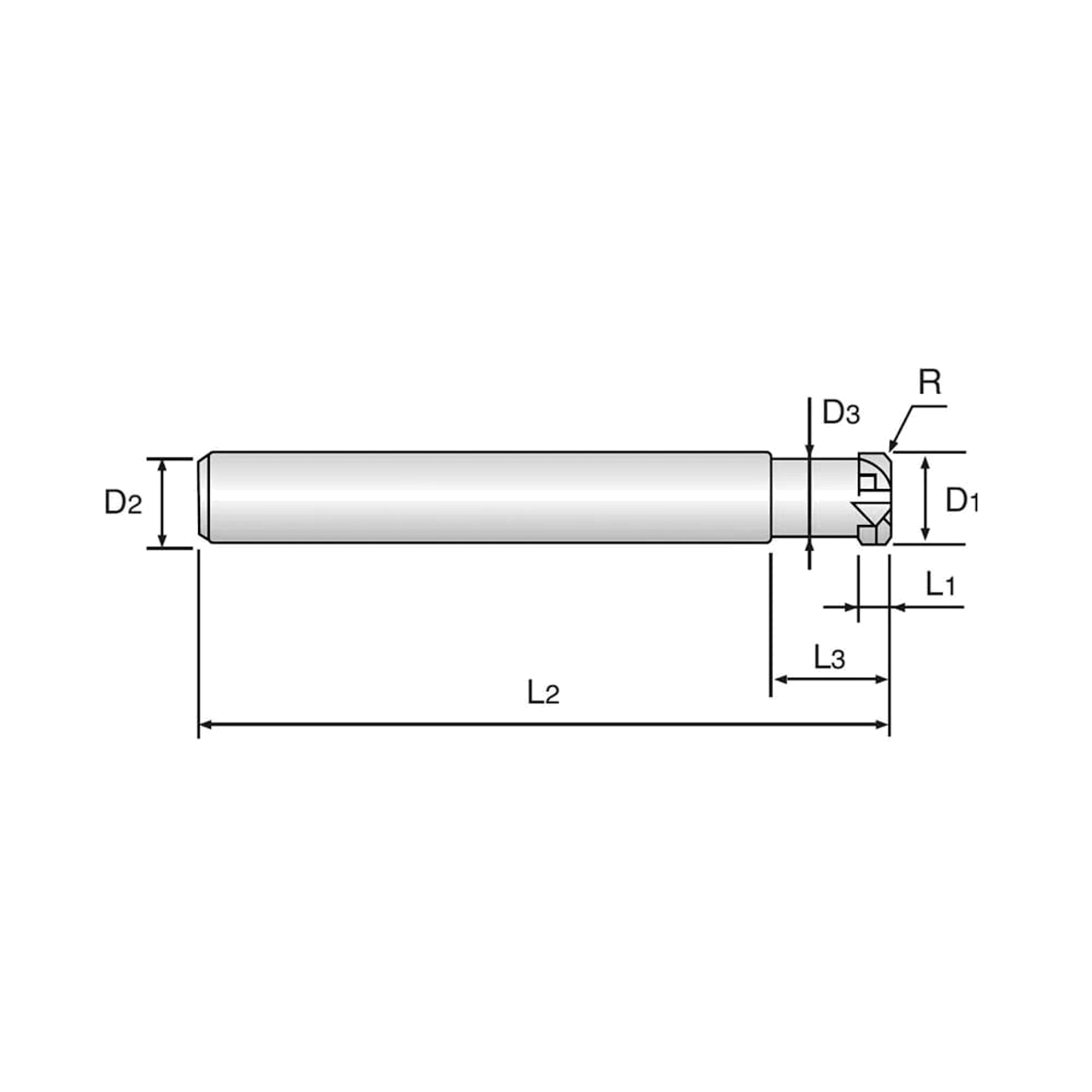

SKUMill Diameter (mm)Corner Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Length below shank (mm)Neck dia. (mm)CAD filesStock Price Qty Add
G8B59020052.0R0.550.06.01.06.01.8STEPDXF 1-2 Weeks $89.07
G8B59030053.0R0.550.06.01.28.02.8STEPDXF 1-2 Weeks $89.07
G8B59040054.0R0.550.06.01.510.03.8STEPDXF In stock $73.51
G8B59060056.0R0.560.06.02.512.05.4STEPDXF Low stock $89.10
G8B59060106.0R1.060.06.02.512.05.4STEPDXF In stock $64.86
G8B59080108.0R1.060.08.03.516.07.2STEPDXF 1-2 Weeks $113.90
G8B59080208.0R2.060.08.03.516.07.2STEPDXF 1-2 Weeks $136.80
G8B591001010.0R1.070.010.04.020.09.0STEPDXF Low stock $90.74
G8B591002010.0R2.070.010.04.020.09.0STEPDXF 1-2 Weeks $123.73
G8B591202012.0R2.080.012.05.025.011.0STEPDXF 1-2 Weeks $234.70
G8B591203012.0R3.080.012.05.025.011.0STEPDXF Low stock $125.32

Add HIGH FEED 4 Flute 0°Helix Stub Corner Radius Mill (G8B59) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

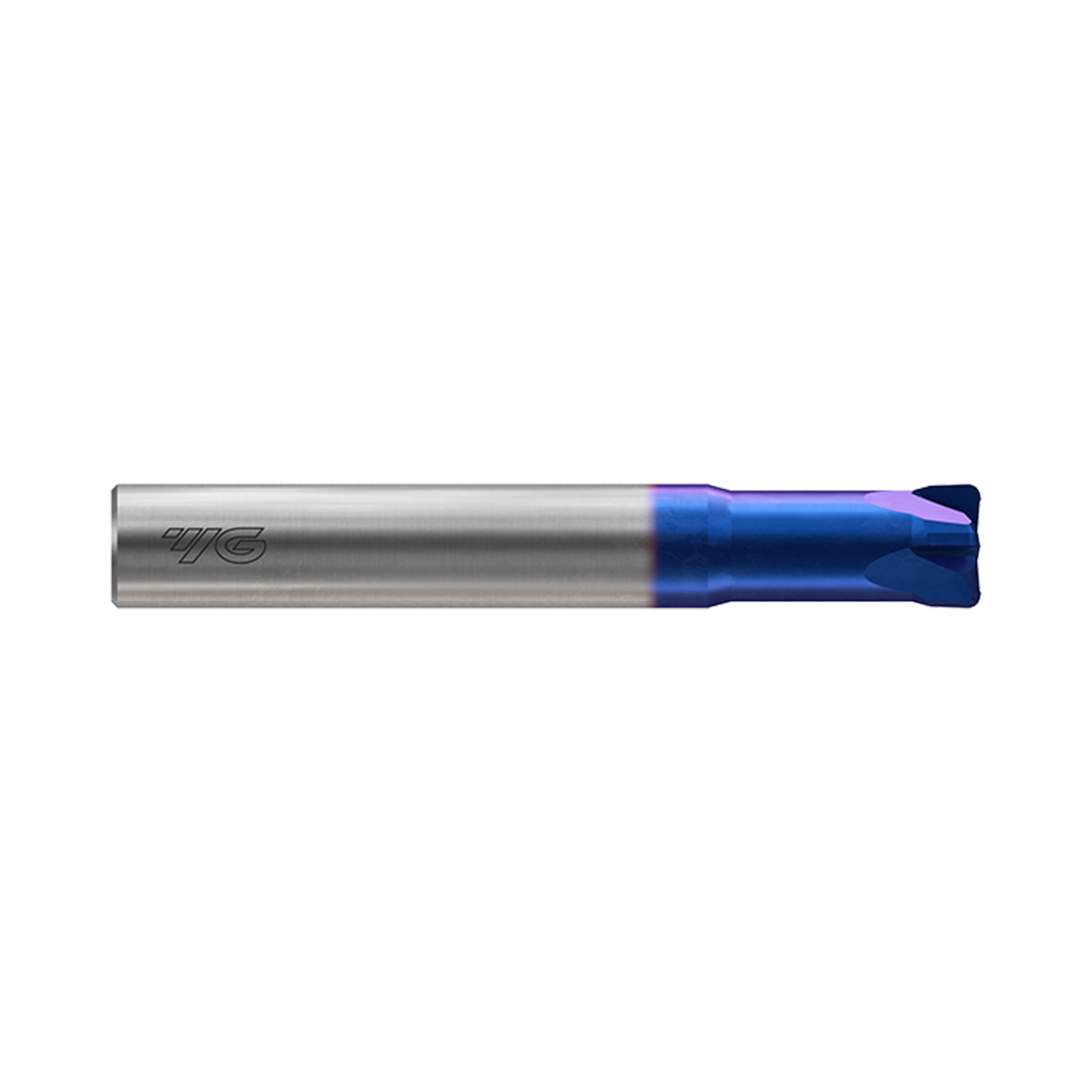

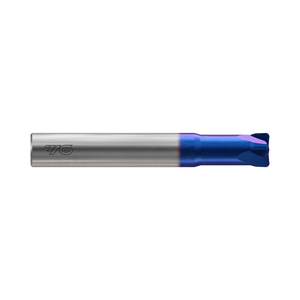

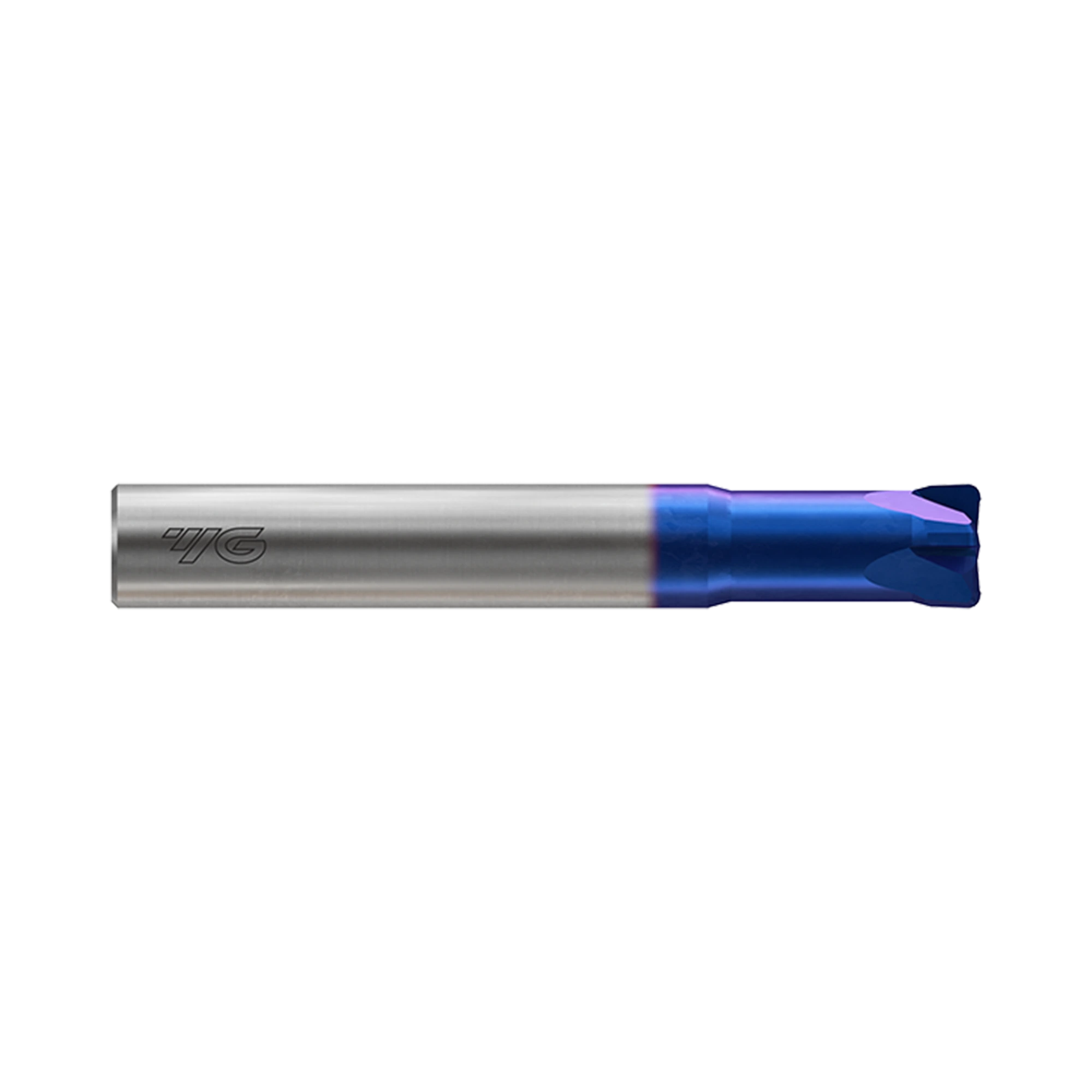

The YG-1 G8B59 X5070 Blue cutter is a 4 flute 0°Helix stub corner radius mill. Special high feed geometry delivers very high metal removal on prehardened and hardened steels. Nanograin carbide with silicone based coating supports dry machining to 1400°c and HRc70. Reduced clearance angles and short flutes increase strength for high speed roughing and finishing.

  • Use hydraulic, shrink, HP3/GSK, or power milling chucks
  • Heat resistance to 1400°
  • Strong negative land for high hardness machining
  • High abrasion resistance and mirror surface finish
  • Diameters 2mm–12mm
Product Data
Workpiece Material P H
Corner Radius Tolerance 0.005, ±0.005
Cutting Shape Corner Radius, Roughing
Hardened Steels(HRc40~45) Great
Helix Angle 0°, Square 0
Length Regular
No. Flutes 4
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment Blue, YG-1 Blue Coating
Tool Material Carbide
Flutes 4
Helix Angle 0°
Cutting Edge Shape Corner Radius
Size Min D2.0
Size Max D12.0
Length

High Feed
Coating Blue Coating

Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

4 grades
Non-alloy steel
GoodVDI 5
Low-alloy steel
GoodVDI 8–9
High-alloy and tool steel
GoodVDI 11

Hardened materials

4 grades
Hardened steel
ExcellentVDI 38–39
Chilled cast iron
GoodVDI 40
Hardened cast iron
ExcellentVDI 41
VDI grade reference8 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
5PNon-alloy steelGood30032
8PLow-alloy steelGood30032
9PLow-alloy steelGood35038
11PHigh-alloy and tool steelGood32535
38HHardened steelExcellent55055
39HHardened steelExcellent63060
40HChilled cast ironGood40042
41HHardened cast ironExcellent55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
