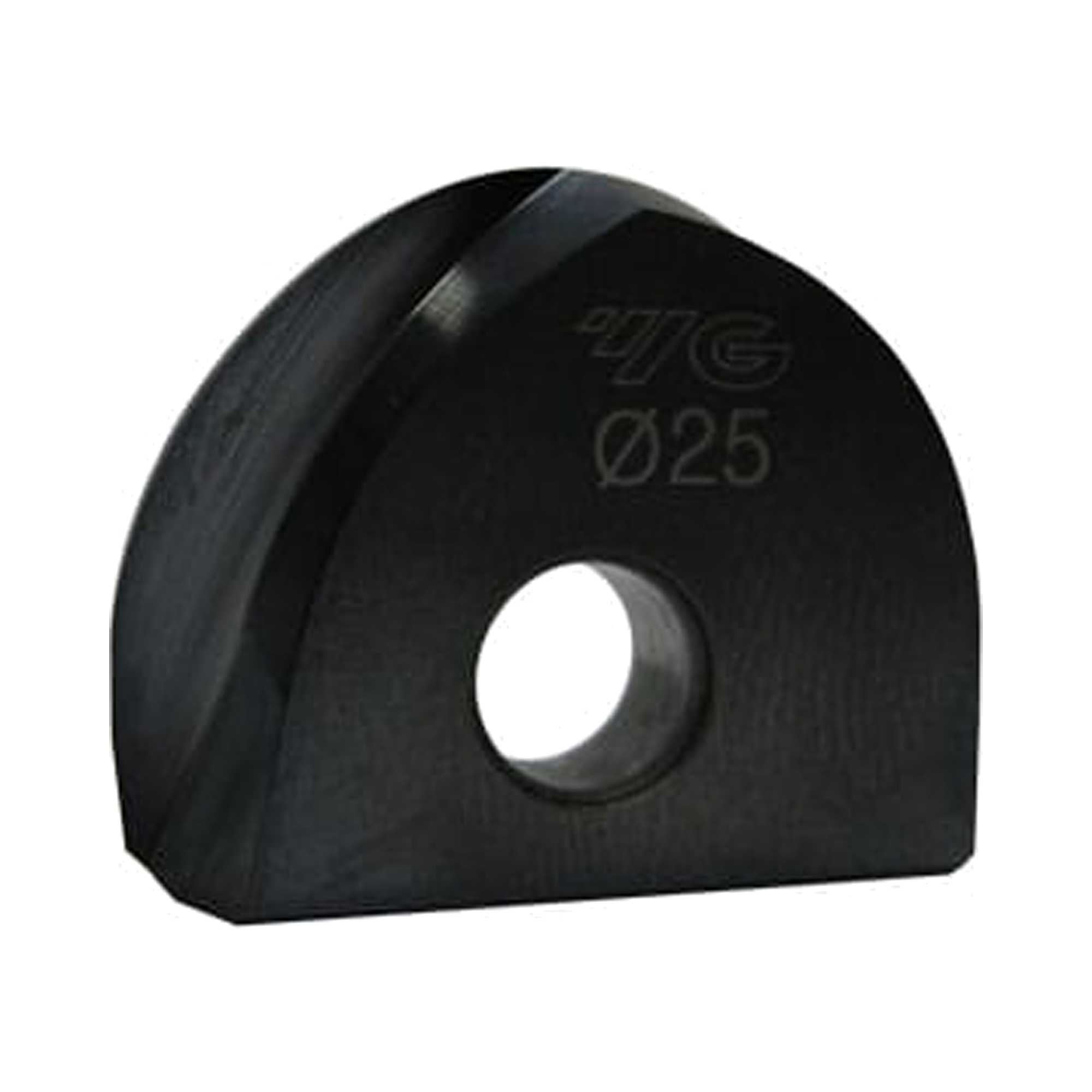

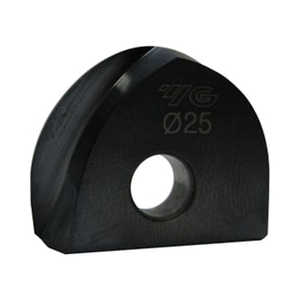

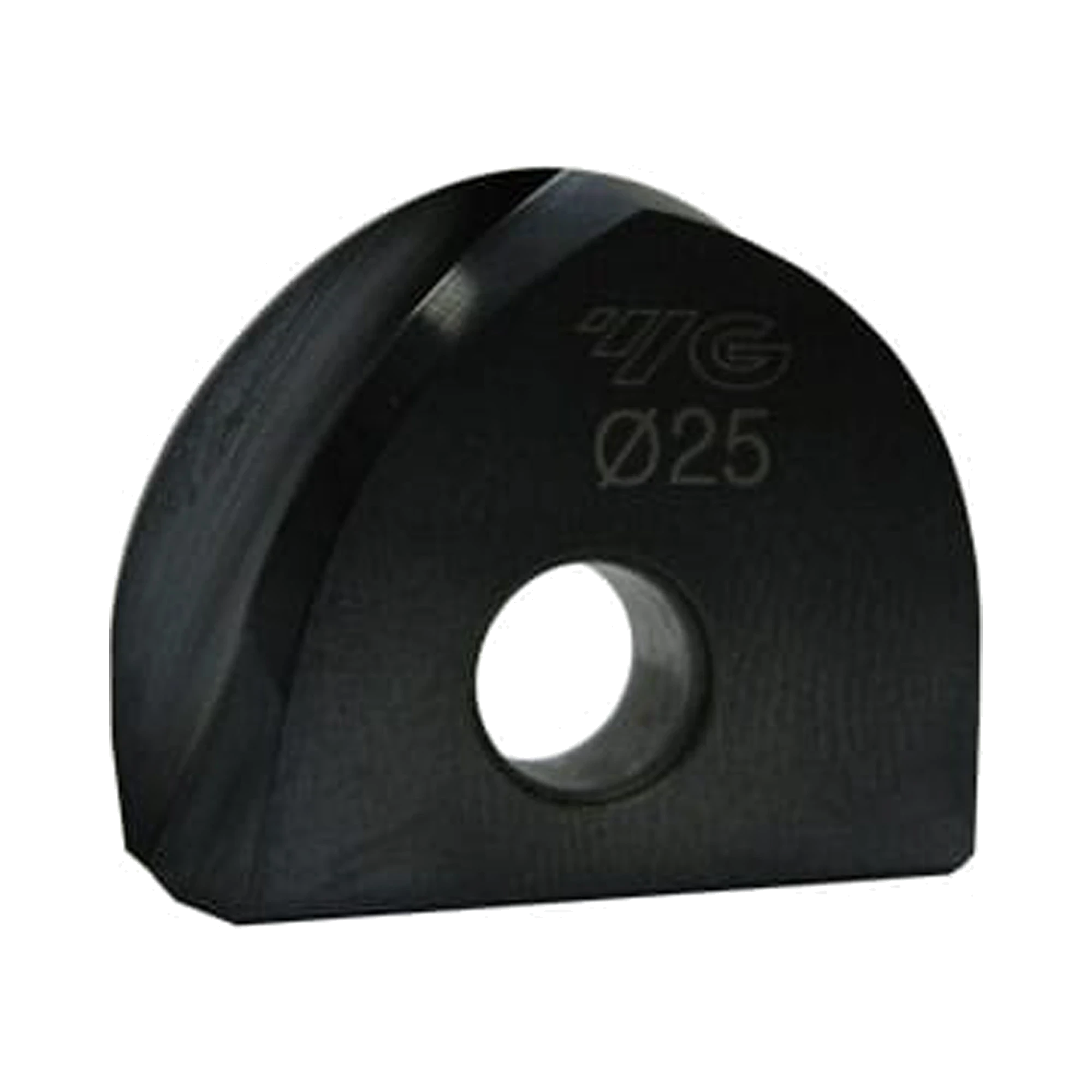

i-Xmill Ball Insert for General Purpose End Mill (XMB110A)

  • $43.89INC GST $39.90 EX GST
i-Xmill Ball Insert for General Purpose End Mill (XMB110A)
i-Xmill Ball Insert for General Purpose End Mill (XMB110A)

i-Xmill Ball Insert for General Purpose End Mill (XMB110A)

  • $43.89INC GST $39.90 EX GST

Code: XMB110A080

P
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-Xmill Ball Insert for General Purpose End Mill (XMB110A) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Indexable Ball End Mill for economic use
  • Three Types of Inserts are available
    1. For General Purpose (~HRc50)
    2. For Hardened Material (HRc40~HRc65)
    3. For Graphite
  • Special Geometry and extremely abrasive resistant Coating for Excellent Performance

Product Data
Workpiece Material P
Ball Radius Tolerance 0.01
Cutting Shape Ball Nose
No. Flutes 2
Operation Facing, Profiling, Small Part
Surface Treatment Aluminium Titanium Nitride Coating
Tool Material NG HM
Flutes 2
Helix Angle -
Cutting Edge Shape BALL NOSE
Size Min R4.0
Size Max R16.5
Length -
Coating AlTiN

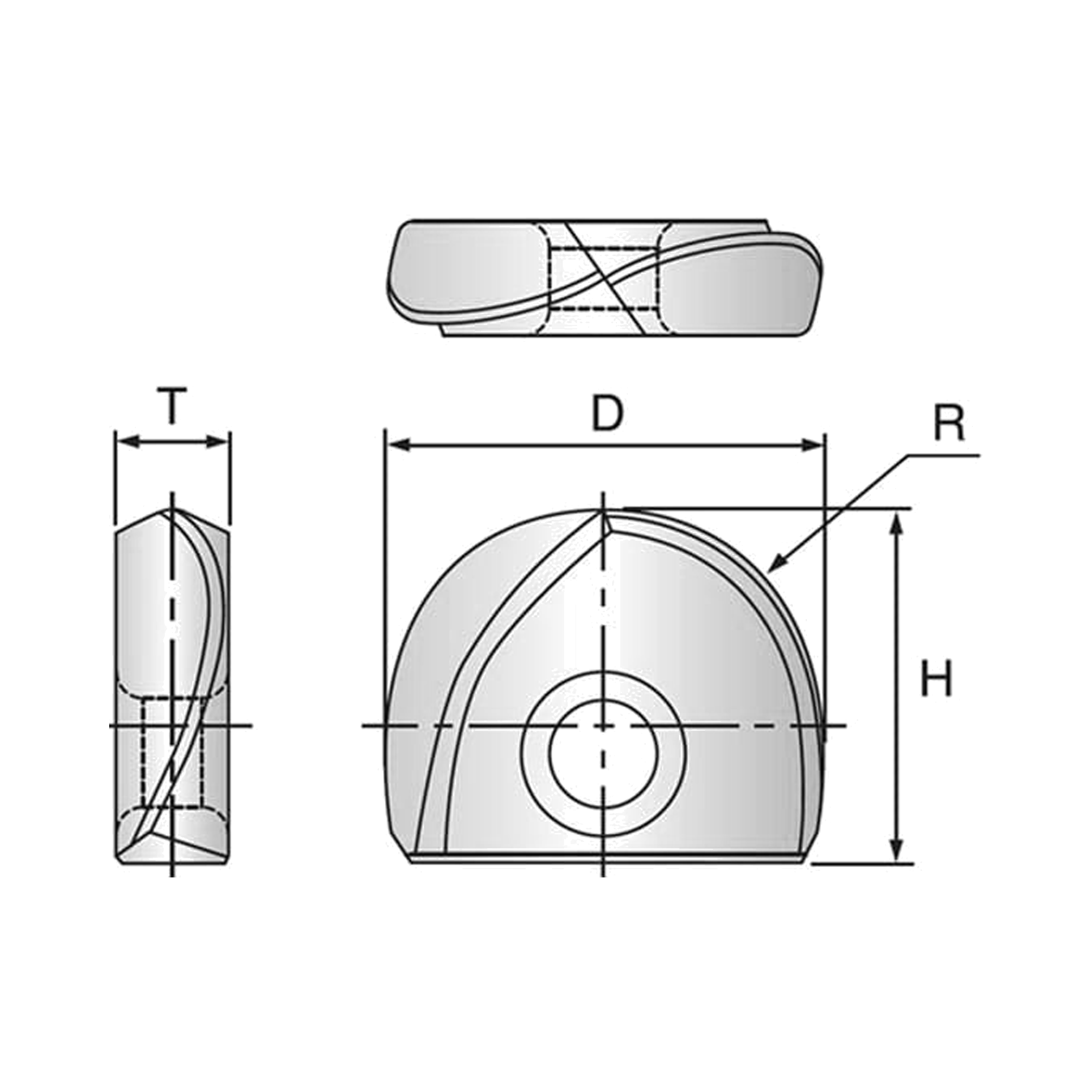

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMB110A080 8 R4.0 8 2.4 2 XMB110A100 10 R5.0 9.5 2.7 2 XMB110A110 11 R5.5 10 2.7 2 XMB110A120 12 R6.0 11 3.2 2 XMB110A130 13 R6.5 11.5 3.2 2 XMB110A160 16 R8.0 13 4.2 2 XMB110A170 17 R8.5 13.5 4.2 2 XMB110A200 20 R10.0 16 5.2 2 XMB110A210 21 R10.5 16.5 5.2 2 XMB110A250 25 R12.5 19.5 6.2 2 XMB110A260 26 R13.0 20 6.2 2 XMB110A300 30 R15.0 23.5 7.2 2 XMB110A320 32 R16.0 24.5 7.2 2 XMB110A330 33 R16.5 25 7.2 2
Profiling
Small Part
Facing
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMB110A080 8 R4.0 8 2.4 2 XMB110A100 10 R5.0 9.5 2.7 2 XMB110A110 11 R5.5 10 2.7 2 XMB110A120 12 R6.0 11 3.2 2 XMB110A130 13 R6.5 11.5 3.2 2 XMB110A160 16 R8.0 13 4.2 2 XMB110A170 17 R8.5 13.5 4.2 2 XMB110A200 20 R10.0 16 5.2 2 XMB110A210 21 R10.5 16.5 5.2 2 XMB110A250 25 R12.5 19.5 6.2 2 XMB110A260 26 R13.0 20 6.2 2 XMB110A300 30 R15.0 23.5 7.2 2 XMB110A320 32 R16.0 24.5 7.2 2 XMB110A330 33 R16.5 25 7.2 2
