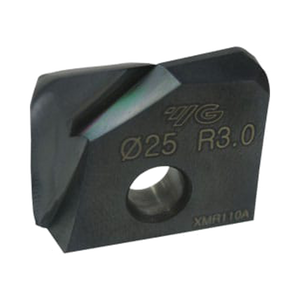

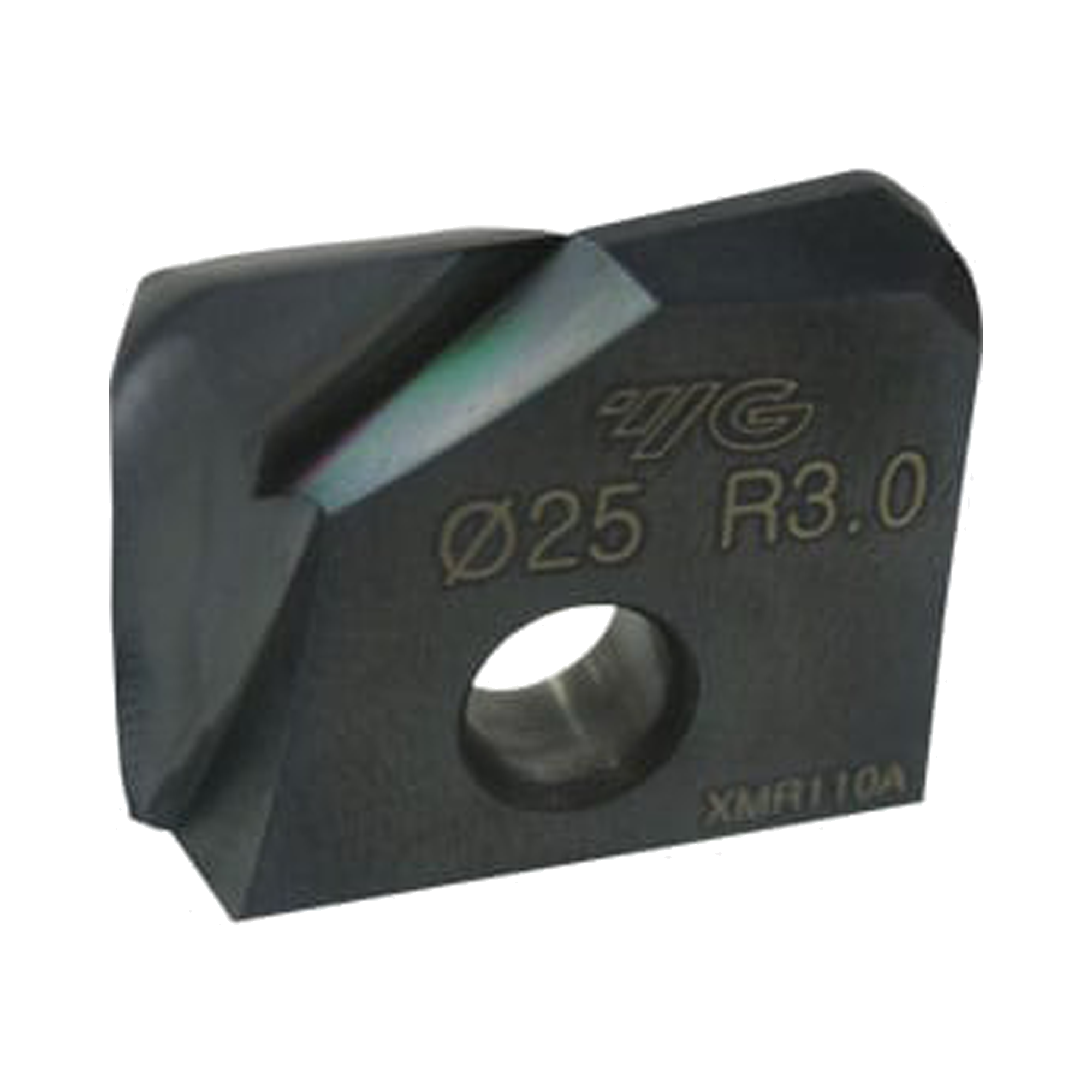

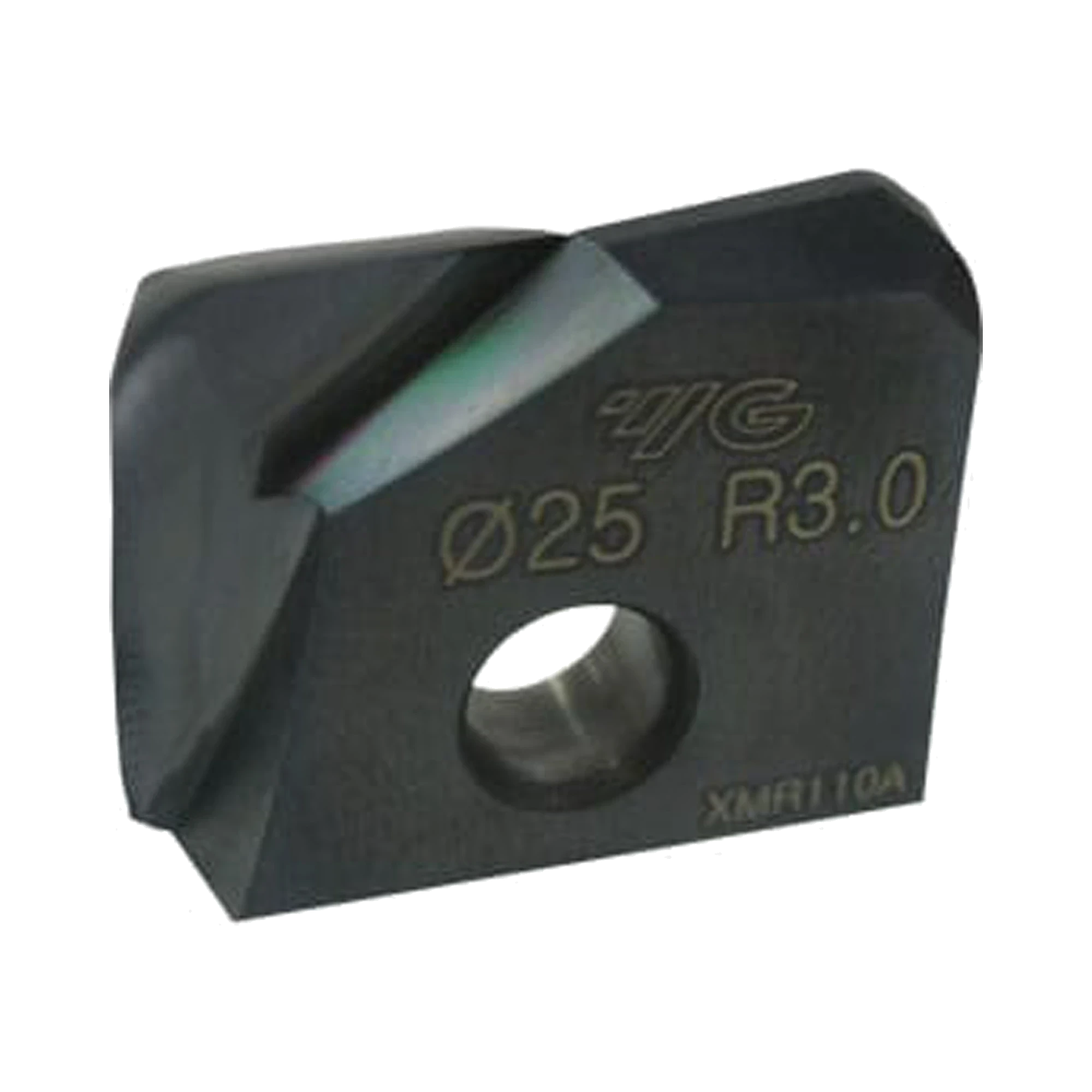

i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110A)

$0.00 INC GST $0.00 EX GST Price available on request

SKU: XMR110A-1

Work materials

Tool material NG HM

Surface treatment Aluminium Titanium Nitride Coating

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add i-Xmill Corner Radius Insert for General Purpose End Mill (XMR110A) to comparison

View Comparison

Application

Product Description

The optimum geometry of the tool to achieve the better reliability and less vibration and cutting load.
Interchangeability with i-Xmill ball holder, but the precise cutting is possible with i-Xmill corner radius holder due to higher stability and strength of tool.
The various and wide cutting range makes it possible to machine over the roughing and finishing.
Special coating makes high hardness with high thermal stability against oxidation.

Product Data

Workpiece Material	P M
Corner Radius Tolerance	0.015
Cutting Shape	Roughing
No. Flutes	2
Operation	Facing, Side Milling, Small Part
Surface Treatment	Aluminium Titanium Nitride Coating
Tool Material	NG HM

Flutes	2
Helix Angle	-
Cutting Edge Shape	CORNER RADIUS
Size Min	D8.0
Size Max	D33.0
Length	-
Coating	AlTiN

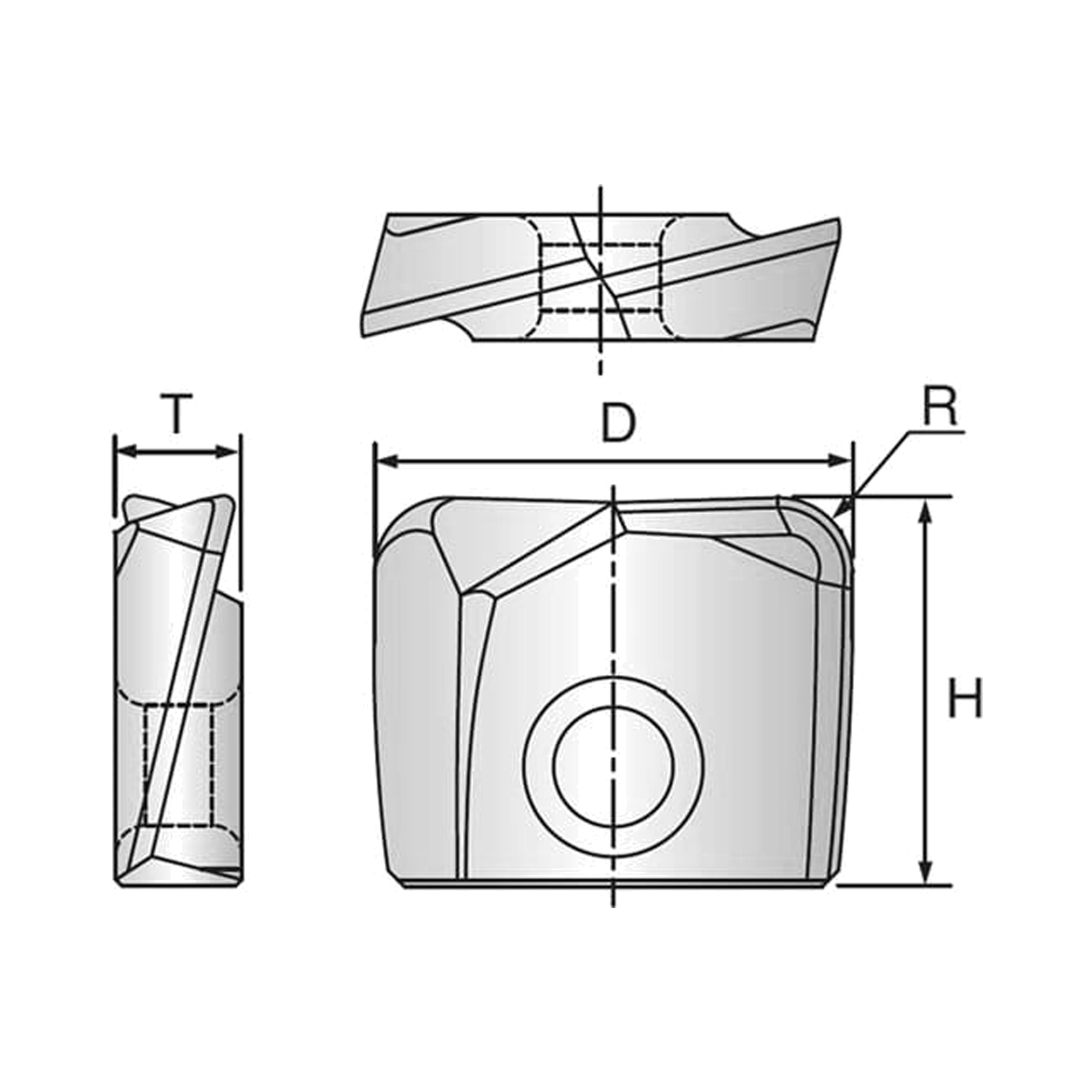

EDP No. Mill Diameter (D) Radius Overall Length Thickness No. of Flute XMR110A08003 8 R0.30 8 2.4 2 XMR110A08005 8 R0.50 8 2.4 2 XMR110A08010 8 R1.0 8 2.4 2 XMR110A08020 8 R2.0 2.4 2 XMR110A10003 10 R0.30 9.5 2.7 2 XMR110A10005 10 R0.50 9.5 2.7 2 XMR110A10010 10 R1.0 9.5 2.7 2 XMR110A10015 10 R1.5 9.5 2.7 2 XMR110A10020 10 R2.0 9.5 2.7 2 XMR110A10030 10 R3.0 9.5 2.7 2 XMR110A11003 11 R0.30 9.5 2.7 2 XMR110A11005 11 R0.50 9.5 2.7 2 XMR110A11010 11 R1.0 9.5 2.7 2 XMR110A11015 11 R1.5 9.5 2.7 2 XMR110A11020 11 R2.0 9.5 2.7 2 XMR110A11030 11 R3.0 9.5 2.7 2 XMR110A12003 12 R0.30 11 3.2 2 XMR110A12005 12 R0.50 11 3.2 2 XMR110A12010 12 R1.0 11 3.2 2 XMR110A12015 12 R1.5 11 3.2 2 XMR110A12020 12 R2.0 11 3.2 2 XMR110A12030 12 R3.0 11 3.2 2 XMR110A13003 13 R0.30 11.2 3.2 2 XMR110A13005 13 R0.50 11.2 3.2 2 XMR110A13010 13 R1.0 11.2 3.2 2 XMR110A13015 13 R1.5 11.2 3.2 2 XMR110A13020 13 R2.0 11.2 3.2 2 XMR110A13030 13 R3.0 11.2 3.2 2 XMR110A16003 16 R0.30 13 4.2 2 XMR110A16005 16 R0.50 13 4.2 2 XMR110A16010 16 R1.0 13 4.2 2 XMR110A16015 16 R1.5 13 4.2 2 XMR110A16020 16 R2.0 13 4.2 2 XMR110A16030 16 R3.0 13 4.2 2 XMR110A17003 17 R0.30 13 4.2 2 XMR110A17005 17 R0.50 13 4.2 2 XMR110A17010 17 R1.0 13 4.2 2 XMR110A17015 17 R1.5 13 4.2 2 XMR110A17020 17 R2.0 13 4.2 2 XMR110A17030 17 R3.0 13 4.2 2 XMR110A20003 20 R0.30 16 5.2 2 XMR110A20005 20 R0.50 16 5.2 2 XMR110A20010 20 R1.0 16 5.2 2 XMR110A20015 20 R1.5 16 5.2 2 XMR110A20020 20 R2.0 16 5.2 2 XMR110A20030 20 R3.0 16 5.2 2 XMR110A21003 21 R0.30 16 5.2 2 XMR110A21005 21 R0.50 16 5.2 2 XMR110A21010 21 R1.0 16 5.2 2 XMR110A21015 21 R1.5 16 5.2 2 XMR110A21020 21 R2.0 16 5.2 2 XMR110A21030 21 R3.0 16 5.2 2 XMR110A25003 25 R0.30 19.5 6.2 2 XMR110A25005 25 R0.50 19.5 6.2 2 XMR110A25010 25 R1.0 19.5 6.2 2 XMR110A25015 25 R1.5 19.5 6.2 2 XMR110A25020 25 R2.0 19.5 6.2 2 XMR110A25030 25 R3.0 19.5 6.2 2 XMR110A26003 26 R0.30 19.5 6.2 2 XMR110A26005 26 R0.50 19.5 6.2 2 XMR110A26010 26 R1.0 19.5 6.2 2 XMR110A26015 26 R1.5 19.5 6.2 2 XMR110A26020 26 R2.0 19.5 6.2 2 XMR110A26030 26 R3.0 19.5 6.2 2 XMR110A30003 30 R0.30 23.5 7.2 2 XMR110A30005 30 R0.50 23.5 7.2 2 XMR110A30010 30 R1.0 23.5 7.2 2 XMR110A30015 30 R1.5 23.5 7.2 2 XMR110A30020 30 R2.0 23.5 7.2 2 XMR110A30030 30 R3.0 23.5 7.2 2 XMR110A32003 32 R0.30 23.5 7.2 2 XMR110A32005 32 R0.50 23.5 7.2 2 XMR110A32010 32 R1.0 23.5 7.2 2 XMR110A32015 32 R1.5 23.5 7.2 2 XMR110A32020 32 R2.0 23.5 7.2 2 XMR110A32030 32 R3.0 23.5 7.2 2 XMR110A33003 33 R0.30 23.5 7.2 2 XMR110A33005 33 R0.50 23.5 7.2 2 XMR110A33010 33 R1.0 23.5 7.2 2 XMR110A33015 33 R1.5 23.5 7.2 2 XMR110A33020 33 R2.0 23.5 7.2 2 XMR110A33030 33 R3.0 23.5 7.2 2

Side Milling

Small Part

Facing

Work materials

Material recommendations for this tool.

ExcellentGood

Steel

Carbon Steels

Excellent

Alloy Steels

Excellent

Prehardened Steels

Excellent

Stainless steel

Stainless Steels

Excellent

These are broad material recommendations; specific VDI grades are not stated.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Recommended cutting speeds and feeds
Parameter	Value	Unit
Spindle speed	–	rev/min
Feed rate	–	mm/min
Cutting speed (Vc)	–	m/min
Feed per tooth (fz)	–	mm/tooth

Choose your options and calculate the recommended parameters.

Video

Resources

Understanding the Basics of Endmills

Endmills are indispensable tools in machining, renowned for their versatility and precision. Whether you’re a seasoned operator or new to machining, understanding...

January 21, 2025

Connor Urquhart

Article

Service & Delivery

How do I purchase my items?

Excision products are available through 300+ local distributors around Australia. Some products may also have buy online options available for online purchase through our distributors.

Find your local distributor

What delivery services do we offer?

We freight out of Melbourne every day for 1-3 days delivery to your local distributor. We also offer upon request (for an extra charge):

Send direct
Air frieght for small urgent items

How do I return an item?

We offer lifetime returns. If you’re unhappy with your purchase, you can return unused items to us for free – no questions asked.

Have a question about this product?

Contact Sales

+61 (03) 5551 4555

Mon - Fri 7am - 5pm

ISO	VDI 3323	Material Description	Parameter	Diameter (Ø)
ISO	VDI 3323	Material Description	Parameter	8	10, 11	12, 13	16, 17	20, 21	25, 26	30, 32, 33
P	1-4	Non-Alloy Steel	Vc	160~300	160~300	160~300	160~300	160~300	160~300	160~300
			fz	0.20~0.15	0.20~0.15	0.20~0.15	0.25~0.20	0.25~0.20	0.25~0.20	0.25~0.20
			RPM	6370~11940	5090~9550	4240~7960	3180~5970	2550~4770	2040~3820	1700~3180
			FEED	2550~3580	2040~2860	1700~2390	1590~2390	1270~1910	1020~1530	850~1270
	5		Vc	120~280	120~280	120~280	120~280	120~280	120~280	120~280
			fz	0.20~0.15	0.20~0.15	0.20~0.15	0.25~0.20	0.25~0.20	0.25~0.20	0.25~0.20
			RPM	4770~11140	3820~8910	3180~7430	2390~5570	1910~4460	1530~3570	1270~2970
			FEED	1910~3340	1530~2670	1270~2230	1190~2230	950~1780	760~1430	640~1190
	6-7	Low-Alloy Steel	Vc	160~300	160~300	160~300	160~300	160~300	160~300	160~300
			fz	0.20~0.15	0.20~0.15	0.20~0.15	0.25~0.20	0.25~0.20	0.25~0.20	0.25~0.20
			RPM	6370~11940	5090~9550	4240~7960	3180~5970	2550~4770	2040~3820	1700~3180
			FEED	2550~3580	2040~2860	1700~2390	1590~2390	1270~1910	1020~1530	850~1270
	8		Vc	120~280	120~280	120~280	120~280	120~280	120~280	120~280
			fz	0.20~0.15	0.20~0.15	0.20~0.15	0.25~0.20	0.25~0.20	0.25~0.20	0.25~0.20
			RPM	4770~11140	3820~8910	3180~7430	2390~5570	1910~4460	1530~3570	1270~2970
			FEED	1910~3340	1530~2670	1270~2230	1190~2230	950~1780	760~1430	640~1190
M	12-14	Stainless Steel	Vc	90~130	90~130	90~130	90~130	90~130	90~130	90~130
			fz	0.10~0.10	0.11~0.11	0.12~0.11	0.13~0.13	0.13~0.13	0.13~0.12	0.13~0.12
			RPM	3580~5170	2860~4140	2390~3450	1790~2590	1430~2070	1150~1660	950~1380
			FEED	720~1030	630~910	550~790	450~650	360~520	290~410	240~340
