New
Corner Radius Tolerance: 0.015
No. Flutes: 2
Surface Treatment: YG-1 Y Coating
Tool Material: NG HM
Made in South Korea

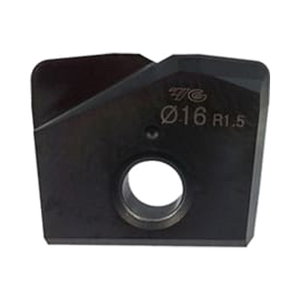

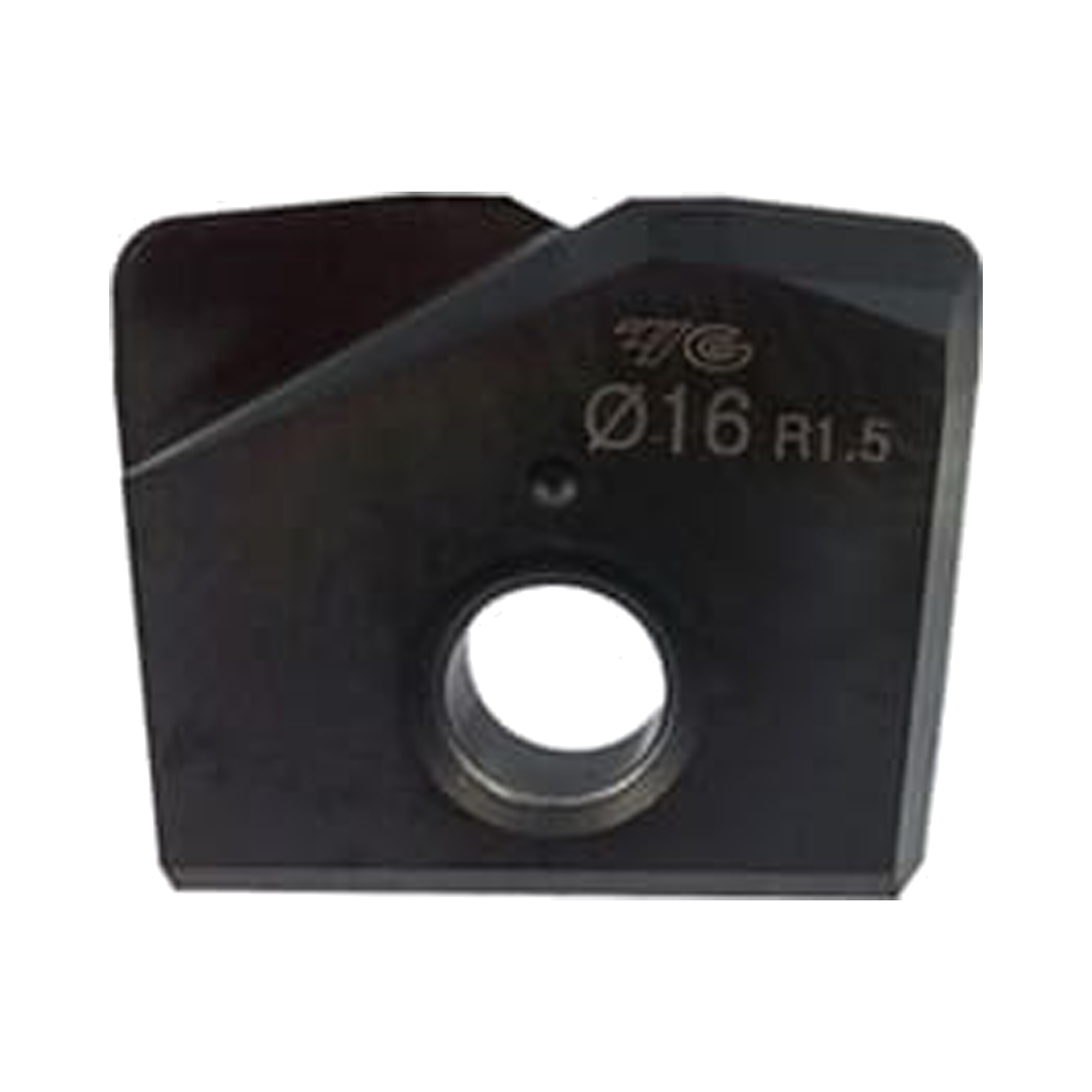

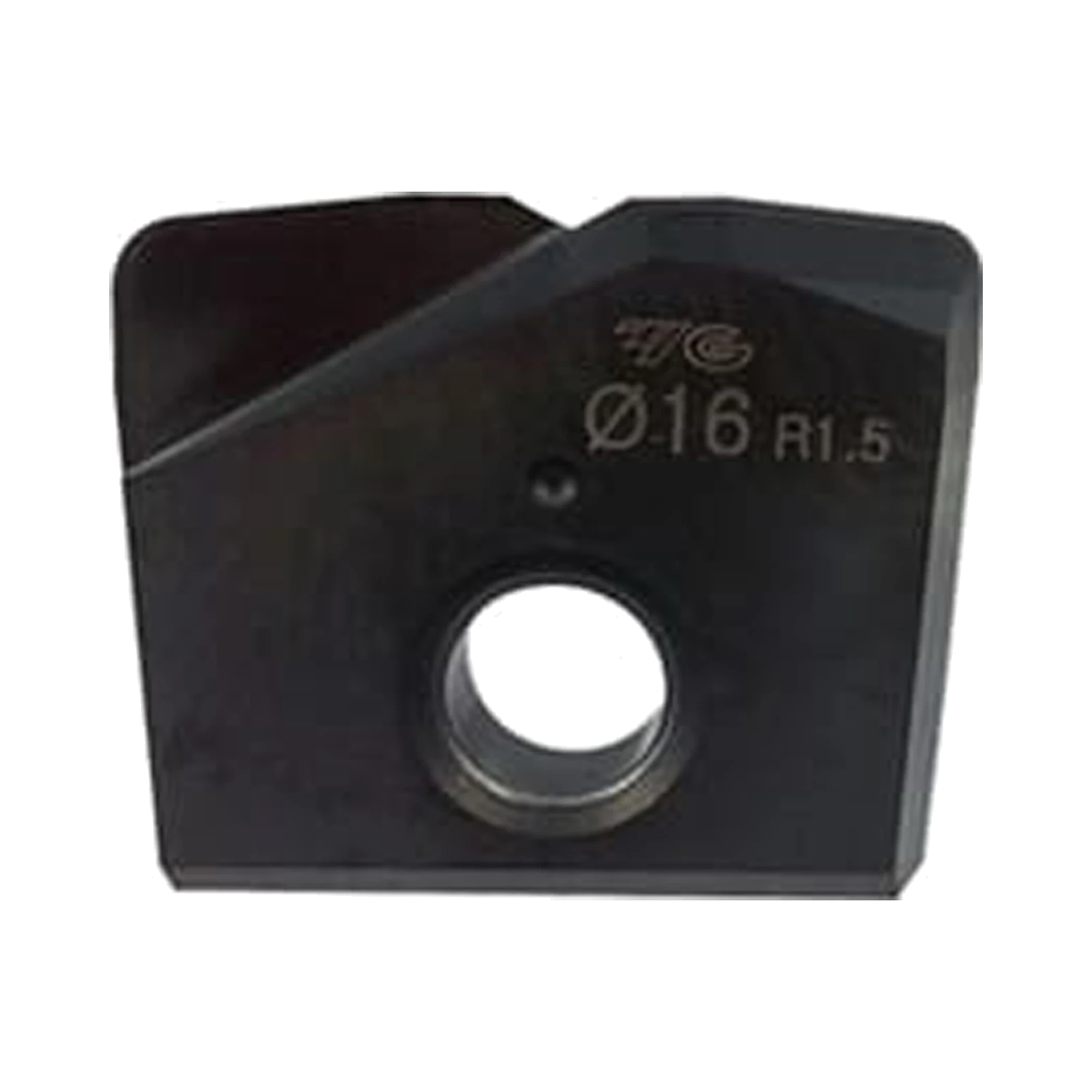

i-Xmill High Feed Insert for General Purpose End Mill (XMF110V)
Product Code: XMF110V-1
Corner Radius Tolerance: 0.015
No. Flutes: 2
Surface Treatment: YG-1 Y Coating
Tool Material: NG HM
The YG-1 XMF11 series i-X Mill corner radius copy milling insert has a high feed geometry that can achieve up to feed rates of 7 meters/minutes on carbon steels, alloy steels and tool steels. The i-Xmill Indexable Milling system is a high precision system for finishing applications. It provides an economical solution due to its indexable replaceable inserts and these inserts are available in 5 different types for various materials.
- Corner radius geometry.
- General purpose grade for use on carbon steels, alloy steels, tool steels, high hardened steels
- Insert diameters available from 8mm to 32mm.
- Feed rates over 7 metres/minute can be achieved.
- When combined with dedicated high feed holders, better results are possible.
- Ideal for high performance roughing and finishing.
- Optimum geometry for better reliability with less vibration and cutting load.
- Inserts for roughing and finishing a wide range of materials.
- Can be used with the ball holder, but for higher precision machining use the corner radius holder.
- Solid carbide substrate for great wear resistance.
- Each insert geometry is specially designed for machining different materials.

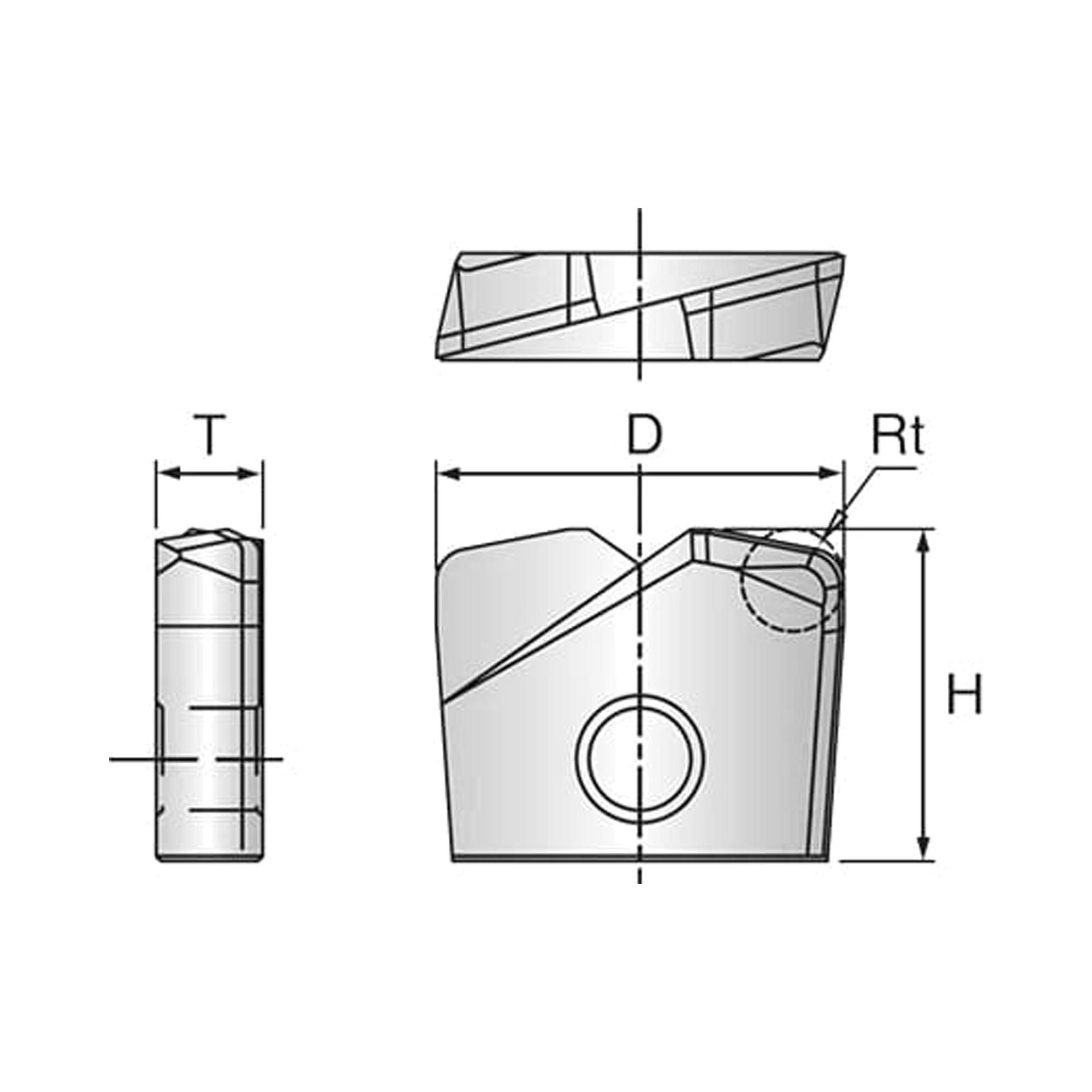

Specifications
| Flutes | 2 |
| Helix Angle | - |
| Cutting Edge Shape | CORNER RADIUS |
| Size Min | D8.0 |
| Size Max | D33.0 |
| Length | - |
| Coating | Y-Coating |
Product Data
| Workpiece Material | P |
| Corner Radius Tolerance | 0.015 |
| No. Flutes | 2 |
| Operation | Facing, Side Milling, Small Part |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | NG HM |
Made in South Korea
Add i-Xmill High Feed Insert for General Purpose End Mill (XMF110V) to comparison
View ComparisonVideo
Operation
Side Milling
Small Part
Facing
Work Material
Carbon Steels
Excellent
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Prehardened Steels
Excellent
Good
Great
Excellent
