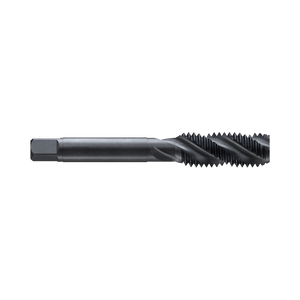

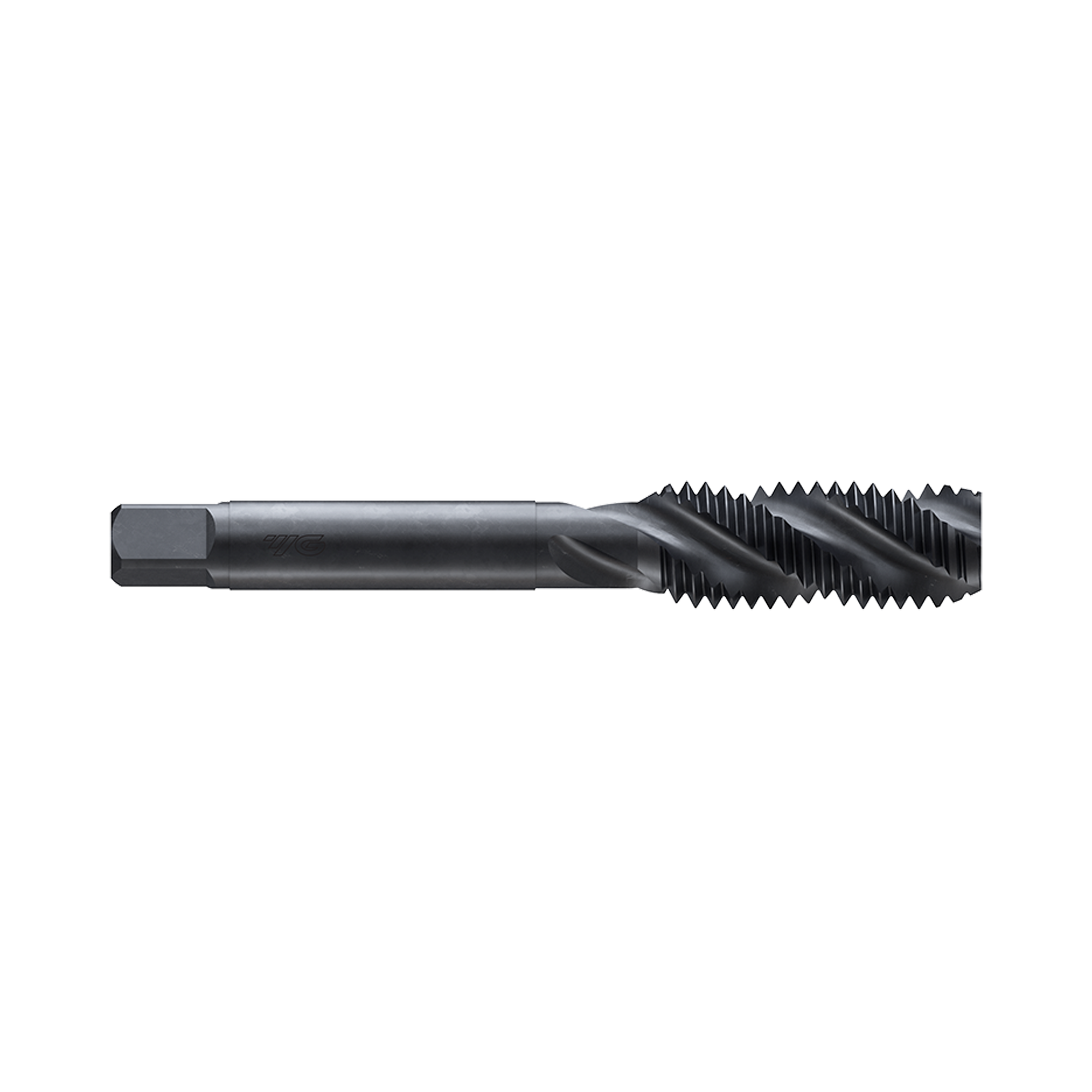

JIS I-TYPE Spiral Flute Steam homo (T1191)

JIS I-TYPE Spiral Flute Steam homo (T1191)
JIS I-TYPE Spiral Flute Steam homo (T1191)
New

JIS I-TYPE Spiral Flute Steam homo (T1191)

Product Code: T1191

Thread Form: 2.5P YG-1 LEGEND YH Thread Class: YH YG-1 LEGEND M-MF Thread Shape: M/MF YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND STEAM HOMO Surface Treatment: Steam Oxide Coating YG-1 LEGEND HSS-E Tool Material: HSS-E YG-1 LEGEND HELIX SQUARE 45 Helix Angle: Square 45° YG-1 LEGEND JIS I
Buy Local
Product Data
Workpiece Material P M N
Helix Angle Square 45
Operation Blind Drilling
Surface Treatment Steam Oxide Coating
Thread Angle 60
Thread Class YH
Thread Form 2.5P
Thread Shape M/MF
Tool Material HSS-E
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add JIS I-TYPE Spiral Flute Steam homo (T1191) to comparison

View Comparison
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute T1191131 M2 0.4 9.5 40 40 3 2.5 5 2 T1191151 M2.2 0.45 9.5 42 42 3 2.5 5 2 T1191172 M2.5 0.45 9.5 44 44 3 2.5 5 2 T1191191 M2.3 0.4 9.5 42 42 3 2.5 5 2 T1191202 M3 0.5 11 46 46 4 3.2 6 3 T1191222 M3.5 0.6 13 48 48 4 3.2 6 3 T1191242 M4 0.7 13 52 52 5 4 7 3 T1191282 M5 0.8 16 60 60 5.5 4.5 7 3 T1191312 M6 1 19 62 62 6 4.5 7 3 T1191363 M8 1.25 22 70 70 6.2 5 8 3 T1191423 M10 1.5 24 75 75 7 5.5 8 3 T1191433 M10 1.25 24 75 75 7 5.5 8 3 T1191492 M2.6 0.45 9.5 44 44 3 2.5 5 2 T1191503 M12 1.75 29 82 82 8.5 6.5 9 3 T1191513 M12 1.5 29 82 82 8.5 6.5 9 3 T1191523 M12 1.25 29 82 82 8.5 6.5 9 3 T1191532 M12 1 29 82 82 8.5 6.5 9 3 T1191543 M14 2 30 88 88 10.5 8 11 3 T1191553 M14 1.5 30 88 88 10.5 8 11 3 T1191603 M16 2 32 95 95 12.5 10 13 3 T1191613 M16 1.5 32 95 95 12.5 10 13 3 T1191653 M18 2.5 37 100 100 14 11 14 4 T1191673 M18 1.5 37 100 100 14 11 14 4 T1191703 M20 2.5 37 105 105 15 12 15 4 T1191723 M20 1.5 37 105 105 15 12 15 4 T1191744 M22 2.5 38 115 115 17 13 16 4 T1191763 M22 1.5 38 115 115 17 13 16 4 T1191784 M24 3 45 120 120 19 15 18 4 T1191803 M24 1.5 45 120 120 19 15 18 4 T1191833 M25 1.5 45 125 75 19 15 18 4 T1191853 M26 1.5 45 125 125 20 15 18 4 T1191864 M27 3 45 130 130 20 15 18 4 T1191883 M27 1.5 45 130 130 20 15 18 4 T1191913 M28 1.5 45 130 77 21 17 20 4 T1191944 M30 3.5 48 135 135 23 17 20 4 T1191973 M30 1.5 45 135 135 23 17 20 4

Operation

Blind Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Great

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
