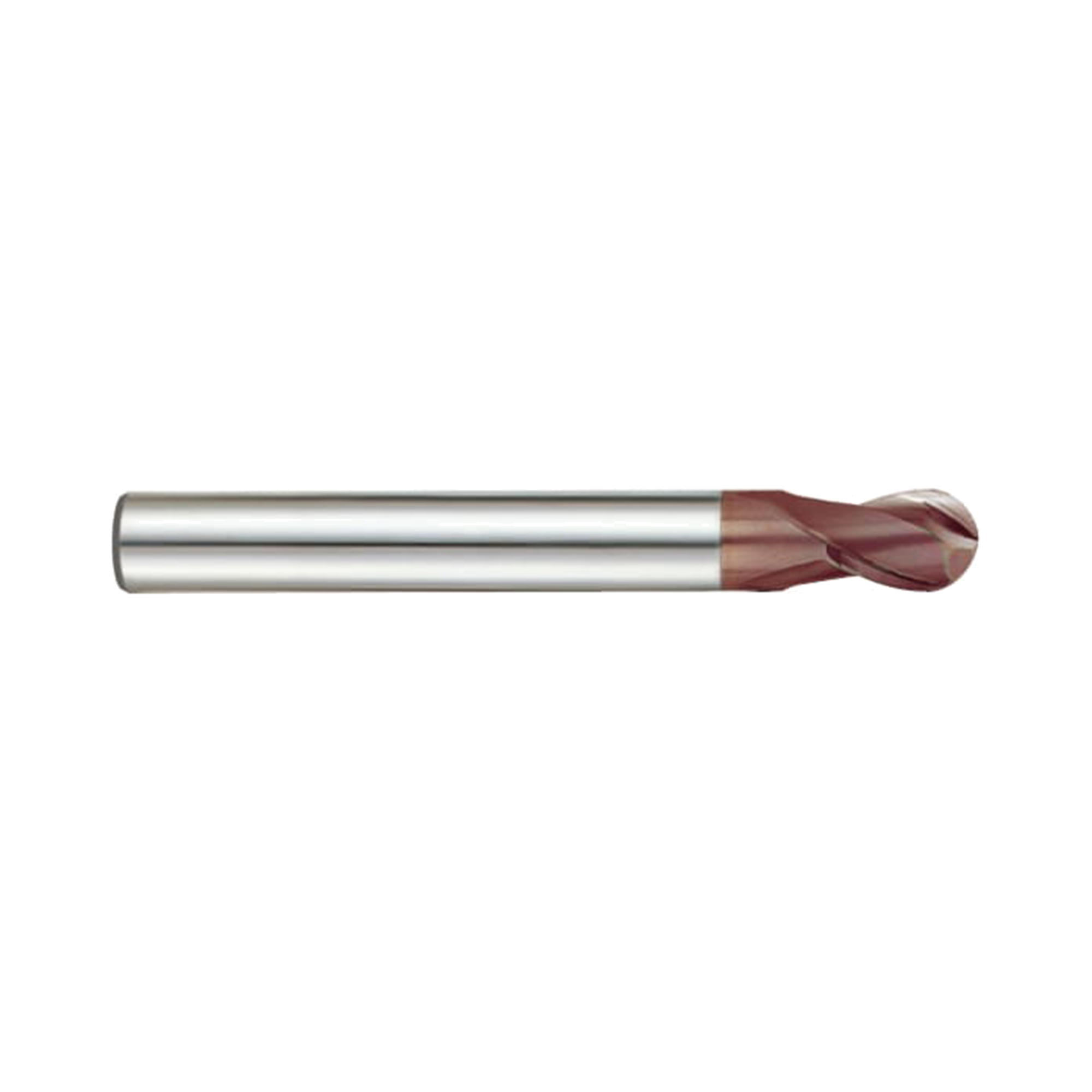

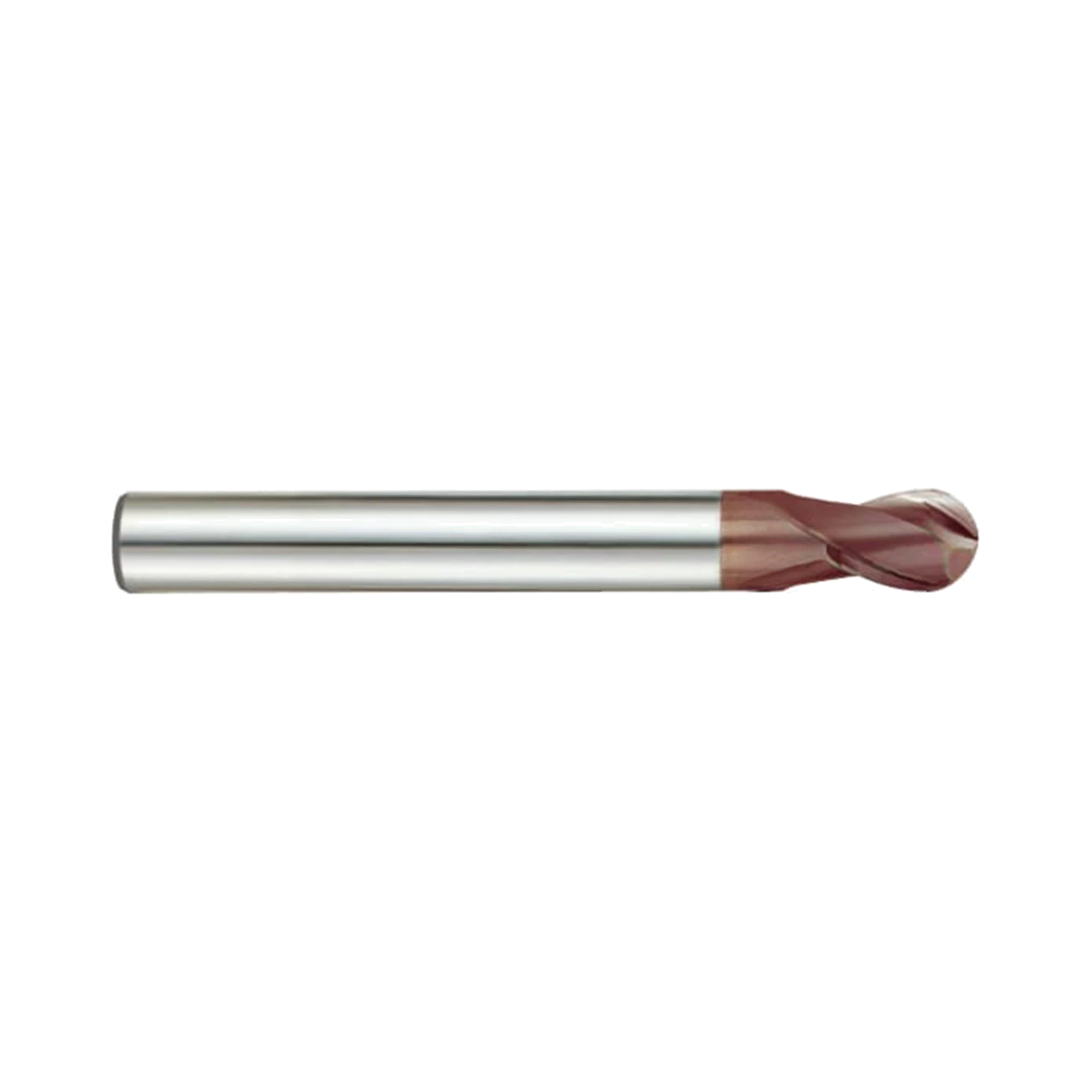

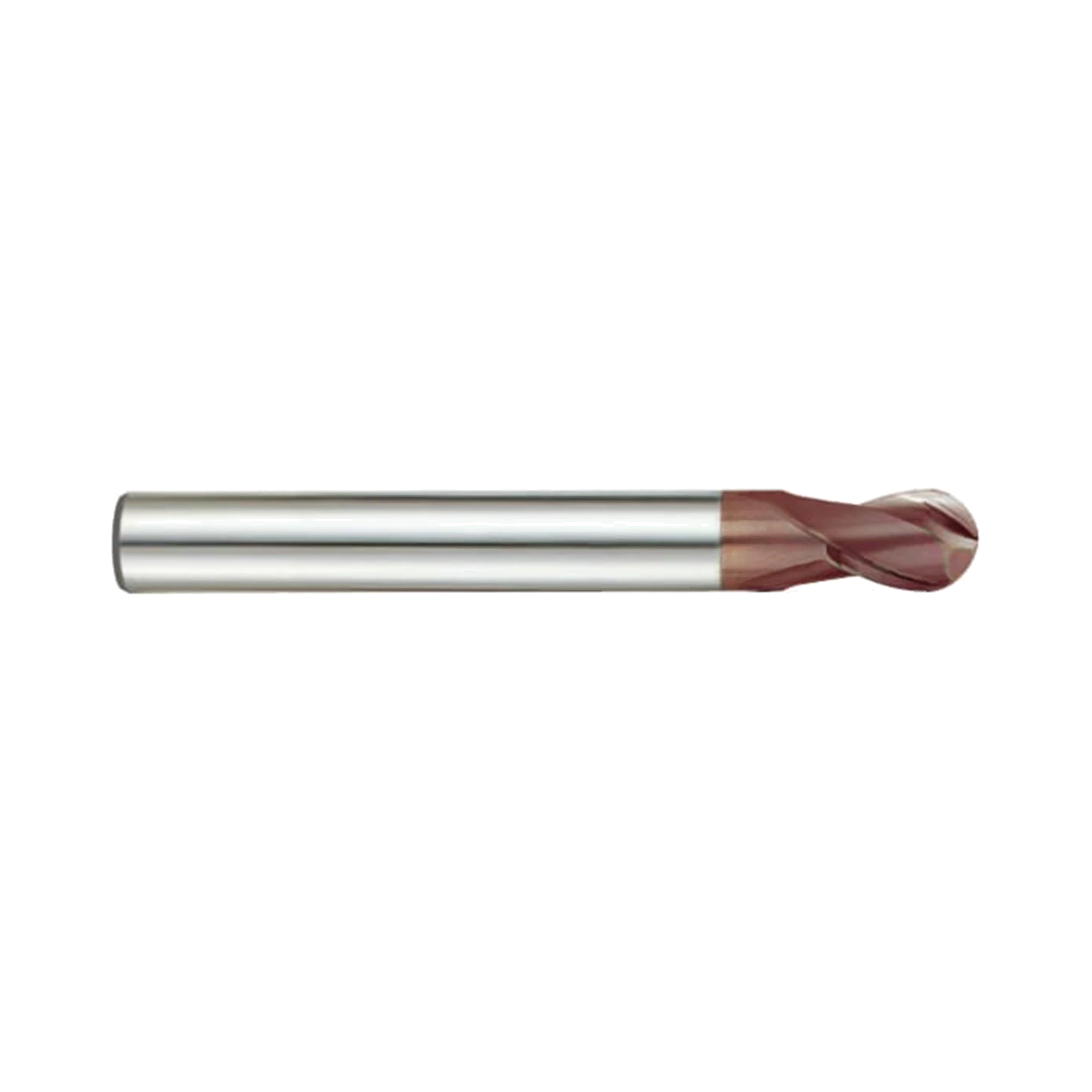

(G9438) K-2 Carbide, 2Flute Ball Nose End Mill, Long Length, Flat Shank
Long-Length TiAlN-Coated Ball Nose End Mill
TiAlN-Coated Extra-Long 2 Flute Ball Nose End Mill
Buy now from our online retailers:
Select your preferred distributor:
Extra-long length geometry suits machining tasks requiring greater tool reach
Ball nose form is designed for radius-bottom slots, fillets and special contours
TiAlN-coated carbide is suitable for dry milling applications at high temperatures

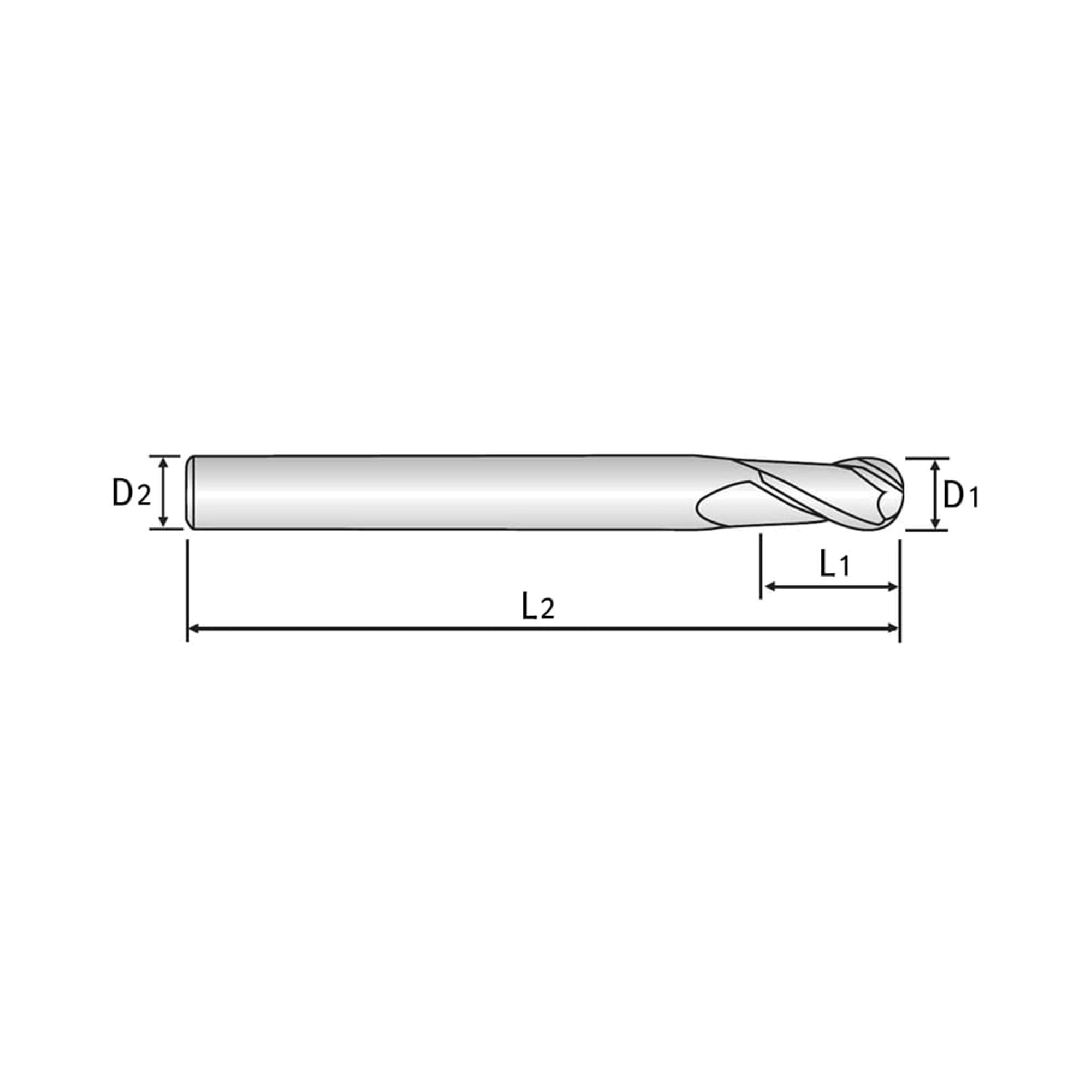

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| G9454030 | 3.0 | R1.5 | 75.0 | 3.0 | 5.0 | STEPDXF | Low stock | $37.70 | ||
| G9454040 | 4.0 | R2.0 | 75.0 | 4.0 | 8.0 | STEPDXF | In stock | $23.78 | ||
| G9454050 | 5.0 | R2.5 | 75.0 | 5.0 | 9.0 | STEPDXF | In stock | $25.90 | ||
| G9454060 | 6.0 | R3.0 | 100.0 | 6.0 | 10.0 | STEPDXF | Low stock | $29.32 | ||
| G9454080 | 8.0 | R4.0 | 100.0 | 8.0 | 12.0 | STEPDXF | In stock | $53.45 | ||
| G9454100 | 10.0 | R5.0 | 100.0 | 10.0 | 14.0 | STEPDXF | Low stock | $59.94 | ||
| G9454120 | 12.0 | R6.0 | 100.0 | 12.0 | 16.0 | STEPDXF | 1-2 Weeks | $177.10 | ||
| G9454140 | 14.0 | R7.0 | 100.0 | 14.0 | 18.0 | STEPDXF | 1-2 Weeks | $223.60 | ||
| G9454160 | 16.0 | R8.0 | 150.0 | 16.0 | 22.0 | STEPDXF | Low stock | $330.50 | ||
| G9454200 | 20.0 | R10.0 | 150.0 | 20.0 | 26.0 | STEPDXF | 1-2 Weeks | $417.60 |

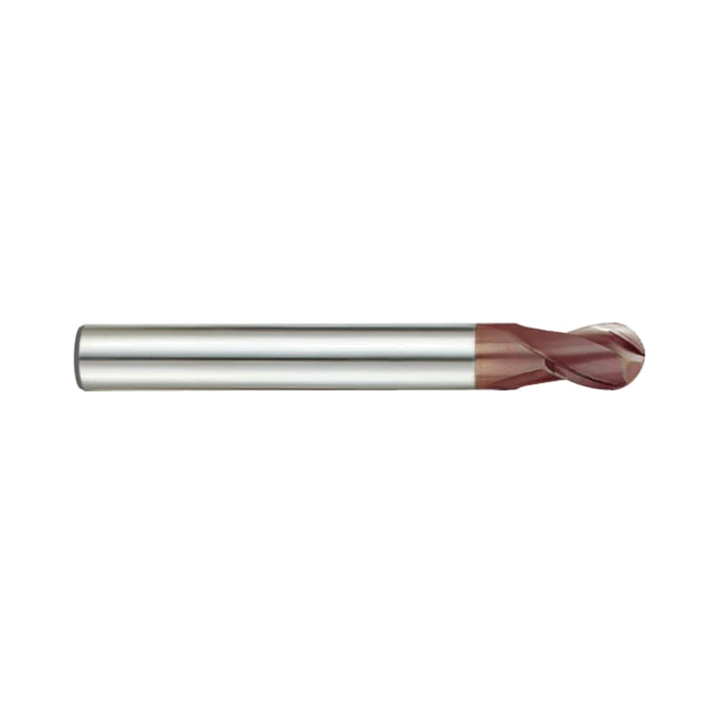

Add (G9454) K-2 Carbide, 2Flute Ball Nose End Mill, Long Reach to comparison
View ComparisonYG-1 G9454 K-2 Carbide ball nose end mills are TiAlN-coated solid carbide tools with extra-long length geometry. They machine radius-bottom slots, fillets and special contours, and suit dry milling at high temperatures. The two-flute plain-shank series provides R1.5 to R10.0 radii, with 3 to 20 mm diameters. Listed tools have 5 to 26 mm cutting lengths and overall lengths from 75 to 150 mm. Ball-nose radius tolerance is ±0.02 mm, while shank diameter tolerance is h5. Its listed dimensions span compact through larger tool sizes for varied contouring requirements. Choose this high-performance series for contour milling where extra-long length and ball-nose form are required.
| Cutting Shape | Ball Nose |
| Length | Long Reach |
| No. Flutes | 2 |
| Surface Treatment | Titanium Aluminium Nitride Coating |
VDI 3323 recommendations for this tool.
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Excellent | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Excellent | 325 | 35 |
| 12 | MStainless steel | Good | 200 | 15 |
| 13 | MStainless steel | Good | 240 | 23 |
| 14 | MStainless steel | Good | 180 | 10 |
| 15 | KGrey cast iron | Good | 180 | 10 |
| 16 | KGrey cast iron | Good | 260 | 26 |
| 17 | KNodular cast iron | Good | 160 | 3 |
| 18 | KNodular cast iron | Good | 250 | 25 |
| 19 | KMalleable cast iron | Good | 130 | - |
| 20 | KMalleable cast iron | Good | 230 | 21 |
| 21 | NWrought aluminium | Good | 60 | - |
| 22 | NWrought aluminium | Good | 100 | - |
| 23 | NCast aluminium | Good | 75 | - |
| 24 | NCast aluminium | Good | 90 | - |
| 25 | NCast aluminium | Good | 130 | - |
| 26 | NCopper, bronze and brass | Good | 110 | - |
| 27 | NCopper, bronze and brass | Good | 90 | - |
| 28 | NCopper, bronze and brass | Good | 100 | - |
| 29 | NNon-metallic materials | Good | - | - |
| 31 | SHeat-resistant superalloys | Good | 200 | 15 |
| 32 | SHeat-resistant superalloys | Good | 280 | 30 |
| 33 | SHeat-resistant superalloys | Good | 250 | 25 |
| 34 | SHeat-resistant superalloys | Good | 350 | 38 |
| 35 | SHeat-resistant superalloys | Good | 320 | 34 |
| 36 | STitanium alloys | Good | - | - |
| 37 | STitanium alloys | Good | - | - |
| 40 | HChilled cast iron | Good | 400 | 42 |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
