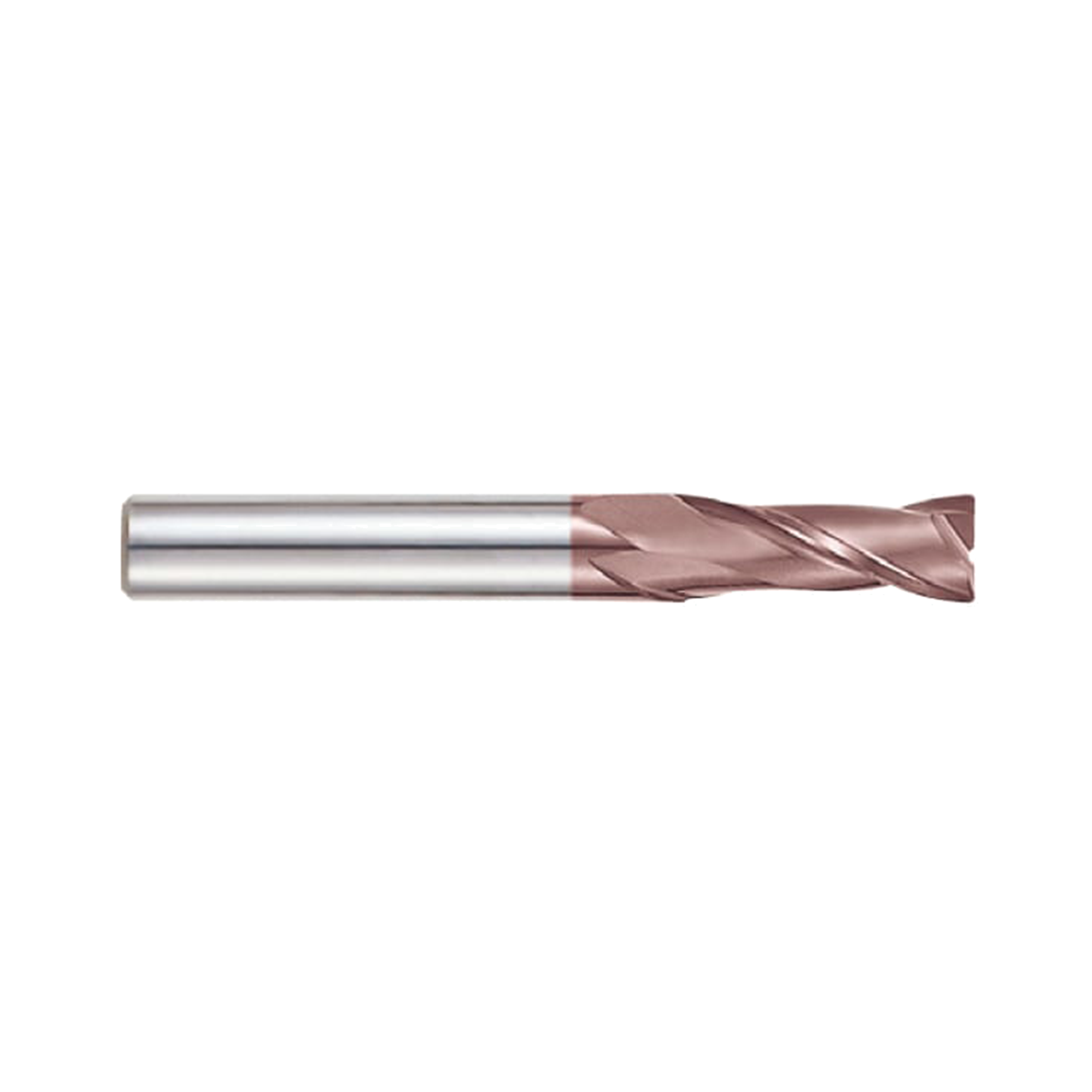

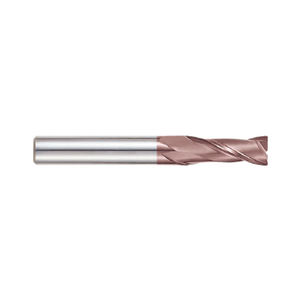

(G9B83) K-2 Carbide, 2Flute Corner Radius End Mill, Long Reach

Name: (G9B83) K-2 Carbide, 2Flute Corner Radius End Mill, Long Reach
Brand: Excision Pty Ltd
SKU: G9B83030
Price: 32.80 AUD
Availability: InStock

Long-Reach TiAlN-Coated Corner Radius End Mills

$36.08 INC GST $32.80 EX GST Price available on request

SKU: G9B83030

Key features

K-2 solid carbide long-reach corner radius end mill series
Two-flute 30° helix geometry for slotting
TiAlN coating for high-temperature dry milling applications

Mill Diameter (mm)

Corner Radius (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Extended access

Long-reach proportions support machining into recessed and less accessible features.

Slotting geometry

Two flutes and a 30° helix provide geometry specified for slotting.

Dry milling ready

TiAlN coating is specified for dry milling at high temperatures.

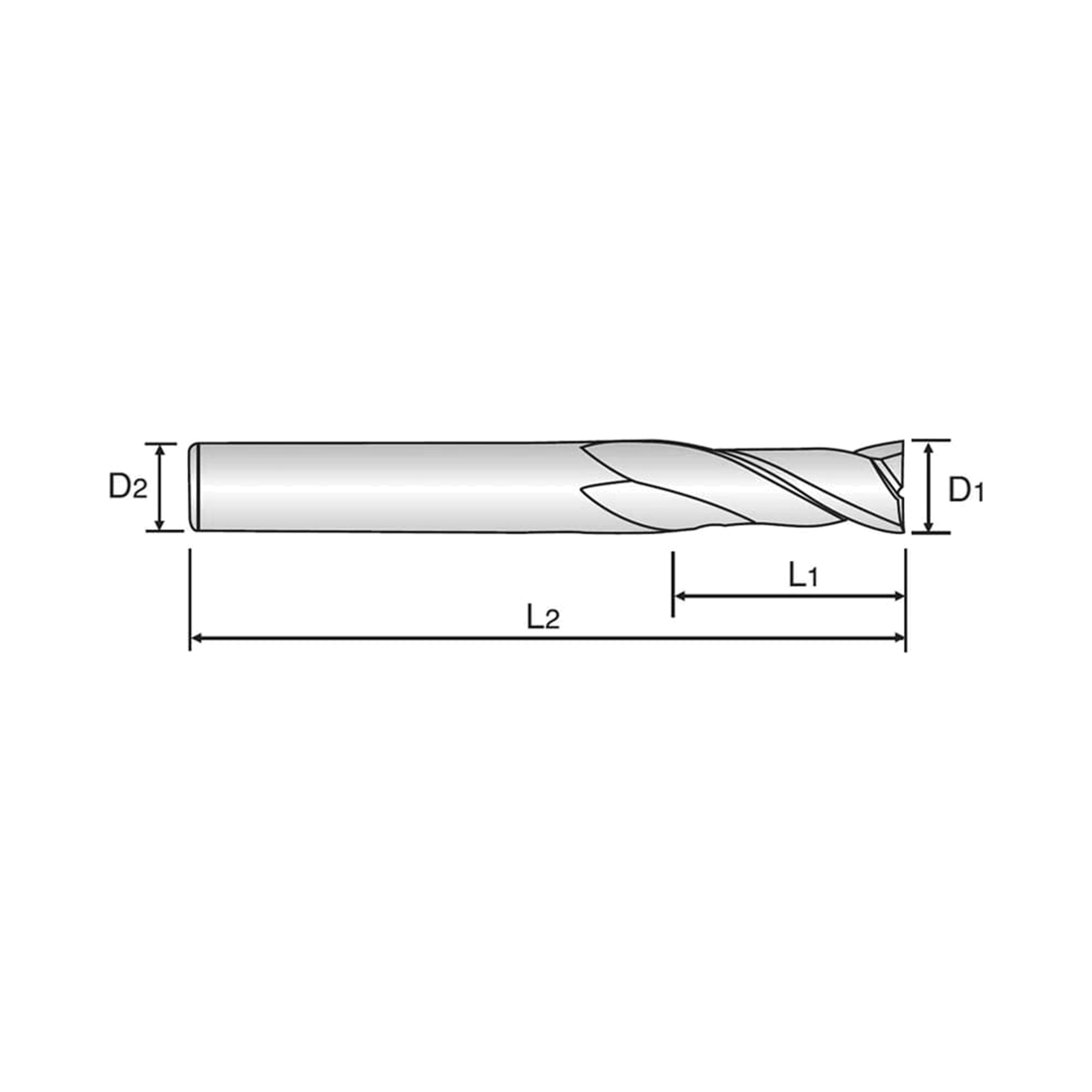

SKU	Mill Diameter (mm)	Corner Radius (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Stock	Price
G9B83030	3	R0.5	75.0	3.0	6.0	1-2 Weeks	$32.80
G9B83901	3	R1.0	75.0	3.0	6.0	1-2 Weeks	$32.80
G9B83040	4	R0.5	75.0	4.0	8.0	In stock	$22.37
G9B83902	4	R1.0	75.0	4.0	8.0	1-2 Weeks	$32.80
G9B83903	5	R1.0	75.0	6.0	10.0	1-2 Weeks	$48.20
G9B83904	6	R1.0	75.0	6.0	12.0	1-2 Weeks	$52.80
G9B83080	8	R0.5	100.0	8.0	16.0	1-2 Weeks	$66.00
G9B83905	8	R1.0	100.0	8.0	16.0	Low stock	$36.53
G9B83906	8	R1.5	100.0	8.0	16.0	Low stock	$37.80
G9B83907	8	R2.0	100.0	8.0	16.0	1-2 Weeks	$70.80
G9B83908	8	R2.5	100.0	8.0	16.0	1-2 Weeks	$68.30
G9B83909	10	R1.0	100.0	10.0	20.0	Low stock	$56.11
G9B83910	10	R1.5	100.0	10.0	20.0	1-2 Weeks	$104.50
G9B83911	10	R2.0	100.0	10.0	20.0	1-2 Weeks	$104.50
G9B83912	10	R2.5	100.0	10.0	20.0	1-2 Weeks	$104.50
G9B83120	12	R0.5	100.0	12.0	24.0	1-2 Weeks	$127.30
G9B83913	12	R1.0	100.0	12.0	24.0	1-2 Weeks	$127.30
G9B83914	12	R1.5	100.0	12.0	24.0	1-2 Weeks	$136.80
G9B83915	12	R2.0	100.0	12.0	24.0	1-2 Weeks	$131.80
G9B83916	12	R2.5	100.0	12.0	24.0	1-2 Weeks	$131.80

Add (G9B83) K-2 Carbide, 2Flute Corner Radius End Mill, Long Reach to comparison

View Comparison

Overview
Specifications
Speeds & Feeds
Reviews

Application

Product Description

YG-1 G9B83 K-2 carbide corner radius end mills are long-reach, two-flute tools with TiAlN coating. They provide corner-radius milling where extended reach is required beyond the shank. The 30° helix and two-flute geometry suit slotting in high-temperature dry milling applications. Available diameters span 3 to 12 mm with corner radii from 0.5 to 2.5 mm. Overall lengths range from 75 to 100 mm for longer reach into recessed features. Plain shanks use h5 tolerance, while mill diameter tolerance is 0 to -0.03 mm. TiAlN coating is specified for dry milling applications at high temperatures. These high-performance end mills provide a practical option for slotting and corner-radius milling.

K-2 solid carbide long-reach corner radius end mill series
Two-flute 30° helix geometry for slotting
TiAlN coating for high-temperature dry milling applications
3 to 12 mm cutting diameter range
0.5 to 2.5 mm corner radius range
Plain shank with h5 shank tolerance

Product Data

No specifications available.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

ISO	VDI 3323	Material Description	Ae	Ap	Parameter	Diameter (Ø)
ISO	VDI 3323	Material Description	Ae	Ap	Parameter	2.0	3.0	4.0	5.0	6.0	8.0	10.0	12.0
P	1-4	Non-Alloy Steel	1.0D	0.5D	Vc	50	55	60	70	70	70	70	70
					fz	0.01	0.015	0.025	0.031	0.039	0.057	0.064	0.065
					RPM	7958	5836	5173	4456	3714	2785	2228	1857
					FEED	159	175	259	276	290	318	285	241
	5		1.0D	0.5D	Vc	30	35	40	40	45	45	40	45
					fz	0.01	0.016	0.025	0.031	0.041	0.05	0.05	0.048
					RPM	4775	3714	3183	2546	2387	1790	1273	1194
					FEED	95	119	159	158	196	179	127	115
	6-7	Low-Alloy Steel	1.0D	0.5D	Vc	50	55	60	70	70	70	70	70
					fz	0.01	0.015	0.025	0.031	0.039	0.057	0.064	0.065
					RPM	7958	5836	5173	4456	3714	2785	2228	1857
					FEED	159	175	259	276	290	318	285	241
	8-9		1.0D	0.5D	Vc	30	35	40	40	45	45	40	45
					fz	0.01	0.016	0.025	0.031	0.041	0.05	0.05	0.048
					RPM	4775	3714	3183	2546	2387	1790	1273	1194
					FEED	95	119	159	158	196	179	127	115
	10	High-Alloyed Steel, and Tool Steel	1.0D	0.5D	Vc	50	55	60	70	70	70	70	70
					fz	0.01	0.015	0.025	0.031	0.039	0.057	0.064	0.065
					RPM	7958	5836	5173	4456	3714	2785	2228	1857
					FEED	159	175	259	276	290	318	285	241
	11.1-11.2		1.0D	0.5D	Vc	30	35	40	40	45	45	40	45
					fz	0.01	0.016	0.025	0.031	0.041	0.05	0.05	0.048
					RPM	4775	3714	3183	2546	2387	1790	1273	1194
					FEED	95	119	159	158	196	179	127	115
M	14.1	Stainless steel	1.0D	0.5D	Vc	25	30	35	35	35	35	35	35
					fz	0.009	0.016	0.025	0.031	0.04	0.055	0.059	0.058
					RPM	3979	3183	2785	2228	1857	1393	1114	928
					FEED	72	102	139	138	149	148	131	108
K	15-20	Grey cast iron Nodular cast iron Malleable cast iron	1.0D	0.5D	Vc	60	55	60	55	55	55	60	55
					fz	0.012	0.018	0.024	0.03	0.043	0.063	0.077	0.102
					RPM	9549	5836	4775	3501	2918	2188	1910	1459
					FEED	229	210	229	210	251	276	294	298
N	21~22	Aluminum-wrought alloy	1.0D	1.0D	Vc	140	145	140	145	145	145	145	140
					fz	0.01	0.015	0.021	0.025	0.032	0.043	0.053	0.065
					RPM	22282	15385	11141	9231	7692	5769	4615	3714
					FEED	446	462	468	462	492	496	489	483
	23~25	Aluminum-cast,alloyed	1.0D	1.0D	Vc	140	145	140	145	145	145	145	140
					fz	0.01	0.015	0.021	0.025	0.032	0.043	0.053	0.065
					RPM	22282	15385	11141	9231	7692	5769	4615	3714
					FEED	446	462	468	462	492	496	489	483
	26-28	Copper Alloys (Bronze / Brass)	1.0D	1.0D	Vc	105	105	110	105	105	110	105	105
					fz	0.01	0.015	0.019	0.025	0.033	0.043	0.055	0.066
					RPM	16711	11141	8754	6685	5570	4377	3342	2785
					FEED	334	334	444	334	368	376	368	368
	29.1	Non Metallic Materials	1.0D	1.0D	Vc	105	105	110	105	105	110	105	105
					fz	0.01	0.015	0.019	0.025	0.033	0.043	0.055	0.066
					RPM	16711	11141	8754	6685	5570	4377	3342	2785
					FEED	334	334	444	334	368	376	368	368
H	40	Chilled Cast Iron	1.0D	0.5D	Vc	30	35	40	40	45	45	40	45
					fz	0.01	0.016	0.025	0.031	0.041	0.05	0.05	0.048
					RPM	4775	3714	3183	2546	2387	1790	1273	1194
					FEED	95	119	159	158	196	179	127	115

Recommended parameters

Recommended cutting speeds and feeds
Parameter	Value	Unit
Spindle speed	–	rev/min
Feed rate	–	mm/min
Cutting speed (Vc)	–	m/min
Feed per tooth (Fz)	–	mm/tooth

Choose your options and calculate the recommended parameters.
