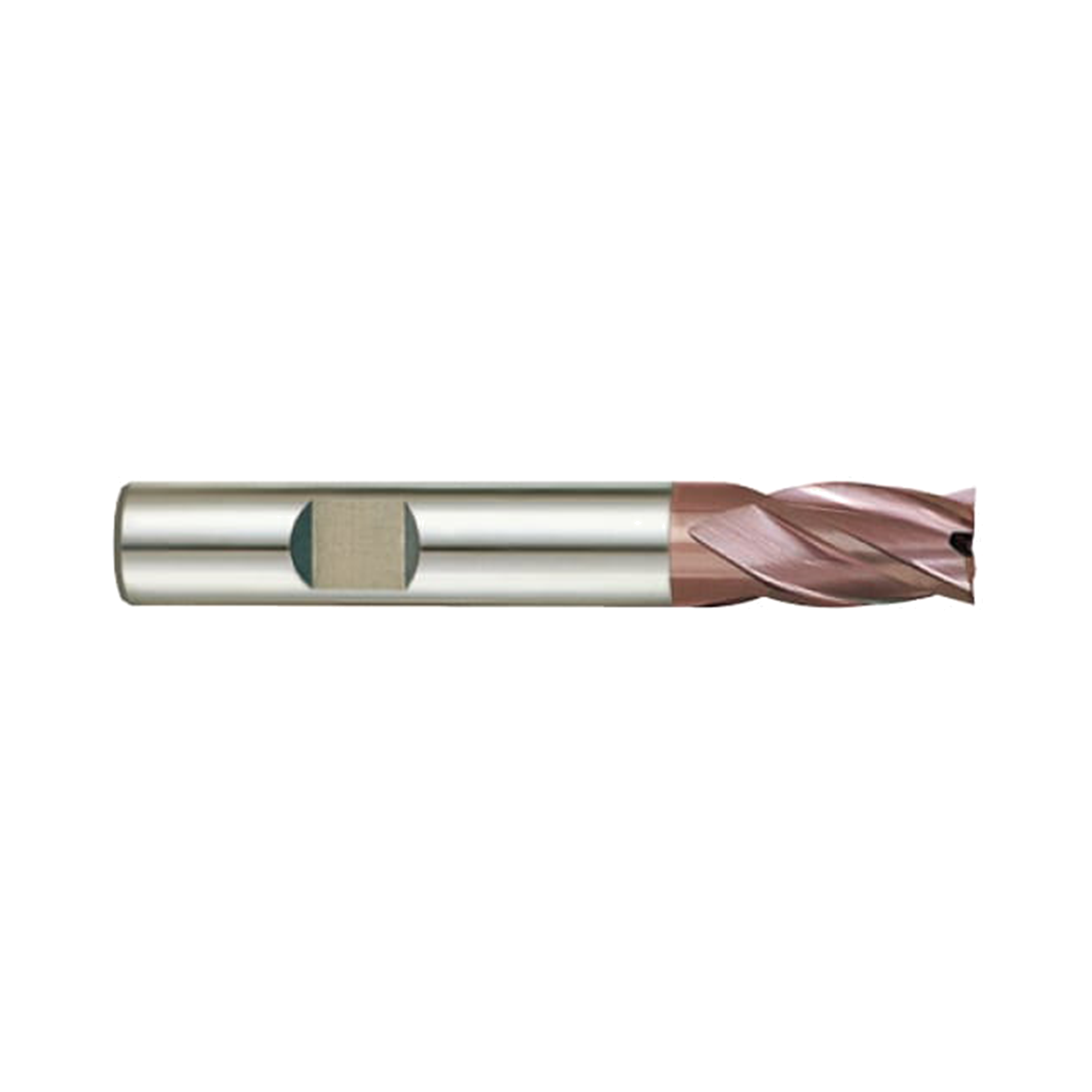

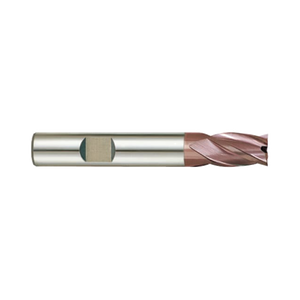

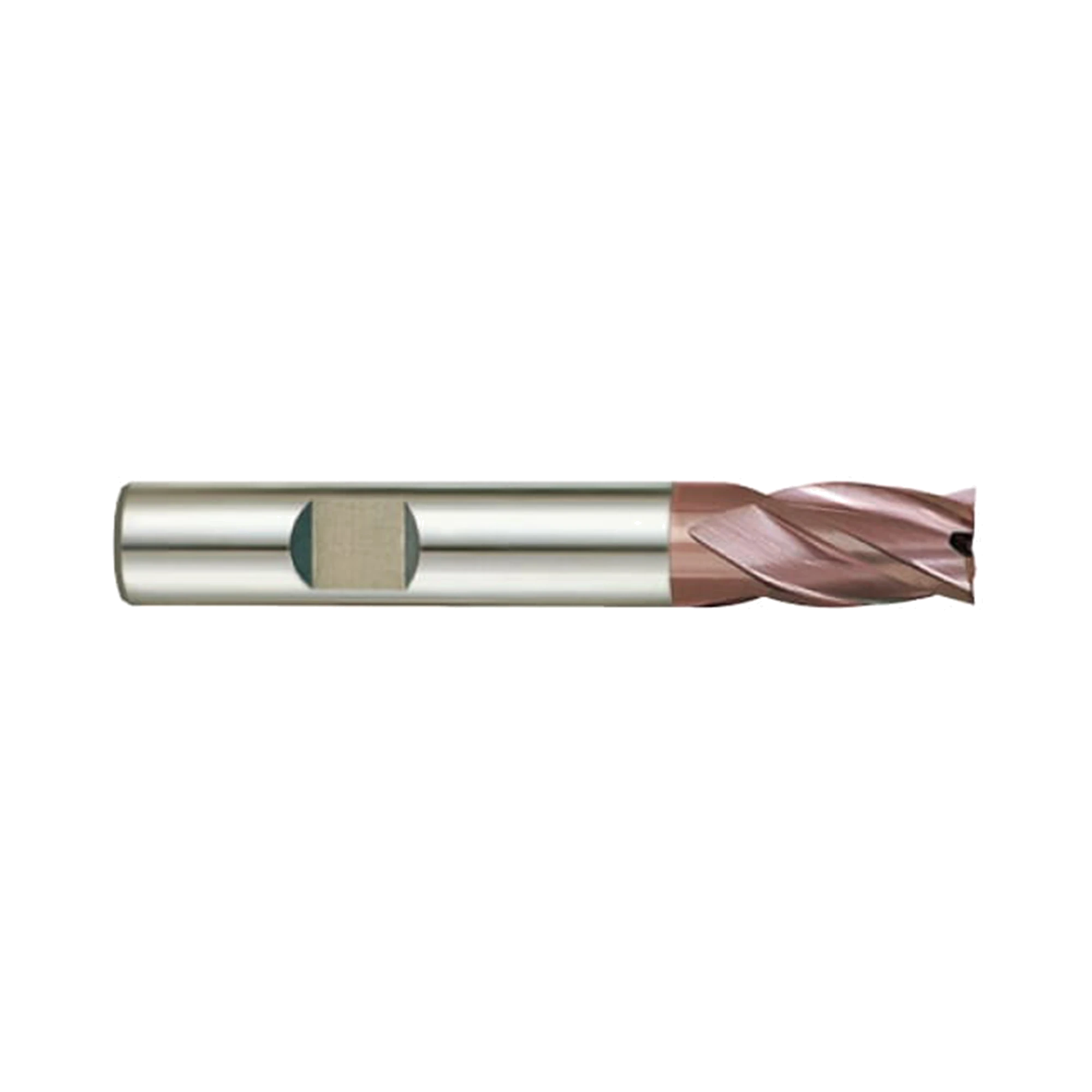

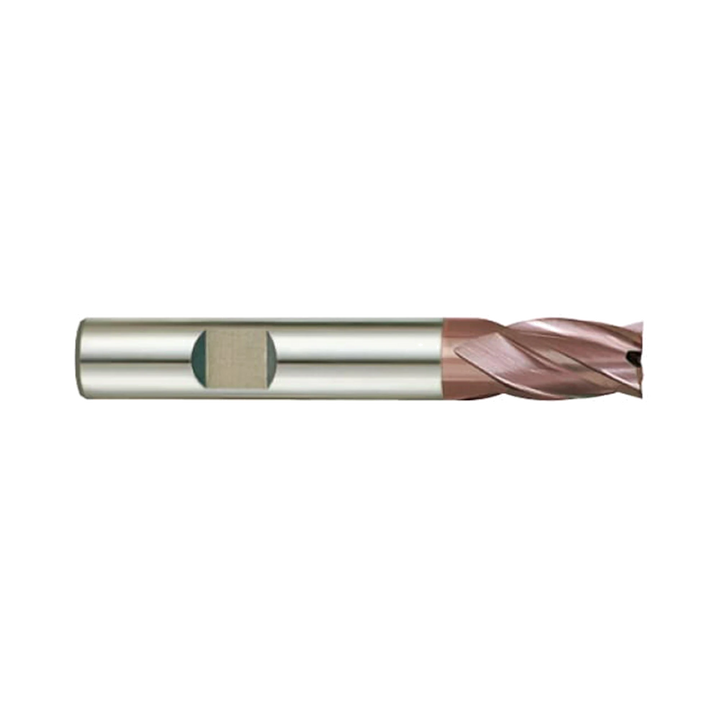

(G9439) K-2 Carbide, 3Flute End Mill, Short Length, Flat Shank
TiAlN-Coated 3-Flute Short-Length Carbide End Mill
- SKU
- G9439020
Key features
- TiAlN coating supports dry milling applications at high temperatures
- Three flutes combine stated advantages of two-flute and four-flute end mills
- Solid-carbide short-length end mill configuration
Made in South Korea
Dry milling focus
TiAlN coating supports dry milling applications at high temperatures.
Three-flute design
Three flutes combine the stated advantages of two-flute and four-flute end mill designs.
Compact selection
The short-length G9439 family covers cutting diameters from 2.0 to 20.0 mm.

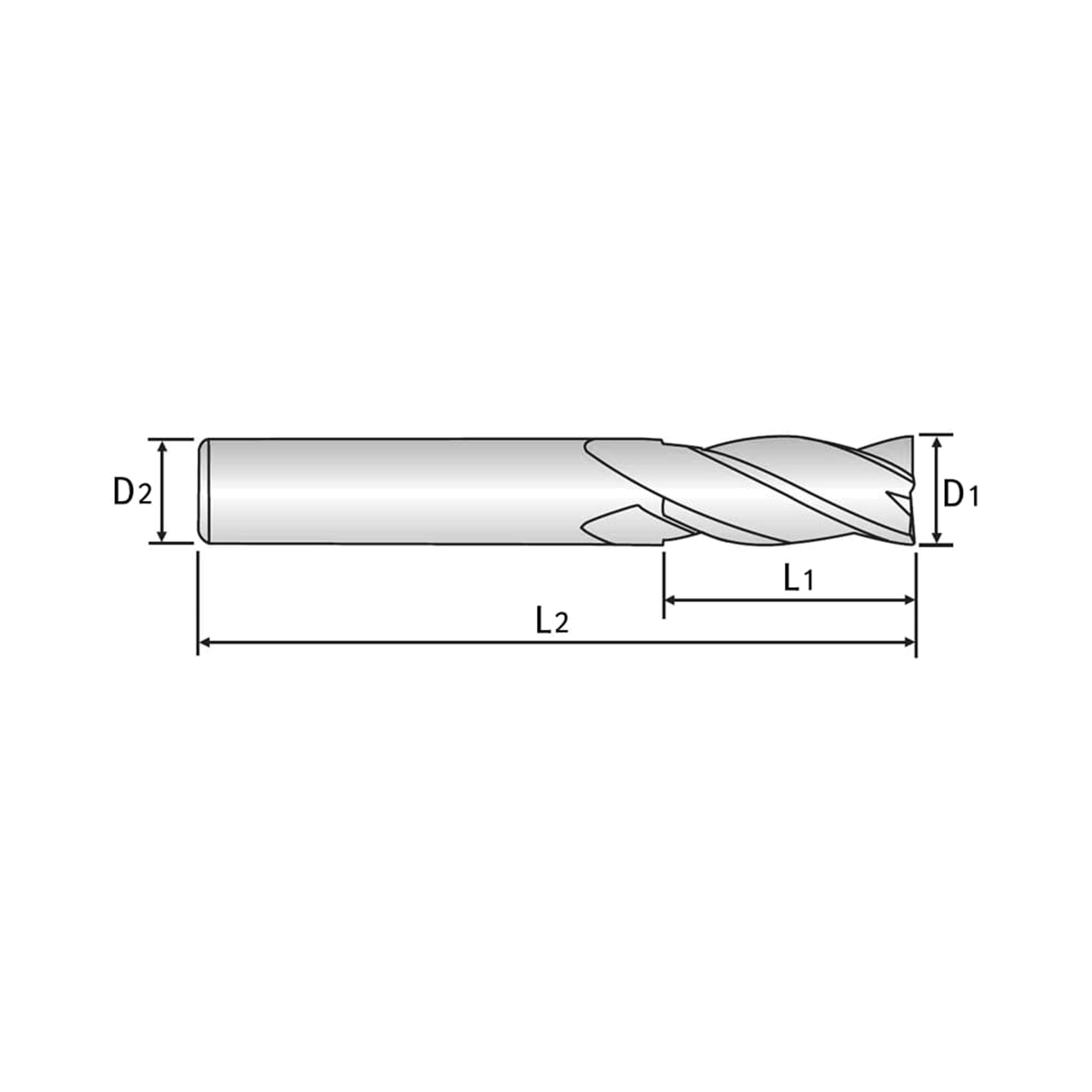

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| G9439020 | 2 | 50.0 | 6.0 | 3.0 | 1-2 Weeks | $34.40 | ||
| G9439030 | 3 | 50.0 | 6.0 | 4.0 | 1-2 Weeks | $31.70 | ||
| G9439035 | 3.5 | 50.0 | 6.0 | 4.0 | 1-2 Weeks | $31.70 | ||
| G9439040 | 4 | 54.0 | 6.0 | 5.0 | 1-2 Weeks | $31.70 | ||
| G9439045 | 4.5 | 54.0 | 6.0 | 5.0 | 1-2 Weeks | $31.70 | ||
| G9439050 | 5 | 54.0 | 6.0 | 6.0 | 1-2 Weeks | $29.60 | ||
| G9439060 | 6 | 54.0 | 6.0 | 7.0 | 1-2 Weeks | $31.70 | ||
| G9439070 | 7 | 58.0 | 8.0 | 8.0 | 1-2 Weeks | $44.30 | ||
| G9439080 | 8 | 58.0 | 8.0 | 9.0 | 1-2 Weeks | $44.30 | ||
| G9439090 | 9 | 66.0 | 10.0 | 10.0 | 1-2 Weeks | $67.60 | ||
| G9439100 | 10 | 66.0 | 10.0 | 11.0 | 1-2 Weeks | $67.60 | ||
| G9439120 | 12 | 73.0 | 12.0 | 12.0 | 1-2 Weeks | $93.70 | ||
| G9439140 | 14 | 75.0 | 14.0 | 14.0 | 1-2 Weeks | $123.90 | ||
| G9439160 | 16 | 82.0 | 16.0 | 16.0 | 1-2 Weeks | $169.90 | ||
| G9439180 | 18 | 84.0 | 18.0 | 18.0 | 1-2 Weeks | $222.40 | ||
| G9439200 | 20 | 92.0 | 20.0 | 20.0 | 1-2 Weeks | $285.50 |
Add (G9439) K-2 Carbide, 3Flute End Mill, Short Length, Flat Shank to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 G9439 K-2 Carbide is a three-flute short-length solid-carbide end mill featuring a TiAlN coating. It is designed for dry milling applications at high temperatures with a square cutting end. The three-flute design combines stated advantages of two-flute and four-flute end mill designs. G9439 tools feature flat shanks within the short-length end mill series.
Cutting diameters range from 2.0 to 20.0 mm, with matched short length-of-cut dimensions. Overall tool lengths run from 50 to 92 mm throughout this product family. These are excellent high-performance end mills suited to dry milling. This series offers excellent price-performance value in a compact end mill format.
- TiAlN coating supports dry milling applications at high temperatures
- Three flutes combine stated advantages of two-flute and four-flute end mills
- Solid-carbide short-length end mill configuration
- Flat shank design
- Cutting diameters from 2.0 to 20.0 mm
- Excellent price-performance value
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
