4-Flute Short Ball Nose End Mill
Buy now from our online retailers:
Select your preferred distributor:
Ball nose geometry is designed for radius-bottom slots, fillets and special contours.
The four-flute design supports better workpiece finishes in suitable milling operations.
The family covers ball radii from R1.0 to R10.0 and diameters from 2 to 20 mm.

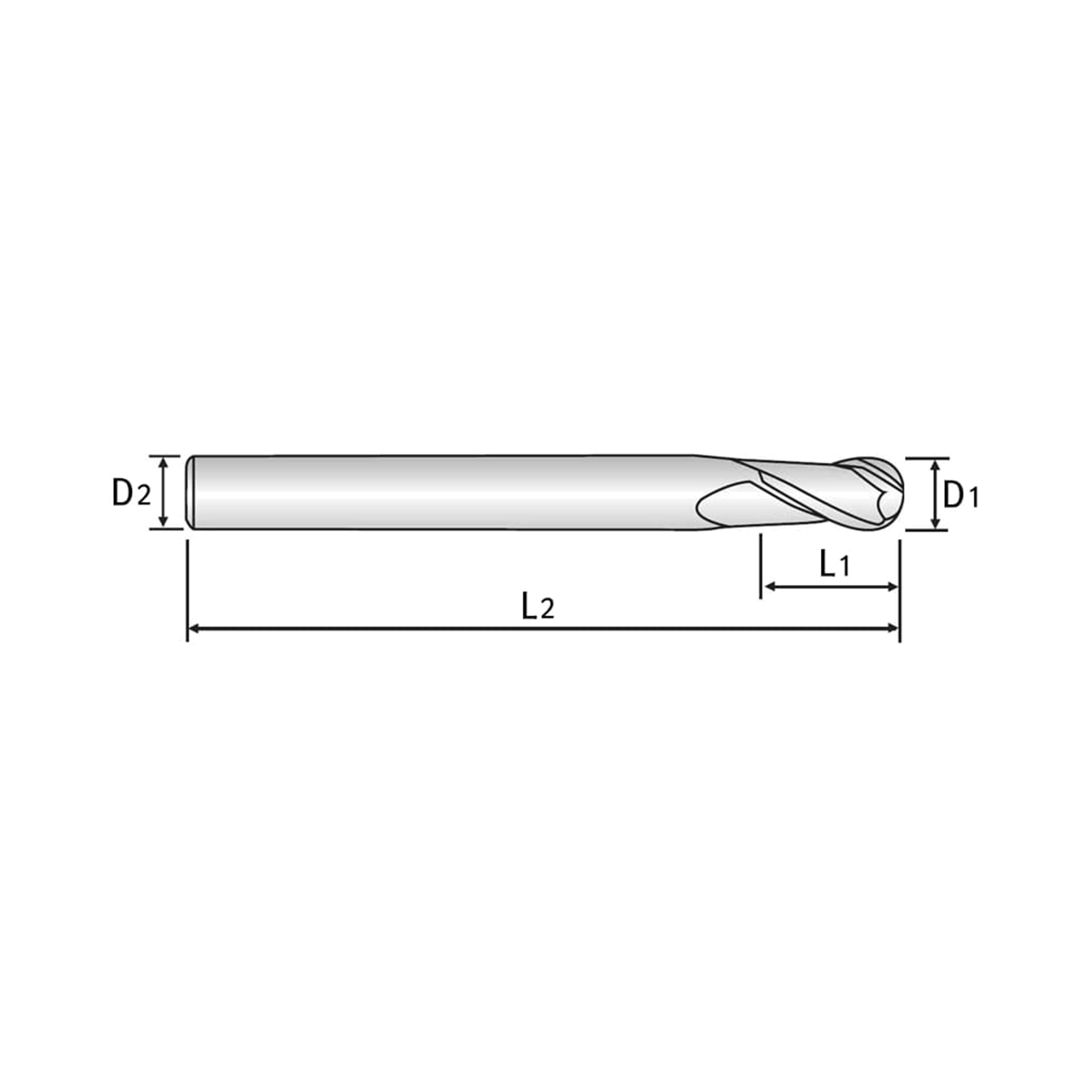

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| G9634020 | 2 | R1.0 | 48.0 | 6.0 | 4.0 | STEPDXF | In stock | $20.80 | ||
| G9634030 | 3 | R1.5 | 48.0 | 6.0 | 4.0 | STEPDXF | In stock | $17.60 | ||
| G9634040 | 4 | R2.0 | 50.0 | 6.0 | 6.0 | STEPDXF | In stock | $18.58 | ||
| G9634050 | 5 | R2.5 | 51.0 | 6.0 | 7.0 | STEPDXF | In stock | $22.37 | ||
| G9634060 | 6 | R3.0 | 51.0 | 6.0 | 7.0 | STEPDXF | In stock | $26.67 | ||
| G9634080 | 8 | R4.0 | 59.0 | 8.0 | 9.0 | STEPDXF | In stock | $47.21 | ||
| G9634100 | 10 | R5.0 | 60.0 | 10.0 | 10.0 | STEPDXF | Low stock | $68.60 | ||
| G9634120 | 12 | R6.0 | 71.0 | 12.0 | 14.0 | STEPDXF | In stock | $49.42 | ||
| G9634140 | 14 | R7.0 | 71.0 | 14.0 | 14.0 | STEPDXF | 1-2 Weeks | $185.17 | ||
| G9634160 | 16 | R8.0 | 76.0 | 16.0 | 16.0 | STEPDXF | 1-2 Weeks | $199.41 | ||
| G9634180 | 18 | R9.0 | 76.0 | 18.0 | 18.0 | STEPDXF | 1-2 Weeks | $209.60 | ||
| G9634200 | 20 | R10.0 | 82.0 | 20.0 | 20.0 | STEPDXF | 1-2 Weeks | $230.40 | ||
| G9634060N | 6.0 | R3.0 | 51.0 | 6.0 | 7.0 | – | 1-2 Weeks | $38.50 |
Add (G9634) K-2 Carbide, 4F Ball Nose Plain Shank to comparison

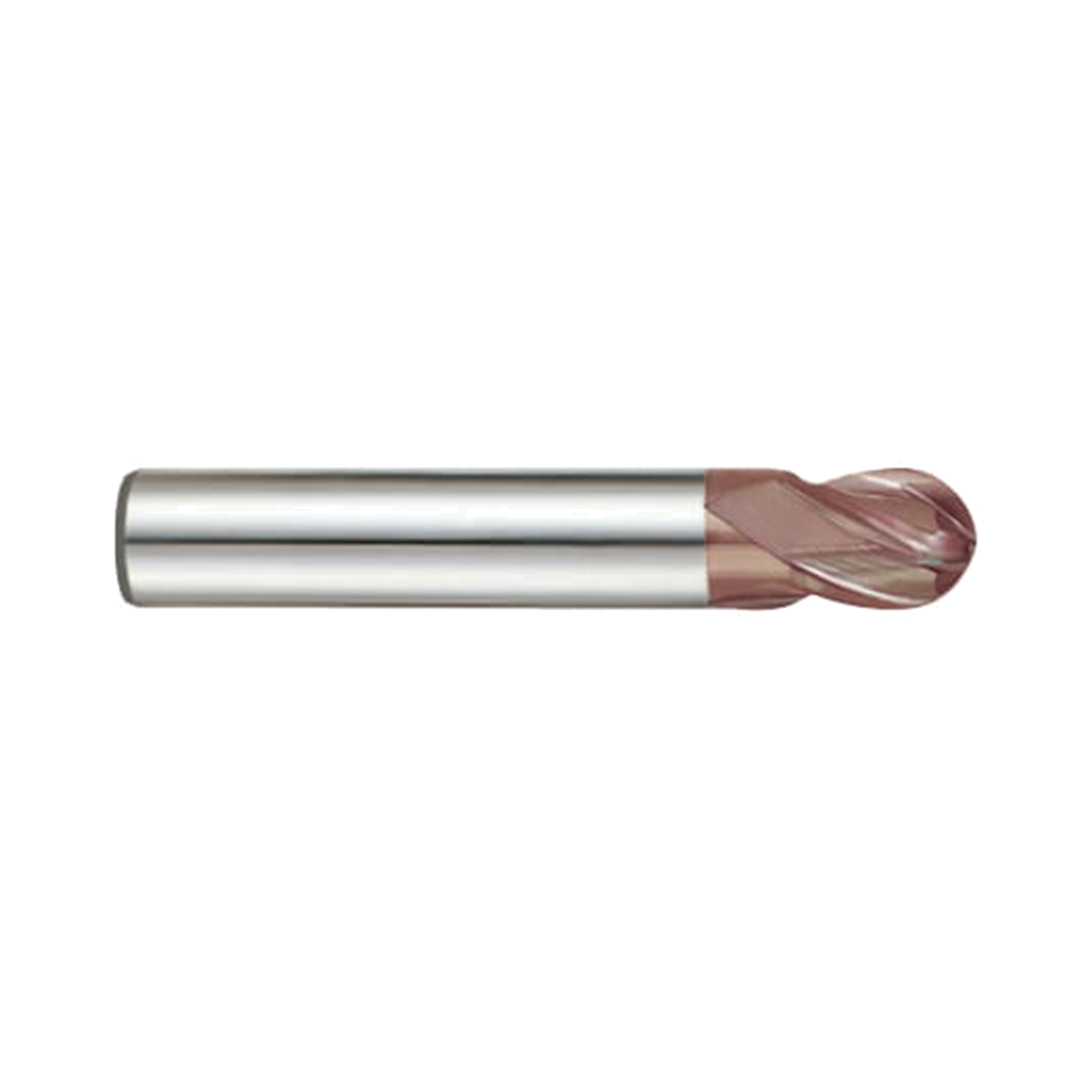

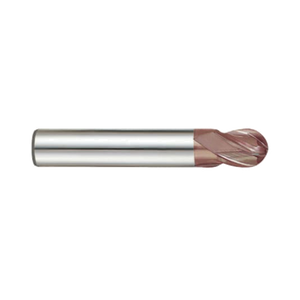

View ComparisonYG-1 G9634 K-2 Carbide is a four-flute short-length ball nose end mill with TiAlN coating. It is designed for milling radius-bottom slots, fillets and special contours in profiling applications. Four flutes support improved workpiece finishes for suitable milling operations. Solid carbide construction provides the specified cutting tool material for this K-2 series. Plain-shank variants cover 2 to 20 mm diameters and R1.0 to R10.0 ball radii. Lengths of cut range from 4 to 20 mm within the family. The series is described as an excellent high-performance end mill. Choose this short ball nose geometry where controlled contour and fillet milling is required.
| Cutting Shape | Ball Nose |
| Length | Short |
| No. Flutes | 4 |
| Surface Treatment | Titanium Aluminium Nitride Coating |
| Tool Material | Carbide |
VDI 3323 recommendations for this tool.
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Excellent | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Excellent | 325 | 35 |
| 12 | MStainless steel | Good | 200 | 15 |
| 13 | MStainless steel | Good | 240 | 23 |
| 14 | MStainless steel | Good | 180 | 10 |
| 15 | KGrey cast iron | Good | 180 | 10 |
| 16 | KGrey cast iron | Good | 260 | 26 |
| 17 | KNodular cast iron | Good | 160 | 3 |
| 18 | KNodular cast iron | Good | 250 | 25 |
| 19 | KMalleable cast iron | Good | 130 | - |
| 20 | KMalleable cast iron | Good | 230 | 21 |
| 21 | NWrought aluminium | Good | 60 | - |
| 22 | NWrought aluminium | Good | 100 | - |
| 23 | NCast aluminium | Good | 75 | - |
| 24 | NCast aluminium | Good | 90 | - |
| 25 | NCast aluminium | Good | 130 | - |
| 26 | NCopper, bronze and brass | Good | 110 | - |
| 27 | NCopper, bronze and brass | Good | 90 | - |
| 28 | NCopper, bronze and brass | Good | 100 | - |
| 29 | NNon-metallic materials | Good | - | - |
| 31 | SHeat-resistant superalloys | Good | 200 | 15 |
| 32 | SHeat-resistant superalloys | Good | 280 | 30 |
| 33 | SHeat-resistant superalloys | Good | 250 | 25 |
| 34 | SHeat-resistant superalloys | Good | 350 | 38 |
| 35 | SHeat-resistant superalloys | Good | 320 | 34 |
| 36 | STitanium alloys | Good | - | - |
| 37 | STitanium alloys | Good | - | - |
| 40 | HChilled cast iron | Good | 400 | 42 |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
