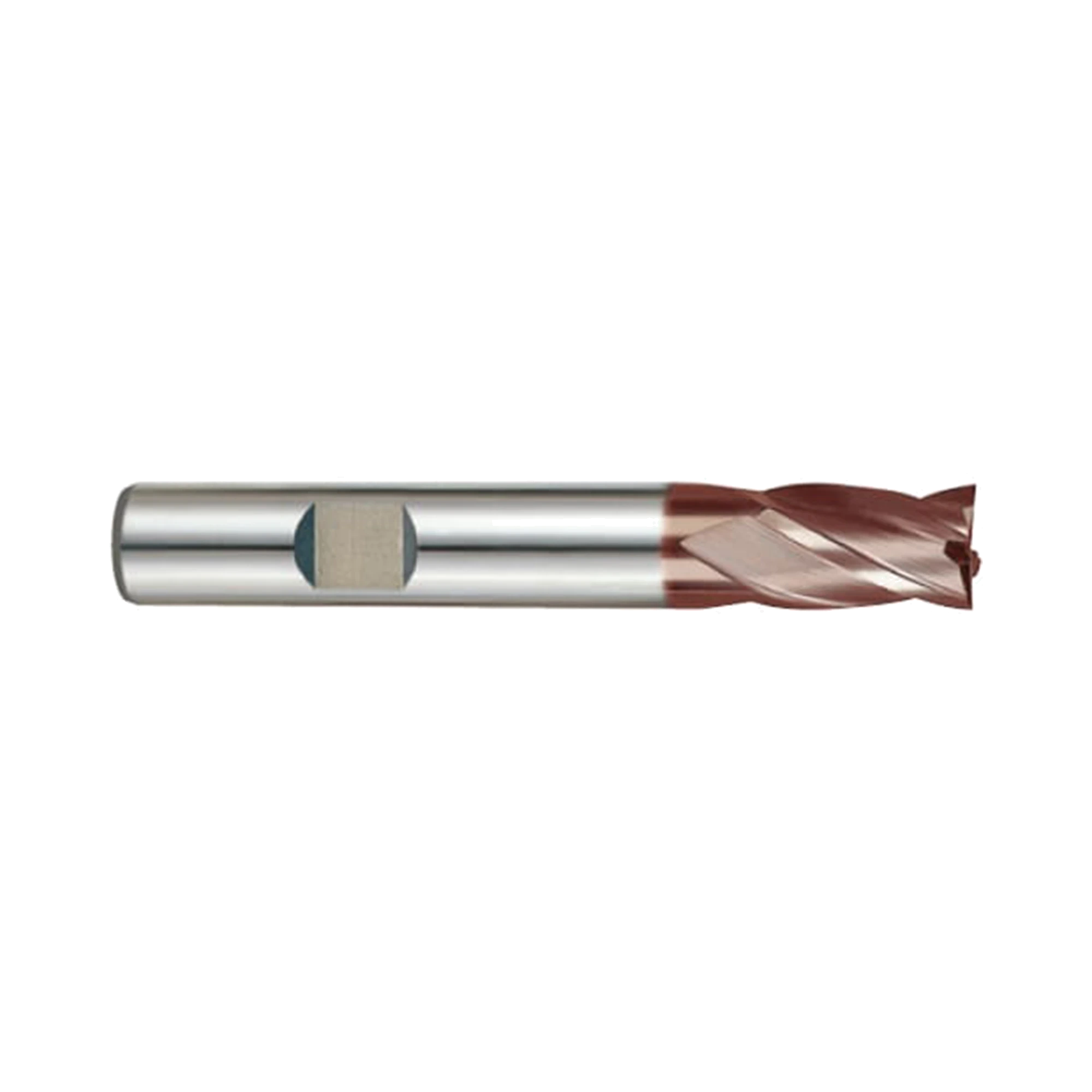

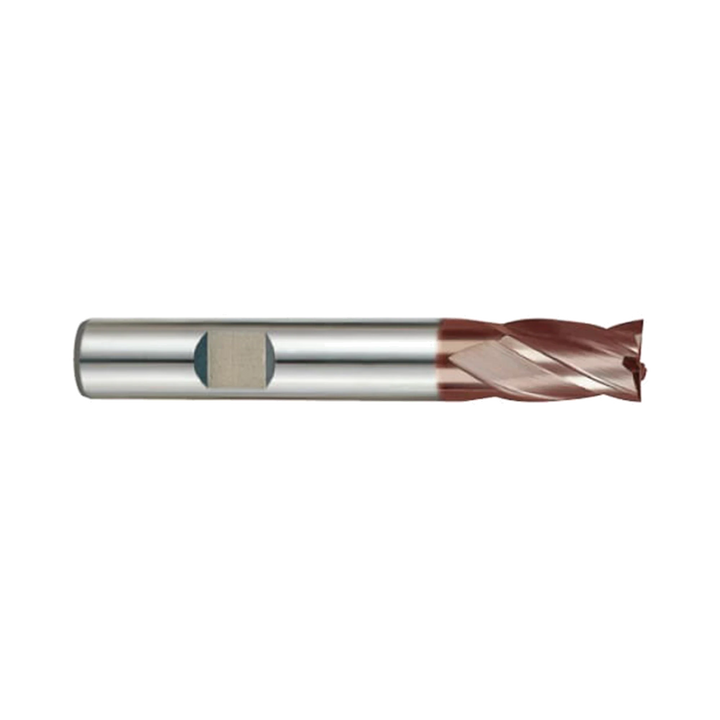

(G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank

TiAlN-Coated Four-Flute Short-Length End Mill
  • $34.43INC GST $31.30 EX GST
(G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank
(G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank
(G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank
(G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank

(G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank

TiAlN-Coated Four-Flute Short-Length End Mill
  • $34.43INC GST $31.30 EX GST

Code: G9448020

    Key Features
  • TiAlN-coated solid carbide construction
  • Four-flute geometry supports improved workpiece finishes
  • Suitable for dry milling at high temperatures
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Dry Milling Capability

TiAlN coating supports dry milling applications at high temperatures

Finish-Oriented Geometry

Four flutes support improved workpiece finishes

Useful Size Range

Mill diameters span 2 to 20 mm with flat shanks

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
G9448020250.06.04.0 In stock $31.30
G94480252.550.06.04.0 Low stock $31.30
G9448030350.06.05.0 In stock $29.60
G9448040454.06.08.0 In stock $29.60
G94480454.554.06.08.0 5 days $29.60
G9448050554.06.09.0 Low stock $29.60
G9448060654.06.010.0 In stock $29.60
G9448070758.08.011.0 5 days $40.30
G9448080858.08.012.0 In stock $40.30
G9448090966.010.013.0 5 days $70.10
G94481001066.010.014.0 5 days $60.50
G94481201273.012.016.0 5 days $85.10
G94481401475.014.018.0 5 days $128.30
G94481601682.016.022.0 5 days $185.30
G94482002092.020.026.0 Low stock $190.80

Add (G9448) K-2 Carbide, 4Flute End Mill, Short Length, Flat Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Speeds & Feeds
  • Reviews
Product Description

YG-1 G9448 K-2 Carbide is a TiAlN-coated solid carbide four-flute short-length flat shank end mill. It is designed for dry milling applications at high temperatures in steel, stainless steel and cast iron. Four flutes support improved workpiece finishes in dry milling operations. The flat shank series covers 2 to 20 mm mill diameters. Listed variants pair 6 to 20 mm shanks with 4 to 26 mm lengths of cut. Overall lengths range from 50 to 92 mm across the supplied SKU selection. The series is recommended for ISO P, M and K materials. This geometry suits machining environments where a short length tool and flat shank are required.

  • TiAlN-coated solid carbide construction
  • Four-flute geometry supports improved workpiece finishes
  • Suitable for dry milling at high temperatures
  • Flat shank configuration
  • 2 to 20 mm milling diameter range
  • Recommended for steel stainless steel and cast iron
Product Data

No specifications available.

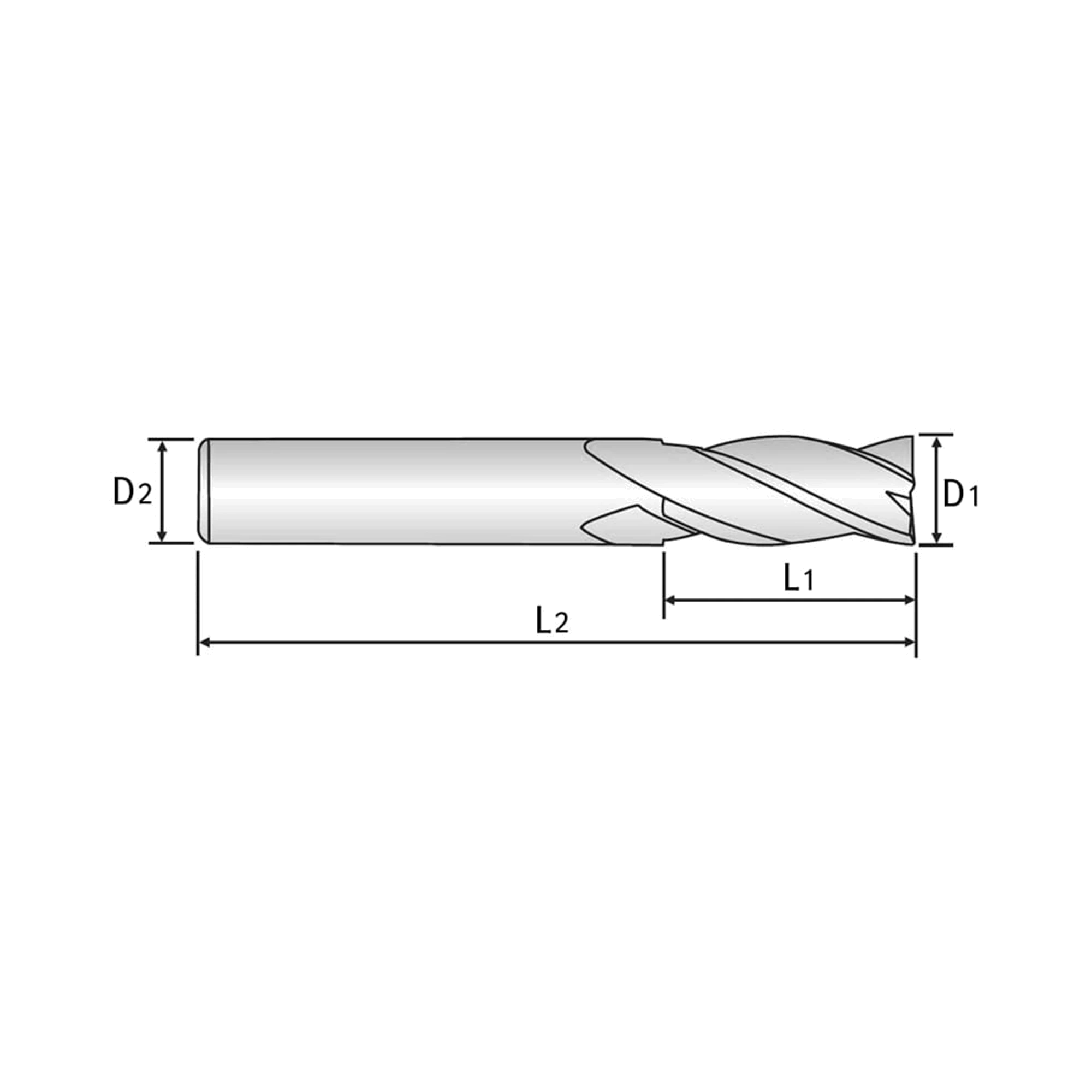

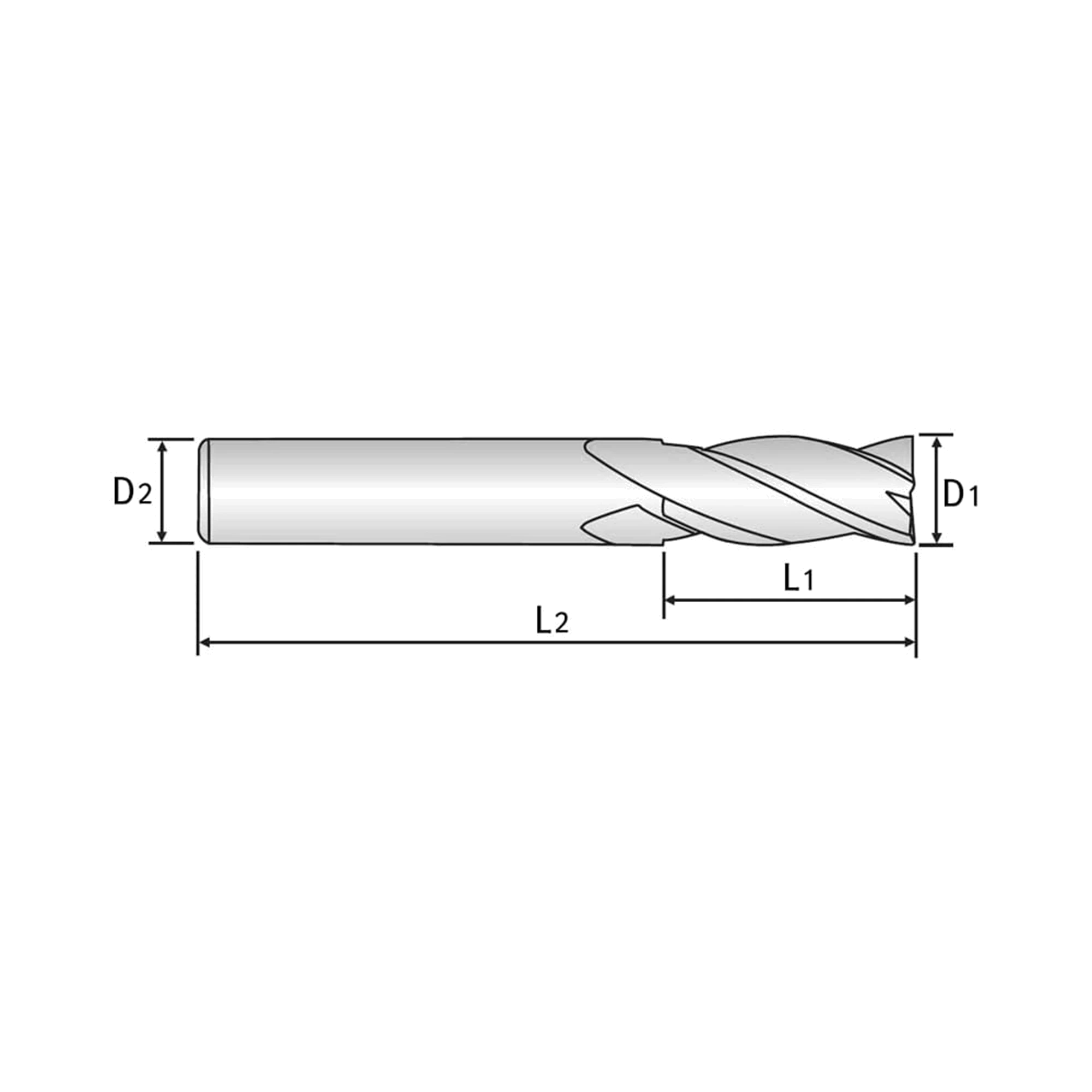

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9448020 2 6 4 50 0~-0.030 h5 4 G9448025 2.5 6 4 50 0~-0.030 h5 4 G9448030 3 6 5 50 0~-0.030 h5 4 G9448035 3.5 6 6 50 0~-0.030 h5 4 G9448040 4 6 8 54 0~-0.030 h5 4 G9448045 4.5 6 8 54 0~-0.030 h5 4 G9448050 5 6 9 54 0~-0.030 h5 4 G9448060 6 6 10 54 0~-0.030 h5 4 G9448070 7 8 11 58 0~-0.030 h5 4 G9448080 8 8 12 58 0~-0.030 h5 4 G9448090 9 10 13 66 0~-0.030 h5 4 G9448100 10 10 14 66 0~-0.030 h5 4 G9448120 12 12 16 73 0~-0.030 h5 4 G9448140 14 14 18 75 0~-0.030 h5 4 G9448160 16 16 22 82 0~-0.030 h5 4 G9448180 18 18 24 84 0~-0.030 h5 4 G9448200 20 20 26 92 0~-0.030 h5 4

Speeds & Feeds

ISO VDI 3323  Material Description Ae Ap Parameter Diameter (Ø)
1.0 1.5 2.0 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 20.0
P 1-4 Non-Alloy Steel 0.1D 1.0D Vc 55 55 60 70 80 85 90 90 85 90 90 95 90
fz 0.002 0.005 0.006 0.009 0.019 0.024 0.029 0.043 0.047 0.047 0.047 0.047 0.047
RPM 17507 11671 9549 7427 6366 5411 4775 3581 2706 2387 2046 1890 1432
FEED 140 233 229 267 484 519 554 616 509 449 385 355 269
5 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
6-7 Low-Alloy Steel 0.1D 1.0D Vc 55 55 60 70 80 85 90 90 85 90 90 95 90
fz 0.002 0.005 0.006 0.009 0.019 0.024 0.029 0.043 0.047 0.047 0.047 0.047 0.047
RPM 17507 11671 9549 7427 6366 5411 4775 3581 2706 2387 2046 1890 1432
FEED 140 233 229 267 484 519 554 616 509 449 385 355 269
8-9 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
10 High-Alloyed Steel, and Tool Steel 0.1D 1.0D Vc 55 55 60 70 80 85 90 90 85 90 90 95 90
fz 0.002 0.005 0.006 0.009 0.019 0.024 0.029 0.043 0.047 0.047 0.047 0.047 0.047
RPM 17507 11671 9549 7427 6366 5411 4775 3581 2706 2387 2046 1890 1432
FEED 140 233 229 267 484 519 554 616 509 449 385 355 269
11.1-11.2 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
M 14.1 Stainless steel 0.1D 1.0D Vc 25 35 35 35 40 40 45 45 45 45 45 50 45
fz 0.002 0.004 0.006 0.009 0.018 0.024 0.020 0.042 0.044 0.045 0.045 0.045 0.046
RPM 7958 7427 5570 3714 3183 2546 2387 1790 1432 1194 1023 895 716
FEED 64 119 134 134 229 244 277 301 252 215 184 179 132
K 15-20 Grey cast iron Nodular cast iron Malleable cast iron 0.1D 1.5D Vc 60 55 60 55 60 55 55 55 60 55 55 55 55
fz 0.008 0.013 0.017 0.026 0.035 0.044 0.065 0.093 0.116 0.155 0.182 0.22 0.288
RPM 19099 11671 9549 5836 4775 3501 2918 2188 1910 1459 1251 1094 875
FEED 611 607 649 607 668 616 759 814 886 905 910 963 1008
N 21~22 Aluminum-wrought alloy 0.1D 1.5D Vc 140 130 140 145 140 145 145 145 145 140 145 145 140
fz 0.006 0.011 0.015 0.021 0.03 0.036 0.047 0.063 0.078 0.095 0.108 0.125 0.163
RPM 44563 27587 22282 15385 11141 9231 7692 5769 4615 3714 3297 2885 2228
FEED 1070 1214 1337 1292 1337 1329 1446 1454 1440 1411 1424 1442 1453
23~25 Aluminum-cast,alloyed 0.1D 1.5D Vc 140 130 140 145 140 145 145 145 145 140 145 145 140
fz 0.006 0.011 0.015 0.021 0.03 0.036 0.047 0.063 0.078 0.095 0.108 0.125 0.163
RPM 44563 27587 22282 15385 11141 9231 7692 5769 4615 3714 3297 2885 2228
FEED 1070 1214 1337 1292 1337 1329 1446 1454 1440 1411 1424 1442 1453
26-28 Copper Alloys (Bronze / Brass) 0.1D 1.5D Vc 80 95 105 105 110 105 105 110 105 105 105 110 105
fz 0.006 0.011 0.016 0.024 0.029 0.038 0.048 0.063 0.081 0.096 0.115 0.125 0.162
RPM 25465 20160 16711 11141 8754 6685 5570 4377 3342 2785 2387 2188 1671
FEED 611 887 1070 1070 1015 1016 1070 1103 1083 1070 1098 1094 1083
29.1 Non Metallic Materials 1.0D 1.5D Vc 80 95 105 105 110 105 105 110 105 105 105 110 105
fz 0.006 0.011 0.016 0.024 0.029 0.038 0.048 0.063 0.081 0.096 0.115 0.125 0.162
RPM 25465 20160 16711 11141 8754 6685 5570 4377 3342 2785 2387 2188 1671
FEED 611 887 1070 1070 1015 1016 1070 1103 1083 1070 1098 1094 1083
H 40 Chilled Cast Iron 0.1D 1.0D Vc 30 35 40 45 50 50 55 55 55 55 55 60 65
fz 0.002 0.004 0.006 0.009 0.019 0.024 0.031 0.038 0.038 0.037 0.038 0.037 0.038
RPM 9549 7427 6366 4775 3979 3183 2918 2188 1751 1459 1251 1194 875
FEED 76 119 153 172 302 306 362 333 266 216 190 177 133
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute G9448020 2 6 4 50 0~-0.030 h5 4 G9448025 2.5 6 4 50 0~-0.030 h5 4 G9448030 3 6 5 50 0~-0.030 h5 4 G9448035 3.5 6 6 50 0~-0.030 h5 4 G9448040 4 6 8 54 0~-0.030 h5 4 G9448045 4.5 6 8 54 0~-0.030 h5 4 G9448050 5 6 9 54 0~-0.030 h5 4 G9448060 6 6 10 54 0~-0.030 h5 4 G9448070 7 8 11 58 0~-0.030 h5 4 G9448080 8 8 12 58 0~-0.030 h5 4 G9448090 9 10 13 66 0~-0.030 h5 4 G9448100 10 10 14 66 0~-0.030 h5 4 G9448120 12 12 16 73 0~-0.030 h5 4 G9448140 14 14 18 75 0~-0.030 h5 4 G9448160 16 16 22 82 0~-0.030 h5 4 G9448180 18 18 24 84 0~-0.030 h5 4 G9448200 20 20 26 92 0~-0.030 h5 4
