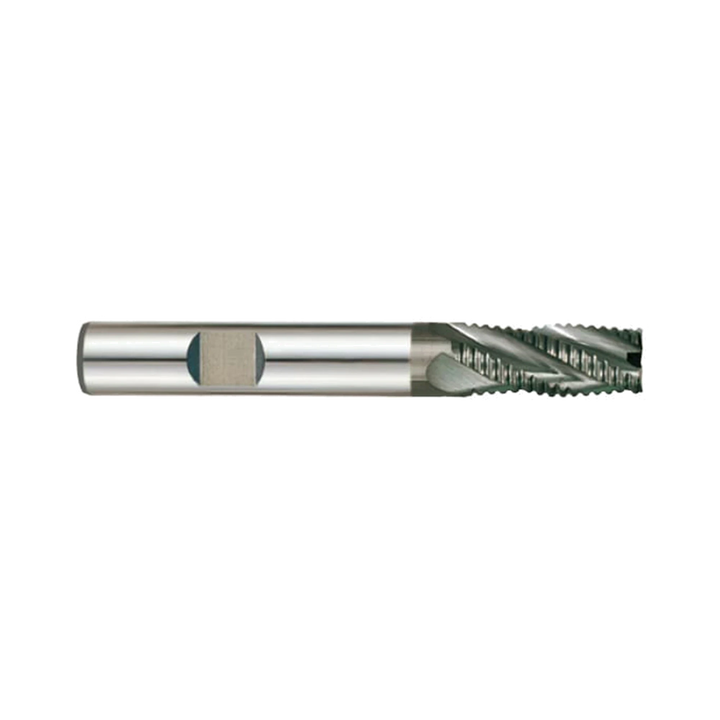

X-Coated Carbide Coarse Roughing End Mill
Buy now from our online retailers:
Select your preferred distributor:
Suitable for dry milling applications at high temperatures.
Coarse roughing geometry supports fast chip ejection.
Available from 6 to 25 mm with three, four or five flutes.

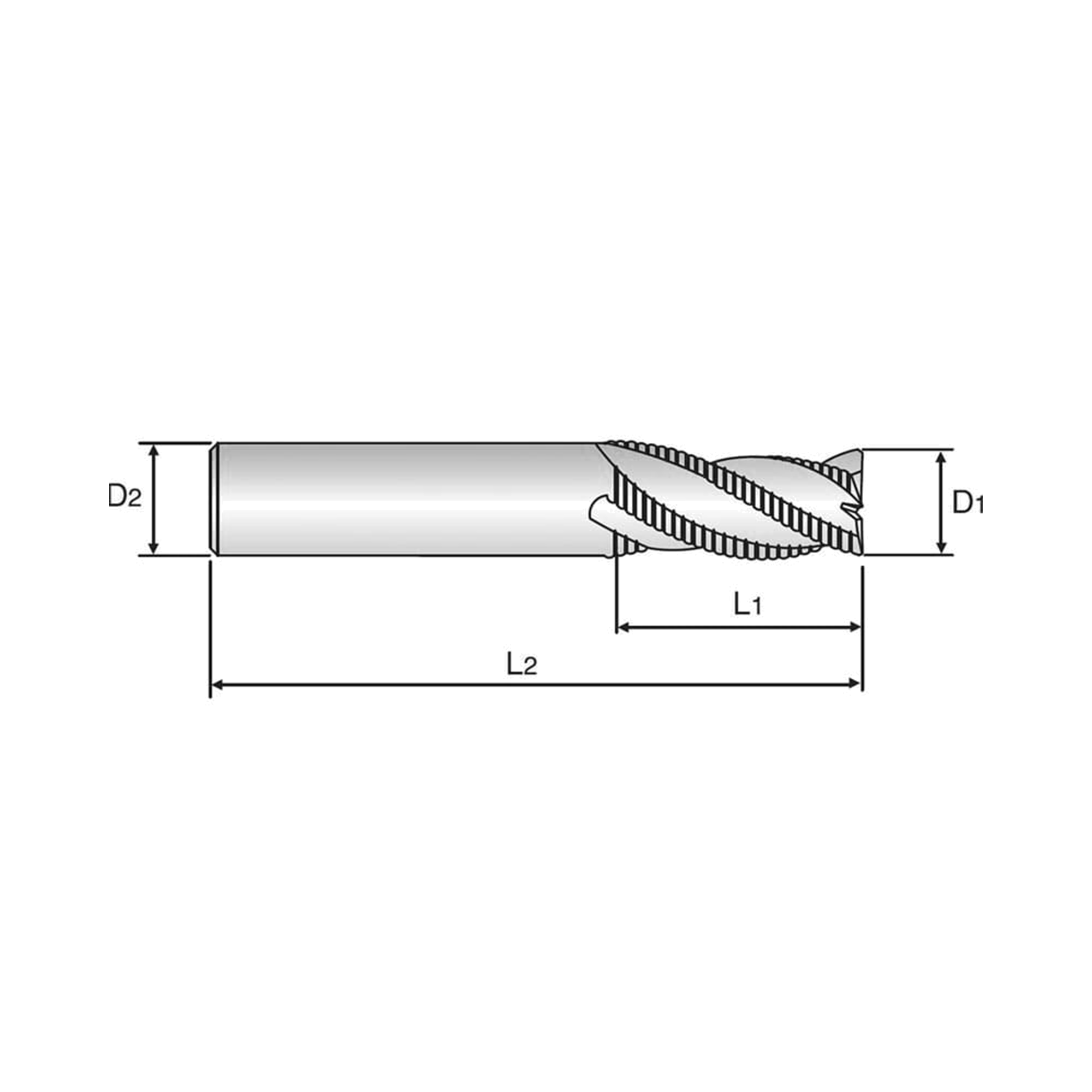

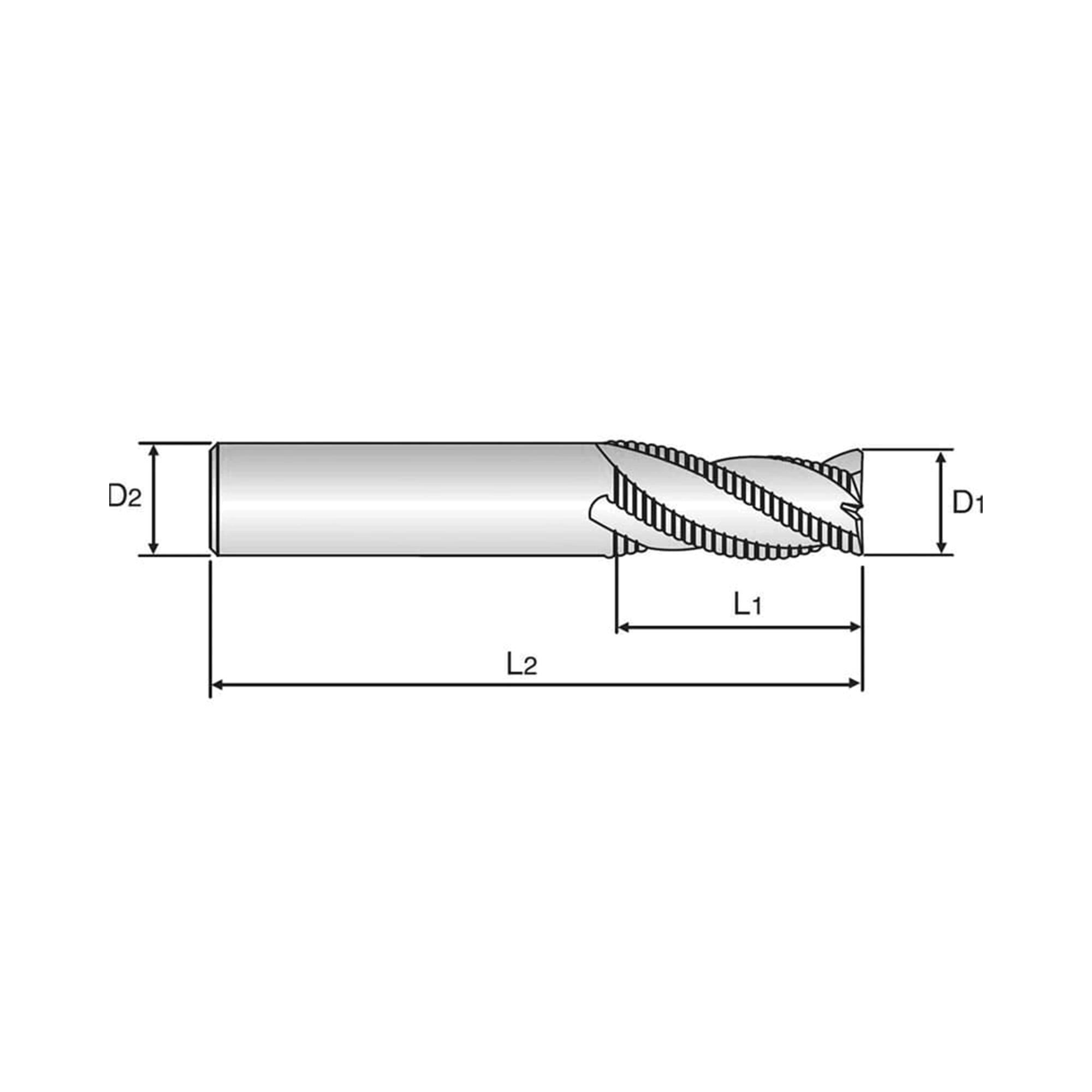

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G9A42060 | 6.0 | 0.6 | 57.0 | 6.0 | 3 | 16.0 | STEPDXF | In stock | $53.60 | ||
| G9A42080 | 8.0 | 0.6 | 63.0 | 8.0 | 3 | 16.0 | STEPDXF | Low stock | $47.00 | ||
| G9A42100 | 10.0 | 0.6 | 72.0 | 10.0 | 4 | 22.0 | STEPDXF | In stock | $70.24 | ||
| G9A42120 | 12.0 | 0.74 | 83.0 | 12.0 | 4 | 26.0 | STEPDXF | In stock | $80.54 | ||
| G9A42140 | 14.0 | 0.94 | 83.0 | 14.0 | 4 | 26.0 | STEPDXF | 1-2 Weeks | $155.70 | ||
| G9A42160 | 16.0 | 0.94 | 92.0 | 16.0 | 4 | 32.0 | STEPDXF | In stock | $143.30 | ||
| G9A42180 | 18.0 | 0.94 | 92.0 | 18.0 | 4 | 32.0 | STEPDXF | 1-2 Weeks | $261.90 | ||
| G9A42200 | 20.0 | 0.94 | 104.0 | 20.0 | 4 | 38.0 | STEPDXF | 1-2 Weeks | $290.30 | ||
| G9A42250 | 25.0 | 0.94 | 121.0 | 25.0 | 5 | 45.0 | STEPDXF | 1-2 Weeks | $412.70 |
Add (G9A42) K-2 Carbide, Multi Flute Roughing End Mill, Long Length, Flat Shank (Coarse) to comparison

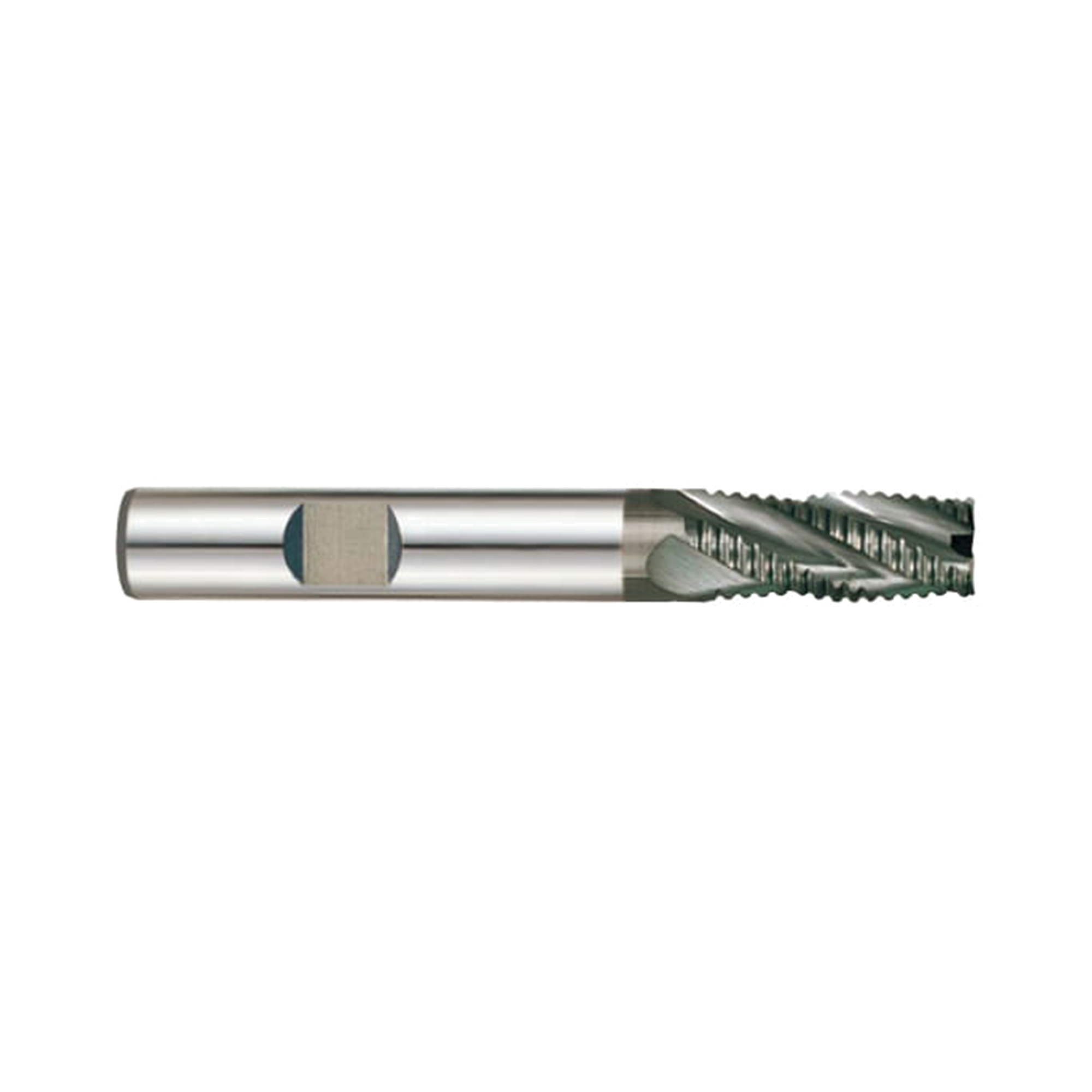

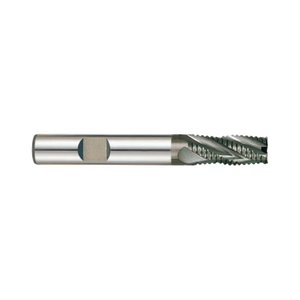

View ComparisonYG-1 G9A42 is an X-coated solid-carbide, long-length coarse roughing end mill with a flat shank. Designed for high-temperature dry milling, it combines coarse roughing geometry with fast chip ejection. The multi-flute design provides three, four or five flutes according to diameter. Its enforced cutting edge and listed chamfer provide a strengthened edge configuration. Available diameters span 6 to 25 mm, with matching flat-shank diameters. Long-length overall dimensions range from 57 to 121 mm throughout the series. It suits operations requiring dry milling and rapid chip evacuation at elevated temperatures. Solid carbide construction provides the tool material specified for the complete series.
| Cutting Shape | Rougher |
| Length | Long |
| Tool Material | Carbide |
VDI 3323 recommendations for this tool.
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Excellent | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Excellent | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Excellent | 325 | 35 |
| 12 | MStainless steel | Good | 200 | 15 |
| 13 | MStainless steel | Good | 240 | 23 |
| 14 | MStainless steel | Good | 180 | 10 |
| 15 | KGrey cast iron | Good | 180 | 10 |
| 16 | KGrey cast iron | Good | 260 | 26 |
| 17 | KNodular cast iron | Good | 160 | 3 |
| 18 | KNodular cast iron | Good | 250 | 25 |
| 19 | KMalleable cast iron | Good | 130 | - |
| 20 | KMalleable cast iron | Good | 230 | 21 |
| 21 | NWrought aluminium | Good | 60 | - |
| 22 | NWrought aluminium | Good | 100 | - |
| 23 | NCast aluminium | Good | 75 | - |
| 24 | NCast aluminium | Good | 90 | - |
| 25 | NCast aluminium | Good | 130 | - |
| 26 | NCopper, bronze and brass | Good | 110 | - |
| 27 | NCopper, bronze and brass | Good | 90 | - |
| 28 | NCopper, bronze and brass | Good | 100 | - |
| 29 | NNon-metallic materials | Good | - | - |
| 31 | SHeat-resistant superalloys | Good | 200 | 15 |
| 32 | SHeat-resistant superalloys | Good | 280 | 30 |
| 33 | SHeat-resistant superalloys | Good | 250 | 25 |
| 34 | SHeat-resistant superalloys | Good | 350 | 38 |
| 35 | SHeat-resistant superalloys | Good | 320 | 34 |
| 36 | STitanium alloys | Good | - | - |
| 37 | STitanium alloys | Good | - | - |
| 40 | HChilled cast iron | Good | 400 | 42 |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
Uncoated one-flute carbide end mill for non-ferrous materials
YG-1 V7 Plus GMG12 Plain-Shank Six-Flute End Mill
TiAlN-coated solid carbide four-flute short-length end mill
Long-Length 3-Flute Carbide End Mill for Aluminium

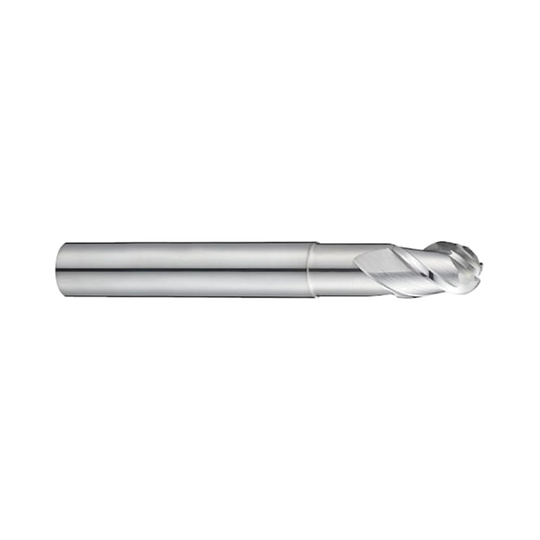

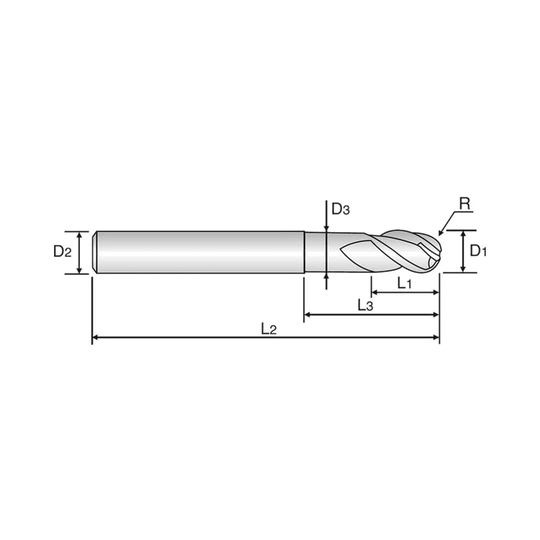

Long-length four-flute carbide ball nose end mill
