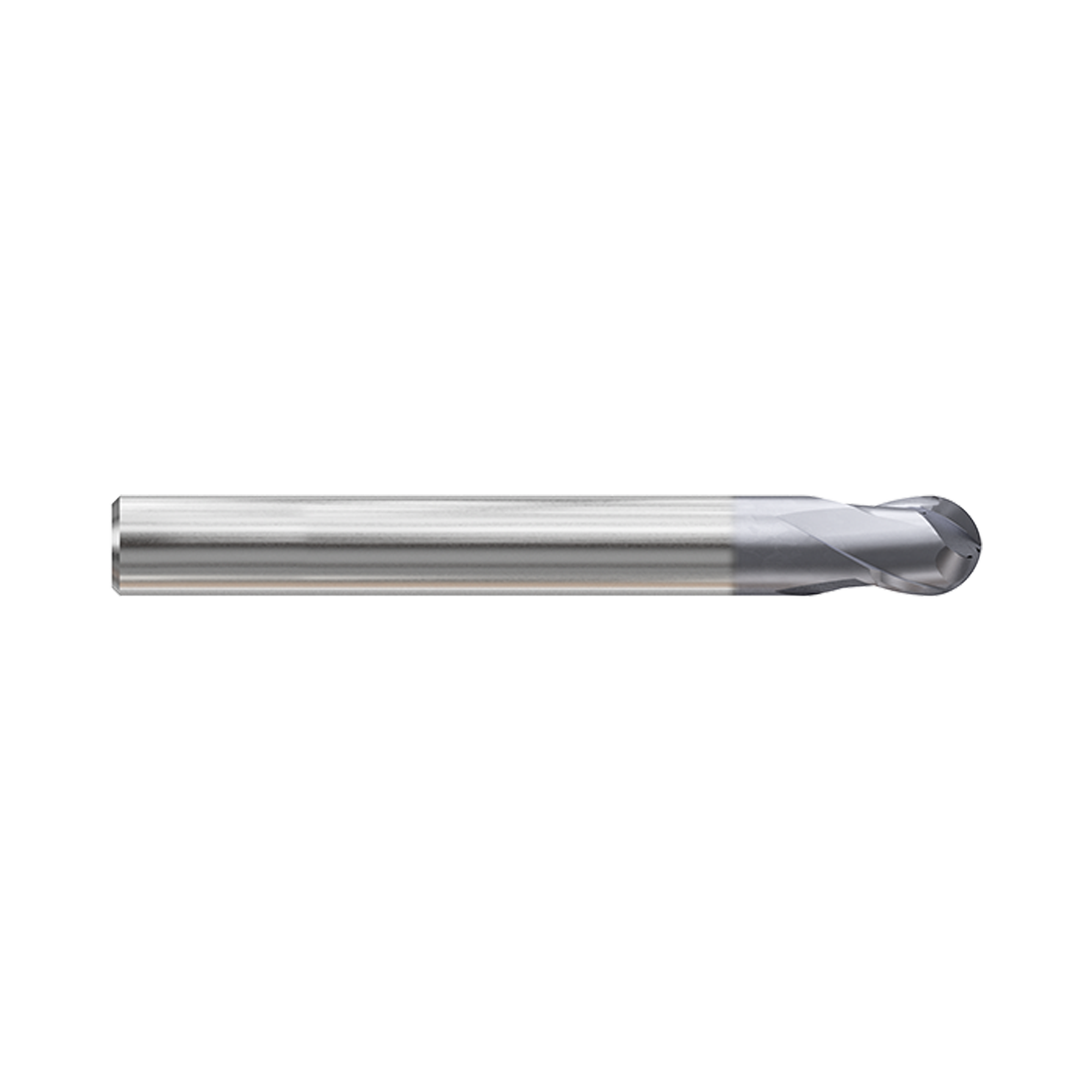

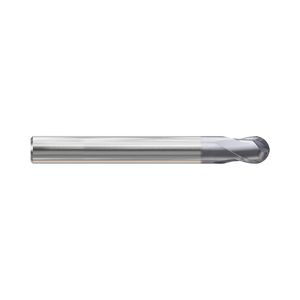

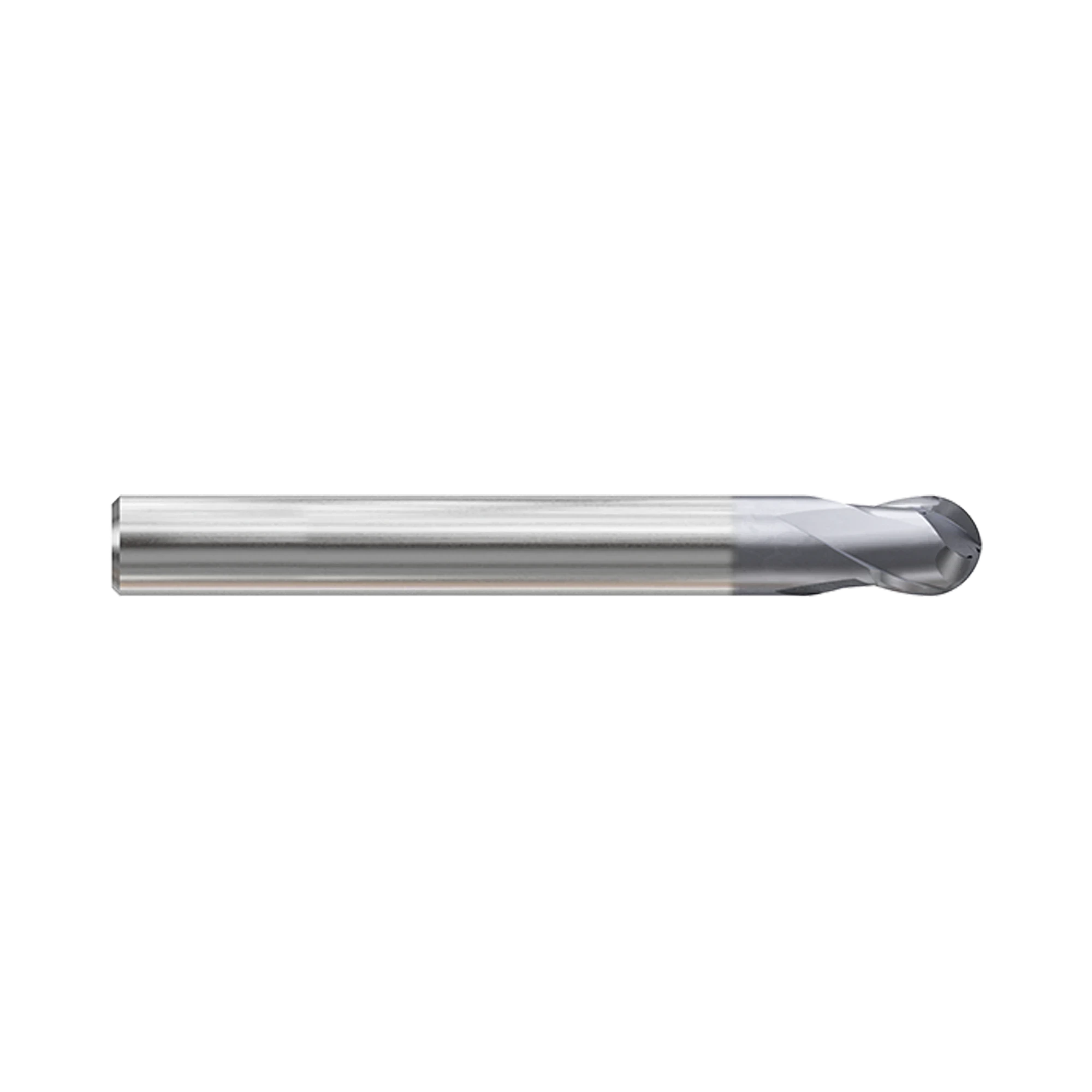

(GYG77) HSS-PM, Only One 2Flute Coated Ball Nose End Mill, Short Length, Plain Shank

  • $28.60INC GST $26.00 EX GST
(GYG77) HSS-PM, Only One 2Flute Coated Ball Nose End Mill, Short Length, Plain Shank

(GYG77) HSS-PM, Only One 2Flute Coated Ball Nose End Mill, Short Length, Plain Shank

  • $28.60INC GST $26.00 EX GST

Code: GYG77010

P M K N
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
GYG77010147.06.02.5 5 days $26.00
GYG77020248.06.04.0 5 days $26.00
GYG77030349.06.05.0 5 days $26.00
GYG77060652.06.08.0 5 days $26.00
GYG77080861.08.011.0 5 days $40.10
GYG77090961.010.011.0 5 days $45.10
GYG771201273.012.016.0 5 days $63.70
GYG771601679.016.019.0 5 days $103.60

Add (GYG77) HSS-PM, Only One 2Flute Coated Ball Nose End Mill, Short Length, Plain Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

Product Data
Workpiece Material P M K N
Ball Radius Tolerance 0.02
Cutting Shape Ball Nose
Hardened Steels(HRc40~45) Great
Helix Angle Ball Nose 30
Length Short
No. Flutes 2
Operation Profiling, Side Milling, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material PM 60
Flutes 2
Helix Angle 30°
Cutting Edge Shape BALL NOSE
Size Min R0.5
Size Max R12.5
Length SHORT LENGTH
Coating Y-Coating

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG77010 1 6 2.5 47 0~-0.030 h6 2 GYG77020 2 6 4 48 0~-0.030 h6 2 GYG77030 3 6 5 49 0~-0.030 h6 2 GYG77040 4 6 7 51 0~-0.030 h6 2 GYG77050 5 6 8 52 0~-0.030 h6 2 GYG77060 6 6 8 52 0~-0.030 h6 2 GYG77070 7 8 10 60 0~-0.030 h6 2 GYG77080 8 8 11 61 0~-0.030 h6 2 GYG77090 9 10 11 61 0~-0.030 h6 2 GYG77100 10 10 13 63 0~-0.030 h6 2 GYG77120 12 12 16 73 0~-0.030 h6 2 GYG77140 14 12 16 73 0~-0.030 h6 2 GYG77160 16 16 19 79 0~-0.030 h6 2 GYG77180 18 16 19 79 0~-0.030 h6 2 GYG77200 20 20 22 88 0~-0.030 h6 2 GYG77250 25 25 26 102 0~-0.030 h6 2
Profiling
Side Milling
Small Part
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
M

Stainless steel

Excellent Excellent
HRc
152310
HB
200240180
K

Grey cast iron

Excellent Excellent
HRc
1026
HB
180260
K

Nodular cast iron

Excellent Excellent
HRc
325
HB
160250
K

Malleable cast iron

Excellent Excellent
HRc
21
HB
130230
N

Copper. bronze. brass

Good Good
HRc
HB
11090100
H

Hardened steels & cast irons

Good Good
HRc
40
HB
630
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG77010 1 6 2.5 47 0~-0.030 h6 2 GYG77020 2 6 4 48 0~-0.030 h6 2 GYG77030 3 6 5 49 0~-0.030 h6 2 GYG77040 4 6 7 51 0~-0.030 h6 2 GYG77050 5 6 8 52 0~-0.030 h6 2 GYG77060 6 6 8 52 0~-0.030 h6 2 GYG77070 7 8 10 60 0~-0.030 h6 2 GYG77080 8 8 11 61 0~-0.030 h6 2 GYG77090 9 10 11 61 0~-0.030 h6 2 GYG77100 10 10 13 63 0~-0.030 h6 2 GYG77120 12 12 16 73 0~-0.030 h6 2 GYG77140 14 12 16 73 0~-0.030 h6 2 GYG77160 16 16 19 79 0~-0.030 h6 2 GYG77180 18 16 19 79 0~-0.030 h6 2 GYG77200 20 20 22 88 0~-0.030 h6 2 GYG77250 25 25 26 102 0~-0.030 h6 2
