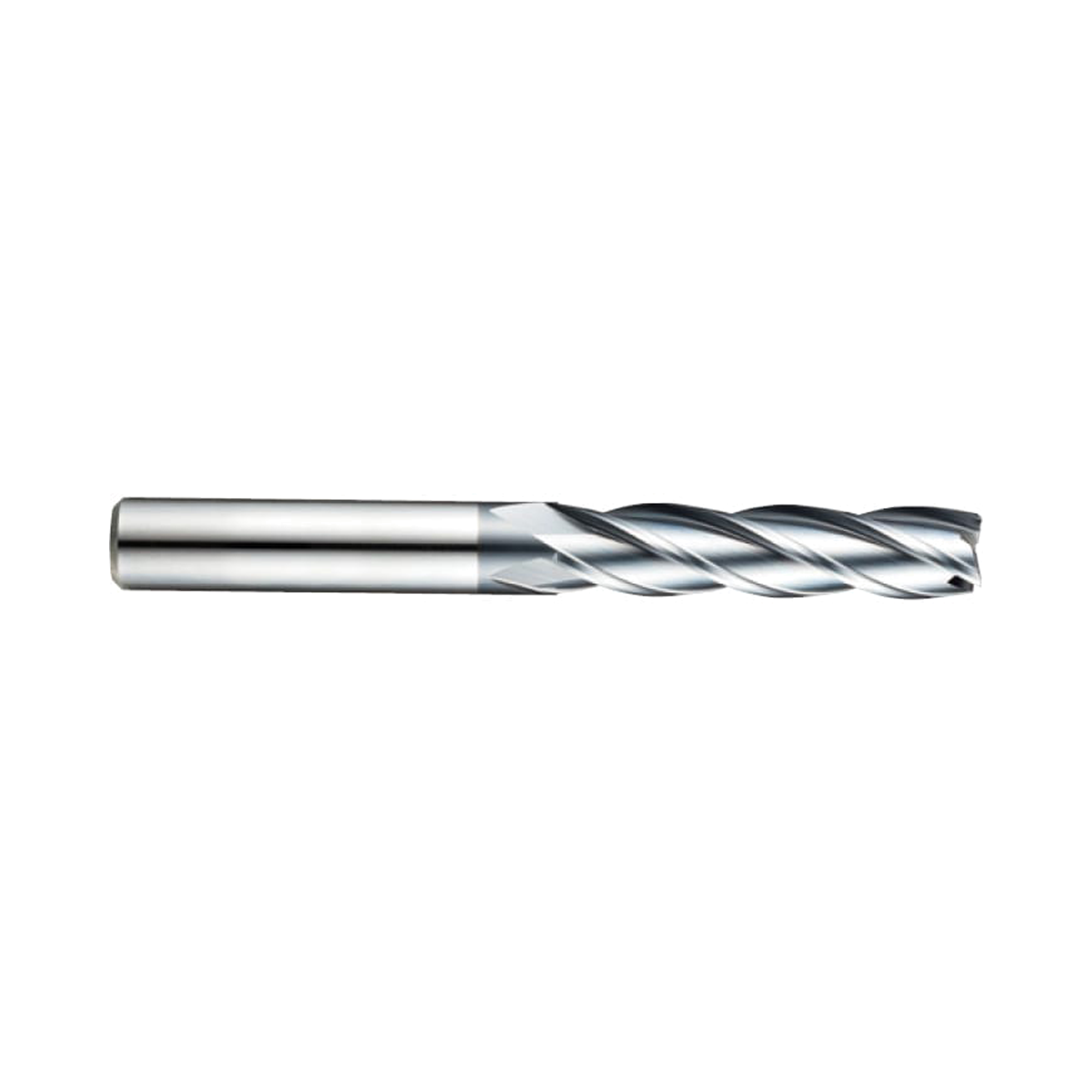

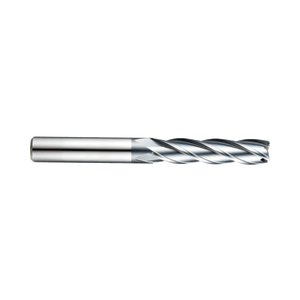

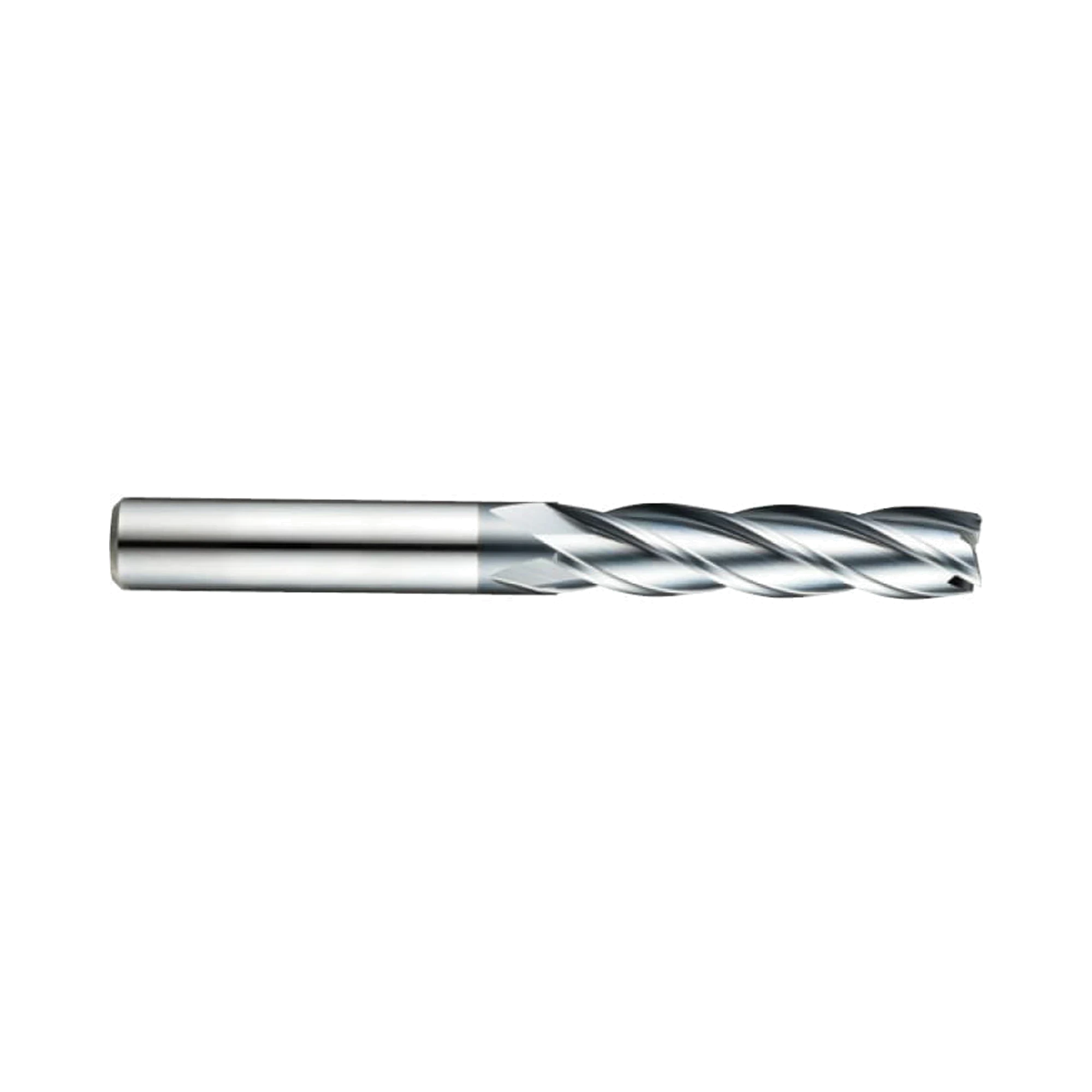

(GYG76) HSS-PM, Only One 4Flute Coated End Mill, Long Length, Plain Shank

Long-Length Four-Flute PM60 Centre-Cutting End Mill

(GYG76) HSS-PM, Only One 4Flute Coated End Mill, Long Length, Plain Shank
$30.36 INC GST $27.60 EX GST
SKU
GYG76030
Work materials
PMKNH

Key features

  • Long-length four-flute centre-cutting HSS-PM end mill
  • YG-AlCrN coated PM60 cutting configuration
  • 35°/37° × 45 multiple-helix geometry
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Extended reach

Long-length geometry provides cutter reach for deeper machining features.

Defined cutting geometry

Four flutes and 35°/37° × 45 multiple helix are specified for GYG76.

Practical size range

Cutter diameters from 3 to 16 mm cover common milling requirements.

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
GYG760202.054.06.010.0 No stock $27.60
GYG760303.056.06.012.0 1-2 Weeks $27.60
GYG760404.063.06.019.0 1-2 Weeks $27.60
GYG760505.068.06.024.0 1-2 Weeks $27.60
GYG760606.068.06.024.0 1-2 Weeks $27.60
GYG760707.080.08.030.0 1-2 Weeks $47.20
GYG760808.088.08.038.0 1-2 Weeks $47.20
GYG760909.088.010.038.0 No stock $52.10
GYG7610010.095.010.045.0 1-2 Weeks $52.10
GYG7612012.0110.012.053.0 1-2 Weeks $80.00
GYG7614014.0110.012.053.0 1-2 Weeks $108.80
GYG7616016.0123.016.063.0 1-2 Weeks $139.00
GYG7618018.0123.016.063.0 No stock $176.90
GYG7620020.0141.020.075.0 No stock $226.20
GYG7622022.0141.020.075.0 No stock $247.00
GYG7625025.0166.025.090.0 No stock $365.90

Add (GYG76) HSS-PM, Only One 4Flute Coated End Mill, Long Length, Plain Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 GYG76 ONLY ONE Coated PM60 is a long-length, four-flute, centre-cutting HSS-PM end mill. Its plain shank, square cutting profile and YG-AlCrN coating support extended-reach centre-cut milling applications. The 35°/37° × 45 multiple-helix geometry is specified for this long-length PM60 series. Available cutter diameters span 3 to 16 mm across the supplied product family. Lengths of cut range from 12 to 63 mm, supporting selection for deeper machining features. Overall lengths range from 56 to 123 mm, while plain shank diameters run from 6 to 16 mm. Individual diameters have defined shank diameters, lengths of cut and overall lengths. The four-flute centre-cutting configuration is retained throughout the listed GYG76 range.

  • Long-length four-flute centre-cutting HSS-PM end mill
  • YG-AlCrN coated PM60 cutting configuration
  • 35°/37° × 45 multiple-helix geometry
  • Plain shank with square cutting profile
  • 3 to 16 mm cutter diameter range
  • 12 to 63 mm length of cut range
Product Data
Cutting Shape Square
Length Long
No. Flutes 4
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG76030 3 6 12 56 0~-0.030 h6 4 GYG76040 4 6 19 63 0~-0.030 h6 4 GYG76050 5 6 24 68 0~-0.030 h6 4 GYG76060 6 6 24 68 0~-0.030 h6 4 GYG76070 7 8 30 80 0~-0.030 h6 4 GYG76080 8 8 38 88 0~-0.030 h6 4 GYG76100 10 10 45 95 0~-0.030 h6 4 GYG76120 12 12 53 110 0~-0.030 h6 4 GYG76140 14 12 53 110 0~-0.030 h6 4 GYG76160 16 16 63 123 0~-0.030 h6 4 GYG76180 18 16 63 123 0~-0.030 h6 4 GYG76200 20 20 75 141 0~-0.030 h6 4 GYG76220 22 20 75 141 0~-0.030 h6 4 GYG76250 25 25 90 166 0~-0.030 h6 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–5
Low-alloy steel
ExcellentVDI 6–8
GoodVDI 9
High-alloy and tool steel
ExcellentVDI 10
GoodVDI 11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18
Malleable cast iron
ExcellentVDI 19–20

Hardened materials

1 grade
Chilled cast iron
GoodVDI 40

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Non-ferrous materials

3 grades
Copper, bronze and brass
GoodVDI 26–28
VDI grade reference24 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelGood35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelGood32535
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironExcellent23021
26NCopper, bronze and brassGood110-
27NCopper, bronze and brassGood90-
28NCopper, bronze and brassGood100-
40HChilled cast ironGood40042

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG76030 3 6 12 56 0~-0.030 h6 4 GYG76040 4 6 19 63 0~-0.030 h6 4 GYG76050 5 6 24 68 0~-0.030 h6 4 GYG76060 6 6 24 68 0~-0.030 h6 4 GYG76070 7 8 30 80 0~-0.030 h6 4 GYG76080 8 8 38 88 0~-0.030 h6 4 GYG76100 10 10 45 95 0~-0.030 h6 4 GYG76120 12 12 53 110 0~-0.030 h6 4 GYG76140 14 12 53 110 0~-0.030 h6 4 GYG76160 16 16 63 123 0~-0.030 h6 4 GYG76180 18 16 63 123 0~-0.030 h6 4 GYG76200 20 20 75 141 0~-0.030 h6 4 GYG76220 22 20 75 141 0~-0.030 h6 4 GYG76250 25 25 90 166 0~-0.030 h6 4
