(GYG52) HSS-PM, Only One 4Flute, Multiple Helix Coated End Mill, Short Length, Flat Shank

PM60 4-Flute Multiple Helix Short End Mills

(GYG52) HSS-PM, Only One 4Flute, Multiple Helix Coated End Mill, Short Length, Flat Shank
$27.50 INC GST $25.00 EX GST
SKU
GYG52030
Work materials
PMKNH

Key features

  • Four-flute multiple-helix PM60 end mill design
  • Y Coating for the GYG52 series
  • Centre-cutting short-length square-end geometry
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Centre-cutting geometry

Supports milling of flat-bottomed features with a square-end cutting profile

Multiple helix design

35°/37° helix geometry is paired with a 45° chamfer preparation

Useful size coverage

Select from 3 to 25 mm mill diameters in the short-length GYG52 range

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
GYG520303.052.06.08.0 1-2 Weeks $25.00
GYG520404.055.06.011.0 1-2 Weeks $29.20
GYG520505.057.06.013.0 1-2 Weeks $25.00
GYG520606.057.06.013.0 1-2 Weeks $25.00
GYG520707.066.08.016.0 1-2 Weeks $40.90
GYG520808.069.08.019.0 In stock $53.90
GYG520909.069.010.019.0 No stock $46.30
GYG5210010.072.010.022.0 1-2 Weeks $60.50
GYG5212012.083.012.026.0 1-2 Weeks $71.40
GYG5214014.083.012.026.0 In stock $86.30
GYG5216016.092.016.032.0 1-2 Weeks $113.10
GYG5218018.092.016.032.0 1-2 Weeks $141.60
GYG5220020.0104.020.038.0 1-2 Weeks $180.30
GYG5222022.0104.020.038.0 1-2 Weeks $199.90
GYG5225025.0121.025.045.0 1-2 Weeks $193.80

Add (GYG52) HSS-PM, Only One 4Flute, Multiple Helix Coated End Mill, Short Length, Flat Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

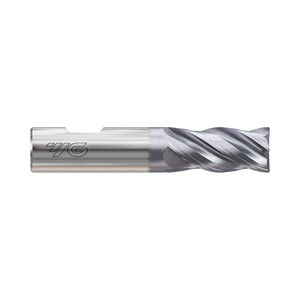

YG-1 GYG52 Only One PM60 end mills are four-flute, multiple-helix, short-length flat-shank tools with Y Coating. Their centre-cutting square-end geometry supports milling operations requiring precise short-reach, flat-bottomed features. The 35°/37° helix configuration and 45° chamfer geometry distinguish this GYG52 series.

The range covers 3 to 25 mm mill diameters, with 6 to 25 mm shanks. Length of cut spans 8 to 45 mm, while overall lengths extend from 52 to 121 mm. Choose the required diameter for centre-cutting milling with a compact short-length tool design. Chamfers are 0.1 mm through 12 mm diameters and 0.2 mm from 14 mm upward.

  • Four-flute multiple-helix PM60 end mill design
  • Y Coating for the GYG52 series
  • Centre-cutting short-length square-end geometry
  • 35°/37° helix configuration with 45° chamfer
  • Flat-shank diameters from 6 to 25 mm
  • Mill diameters from 3 to 25 mm
Product Data
Cutting Shape Square
Length Short
No. Flutes 4
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG52030 3 6 8 52 0~-0.030 h6 4 GYG52040 4 6 11 55 0~-0.030 h6 4 GYG52050 5 6 13 57 0~-0.030 h6 4 GYG52060 6 6 13 57 0~-0.030 h6 4 GYG52070 7 8 16 66 0~-0.030 h6 4 GYG52080 8 8 19 69 0~-0.030 h6 4 GYG52090 9 10 19 69 0~-0.030 h6 4 GYG52100 10 10 22 72 0~-0.030 h6 4 GYG52120 12 12 26 83 0~-0.030 h6 4 GYG52140 14 12 26 83 0~-0.030 h6 4 GYG52160 16 16 32 92 0~-0.030 h6 4 GYG52180 18 16 32 92 0~-0.030 h6 4 GYG52200 20 20 38 104 0~-0.030 h6 4 GYG52220 22 20 38 104 0~-0.030 h6 4 GYG52250 25 25 45 121 0~-0.030 h6 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–5
Low-alloy steel
ExcellentVDI 6–8
GoodVDI 9
High-alloy and tool steel
ExcellentVDI 10
GoodVDI 11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18
Malleable cast iron
ExcellentVDI 19–20

Hardened materials

1 grade
Chilled cast iron
GoodVDI 40

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Non-ferrous materials

3 grades
Copper, bronze and brass
GoodVDI 26–28
VDI grade reference24 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelGood35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelGood32535
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironExcellent23021
26NCopper, bronze and brassGood110-
27NCopper, bronze and brassGood90-
28NCopper, bronze and brassGood100-
40HChilled cast ironGood40042

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG52030 3 6 8 52 0~-0.030 h6 4 GYG52040 4 6 11 55 0~-0.030 h6 4 GYG52050 5 6 13 57 0~-0.030 h6 4 GYG52060 6 6 13 57 0~-0.030 h6 4 GYG52070 7 8 16 66 0~-0.030 h6 4 GYG52080 8 8 19 69 0~-0.030 h6 4 GYG52090 9 10 19 69 0~-0.030 h6 4 GYG52100 10 10 22 72 0~-0.030 h6 4 GYG52120 12 12 26 83 0~-0.030 h6 4 GYG52140 14 12 26 83 0~-0.030 h6 4 GYG52160 16 16 32 92 0~-0.030 h6 4 GYG52180 18 16 32 92 0~-0.030 h6 4 GYG52200 20 20 38 104 0~-0.030 h6 4 GYG52220 22 20 38 104 0~-0.030 h6 4 GYG52250 25 25 45 121 0~-0.030 h6 4
