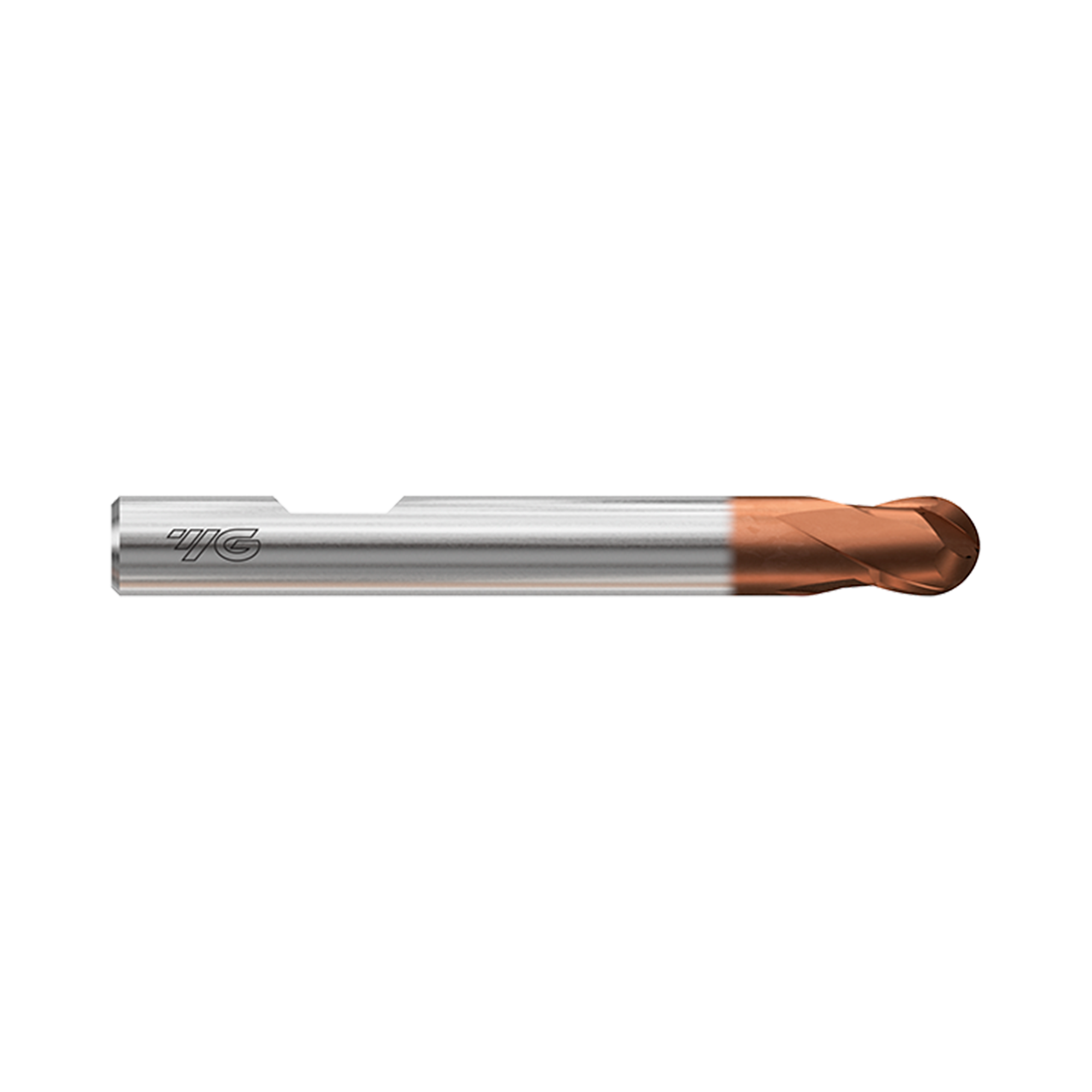

(GA940) HSS-PM, Tank-Power, 2 Flute Ball Nose End Mill, Short Length (TiAlN Coated)
TiAlN-coated HSS-PM two-flute short-length ball nose end mill
$59.51
INC GST
$54.10
EX GST
Price available on request
Unit price per
- SKU
- GA940010
Key features
- TiAlN TANK-POWER coating is specified for high-speed cutting
- Two-flute ball nose geometry mills radius-bottom slots fillets and special contours
- Designed for carbon steels alloyed steels and stainless steels
Made in South Korea
Free standard delivery on orders over
$500.
If you're not 100% happy with your purchase, we'll replace or refund.
Steel machining focus
Designed for milling carbon steels, alloyed steels and stainless steels.
Curved-feature capability
Ball nose geometry supports radius-bottom slots, fillets and special contours.
Useful short-length range
Choose diameters from 1 to 25 mm with ball radii from R0.5 to R12.5.

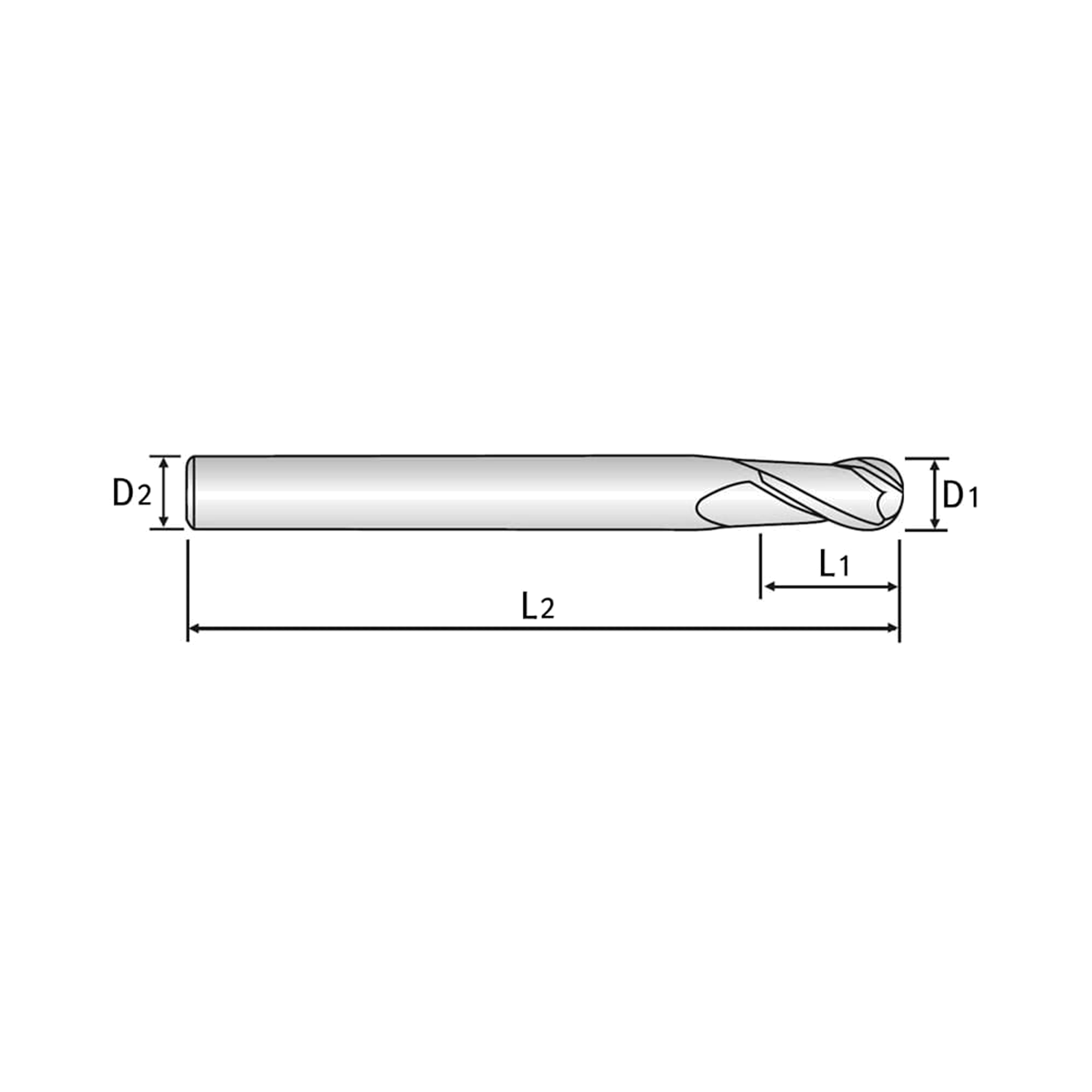

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| GA940010 | 1.0 | R0.5 | 47.0 | 6.0 | 2.5 | 1-2 Weeks | $54.10 | ||
| GA940020 | 2.0 | R1.0 | 48.0 | 6.0 | 4.0 | 1-2 Weeks | $33.40 | ||
| GA940030 | 3.0 | R1.5 | 49.0 | 6.0 | 5.0 | 1-2 Weeks | $49.10 | ||
| GA940040 | 4.0 | R2.0 | 51.0 | 6.0 | 7.0 | 1-2 Weeks | $49.10 | ||
| GA940050 | 5.0 | R2.5 | 52.0 | 6.0 | 8.0 | 1-2 Weeks | $49.10 | ||
| GA940070 | 7.0 | R3.5 | 60.0 | 10.0 | 10.0 | 1-2 Weeks | $70.20 | ||
| GA940080 | 8.0 | R4.0 | 61.0 | 10.0 | 11.0 | 1-2 Weeks | $70.20 | ||
| GA940090 | 9.0 | R4.5 | 61.0 | 10.0 | 11.0 | 1-2 Weeks | $72.40 | ||
| GA940100 | 10.0 | R5.0 | 63.0 | 10.0 | 13.0 | 1-2 Weeks | $72.40 | ||
| GA940120 | 12.0 | R6.0 | 73.0 | 12.0 | 16.0 | 1-2 Weeks | $62.60 | ||
| GA940140 | 14.0 | R7.0 | 73.0 | 12.0 | 16.0 | 1-2 Weeks | $102.00 | ||
| GA940160 | 16.0 | R8.0 | 79.0 | 16.0 | 19.0 | 1-2 Weeks | $119.20 | ||
| GA940180 | 18.0 | R9.0 | 79.0 | 16.0 | 19.0 | 1-2 Weeks | $184.00 | ||
| GA940200 | 20.0 | R10.0 | 88.0 | 20.0 | 22.0 | 1-2 Weeks | $188.00 | ||
| GA940220 | 22.0 | R11.0 | 88.0 | 20.0 | 22.0 | 1-2 Weeks | $216.00 | ||
| GA940250 | 25.0 | R12.5 | 102.0 | 25.0 | 26.0 | 1-2 Weeks | $273.70 |
Add (GA940) HSS-PM, Tank-Power, 2 Flute Ball Nose End Mill, Short Length (TiAlN Coated) to comparison
View Comparison- Overview
- Specifications
- Work Material
- Speeds & Feeds
- Reviews
Application
Product Description
YG-1 GA940 TANK-POWER is a TiAlN-coated HSS-PM two-flute short-length ball nose end mill for high-speed cutting. It is designed to machine carbon steels, alloyed steels and stainless steels in milling applications. Ball nose geometry supports radius-bottom slots, fillets and special contours where curved profiles are required. The 30° helix and two-flute configuration provide the specified cutting geometry for this series. The short-length range covers 1 to 25 mm mill diameters and R0.5 to R12.5 ball radii. Each listed tool has a 0 to −0.03 mm mill diameter tolerance and h6 shank tolerance. Choose this series for steel machining requiring short-length ball nose tools and TANK-POWER coating.
- TiAlN TANK-POWER coating is specified for high-speed cutting
- Two-flute ball nose geometry mills radius-bottom slots fillets and special contours
- Designed for carbon steels alloyed steels and stainless steels
- 30° helix geometry is specified for the GA940 series
- Mill diameters range from 1 to 25 mm with R0.5 to R12.5 radii
- Mill diameter tolerance is 0 to −0.03 mm with h6 shank tolerance
Product Data
| Cutting Shape | Ball Nose |
| Length | Short |
| No. Flutes | 2 |
Work materials
VDI 3323 recommendations for this tool.
ExcellentGood
Steel
11 gradesNon-alloy steel
Low-alloy steel
High-alloy and tool steel
Cast iron
6 gradesGrey cast iron
Nodular cast iron
Malleable cast iron
Stainless steel
3 gradesStainless steel
Non-ferrous materials
3 gradesCopper, bronze and brass
VDI grade reference23 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 1 | PNon-alloy steel | Excellent | 125 | - |
| 2 | PNon-alloy steel | Excellent | 190 | 13 |
| 3 | PNon-alloy steel | Excellent | 250 | 25 |
| 4 | PNon-alloy steel | Excellent | 270 | 28 |
| 5 | PNon-alloy steel | Excellent | 300 | 32 |
| 6 | PLow-alloy steel | Excellent | 180 | 10 |
| 7 | PLow-alloy steel | Excellent | 275 | 29 |
| 8 | PLow-alloy steel | Excellent | 300 | 32 |
| 9 | PLow-alloy steel | Good | 350 | 38 |
| 10 | PHigh-alloy and tool steel | Excellent | 200 | 15 |
| 11 | PHigh-alloy and tool steel | Good | 325 | 35 |
| 12 | MStainless steel | Excellent | 200 | 15 |
| 13 | MStainless steel | Excellent | 240 | 23 |
| 14 | MStainless steel | Excellent | 180 | 10 |
| 15 | KGrey cast iron | Excellent | 180 | 10 |
| 16 | KGrey cast iron | Excellent | 260 | 26 |
| 17 | KNodular cast iron | Excellent | 160 | 3 |
| 18 | KNodular cast iron | Excellent | 250 | 25 |
| 19 | KMalleable cast iron | Excellent | 130 | - |
| 20 | KMalleable cast iron | Excellent | 230 | 21 |
| 26 | NCopper, bronze and brass | Good | 110 | - |
| 27 | NCopper, bronze and brass | Good | 90 | - |
| 28 | NCopper, bronze and brass | Good | 100 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
