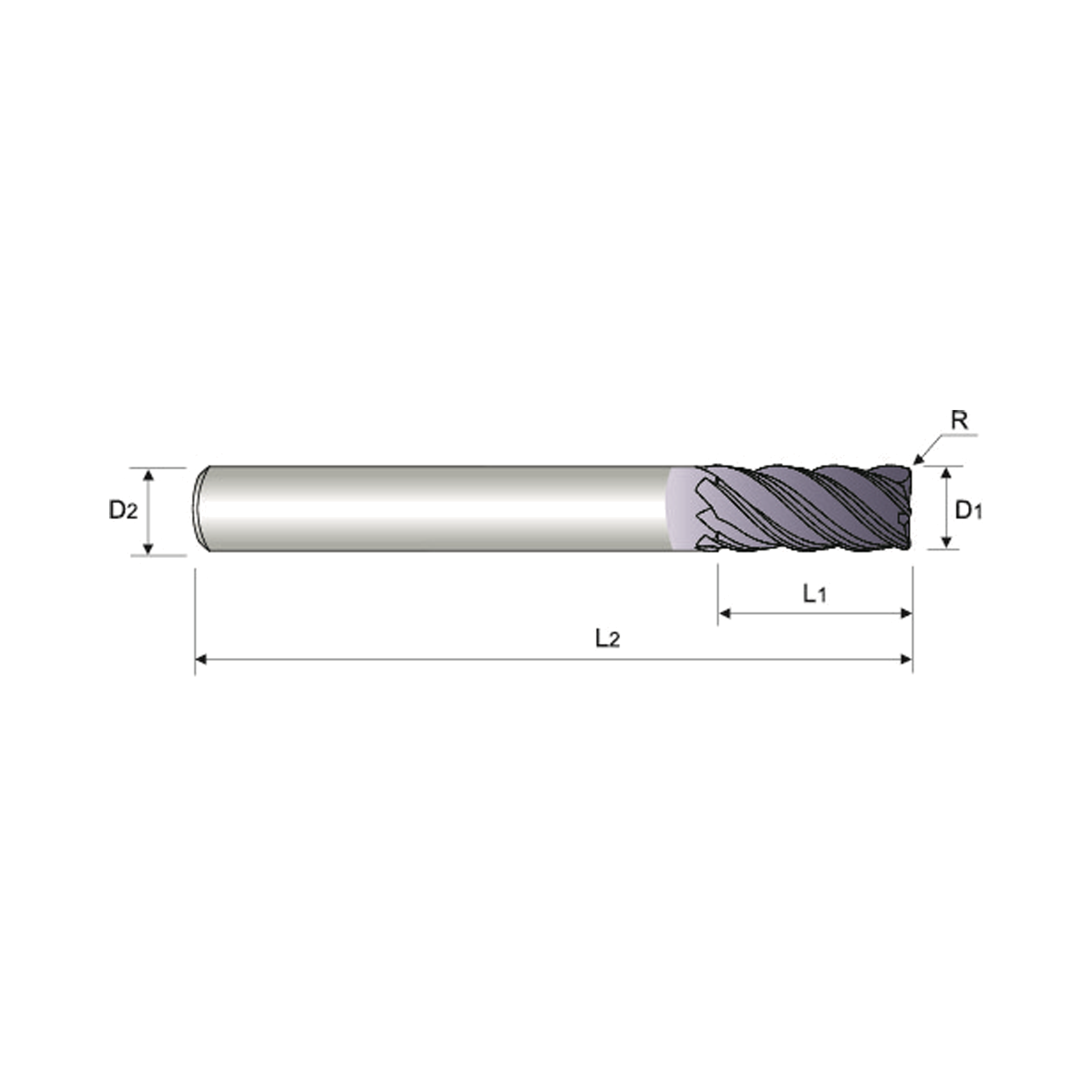

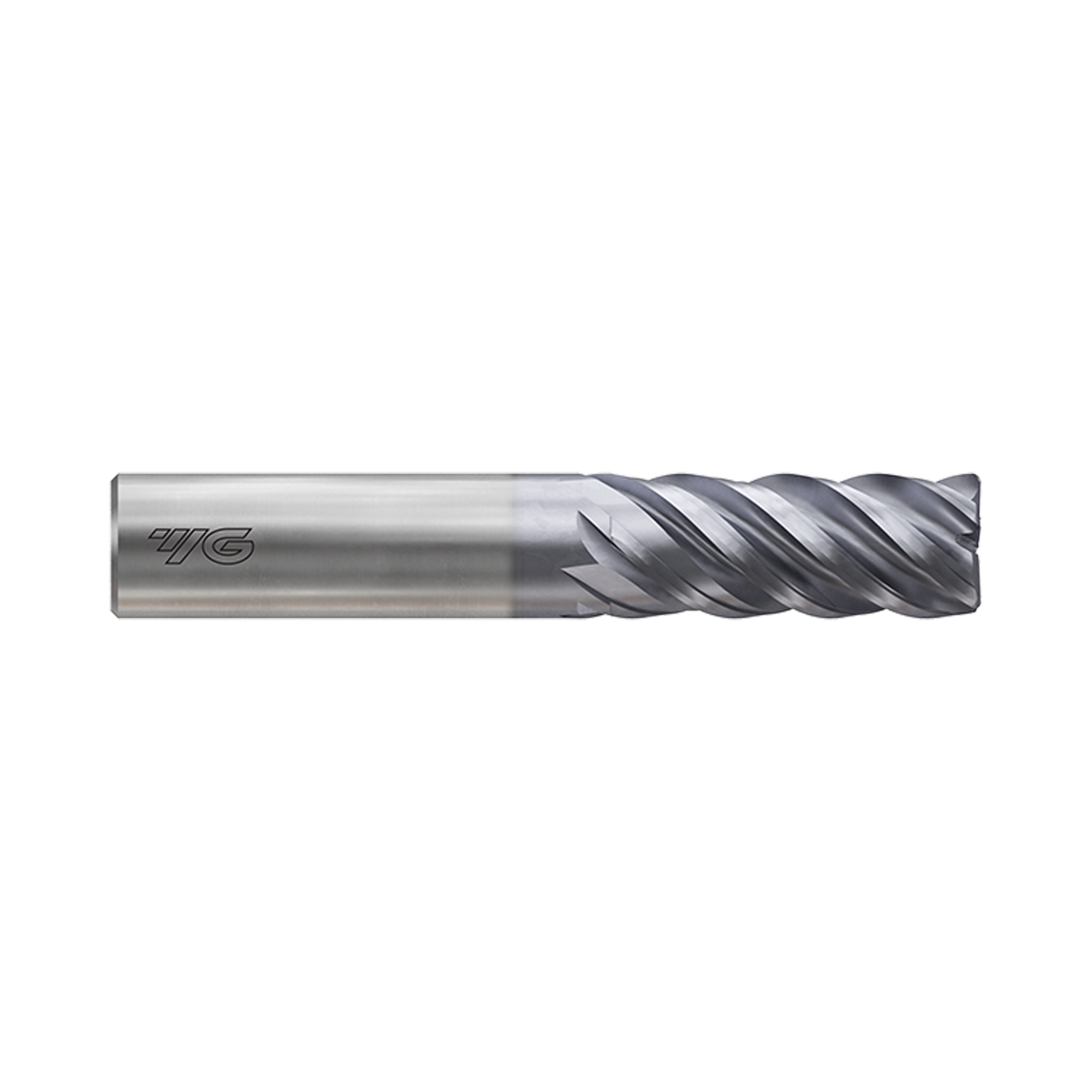

TitaNox-Power 5 Flute Multiple Helix Long Corner Radius End Mill (GMG31)
Product Code: GMG31
No. Flutes: 5
Surface Treatment: YG-1 Y Coating
Tool Material: Carbide
Helix Angle: Square Multi 43°-44°-45°
Shank Type: Flat
The GMG31 series offers exceptional performance in profiling operations. They range from 6-25mm diameter, featuring a corner radius with 5 flutes and a flat/weldon shank. The TitaNox Power range from YG-1 have exceptional tool life on Titanium Hastelloy, Stainless Steel, Inconel and Steel up to HRc40.
- Extreme Machining of Titanium, Inconel, Hastelloy, Stainless Steel & Steels
- HPC (High performance cutting)
- Unequal flute spacing and multiple helix reduces vibration in HPC machining
- 5 flute design ideal for medium to finish machining (up to 30% side cut) with high feed rates and high rigidity in profiling operations
- Special design for sticky materials prevents flutes from clogging in slotting operations
- Special high heat resistant Y1200 coating
- Micrograin carbide substrate
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Specifications
| Flutes | 5 |
| Helix Angle | 43°/44°/45° |
| Cutting Edge Shape | CORNER RADIUS |
| Size Min | D6.0 |
| Size Max | D25.0 |
| Length |
Long Length |
| Coating | Y-Coating |
| Workpiece Material | P M K S |
| Helix Angle | Multiple Helix 43/44/45 |
| No. Flutes | 5 |
| Operation | Corner, Die Sinking, Facing, Helical-Interpol, Profiling, Side Milling, Slotting, Small Part, Trochoidal |
| Shank Type | Flat |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
Made in South Korea
Add TitaNox-Power 5 Flute Multiple Helix Long Corner Radius End Mill (GMG31) to comparison
View ComparisonVideo
Operation
Work Material
Great
Great
Great
Excellent
Great
Great
Excellent
