X5070 2 Flute 30°Helix Corner Radius End Mill (G8A52)
2-Flute Corner-Radius Rib-Processing for HRc45–70Code: G8A52005
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

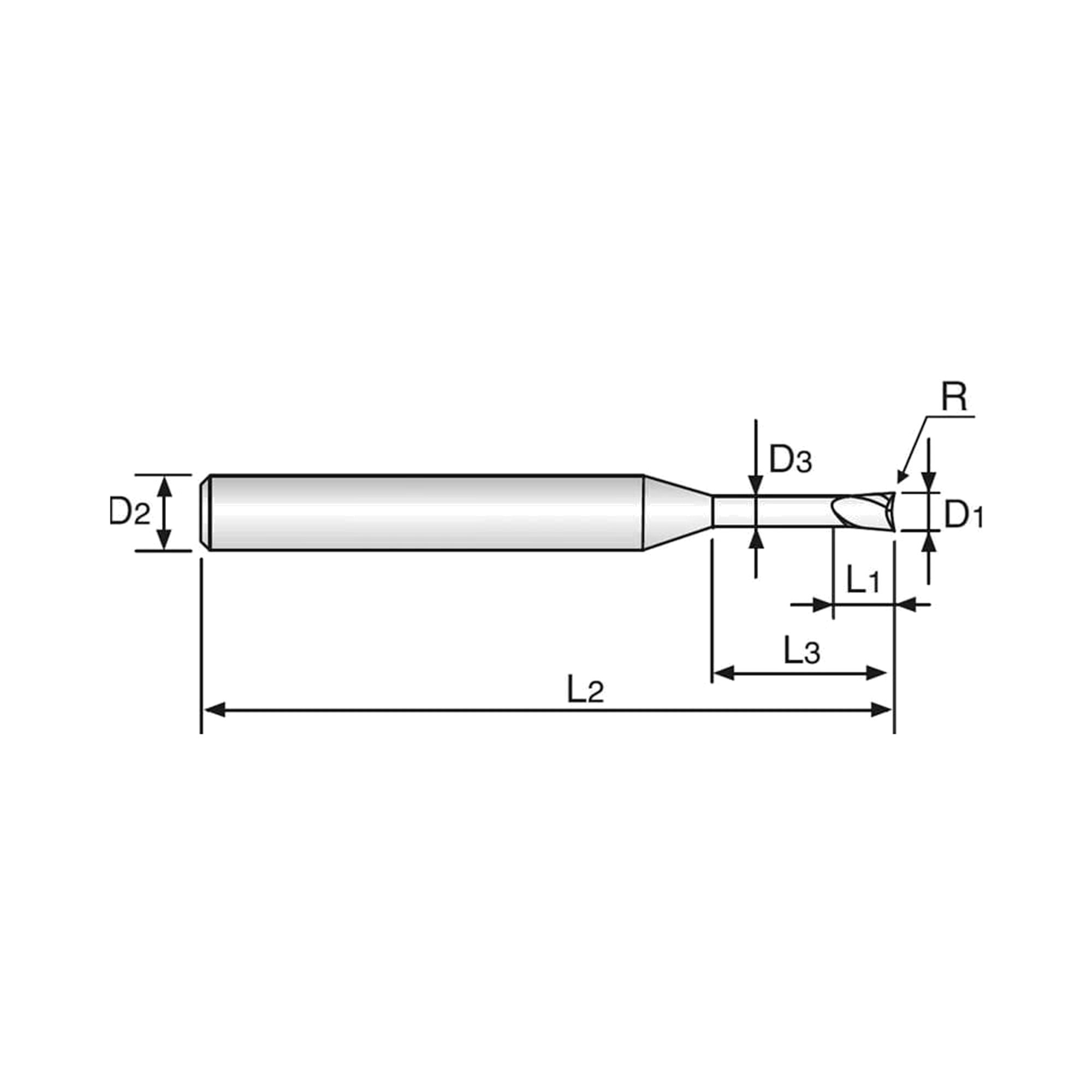

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Length Below Shank (mm) | Overall length (mm) | Shank diameter (mm) | Length of cut (mm) | Neck diameter (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G8A52005 | 0.5 | R0.05 | 1.5 | 50.0 | 6.0 | 0.7 | 0.45 | Low stock | $75.20 | ||
| G8A52901 | 0.5 | R0.05 | 3.3 | 50.0 | 6.0 | 0.7 | 0.45 | 5 days | $75.20 | ||
| G8A52006 | 0.6 | R0.05 | 2.0 | 50.0 | 6.0 | 0.9 | 0.55 | 5 days | $75.20 | ||
| G8A52902 | 0.6 | R0.05 | 4.0 | 50.0 | 6.0 | 0.9 | 0.55 | 5 days | $75.20 | ||
| G8A52008 | 0.8 | R0.05 | 2.5 | 50.0 | 6.0 | 1.2 | 0.75 | In stock | $68.10 | ||
| G8A52903 | 0.8 | R0.05 | 5.5 | 50.0 | 6.0 | 1.2 | 0.75 | 5 days | $68.10 | ||
| G8A52010 | 1.0 | R0.10 | 3.3 | 50.0 | 6.0 | 1.5 | 0.95 | In stock | $60.60 | ||
| G8A52904 | 1.0 | R0.10 | 6.7 | 50.0 | 6.0 | 1.5 | 0.95 | 5 days | $63.30 | ||
| G8A52012 | 1.2 | R0.10 | 4.4 | 50.0 | 6.0 | 1.8 | 1.15 | Low stock | $60.60 | ||
| G8A52905 | 1.2 | R0.10 | 8.0 | 50.0 | 6.0 | 1.8 | 1.15 | 5 days | $64.40 | ||
| G8A52015 | 1.5 | R0.15 | 5.0 | 50.0 | 6.0 | 2.2 | 1.45 | 5 days | $60.60 | ||
| G8A52906 | 1.5 | R0.15 | 9.7 | 50.0 | 6.0 | 2.2 | 1.45 | Low stock | $60.60 | ||
| G8A52020 | 2.0 | R0.15 | 6.0 | 50.0 | 6.0 | 2.2 | 1.95 | Low stock | $57.70 | ||
| G8A52907 | 2.0 | R0.15 | 13.0 | 50.0 | 6.0 | 2.2 | 1.95 | 5 days | $62.60 |
Add X5070 2 Flute 30°Helix Corner Radius End Mill (G8A52) to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Reviews
Product Description

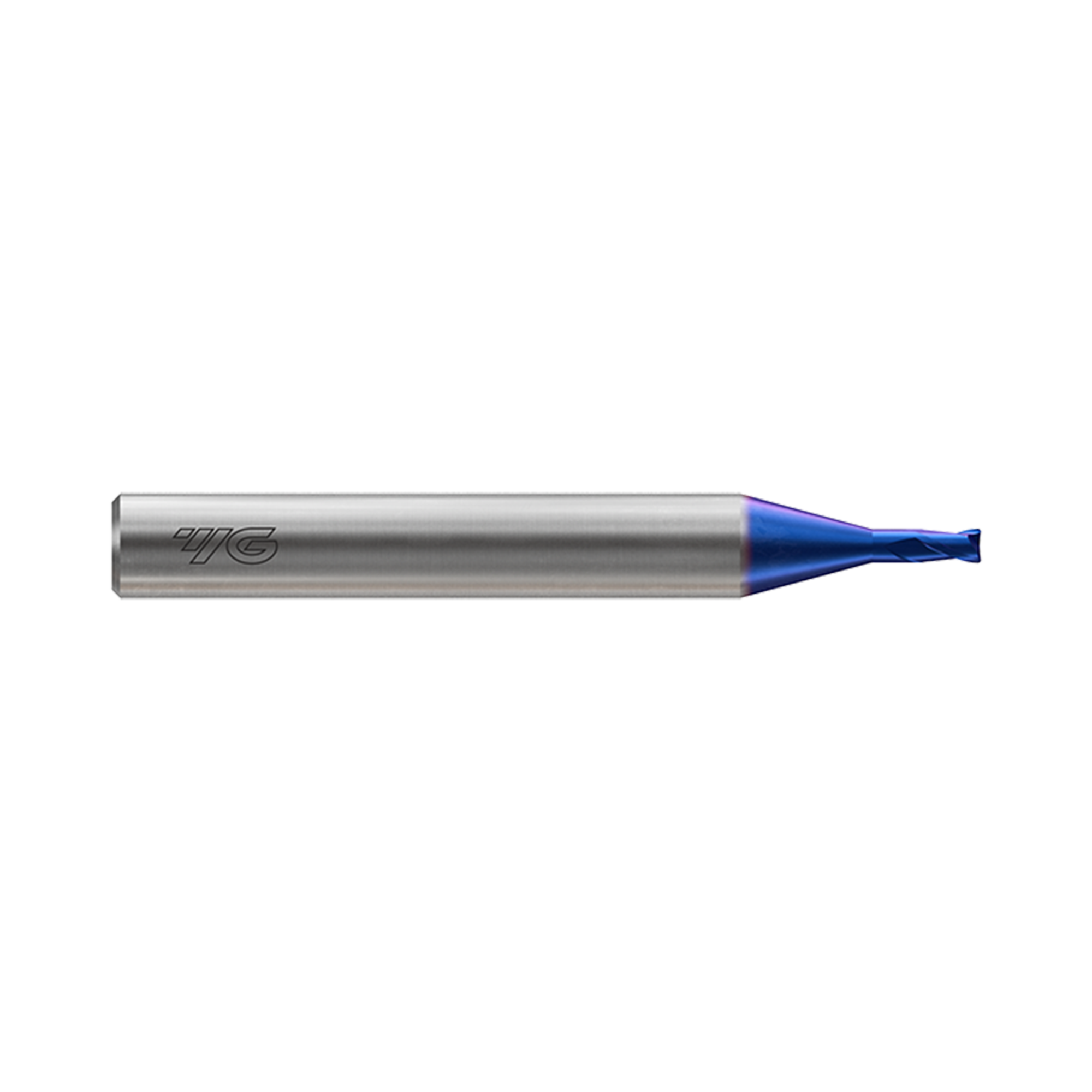

The YG-1 G8A52 series X5070 Blue ultrafine micrograin carbide cutter has 2 flutes, a plain shank, long neck and corner radius for deep pocket milling. They range in diameter from 0.5mm-2mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.
- Nanograin carbide substrate with blue silicone based coating.
- Dry machining in steels and hardened steeld < HRc70.
- Suitable for machining at extreme cutting speeds.
- High abrasion resistance with a mirror surface finish.
- Strong negative land provides tool strength for high hardness machining.
- Ultimate tool life.
- Can cope with extreme heat (up to 1400°).
- Deep slotting is possible by reduced neck.
- Corner radius for preventing chipping in high speed machining.
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Product Data
| Workpiece Material | P H |
| Corner Radius Tolerance | 0.01 |
| Cutting Shape | Corner Radius |
| Hardened Steels(HRc40~45) | Great |
| Helix Angle | Square 30 |
| No. Flutes | 2 |
| Operation | Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | YG-1 Blue Coating |
| Tool Material | Carbide |
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | Corner Radius |
| Size Min | D0.5 |
| Size Max | D2.0 |
| Length | RIB Processing |
| Coating | Blue Coating |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol
Prehardened Steels
Great
Good
Great
Excellent
Hardened Steels (HRc40~45)
Great
Good
Great
Excellent
Hardened Steels (HRc45~55)
Excellent
Good
Great
Excellent
High Hardened Steels (HRc55~70)
Excellent
Good
Great
Excellent
