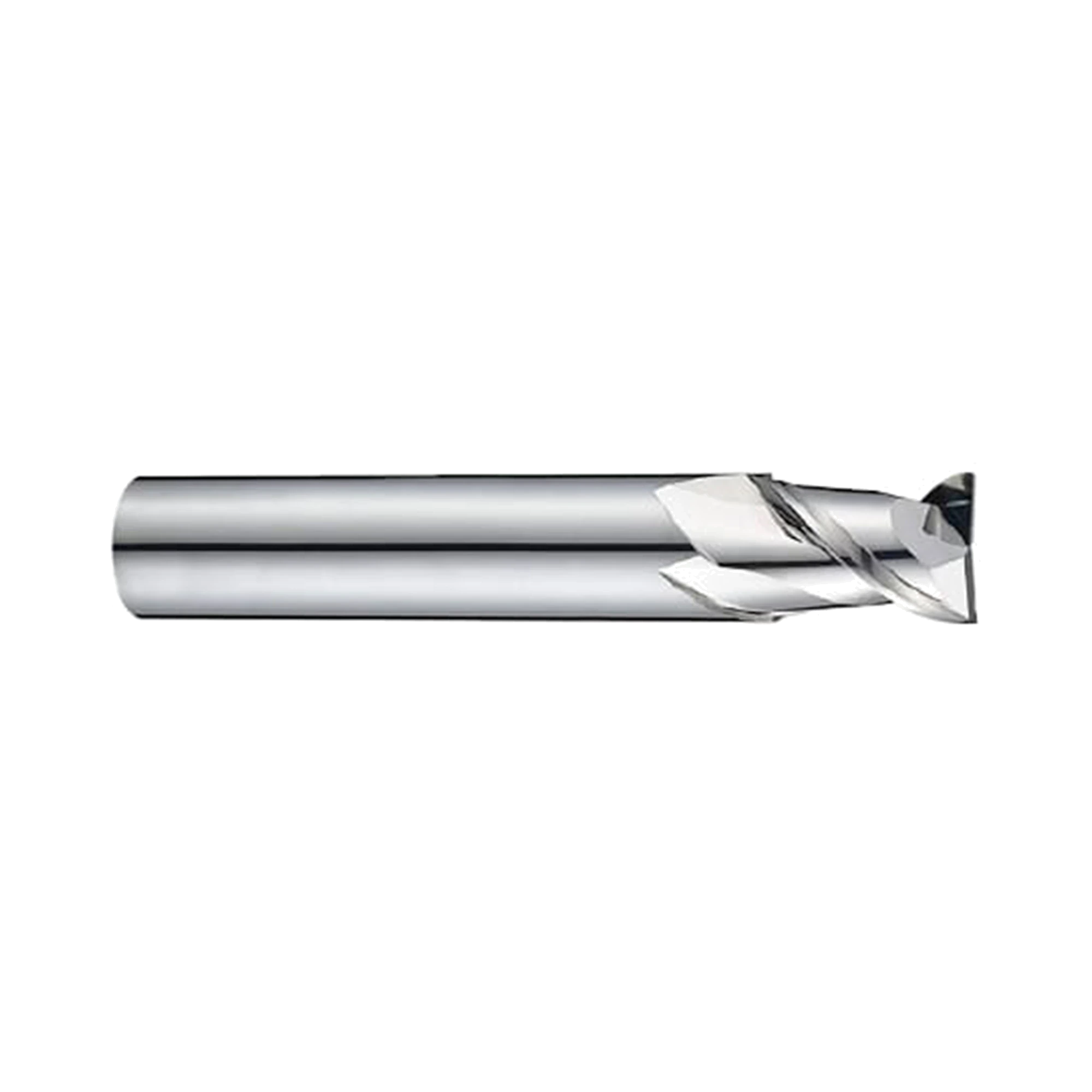

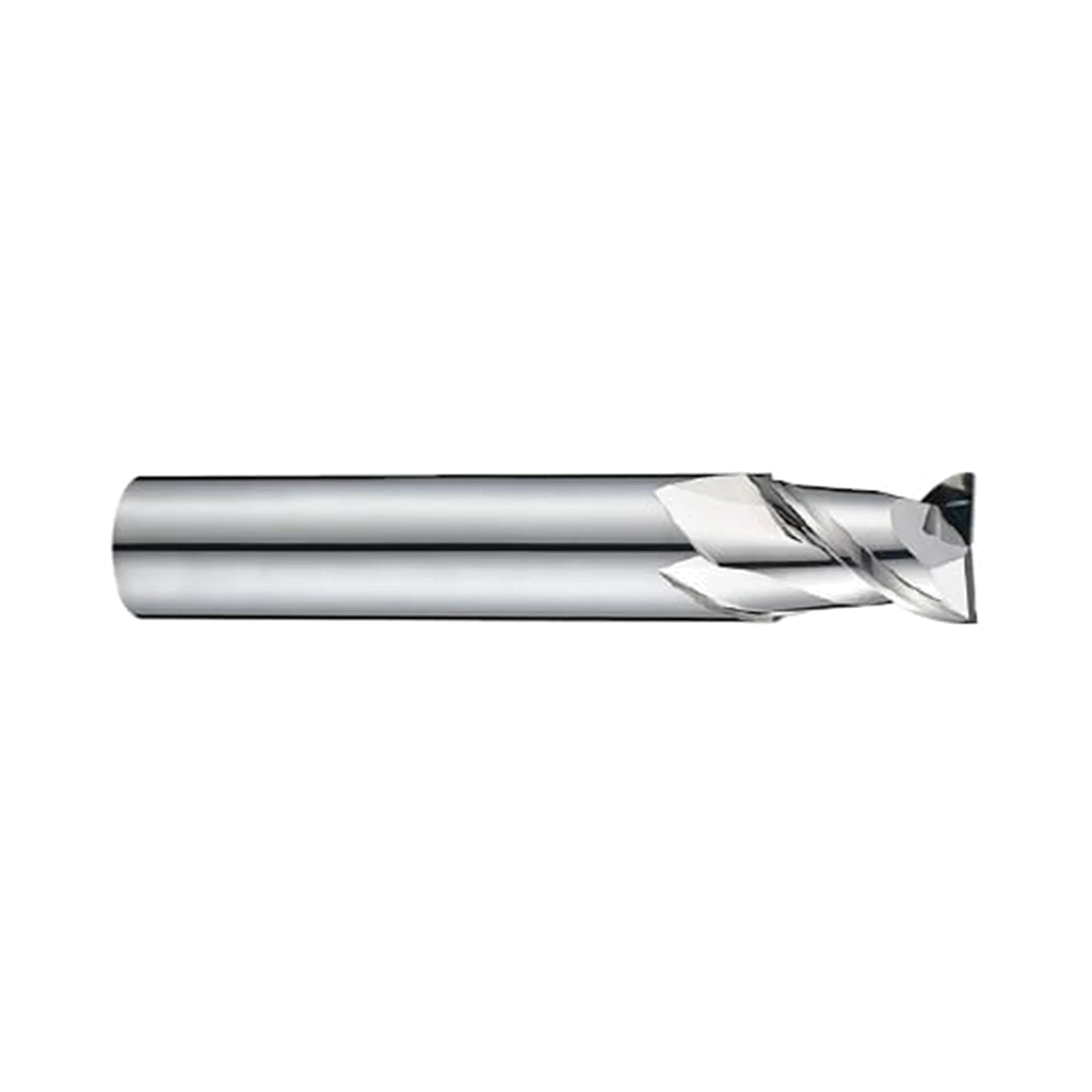

(E5E48) Alu-Power Carbide 2Flute End Mill, Short Length, Plain Shank
Two-flute 45° helix solid carbide end millCode: E5E48030
-
Key Features
- Solid carbide uncoated construction
- Two-flute 45° helix geometry
- Mirror surface for excellent surface finish
Made in South Korea
Clean finished surfaces
Mirror surface geometry supports excellent surface finish and reduces corner-edge chipping.
Efficient chip evacuation
The series provides superior chip evacuation for high-speed aluminium machining.
Useful diameter range
Eleven listed diameters cover 3–20 mm with matched plain shanks.

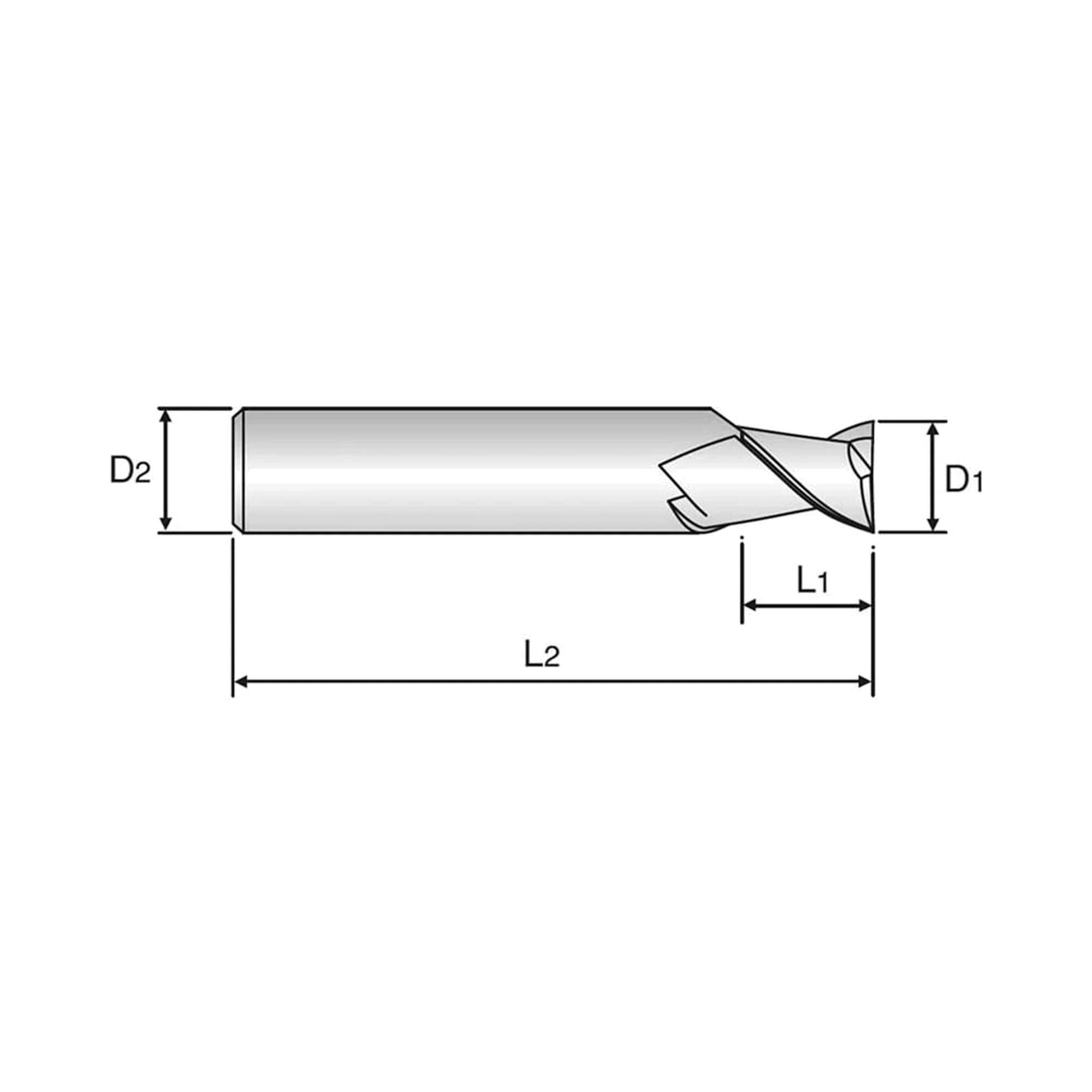

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| E5E48030 | 3.0 | 57.0 | 6.0 | 12.0 | Quantity unavailable | $22.10 | ||
| E5E48040 | 4.0 | 50.0 | 6.0 | 5.0 | In stock | $32.50 | ||
| E5E48050 | 5.0 | 54.0 | 6.0 | 8.0 | In stock | $32.50 | ||
| E5E48060 | 6.0 | 54.0 | 6.0 | 9.0 | In stock | $32.50 | ||
| E5E48080 | 8.0 | 54.0 | 6.0 | 10.0 | In stock | $47.80 | ||
| E5E48100 | 10.0 | 58.0 | 8.0 | 12.0 | In stock | $61.20 | ||
| E5E48120 | 12.0 | 66.0 | 10.0 | 14.0 | In stock | $83.80 | ||
| E5E48140 | 14.0 | 73.0 | 12.0 | 16.0 | No stock | $153.60 | ||
| E5E48160 | 16.0 | 75.0 | 14.0 | 18.0 | Low stock | $148.70 | ||
| E5E48180 | 18.0 | 82.0 | 16.0 | 22.0 | No stock | $251.90 | ||
| E5E48200 | 20.0 | 84.0 | 18.0 | 24.0 | No stock | $249.20 |
Add (E5E48) Alu-Power Carbide 2Flute End Mill, Short Length, Plain Shank to comparison
View Comparison- Overview
- Speeds & Feeds
- Reviews
YG-1 E5E48 Alu-Power is a solid carbide two-flute short-length end mill with a 45° helix. Designed for high-speed machining, it cuts aluminium and other non-ferrous materials using a plain shank. Its mirror surface supports excellent surface finish, while the geometry reliably provides superior chip evacuation. The design reduces chipping of corner edges for cleaner finished machining results in aluminium and non-ferrous applications. The range covers 3–20 mm milling diameters, with 5–26 mm lengths of cut. Overall lengths range from 50–92 mm, with matched shank diameters from 6–20 mm. Its uncoated construction retains the defined Alu-Power milling geometry for aluminium applications.
- Solid carbide uncoated construction
- Two-flute 45° helix geometry
- Mirror surface for excellent surface finish
- Superior chip evacuation
- Reduced corner-edge chipping
- 3–20 mm milling diameter range
No specifications available.
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 95 | 0.035 | 10000 | 700 |
| 4.0 | 125 | 0.045 | 10000 | 900 |
| 5.0 | 155 | 0.050 | 10000 | 1000 |
| 6.0 | 190 | 0.060 | 10000 | 1200 |
| 8.0 | 200 | 0.088 | 8000 | 1400 |
| 10.0 | 250 | 0.106 | 8000 | 1700 |
| 12.0 | 300 | 0.131 | 8000 | 2100 |
| 14.0 | 265 | 0.150 | 6000 | 1800 |
| 16.0 | 300 | 0.158 | 6000 | 1900 |
| 18.0 | 225 | 0.175 | 4000 | 1400 |
| 20.0 | 250 | 0.200 | 4000 | 1600 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 95 | 0.045 | 10000 | 900 |
| 4.0 | 125 | 0.055 | 10000 | 1100 |
| 5.0 | 155 | 0.065 | 10000 | 1300 |
| 6.0 | 190 | 0.075 | 10000 | 1500 |
| 8.0 | 200 | 0.113 | 8000 | 1800 |
| 10.0 | 250 | 0.131 | 8000 | 2100 |
| 12.0 | 300 | 0.163 | 8000 | 2600 |
| 14.0 | 265 | 0.183 | 6000 | 2200 |
| 16.0 | 300 | 0.200 | 6000 | 2400 |
| 18.0 | 225 | 0.225 | 4000 | 1800 |
| 20.0 | 250 | 0.238 | 4000 | 1900 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
