(GMG12) V7 Plus Carbide, 6Flute End Mill, Long length, Plain Shank

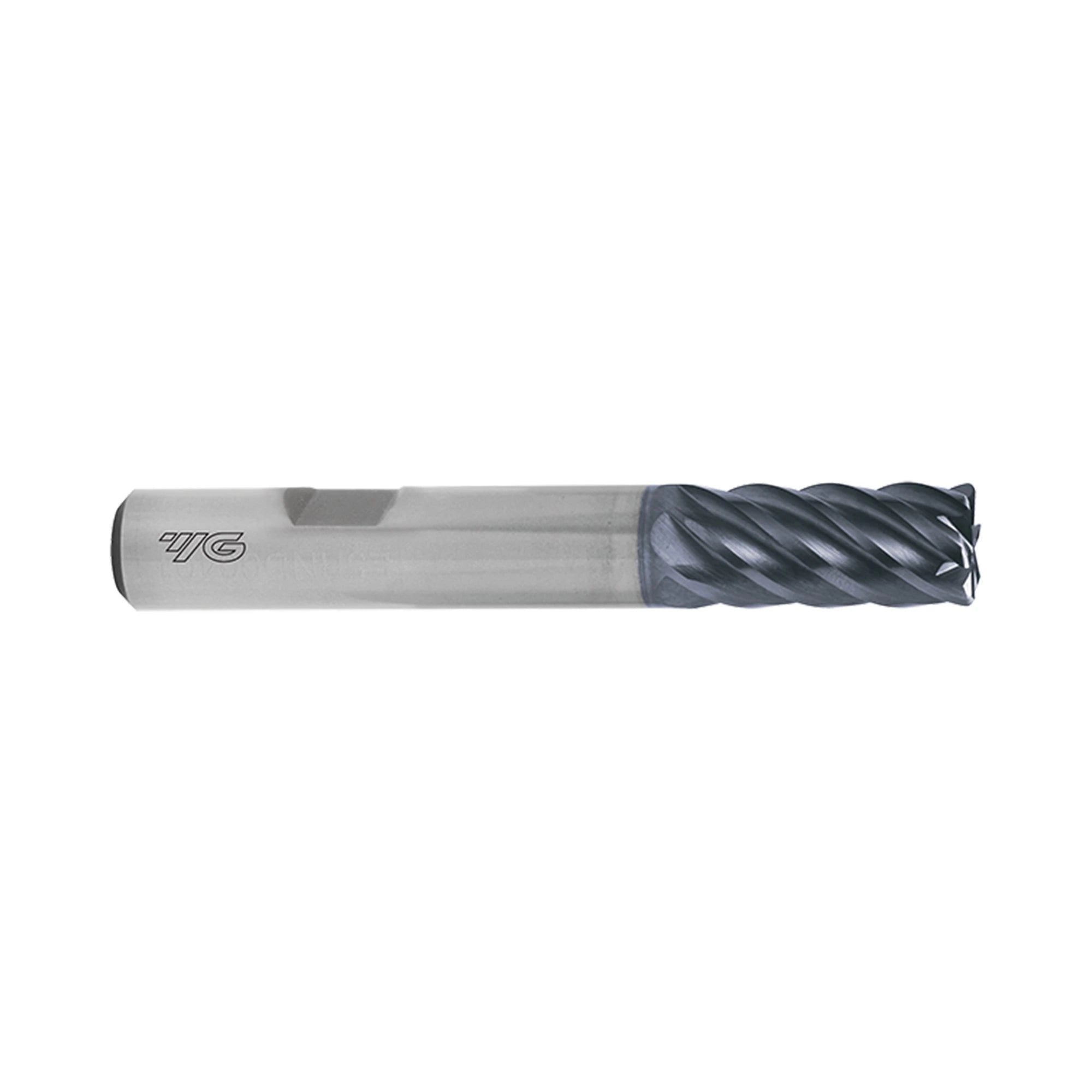

YG-1 V7 Plus GMG12 Plain-Shank Six-Flute End Mill
- SKU
- GMG12060
Key features
- Carbide square end mill from the YG-1 V7 Plus GMG12 series
- Six-flute geometry with a 45° helix angle
- Plain shank configuration
Made in South Korea
Matched GMG12 family
Exact plain-shank GMG12 variants cover seven cutter diameters from 6 mm to 25 mm.
Square cutting profile
The square-end geometry suits milling work requiring a flat-bottom cutting profile.
Useful long dimensions
Longer overall lengths provide options for machine setups requiring increased tool reach.

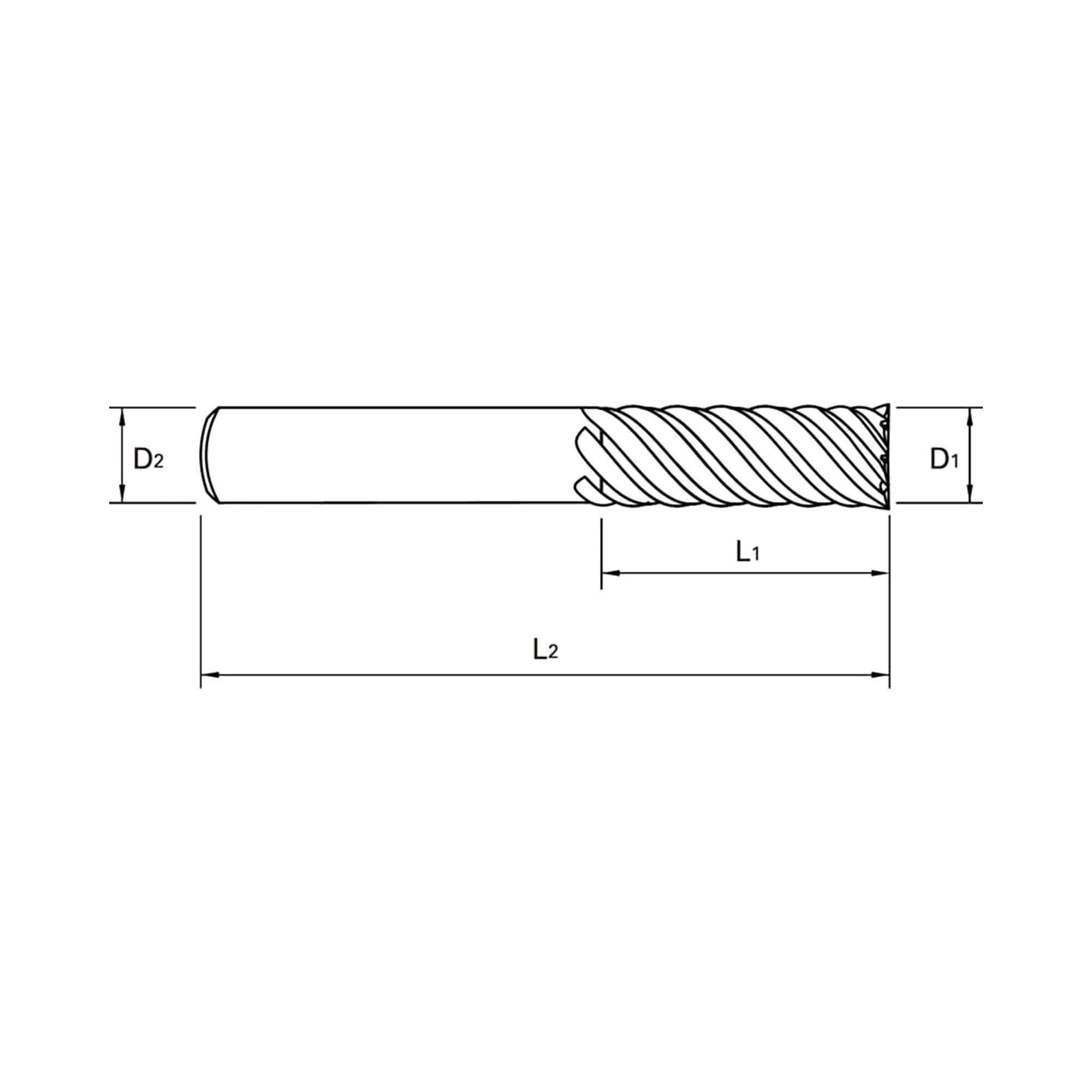

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GMG12060 | 6 | 57.0 | 6.0 | 13.0 | 1-2 Weeks | $51.88 | ||
| GMG12080 | 8 | 63.0 | 8.0 | 19.0 | In stock | $73.18 | ||
| GMG12100 | 10 | 72.0 | 10.0 | 22.0 | In stock | $117.09 | ||
| GMG12120 | 12 | 83.0 | 12.0 | 26.0 | In stock | $141.00 | ||
| GMG12160 | 16 | 92.0 | 16.0 | 32.0 | Low stock | $250.56 | ||
| GMG12200 | 20 | 104.0 | 20.0 | 38.0 | Low stock | $443.95 | ||
| GMG12250 | 25 | 104.0 | 25.0 | 44.0 | 1-2 Weeks | $624.86 |
Add (GMG12) V7 Plus Carbide, 6Flute End Mill, Long length, Plain Shank to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 V7 Plus GMG12 is a carbide six-flute square end mill with a plain shank. It is designed for milling operations requiring a long-length tool configuration and square cutting profile. GMG12 combines a 45° helix with six flutes for the stated series geometry. Available diameters span 6 to 25 mm, with matching plain-shank diameters. Cutting lengths range from 13 to 44 mm across the available sizes. Overall lengths range from 57 to 104 mm for practical machine setup. Select this end mill where the GMG12 dimensions suit the required milling setup. Each listed diameter uses the corresponding same-size shank for straightforward toolholder selection.
- Carbide square end mill from the YG-1 V7 Plus GMG12 series
- Six-flute geometry with a 45° helix angle
- Plain shank configuration
- 6 mm to 25 mm cutting diameter range
- 13 mm to 44 mm length of cut range
- 57 mm to 104 mm overall length range
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
