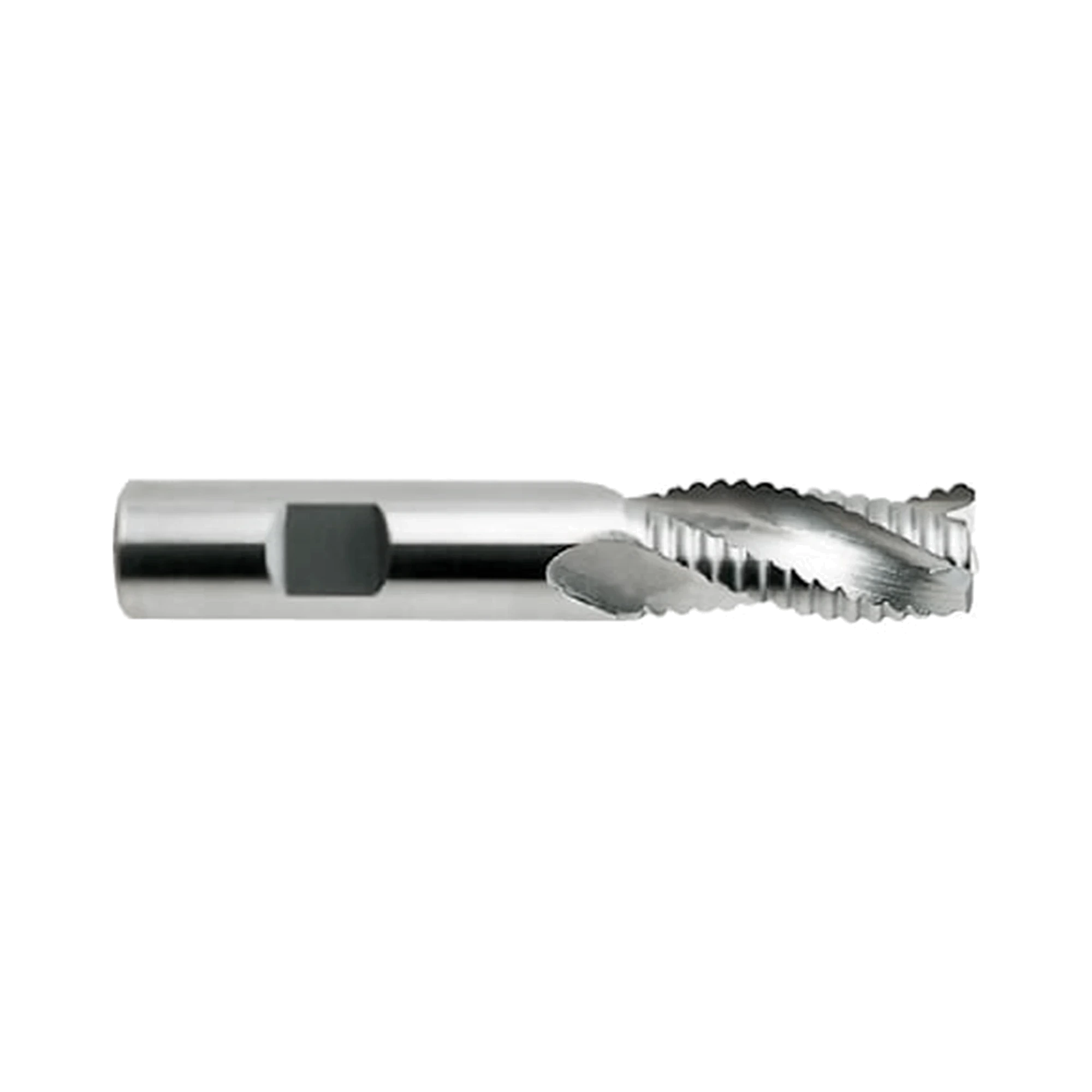

(E5711) Alu-Power Carbide 3Flute Roughing End Mill, Long Length, Flat Shank
Three-flute long-length roughing end millCode: E5711060
-
Key Features
- Solid carbide three-flute long-length roughing end mill
- Optimised geometry reduces power consumption
- Uncoated construction for aluminium and copper materials
Made in South Korea
Efficient aluminium roughing
Optimised geometry reduces power consumption in aluminium and copper machining applications
Additional cutting reach
Long-length construction supports deeper access while retaining a productive three-flute design
Useful size coverage
Selected flat-shank variants cover 6 to 20 mm cutter diameters
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| E5711060 | 6.0 | 57.0 | 6.0 | 16.0 | 5 days | $51.40 | ||
| E5711070 | 7.0 | 63.0 | 8.0 | 16.0 | 5 days | $70.30 | ||
| E5711080 | 8.0 | 63.0 | 8.0 | 16.0 | 5 days | $55.40 | ||
| E5711090 | 9.0 | 72.0 | 10.0 | 19.0 | 5 days | $112.30 | ||
| E5711100 | 10.0 | 72.0 | 10.0 | 22.0 | 5 days | $79.30 | ||
| E5711120 | 12.0 | 83.0 | 12.0 | 26.0 | In stock | $147.70 | ||
| E5711140 | 14.0 | 83.0 | 14.0 | 26.0 | 5 days | $180.60 | ||
| E5711160 | 16.0 | 92.0 | 16.0 | 32.0 | 5 days | $248.60 | ||
| E5711180 | 18.0 | 92.0 | 18.0 | 32.0 | 5 days | $320.90 | ||
| E5711200 | 20.0 | 104.0 | 20.0 | 38.0 | 5 days | $393.00 |
Add (E5711) Alu-Power Carbide 3Flute Roughing End Mill, Long Length, Flat Shank to comparison
View Comparison- Overview
- Speeds & Feeds
- Reviews
YG-1 E5711 ALU-POWER is an uncoated carbide three-flute long-length roughing end mill with a flat shank. Optimised geometry reduces power consumption when roughing aluminium and copper materials in milling applications. Three cutting flutes support productive material removal while the long-length design provides additional reach. This flat-shank range covers 6 to 20 mm cutter diameters for varied machining requirements. Lengths of cut span 16 to 38 mm, with overall lengths from 57 to 104 mm. Chamfers are 0.60 mm through 12 mm diameter and 0.91 mm from 14 mm. Its carbide construction and uncoated finish suit the defined ALU-POWER cutting range.
- Solid carbide three-flute long-length roughing end mill
- Optimised geometry reduces power consumption
- Uncoated construction for aluminium and copper materials
- Flat shank configuration
- 6 to 20 mm cutter diameter range
- 16 to 38 mm lengths of cut
No specifications available.
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 6.0 | 254 | 0.168 | 13500 | 6800 |
| 8.0 | 264 | 0.168 | 10500 | 5300 |
| 10.0 | 267 | 0.169 | 8500 | 4300 |
| 12.0 | 320 | 0.165 | 8500 | 4200 |
| 16.0 | 322 | 0.167 | 6400 | 3200 |
| 20.0 | 320 | 0.163 | 5100 | 2500 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 6.0 | 198 | 0.168 | 10500 | 5300 |
| 8.0 | 201 | 0.167 | 8000 | 4000 |
| 10.0 | 204 | 0.179 | 6500 | 3500 |
| 12.0 | 241 | 0.167 | 6400 | 3200 |
| 16.0 | 241 | 0.167 | 4800 | 2400 |
| 20.0 | 242 | 0.165 | 3850 | 1900 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
