(E5E39) Alu-Power Carbide 3Flute Roughing End Mill, Regular Length, Flat Shank

$87.56INC GST $79.60 EX GST
Unit price per

(E5E39) Alu-Power Carbide 3Flute Roughing End Mill, Regular Length, Flat Shank

$87.56INC GST $79.60 EX GST Price available on request

Unit price per

Code: E5E39060

Work Material

P K N

Mill Diameter (mm)

Chamfer (mm)

Quantity

Loading stock…

Buy Local

Minimum order: $200.00

$200.00 to go

Spend $200.00 or more to enable checkout.

Made in South Korea

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

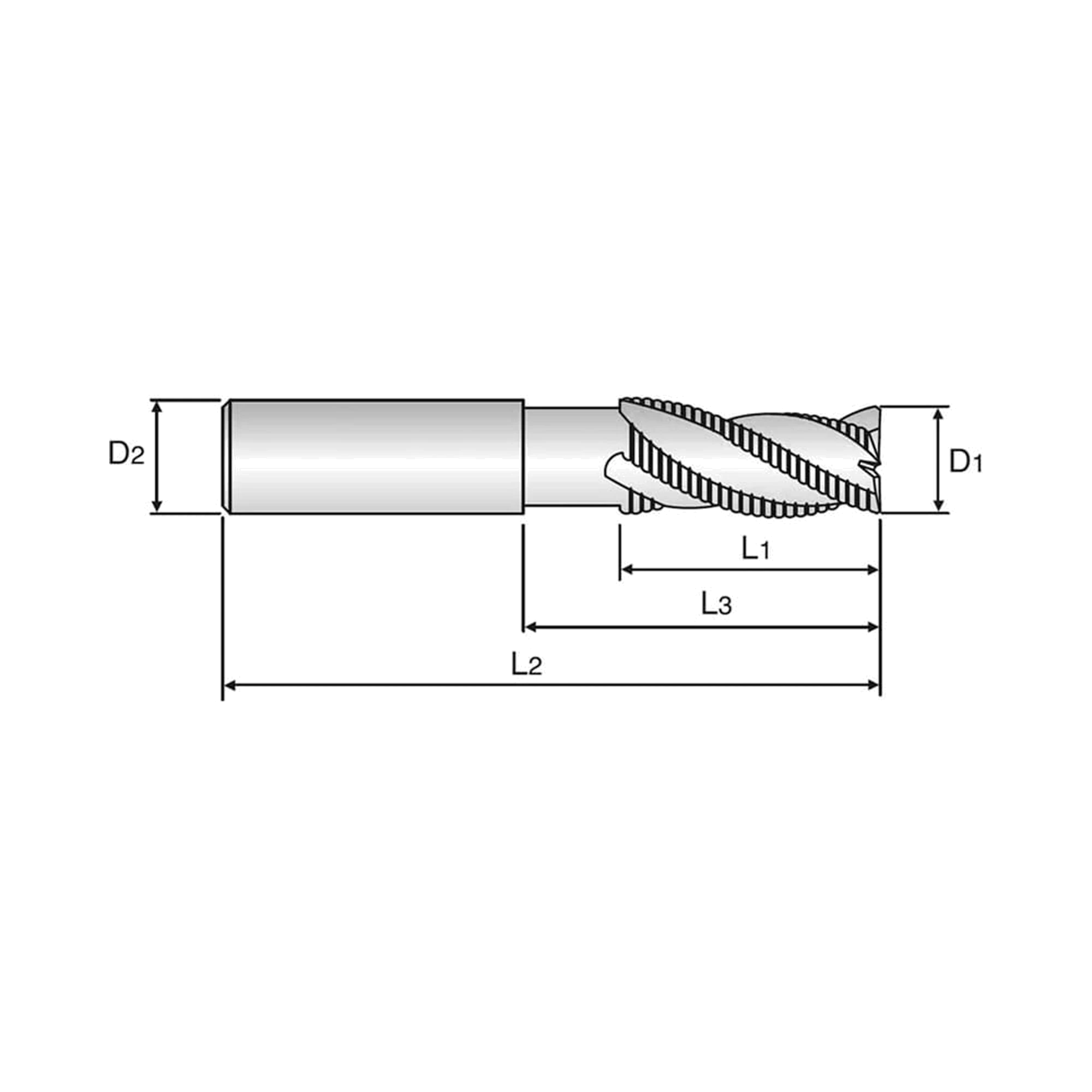

SKU	Mill Diameter (mm)	Chamfer (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Length below shank (mm)	Neck dia. (mm)	Stock	Price
E5E39060	6.0	0.6	57.0	6.0	16.0	20.0	5.0	Quantity unavailable	$79.60
E5E39080	8.0	0.6	63.0	8.0	16.0	25.0	7.0	No stock	$84.10
E5E39100	10.0	0.6	72.0	10.0	22.0	30.0	9.0	No stock	$102.10
E5E39120	12.0	0.6	83.0	12.0	26.0	36.0	10.5	In stock	$130.40
E5E39160	16.0	0.91	92.0	16.0	32.0	42.0	14.5	Low stock	$218.10
E5E39200	20.0	0.91	104.0	20.0	38.0	52.0	18.5	Low stock	$345.50

Add (E5E39) Alu-Power Carbide 3Flute Roughing End Mill, Regular Length, Flat Shank to comparison

View Comparison

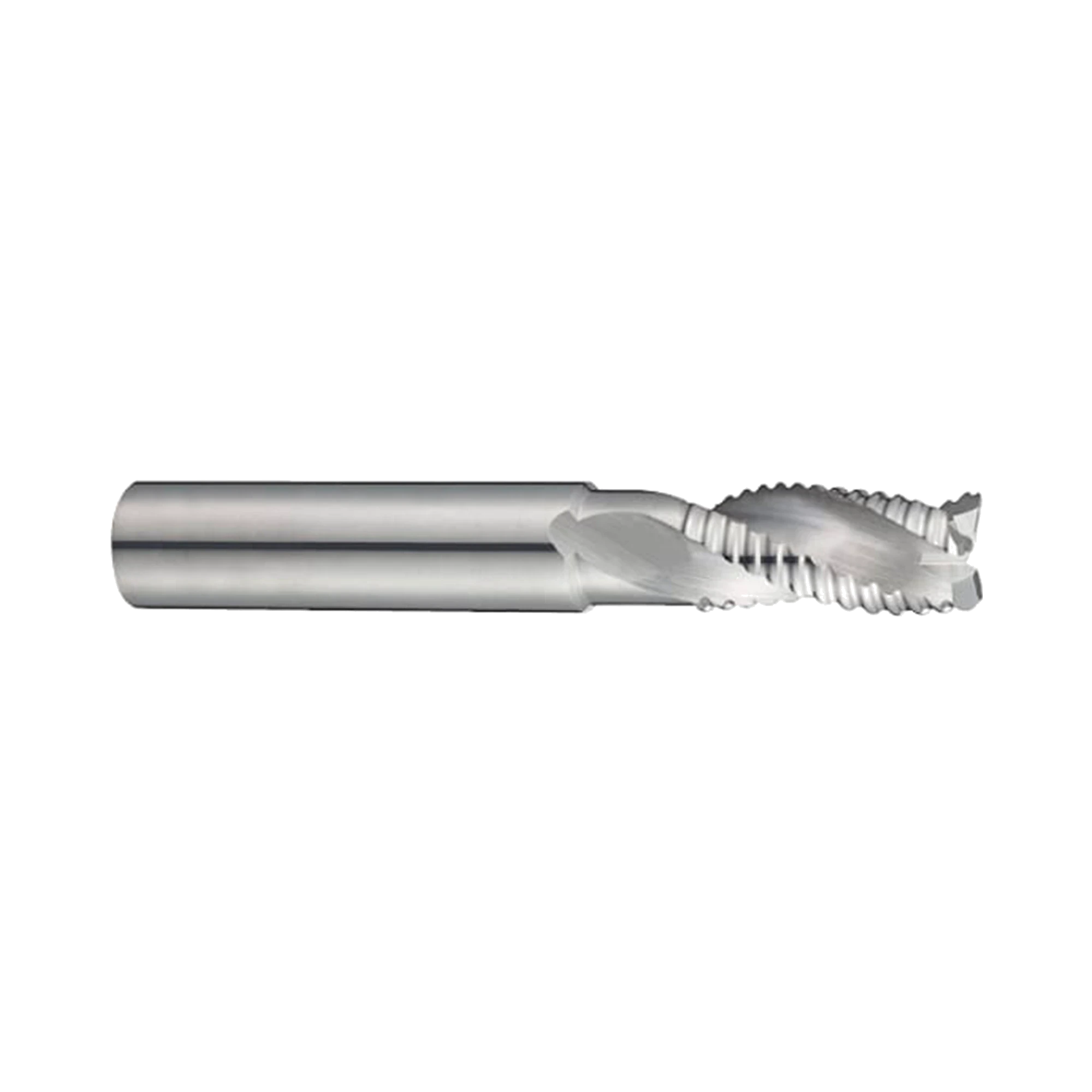

Product Description

The E5E39 series carbide Alu-Power rippers from YG-1 range from 6-20mm in diameter. These plain shank 3 flute rougher cutters have a reduced neck and an aluminium pitch to prevent built up edge. These are ideal for heavy metal removal on Aluminium and Non-Ferrous materials.

Suitable for high speed machining of aluminium and other non-ferrous materials.
Special geometries & lapped flutes ensures the best chip control and surface finish on aluminium.
Reduced neck diameter for deep pocket machining.
Deep flute pockets prevent swarf clogging up the tool.
Aluminium pitch prevents built up edge.
Micrograin Carbide Substrate.
Sharp cutting edges with mirror finish machining.
Ultra-high metal removal rates possible with WAVE-CUT.

Product Data

Workpiece Material	P K N
Chamfer Angle	45
Cutting Shape	Chamfer Prep, Roughing
Helix Angle	Square 30
Length	Regular
No. Flutes	3
Operation	Die Sinking, Facing, Side Milling, Slotting, Small Part
Periphery Type	Roughing - Aluminium
Shank Type	6535HA
Surface Treatment	Uncoated
Tool Material	Carbide
Tool Standard	YG-1 Standard

Flutes	3
Helix Angle	30°
Cutting Edge Shape	Roughing
Size Min	D3.0
Size Max	D20.0
Length	Neck
Coated	Uncoated

Side Milling

Small Part

Slotting

Die Sinking

Facing

P Carbon Steels

Great

Good Great Excellent

P Alloy Steels

Great

Good Great Excellent

K Cast Iron

Great

Good Great Excellent

N Aluminium

Excellent

Good Great Excellent

Non-alloy steel

Good

HRc

132528

125190250270

Low alloy steel

Good

HRc

1029

180275

High alloy & tool steel

Good

HRc

325

Grey cast iron

Good

HRc

1026

180260

Nodular cast iron

Good

HRc

325

160250

Malleable cast iron

Good

HRc

130230

Aluminium. wrought

Excellent

HRc

60100

Aluminium. cast

Excellent

HRc

7590

Speeds & Feeds

Ø	Vc	fz	RPM	FEED
6.0	254	0.168	13500	6800
8.0	264	0.168	10500	5300
10.0	267	0.169	8500	4300
12.0	320	0.165	8500	4200
16.0	322	0.167	6400	3200
20.0	320	0.163	5100	2500

Ø	Vc	fz	RPM	FEED
6.0	198	0.168	10500	5300
8.0	201	0.167	8000	4000
10.0	204	0.179	6500	3500
12.0	241	0.167	6400	3200
16.0	241	0.167	4800	2400
20.0	242	0.165	3850	1900

Material:

Diameter (mm):

RPM:	–	rev/min
FEED:	–	mm/min
Vc:	–	m/min
Fz:	–	mm/tooth
