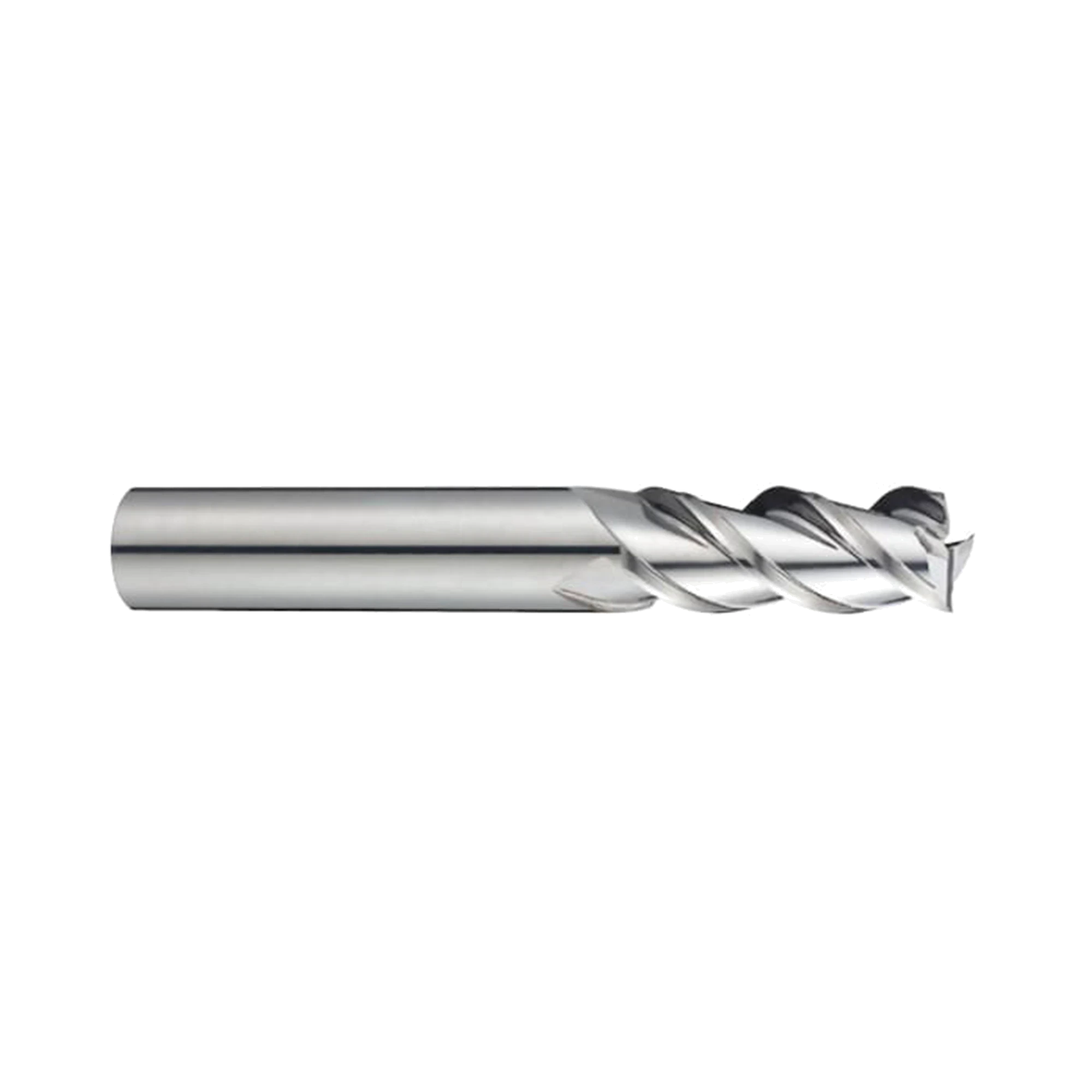

(E5E49) Alu-Power Carbide 3Flute End Mill, Long Length, Plain Shank
Long-Length 3-Flute Carbide End Mill for AluminiumCode: E5E49030
-
Key Features
- Solid-carbide construction with three flutes and a 45° helix
- Long-length square-end geometry for non-ferrous milling
- Mirror surface flutes aid chip evacuation and surface finish
Made in South Korea
Cleaner chip flow
Mirror surface flutes support chip evacuation and a quality machined surface.
Built for non-ferrous materials
Recommended for aluminium wrought alloys, aluminium-cast alloys, copper, bronze and brass.
Long-length cutting reach
Long-length geometry provides extended reach with a plain shank for toolholding.

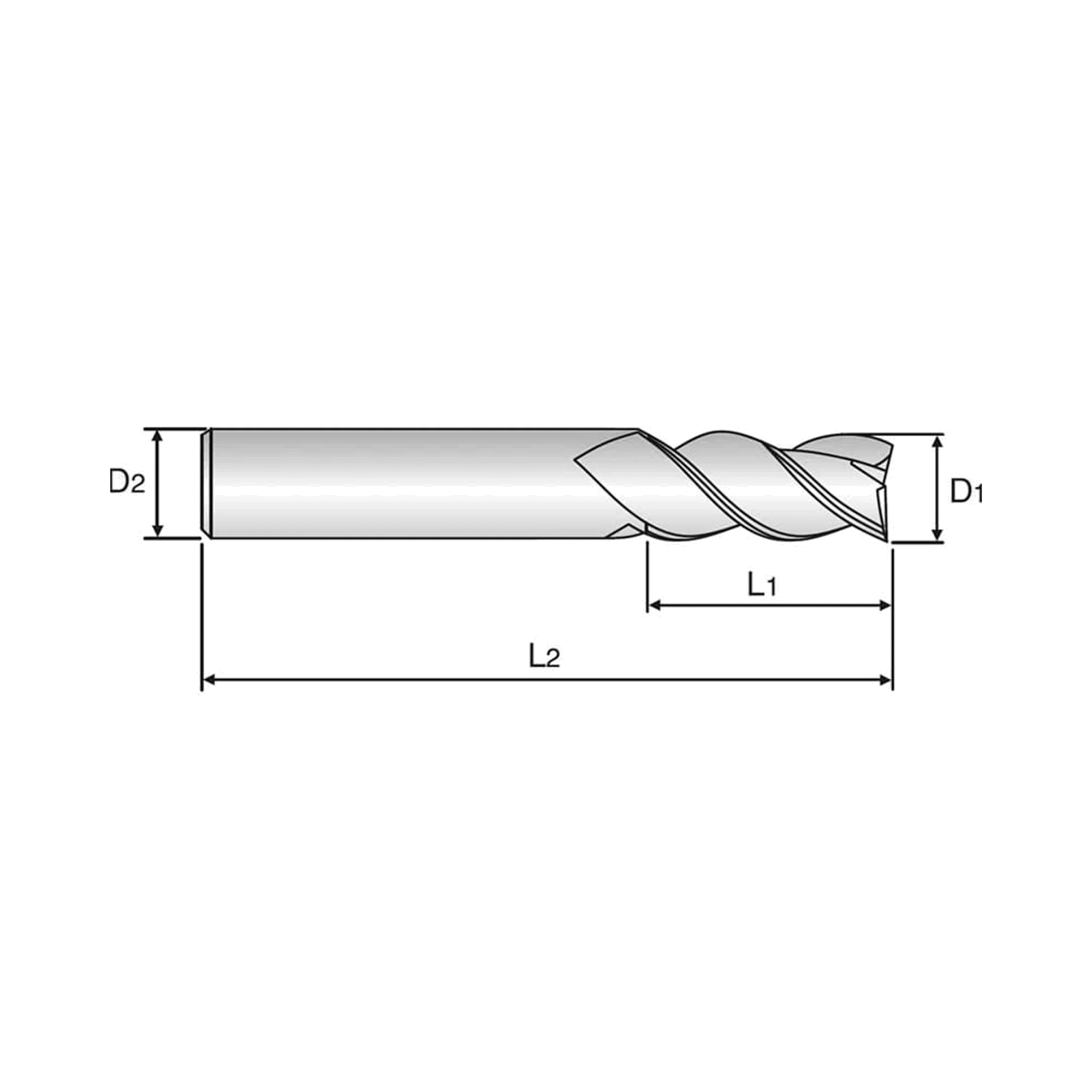

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| E5E49030 | 3.0 | 92.0 | 20.0 | 26.0 | Low stock | $27.80 | ||
| E5E49040 | 4.0 | 57.0 | 6.0 | 15.0 | In stock | $39.10 | ||
| E5E49050 | 5.0 | 57.0 | 6.0 | 20.0 | Low stock | $39.10 | ||
| E5E49060 | 6.0 | 65.0 | 6.0 | 20.0 | In stock | $42.90 | ||
| E5E49080 | 8.0 | 65.0 | 8.0 | 22.0 | In stock | $60.00 | ||
| E5E49100 | 10.0 | 70.0 | 10.0 | 25.0 | In stock | $73.40 | ||
| E5E49120 | 12.0 | 75.0 | 12.0 | 25.0 | In stock | $98.30 | ||
| E5E49160 | 16.0 | 90.0 | 16.0 | 35.0 | In stock | $168.80 | ||
| E5E49200 | 20.0 | 100.0 | 20.0 | 40.0 | No stock | $289.60 |
Add (E5E49) Alu-Power Carbide 3Flute End Mill, Long Length, Plain Shank to comparison
View Comparison- Overview
- Speeds & Feeds
- Reviews
YG-1 E5E49 Alu-Power solid-carbide end mills are long-length, three-flute plain-shank cutters with a 45° helix. They are designed for machining aluminium and copper materials, with mirror surface flutes aiding chip evacuation and surface finish. Optimised cutting edges support increased tool life, while the uncoated square-end design suits general milling operations.
Long-length geometry provides useful reach for non-ferrous milling operations requiring extended cutting reach. The selected SKU range covers 3 to 20 mm cutting diameters and 6 to 20 mm shanks. This solid-carbide series suits non-ferrous machining applications requiring a three-flute plain-shank cutter for production work. Recommended materials include aluminium wrought and cast alloys, copper, bronze and brass.
- Solid-carbide construction with three flutes and a 45° helix
- Long-length square-end geometry for non-ferrous milling
- Mirror surface flutes aid chip evacuation and surface finish
- Optimised cutting edges support increased tool life
- Uncoated plain-shank design
- Selected range includes 3 to 20 mm cutting diameters
No specifications available.
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 65 | 0.045 | 7000 | 940 |
| 4.0 | 90 | 0.055 | 7000 | 1150 |
| 5.0 | 110 | 0.065 | 7000 | 1360 |
| 6.0 | 130 | 0.075 | 7000 | 1580 |
| 8.0 | 140 | 0.113 | 5600 | 1900 |
| 9.0 | 160 | 0.122 | 5600 | 2050 |
| 10.0 | 175 | 0.131 | 5600 | 2200 |
| 12.0 | 210 | 0.163 | 5600 | 2740 |
| 16.0 | 210 | 0.200 | 4200 | 2520 |
| 20.0 | 175 | 0.238 | 2800 | 2000 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 65 | 0.035 | 7000 | 730 |
| 4.0 | 90 | 0.045 | 7000 | 940 |
| 5.0 | 110 | 0.050 | 7000 | 1050 |
| 6.0 | 130 | 0.060 | 7000 | 1250 |
| 8.0 | 140 | 0.088 | 5600 | 1470 |
| 9.0 | 160 | 0.097 | 5600 | 1630 |
| 10.0 | 175 | 0.106 | 5600 | 1780 |
| 12.0 | 210 | 0.131 | 5600 | 2200 |
| 16.0 | 210 | 0.158 | 4200 | 1990 |
| 20.0 | 175 | 0.200 | 2800 | 1680 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
