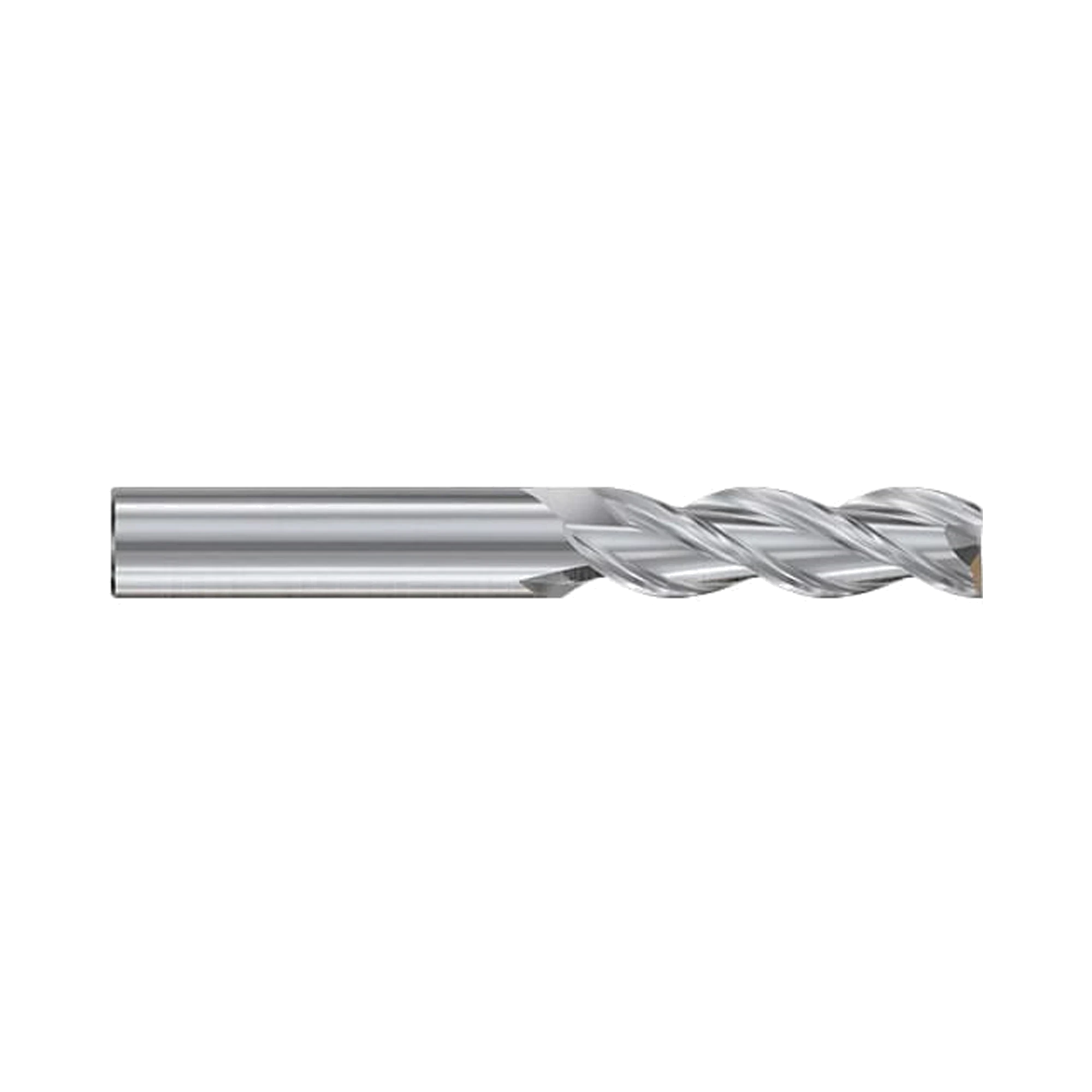

(E5H22) Alu-Power HPC Carbide, 3Flute End Mill Regular/Long Length, Plain Shank

Uncoated 3-Flute 37° Helix Square End Mill
  • $63.25INC GST $57.50 EX GST
(E5H22) Alu-Power HPC Carbide, 3Flute End Mill Regular/Long Length, Plain Shank
(E5H22) Alu-Power HPC Carbide, 3Flute End Mill Regular/Long Length, Plain Shank
(E5H22) Alu-Power HPC Carbide, 3Flute End Mill Regular/Long Length, Plain Shank
(E5H22) Alu-Power HPC Carbide, 3Flute End Mill Regular/Long Length, Plain Shank

(E5H22) Alu-Power HPC Carbide, 3Flute End Mill Regular/Long Length, Plain Shank

Uncoated 3-Flute 37° Helix Square End Mill
  • $63.25INC GST $57.50 EX GST

Code: E5H22080

    Key Features
  • Solid carbide construction with an uncoated finish
  • Three-flute square profile with 37° helix
  • Plain shank design
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Control heat and vibration

The balanced cutting design is specified for less vibration and reduced heat in aluminium machining.

Support efficient chip removal

The ALU-POWER HPC geometry is specified for more efficient chip evacuation.

Select useful cutting sizes

The supplied E5H22 variants cover 8, 10, 12 and 16 mm cutting diameters.

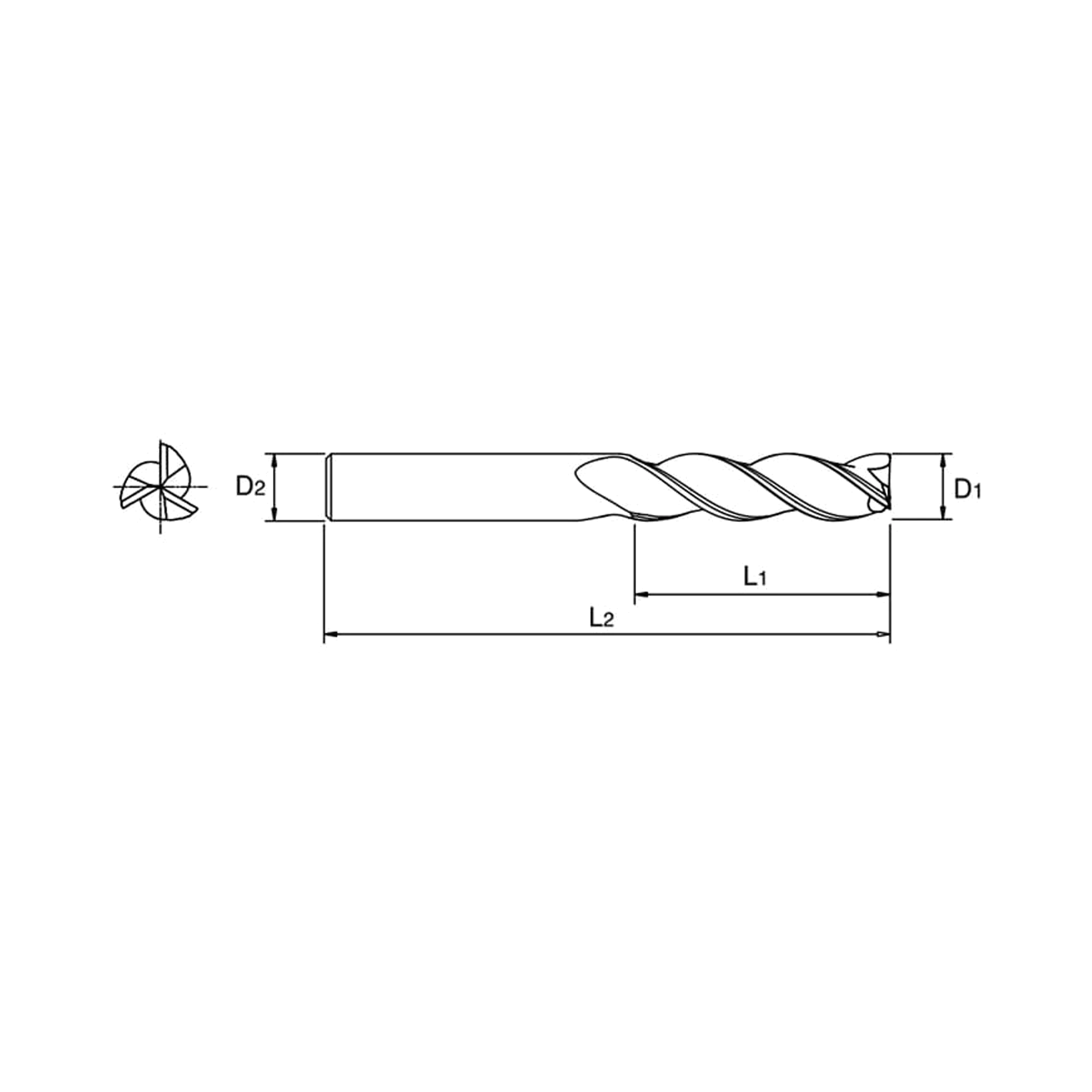

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
E5H22080863.08.019.0 Low stock $57.50
E5H221001072.010.022.0 Low stock $81.30
E5H221201283.012.026.0 5 days $151.12
E5H221601692.016.032.0 5 days $314.72

Add (E5H22) Alu-Power HPC Carbide, 3Flute End Mill Regular/Long Length, Plain Shank to comparison

View Comparison
  • Overview
  • Speeds & Feeds
  • Reviews
Product Description

YG-1 E5H22 ALU-POWER HPC is an uncoated solid carbide three-flute square end mill. The 37° helix and plain shank support milling aluminium, copper alloys and non-metallic materials. Balanced cutting supports lower vibration, less heat in aluminium and more efficient chip evacuation. Available SKUs cover 8, 10, 12 and 16 mm mill diameters. The selected four variants pair each cutting diameter with a matching shank diameter and practical overall length. Their lengths of cut range from 19 to 32 mm. Overall tool lengths extend from 63 to 92 mm within this selected product group. The product family is recommended for aluminium wrought and cast alloys.

  • Solid carbide construction with an uncoated finish
  • Three-flute square profile with 37° helix
  • Plain shank design
  • Recommended for aluminium wrought and cast alloys
  • Suitable for copper alloys and non-metallic materials
  • Selected diameters from 8 to 16 mm
Product Data

No specifications available.

Speeds & Feeds

ØVcfzRPMFEED
3.04880.025517783946
6.04880.076258895918
10.04880.114155335326
12.04880.152129455918
16.04880.16897084883
20.04880.19177674439
25.04880.25462134735
ØVcfzRPMFEED
3.01830.025194171480
6.01830.07697082219
10.01830.11458251997
12.01830.15248542219
16.01830.16836411831
20.01830.19129131665
25.01830.25423301775
ØVcfzRPMFEED
3.02680.020284361733
6.02680.051142182167
10.02680.10285312600
12.02680.12771092708
16.02680.14053322235
20.02680.15242651950
25.02680.17834121820
ØVcfzRPMFEED
3.05030.038533706100
6.05030.102266858134
10.05030.191160119150
12.05030.2541334210167
16.05030.279100078388
20.05030.30580057320
25.05030.35664046832
ØVcfzRPMFEED
3.06100.025647234932
6.06100.076323617398
10.06100.114194176658
12.06100.152161817398
16.06100.168121366103
20.06100.19197085548
25.06100.25477675918
ØVcfzRPMFEED
3.02440.025258891973
6.02440.076129452959
10.02440.11477672663
12.02440.15264722959
16.02440.16848542441
20.02440.19138832219
25.02440.25431072367
ØVcfzRPMFEED
3.03510.020372422270
6.03510.051186212838
10.03510.102111733405
12.03510.12793113547
16.03510.14069832927
20.03510.15255862554
25.03510.17844692384
ØVcfzRPMFEED
3.06250.038663147580
6.06250.1023315710106
10.06250.1911989411370
12.06250.2541657912633
16.06250.2791243410422
20.06250.30599479096
25.06250.35679588489
ØVcfzRPMFEED
3.010060.05310674017080
6.010060.1405337022367
10.010060.2673202225621
12.010060.3562668528467
16.010060.3812001422876
20.010060.4191601120131
25.010060.4951280919033
ØVcfzRPMFEED
3.03660.053388346214
6.03660.140194178138
10.03660.267116509321
12.03660.356970810357
16.03660.38172818323
20.03660.41958257324
25.03660.49546606924
ØVcfzRPMFEED
3.05640.043598427752
6.05640.1142992110260
10.05640.2161795311628
12.05640.2921496113110
16.05640.3301122011115
20.05640.35689769576
25.05640.40671818755
ØVcfzRPMFEED
3.010210.08610833128066
6.010210.2295416637147
10.010210.4323249942100
12.010210.5842708347465
16.010210.6352031238695
20.010210.6991625034051
25.010210.8131300031699
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth
