(SGED31) CRX S, 2Flute End Mill for Copper (Diamond Coated)
DLC-Coated Copper Machining End MillCode: SGED31010
-
Key Features
- Solid carbide construction with two flutes and DLC coating
- Special flute geometry supports excellent surface roughness and reduced burr formation
- Designed for copper and copper alloy machining
Made in South Korea
Cleaner copper finishes
Special flute geometry supports excellent surface roughness while helping minimise burr formation.
Purpose-built material range
Designed for copper, copper alloys, soft graphite, reinforced plastics and non-ferrous materials.
Practical size coverage
Plain-shank cutter diameters from 1 to 12 mm support compact milling applications.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| SGED31010 | 1 | 50.0 | 6.0 | 2.5 | 5 days | $107.20 | ||
| SGED31015 | 1.5 | 50.0 | 6.0 | 4.0 | 5 days | $107.20 | ||
| SGED31020 | 2 | 50.0 | 6.0 | 6.0 | 5 days | $98.40 | ||
| SGED31025 | 2.5 | 50.0 | 6.0 | 8.0 | 5 days | $98.40 | ||
| SGED31030 | 3 | 50.0 | 6.0 | 10.0 | 5 days | $70.10 | ||
| SGED31040 | 4 | 50.0 | 6.0 | 12.0 | 5 days | $98.40 | ||
| SGED31050 | 5 | 60.0 | 6.0 | 15.0 | 5 days | $107.50 | ||
| SGED31060 | 6 | 60.0 | 6.0 | 15.0 | 5 days | $79.20 | ||
| SGED31080 | 8 | 65.0 | 8.0 | 20.0 | 5 days | $124.70 | ||
| SGED31100 | 10 | 70.0 | 10.0 | 25.0 | 5 days | $146.80 | ||
| SGED31120 | 12 | 80.0 | 12.0 | 30.0 | 5 days | $273.60 |
Add (SGED31) CRX S, 2Flute End Mill for Copper (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews

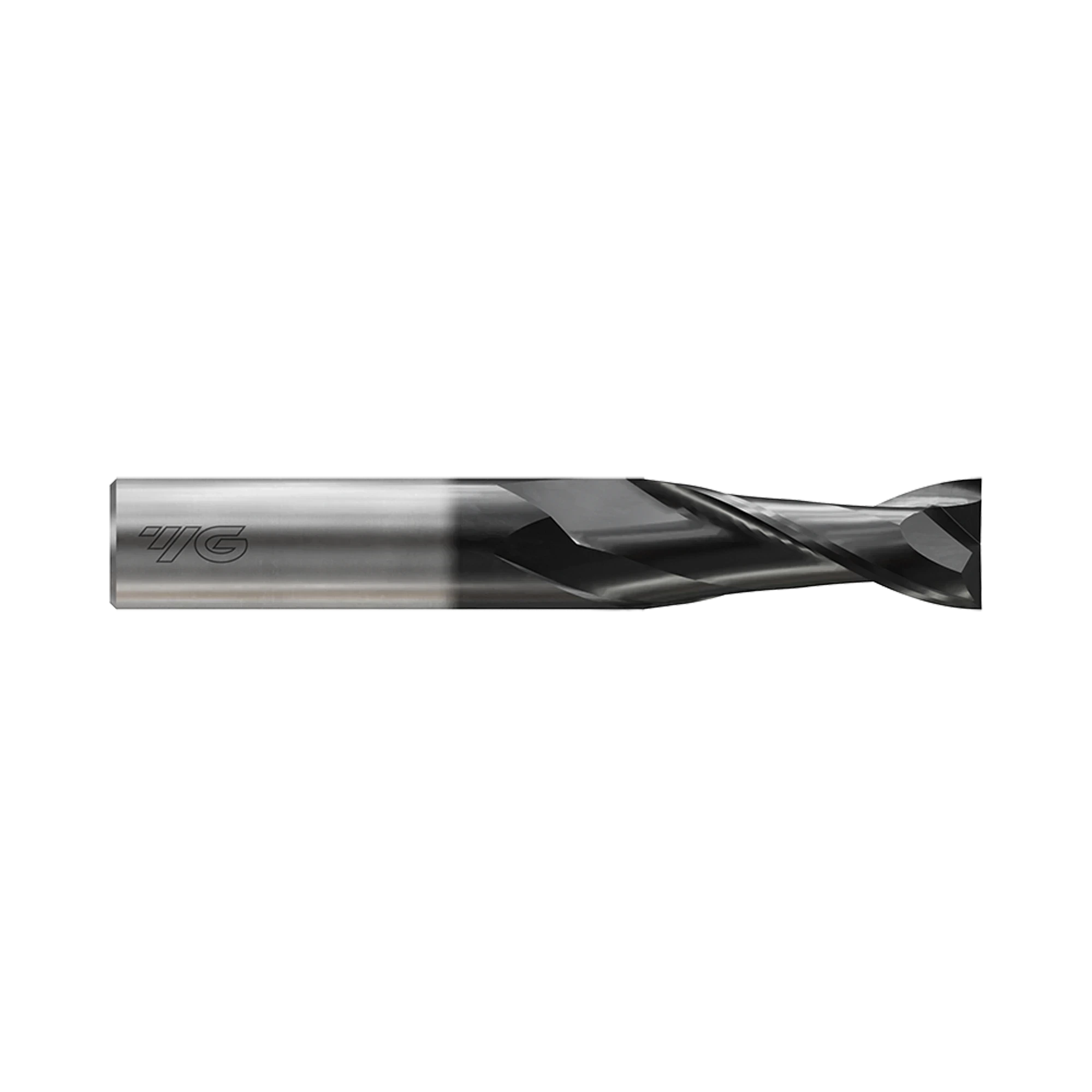

The YG-1 CRX S SGED31 is a solid carbide, two-flute DLC-coated square end mill for copper. Special flute geometry supports excellent surface roughness while helping reduce burrs in copper machining applications.
The SGED31 series is also designed for copper alloys, soft graphite, reinforced plastics and other non-ferrous materials. Each plain-shank tool has a 30° helix and square cutting edge for defined milling geometry. Cutter diameters span 1 to 12 mm, covering compact milling work with selected shank sizes. Smaller diameters through 6 mm use 6 mm shanks, while larger sizes use matched shanks. Length of cut ranges from 2.5 to 30 mm across the SGED31 size range.
- Solid carbide construction with two flutes and DLC coating
- Special flute geometry supports excellent surface roughness and reduced burr formation
- Designed for copper and copper alloy machining
- Suitable for soft graphite reinforced plastics and non-ferrous materials
- Square cutting edge with a 30° helix
- Plain-shank sizes from 1 to 12 mm cutter diameter
