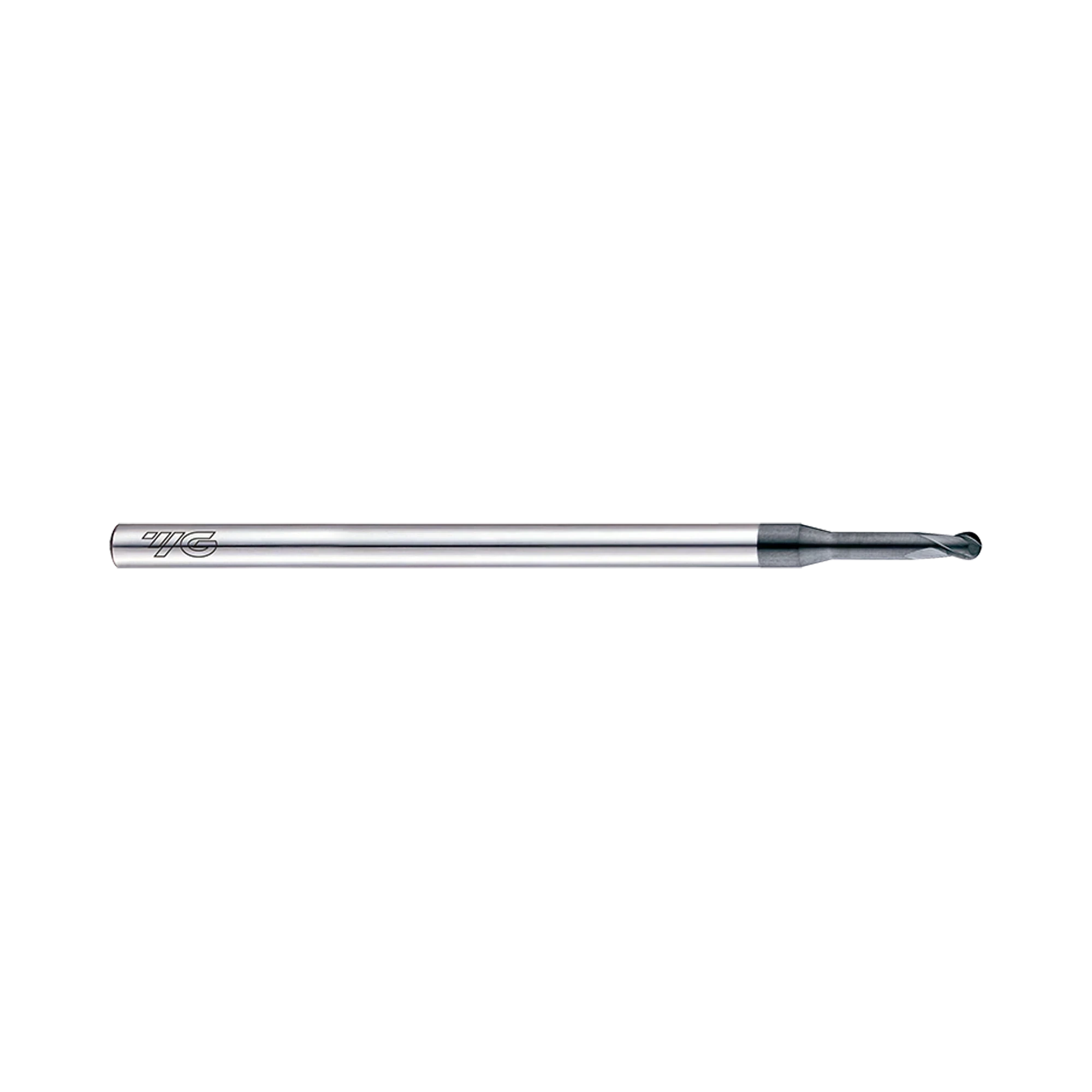

(EIB93) D-Power Carbide 2Flute Ball Nose End Mill, Miniature Neck for Graphite (Diamond Coated)
Code: EIB93004040
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

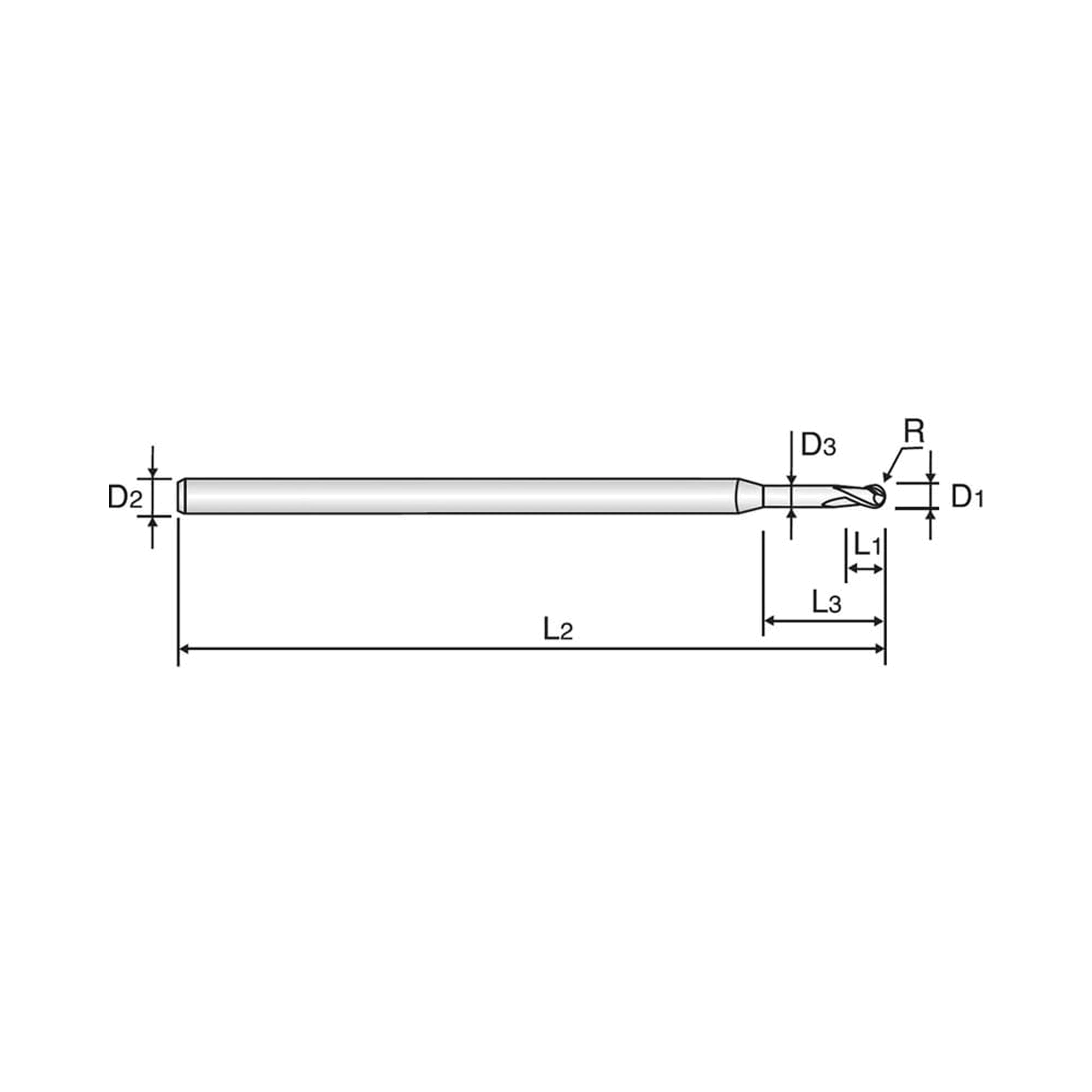

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EIB93004040 | 0.4 | R0.2 | 45.0 | 4.0 | 0.6 | 4.0 | 0.36 | 5 days | $158.20 | ||
| EIB93006040 | 0.6 | R0.3 | 45.0 | 4.0 | 1.0 | 4.0 | 0.56 | 5 days | $151.70 | ||
| EIB93010060 | 1 | R0.5 | 45.0 | 4.0 | 1.5 | 6.0 | 0.95 | 5 days | $143.40 | ||
| EIB93015120 | 1.5 | R0.75 | 45.0 | 4.0 | 1.75 | 12.0 | 1.45 | 5 days | $133.30 | ||
| EIB93020080 | 2 | R1.0 | 60.0 | 4.0 | 3.0 | 8.0 | 1.95 | 5 days | $113.20 | ||
| EIB93040160 | 4 | R2.0 | 60.0 | 4.0 | 6.0 | 16.0 | 3.9 | 5 days | $116.60 |
Add (EIB93) D-Power Carbide 2Flute Ball Nose End Mill, Miniature Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Reviews
Product Description
The YG-1 EIB93 series D-Power diamond coated micrograin carbide cutters has 2 flutes and a plain shank. These minature slot drills have a reduced neck and a ball nosed end for machining radii. These range in diameter from 0.4mm-4mm. The D-Power range is the first choice for the high performance machining of graphite. It is also suitable for machining abrasive aluminium, plastics, brass, copper, CFRP and GFRP composites.
- First choice for high performance machining of graphite with extreme wear resistance.
- Excellent performance in abrasive non-ferrous materials.
- Diamond coating has high lubricity and low coefficient of friction, preventing the tool from fast wear common in abrasive material machining.
- Long Length Minature Ball Nosed geometry with radius tolerance ± 0.01mm
- Suitable for high accuracy machining.
- Smooth and excellent surface finish on graphite.
- Also suitable for high speed machining of Wrought Aluminium, Bakelite, Plastics, Wood, Brass and non-ferrous metals.
Product Data
| Workpiece Material | N |
| Ball Radius Tolerance | 0.01 |
| Cutting Shape | Ball Nose |
| Graphite | Excellent |
| Helix Angle | Ball Nose 30 |
| No. Flutes | 2 |
| Operation | Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | Diamond Coating |
| Tool Material | Carbide |
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | BALL NOSE |
| Size Min | R0.2 |
| Size Max | R2.0 |
| Length |
MINIATURE NECK |
| Coating | Diamond |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol
Aluminium
Great
Good
Great
Excellent
CFRP
Great
Good
Great
Excellent
