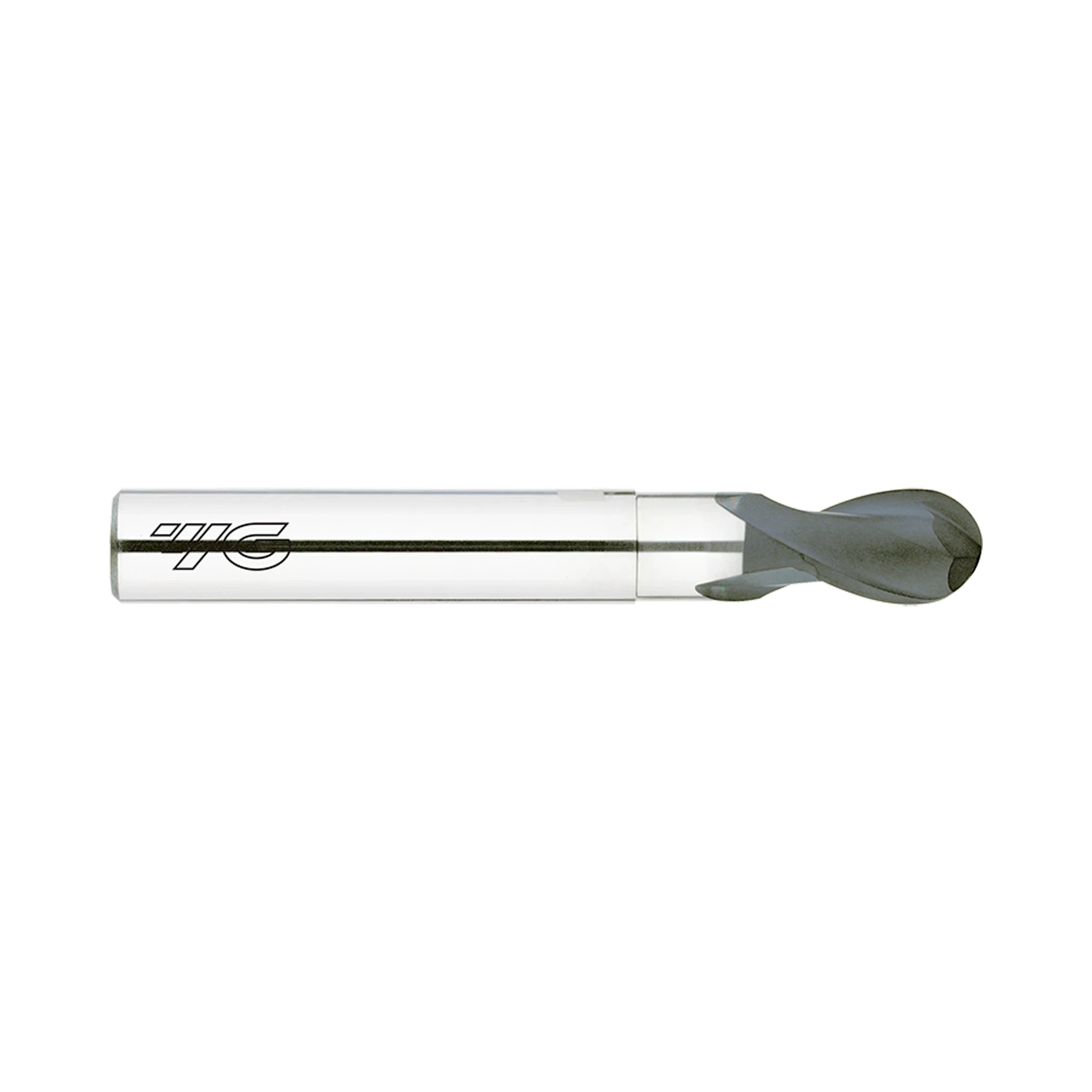

(EI880) D-Power Carbide 2Flute Ball Nose End Mill, Short Length Neck for Graphite (Diamond Coated)
Diamond-coated ball nose end mill with neck for graphiteCode: EI880020
-
Key Features
- Diamond-coated carbide ball nose end mill
- Two-flute short-length design with neck
- Designed for graphite machining
Made in South Korea
Graphite machining focus
Diamond-coated carbide construction is specified for high-performance graphite machining.
Smooth surface capability
An ultra-fine diamond film supports smooth and excellent surface results on work materials.
Necked ball nose geometry
Short-length ball nose geometry with neck supports the EI880 dimensional range.

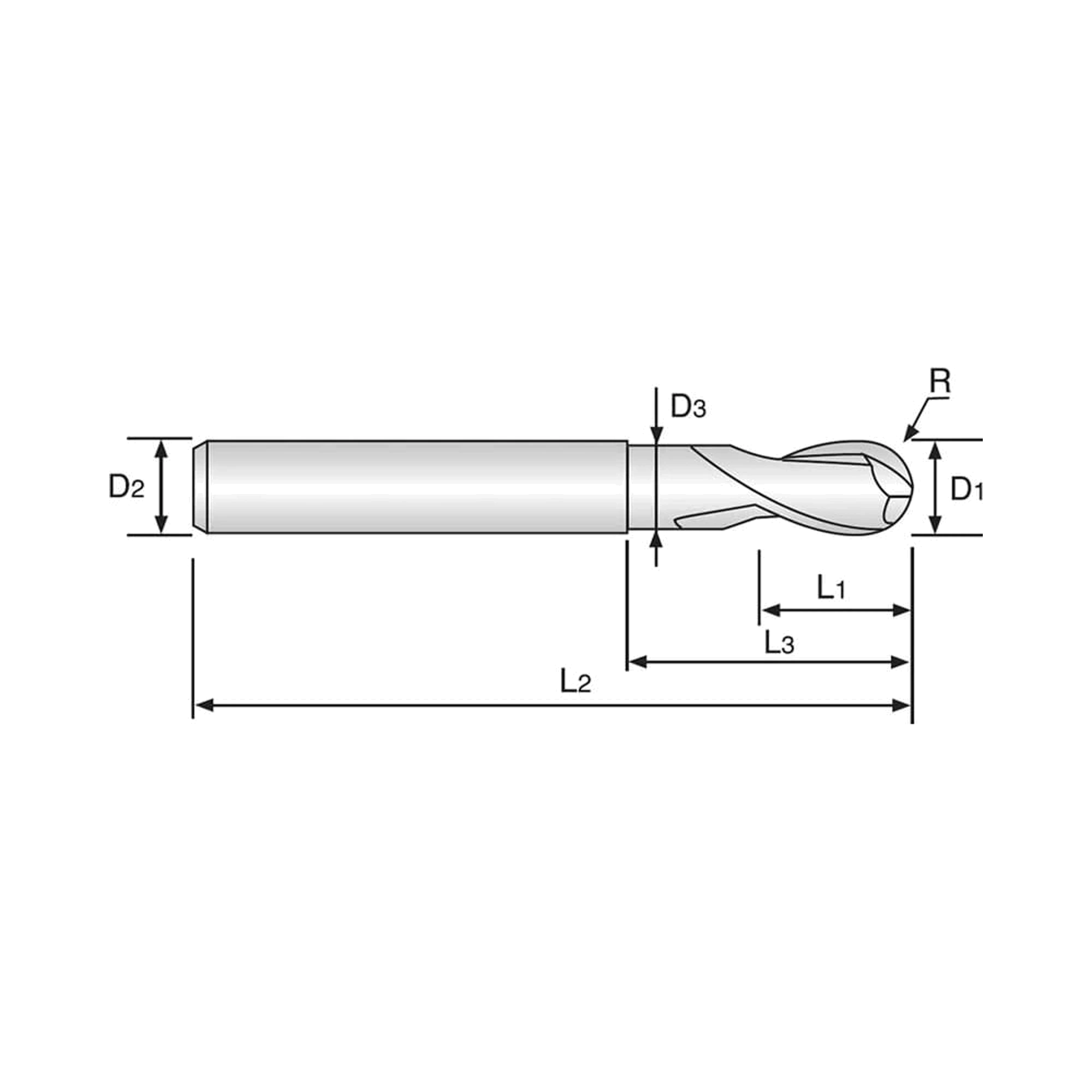

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EI880020 | 2 | R1.0 | 60.0 | 6.0 | 3.0 | 5.0 | 1.9 | 5 days | $156.70 | ||
| EI880025 | 2.5 | R1.25 | 60.0 | 6.0 | 4.0 | 6.0 | 2.4 | 5 days | $156.70 | ||
| EI880030 | 3 | R1.5 | 60.0 | 6.0 | 4.5 | 6.5 | 2.8 | 5 days | $156.70 | ||
| EI880035 | 3.5 | R1.75 | 65.0 | 6.0 | 5.0 | 7.0 | 3.2 | 5 days | $163.90 | ||
| EI880040 | 4 | R2.0 | 65.0 | 6.0 | 6.0 | 8.0 | 3.7 | 5 days | $163.90 | ||
| EI880050 | 5 | R2.5 | 65.0 | 6.0 | 7.5 | 10.0 | 4.6 | 5 days | $163.90 | ||
| EI880060 | 6 | R3.0 | 75.0 | 6.0 | 9.0 | 12.0 | 5.6 | 5 days | $171.10 | ||
| EI880080 | 8 | R4.0 | 75.0 | 8.0 | 12.0 | 25.0 | 7.4 | 5 days | $204.70 | ||
| EI880100 | 10 | R5.0 | 80.0 | 10.0 | 15.0 | 30.0 | 9.4 | 5 days | $267.40 | ||
| EI880120 | 12 | R6.0 | 90.0 | 12.0 | 18.0 | 36.0 | 11.4 | 5 days | $330.90 |
Add (EI880) D-Power Carbide 2Flute Ball Nose End Mill, Short Length Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 EI880 D-Power is a diamond-coated carbide two-flute ball nose end mill with a short neck. It is designed for graphite machining and also suits non-ferrous metals and non-metallic materials. The diamond coating offers high hardness and wear resistance, while its ultra-fine film supports smooth surfaces.
Ball radii extend from R1.0 to R6.0, with diameters from 2 to 12 mm. The necked construction is paired with short cutting lengths for compact machining geometry. Ten plain-shank EI880 variants provide a R1.0 to R6.0 ball radius selection. Shank diameters range from 6 to 12 mm, with overall lengths from 60 to 90 mm. Each version is specified with a ball radius tolerance of plus or minus 0.01 mm.
- Diamond-coated carbide ball nose end mill
- Two-flute short-length design with neck
- Designed for graphite machining
- Suitable for non-ferrous metals and non-metallic materials
- R1.0 to R6.0 ball radius range
- Plain shank with ball radius tolerance of ±0.01 mm
