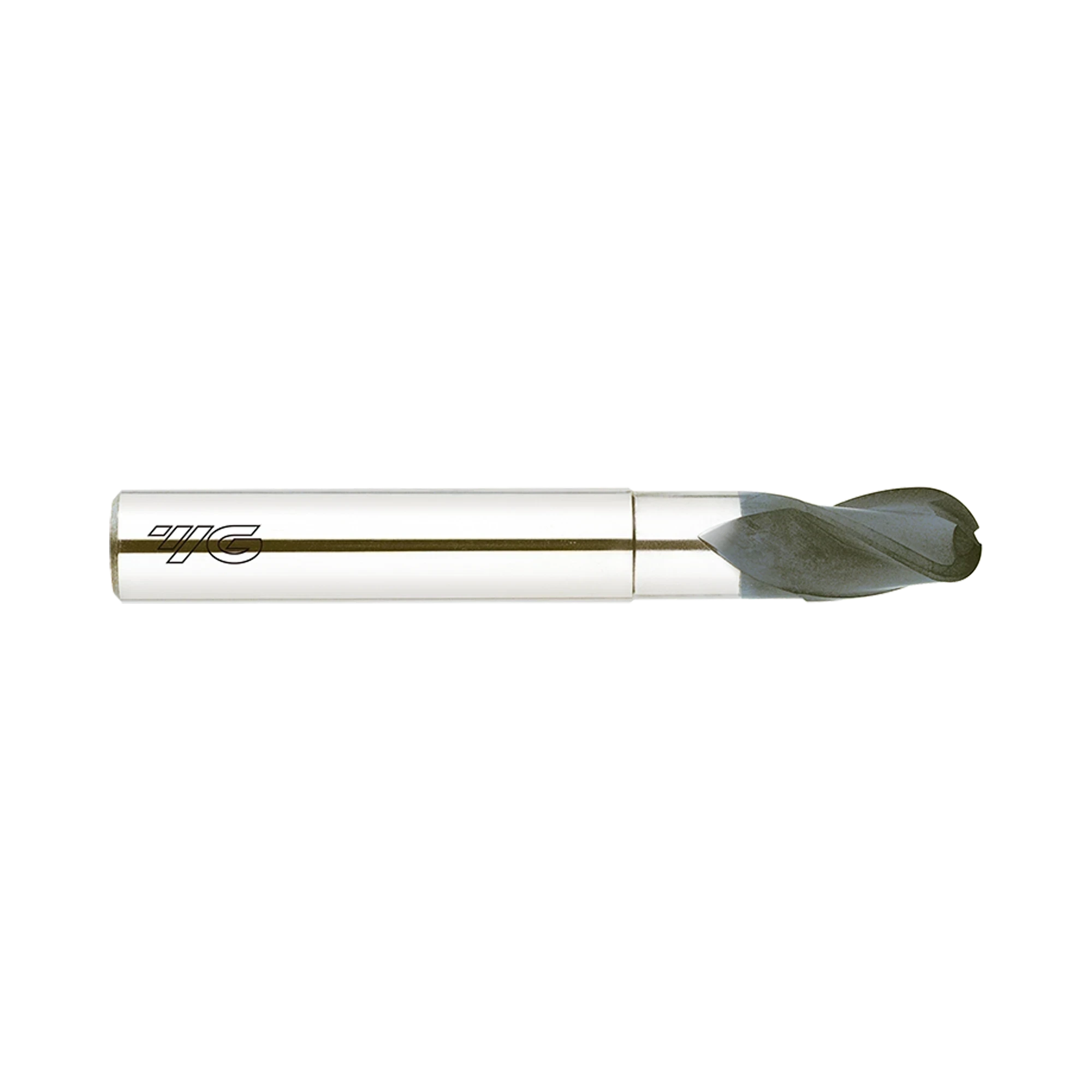

(EI881) D-Power Carbide 3Flute Ball Nose End Mill, Short Length Neck for Graphite (Diamond Coated)
Diamond-coated 3-flute ball nose end mill for graphiteCode: EI881020
-
Key Features
- Diamond-coated carbide construction for graphite machining
- Three-flute ball nose geometry with a short length neck
- Plain shank design
Made in South Korea
Graphite-focused geometry
Diamond-coated carbide ball nose design for graphite machining and curved profile work.
Neck clearance
The reduced neck supports access and clearance for ball profiling applications.
Useful size selection
Choose from six supplied variants spanning R1.0 to R5.0 ball radii.

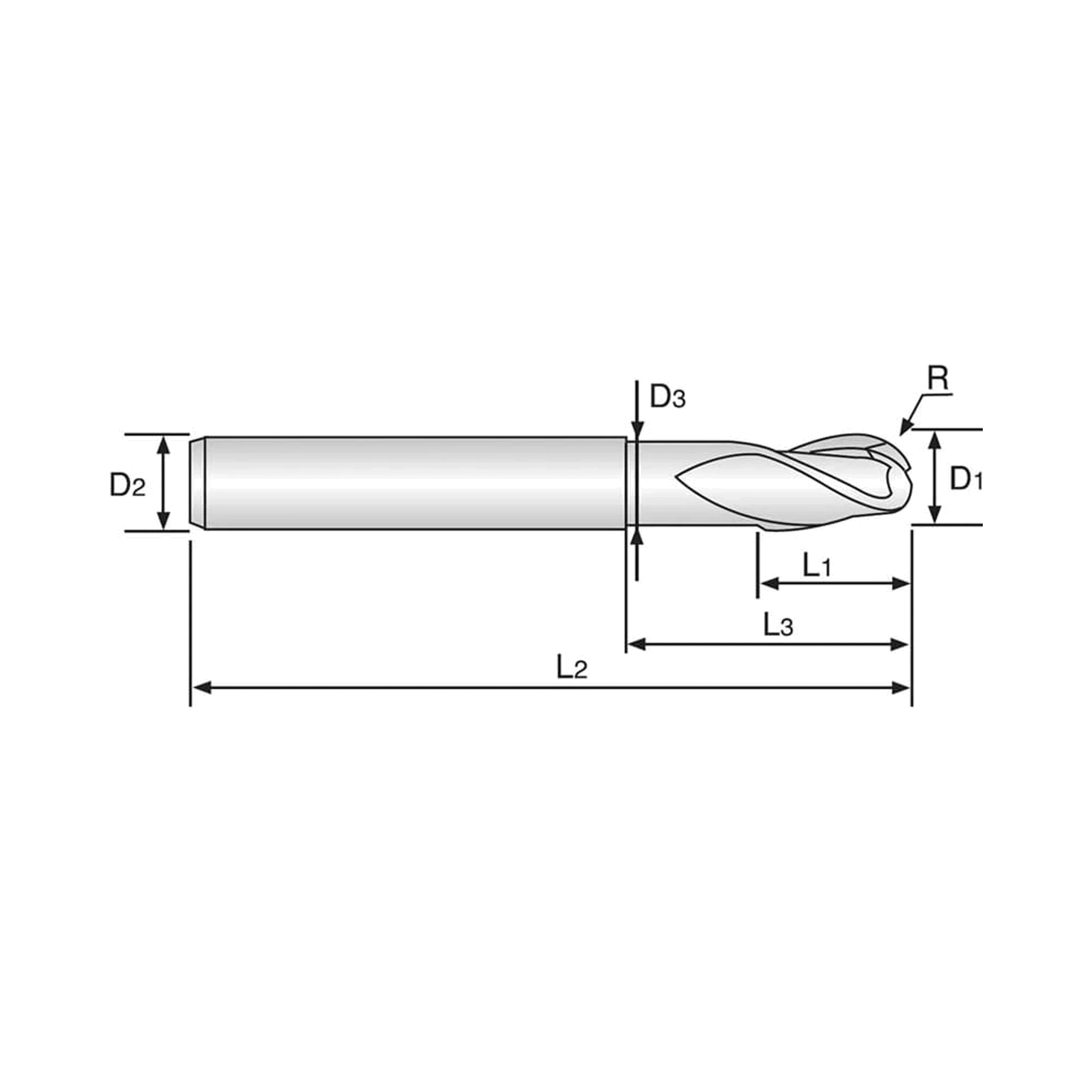

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EI881020 | 2 | R1.0 | 60.0 | 6.0 | 3.0 | 5.0 | 1.9 | 5 days | $156.70 | ||
| EI881030 | 3 | R1.5 | 60.0 | 6.0 | 4.5 | 6.5 | 2.8 | 5 days | $156.70 | ||
| EI881040 | 4 | R2.0 | 65.0 | 6.0 | 6.0 | 8.0 | 3.7 | 5 days | $163.90 | ||
| EI881060 | 6 | R3.0 | 75.0 | 6.0 | 9.0 | 12.0 | 5.6 | 5 days | $171.10 | ||
| EI881080 | 8 | R4.0 | 75.0 | 8.0 | 12.0 | 25.0 | 7.4 | 5 days | $204.70 | ||
| EI881100 | 10 | R5.0 | 80.0 | 10.0 | 15.0 | 30.0 | 9.4 | 5 days | $267.40 |
Add (EI881) D-Power Carbide 3Flute Ball Nose End Mill, Short Length Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 EI881 D-Power is a diamond-coated carbide, three-flute ball nose end mill with a short neck. Designed for graphite machining, its reduced neck supports ball profiling where clearance is required. The EI881 series uses a plain shank and ball nose geometry for curved surface work. Diamond coating supports graphite, wrought aluminium, bakelite, plastics, wood, brass, and non-ferrous material machining. Available variants cover R1.0 to R5.0 ball radii with 2 to 10 mm diameters. Specified ball radius tolerance is ±0.01 mm for controlled profile machining. Lengths of cut range from 3 to 15 mm, with overall lengths from 60 to 80 mm. Neck diameters range from 1.9 to 9.4 mm within this variant selection.
- Diamond-coated carbide construction for graphite machining
- Three-flute ball nose geometry with a short length neck
- Plain shank design
- R1.0 to R5.0 ball radius range
- 2 to 10 mm mill diameter range
- ±0.01 mm ball radius tolerance
