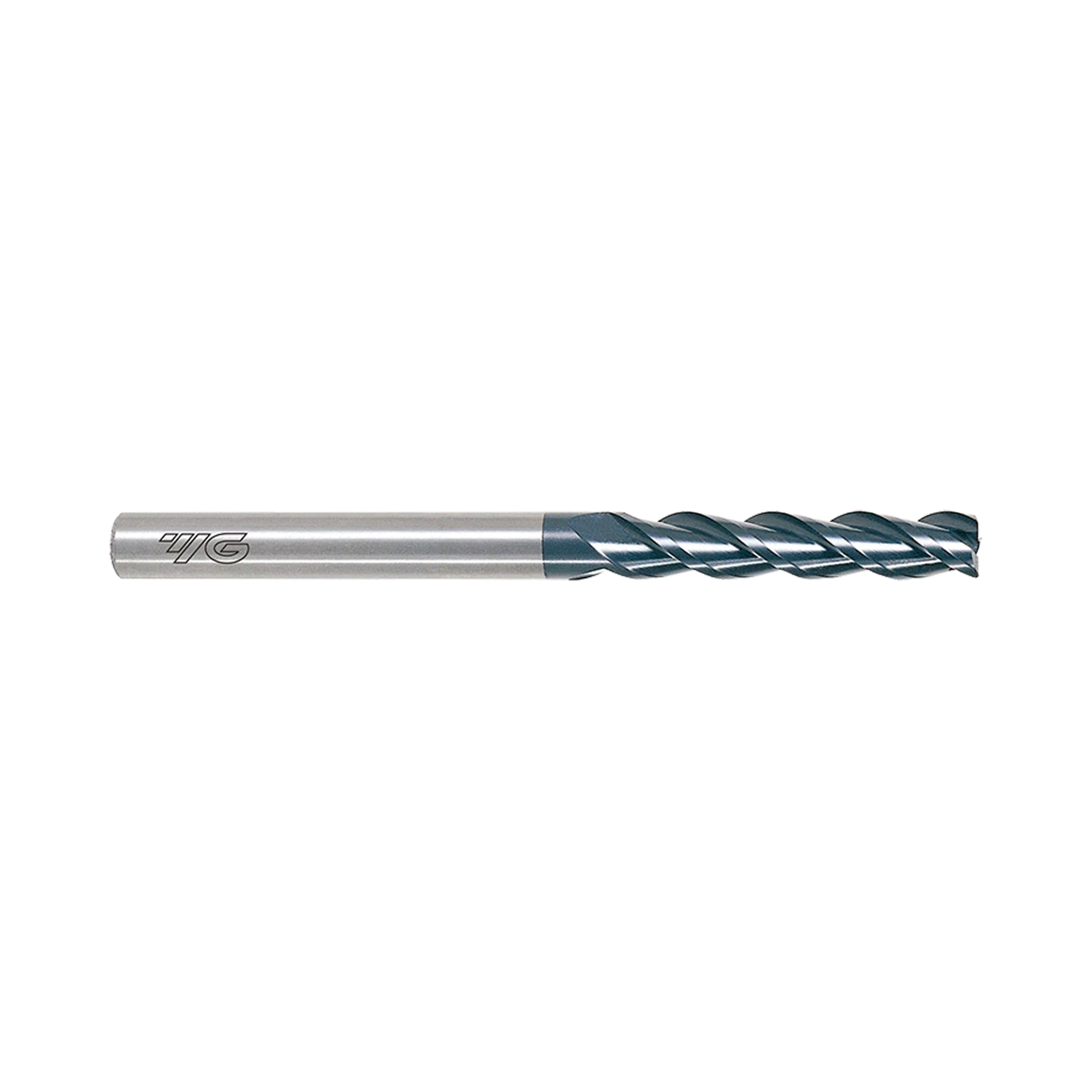

(EIA14) D-Power Carbide 3Flute Corner Radius End Mill, Short Length for Graphite (Diamond Coated)
Diamond-coated long-length corner radius end millCode: EIA14020
-
Key Features
- Diamond-coated carbide construction for graphite machining
- Three-flute geometry with a 40° helix
- Corner radius cutting profile
Made in South Korea
Graphite-focused cutting
Diamond-coated carbide geometry is designed for graphite machining applications.
Durable coating performance
High film hardness and wear resistance support longer tool life.
Smooth surface results
An ultra-fine coating film supports smooth, excellent workpiece surfaces.

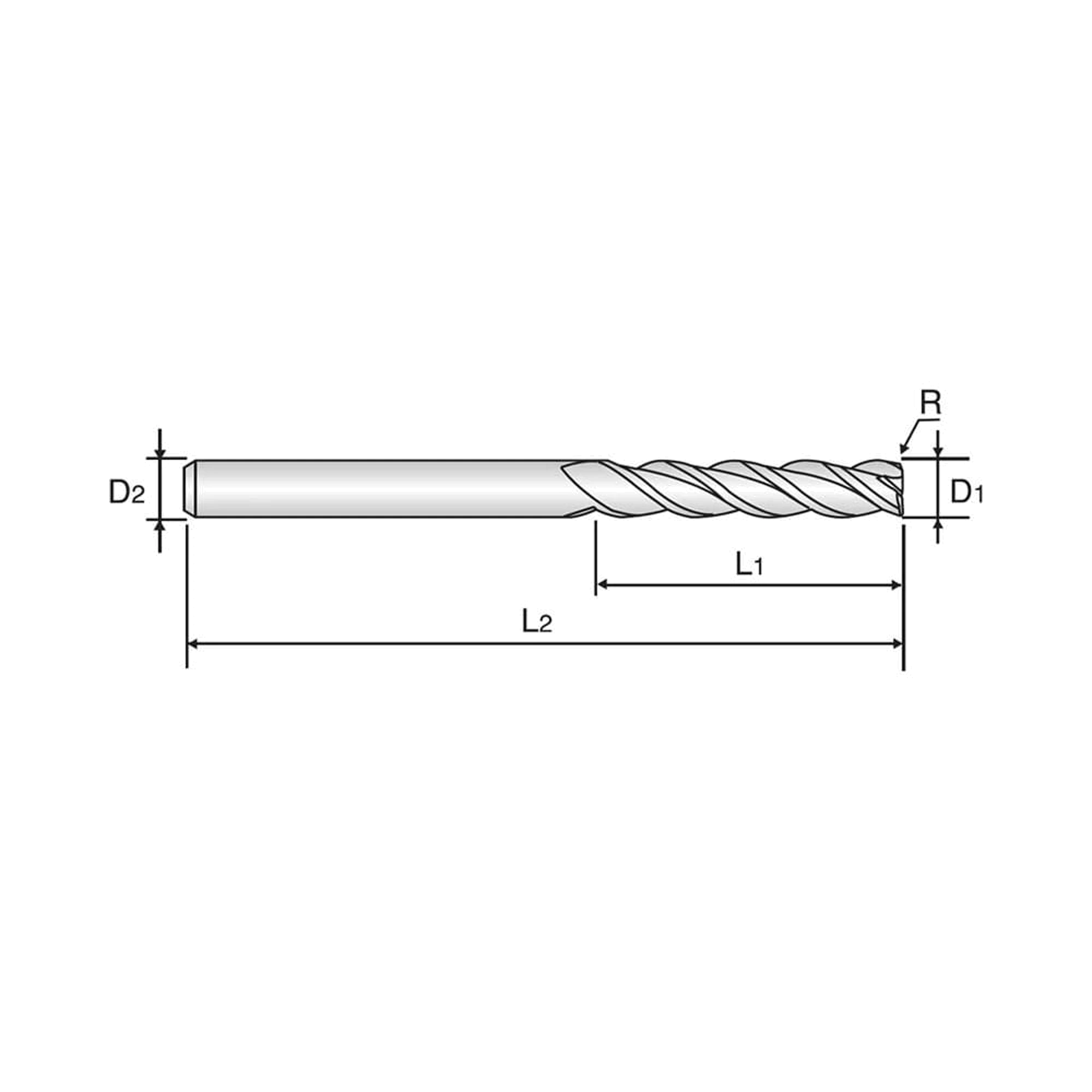

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| EIA14020 | 2 | R0.15 | 60.0 | 3.0 | 9.0 | 5 days | $99.60 | ||
| EIA14030 | 3 | R0.15 | 60.0 | 3.0 | 30.0 | Low stock | $113.40 | ||
| EIA14040 | 4 | R0.2 | 60.0 | 4.0 | 30.0 | Low stock | $125.10 | ||
| EIA14050 | 5 | R0.3 | 70.0 | 5.0 | 35.0 | 5 days | $128.20 | ||
| EIA14060 | 6 | R0.3 | 100.0 | 6.0 | 40.0 | 5 days | $150.20 | ||
| EIA14080 | 8 | R0.5 | 100.0 | 8.0 | 40.0 | 5 days | $218.60 | ||
| EIA14100 | 10 | R0.5 | 100.0 | 10.0 | 40.0 | 5 days | $257.20 |
Add (EIA14) D-Power Carbide 3Flute Corner Radius End Mill, Short Length for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 EIA14 D-Power is a diamond-coated carbide three-flute corner radius end mill with long-length geometry. It is designed for graphite machining, using a 40° helix and corner radii for controlled milling. Diamond coating provides high film hardness and excellent wear resistance to support longer tool life. The ultra-fine coating film supports smooth, excellent surface finishes on compatible work materials. This series is also suitable for wrought aluminium, bakelite, plastics, wood and brass. Use it for non-ferrous metals and non-metallic materials where diamond-coated carbide tooling is appropriate. Available diameters range from 2 to 10 mm, with R0.15 to R0.5 corner radii.
- Diamond-coated carbide construction for graphite machining
- Three-flute geometry with a 40° helix
- Corner radius cutting profile
- Long-length EIA14 series geometry
- High film hardness and excellent wear resistance
- 2 to 10 mm diameters with R0.15 to R0.5 corner radii
