(EIA13) D-Power Carbide 3Flute Corner Radius End Mill, Short Length for Graphite (Diamond Coated)
Diamond coated 3-flute graphite corner radius end millCode: EIA13020
-
Key Features
- Diamond coated carbide construction for graphite machining
- Three flutes with a 40° helix
- Corner radius cutting geometry
Made in South Korea
Graphite-focused cutting
Diamond-coated carbide geometry is designed for high performance graphite machining.
Wear-resistant coating
Higher coating hardness and excellent wear resistance support extended tool life.
Useful material versatility
Suitable for graphite plus selected non-ferrous and non-metallic materials.

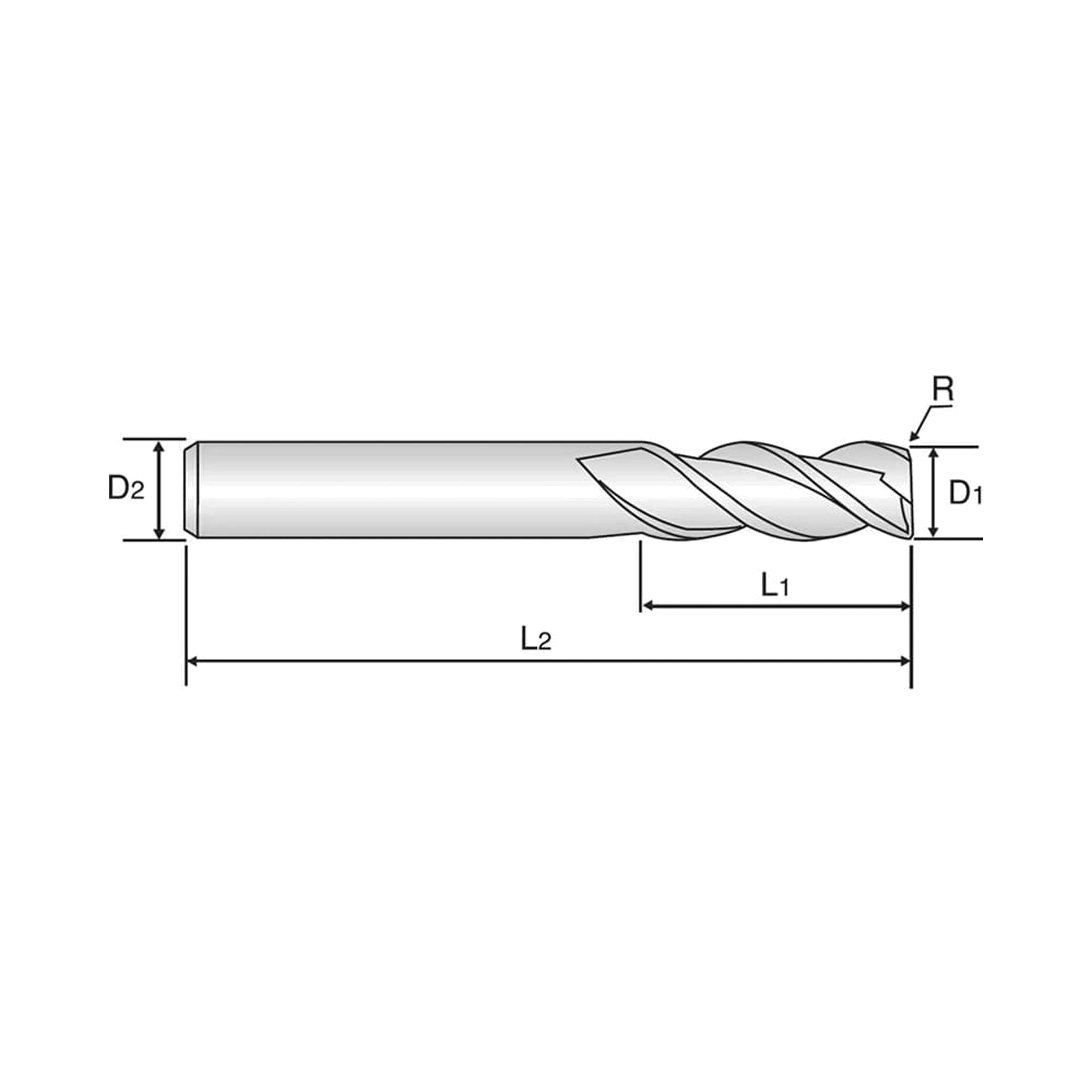

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| EIA13020 | 2 | R0.15 | 40.0 | 3.0 | 6.0 | 5 days | $87.90 | ||
| EIA13030 | 3 | R0.15 | 40.0 | 3.0 | 12.0 | Low stock | $90.30 | ||
| EIA13040 | 4 | R0.2 | 50.0 | 4.0 | 14.0 | 5 days | $105.80 | ||
| EIA13050 | 5 | R0.3 | 50.0 | 5.0 | 16.0 | 5 days | $113.50 | ||
| EIA13060 | 6 | R0.3 | 65.0 | 6.0 | 20.0 | 5 days | $123.70 | ||
| EIA13080 | 8 | R0.5 | 65.0 | 8.0 | 20.0 | 5 days | $183.30 | ||
| EIA13100 | 10 | R0.5 | 75.0 | 10.0 | 25.0 | 5 days | $222.00 | ||
| EIA13120 | 12 | R0.5 | 75.0 | 12.0 | 25.0 | 5 days | $268.90 |
Add (EIA13) D-Power Carbide 3Flute Corner Radius End Mill, Short Length for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews

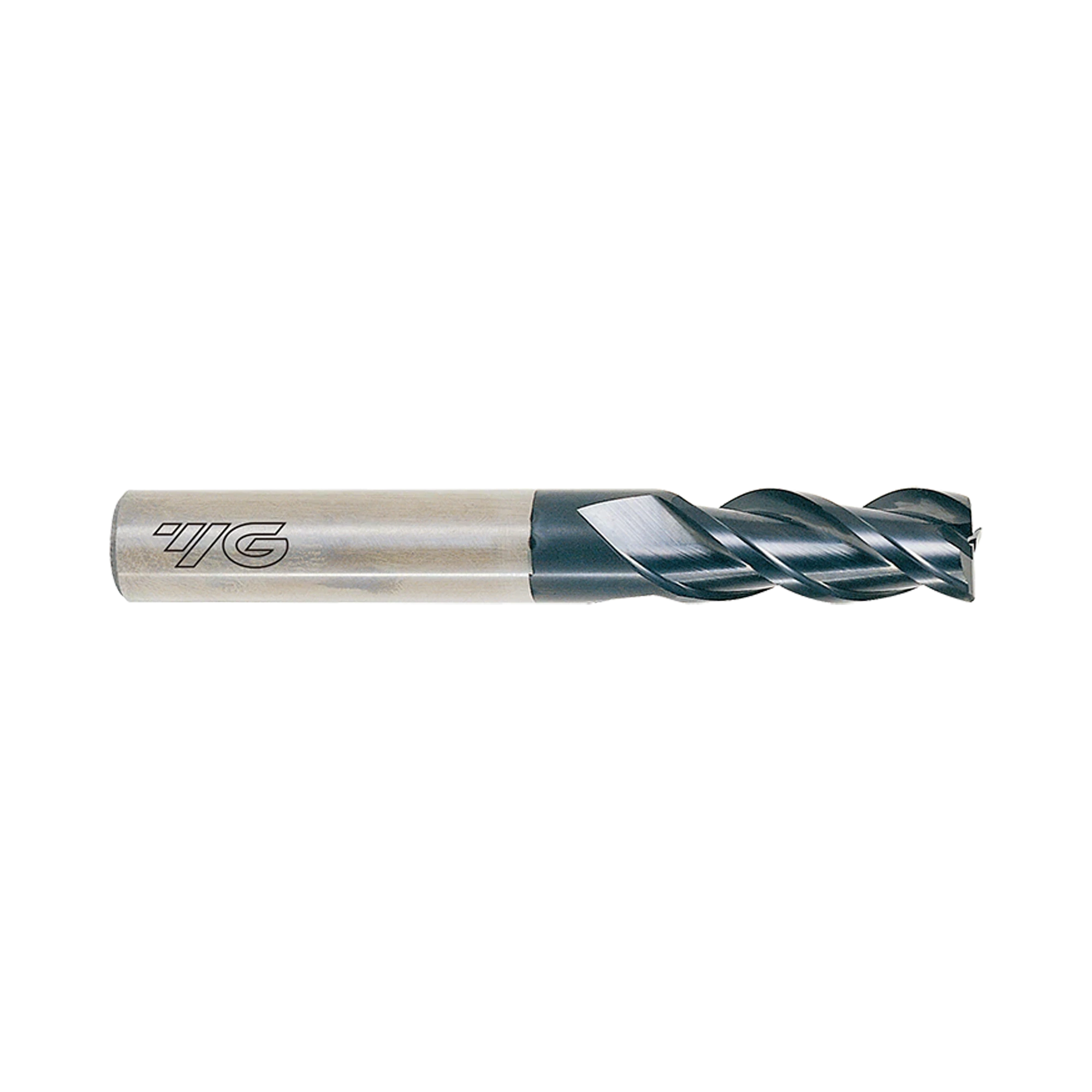

YG-1 EIA13 D-Power carbide corner radius end mill is diamond coated for graphite machining. The short-length three-flute tool uses a 40° helix and plain shank. It is designed for high performance graphite machining and produces smooth workpiece surfaces. Diamond coating provides higher film hardness and excellent wear resistance for extended tool life.
The range also performs well in wrought aluminium, bakelite, plastics, wood and brass. An ultra fine coating film supports a smooth and excellent surface finish. It provides good results when machining supported non-ferrous metals and non-metallic materials. Mill diameters run from 2 to 12 mm with R0.15 to R0.5 corner radii.
- Diamond coated carbide construction for graphite machining
- Three flutes with a 40° helix
- Corner radius cutting geometry
- Short-length design with plain shank
- 2 to 12 mm mill diameter range
- R0.15 to R0.5 corner radius range
