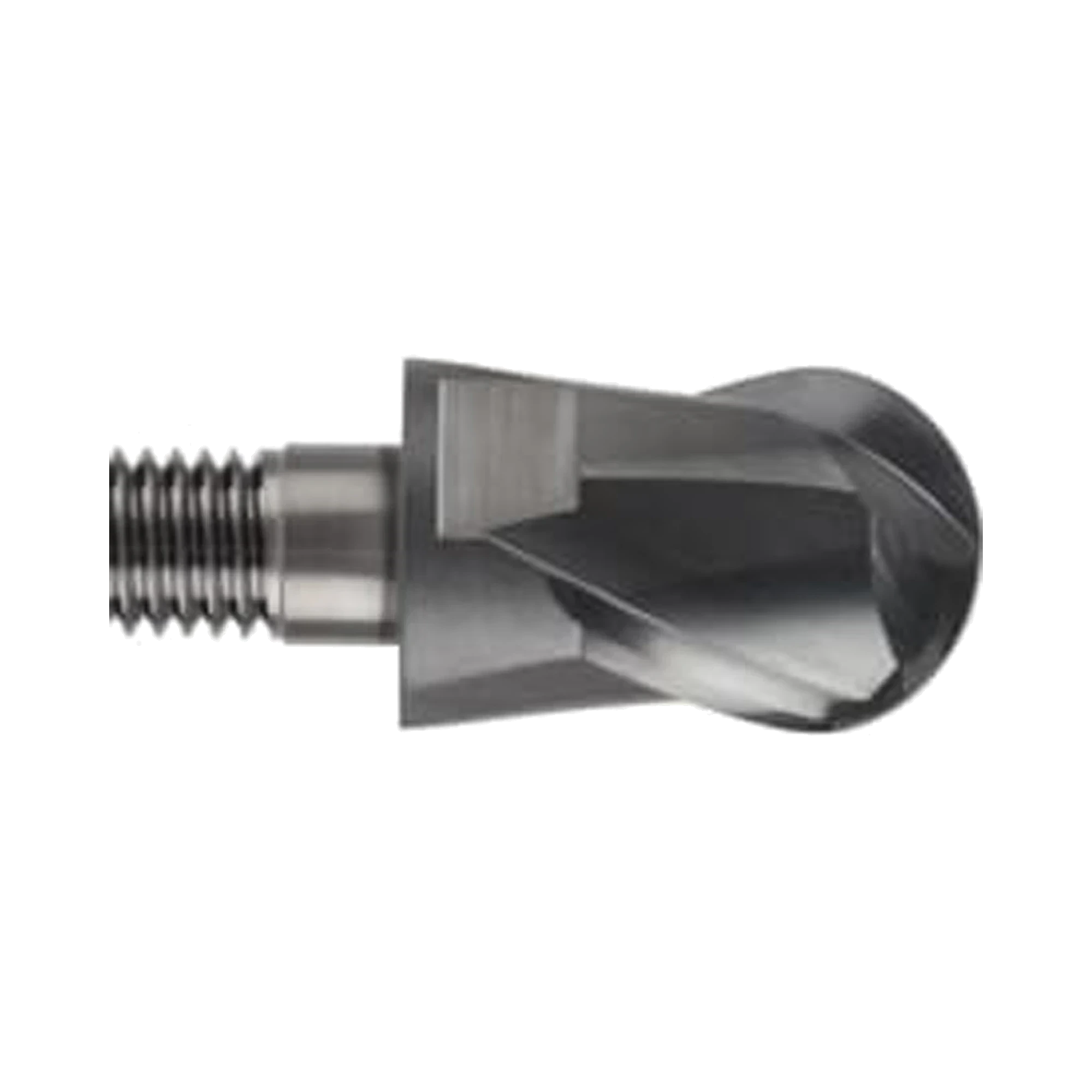

(XSEMD98) i-Smart 4G Mill, Modular Head, 2Flute Ball Nose End Mill
2 Flute Ball Nose Carbide Modular HeadCode: XSEMD98100
-
Key Features
- Carbide modular head for i-Smart modular end mill systems
- Two-flute ball nose cutting geometry
- 30° helix with centre-match design
Made in South Korea
Modular Tooling Format
Use the head with a compatible i-Smart modular end mill holder.
Ball Nose Range
Choose from R5.0 to R16.0 radii for ball-nose milling requirements.
Defined Accuracy
Specified radius and diameter tolerances support controlled tool selection.
Add (XSEMD98) i-Smart 4G Mill, Modular Head, 2Flute Ball Nose End Mill to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 XSEMD98 i-Smart carbide modular heads are two-flute ball nose end mills with Y-Coating. They provide centre-match ball-nose cutting for use with compatible i-Smart modular end mill holders. The series combines a 30° helix with radii from R5.0 to R16.0. Available head diameters span 10 to 32 mm, corresponding to the listed ball radii. Radius tolerance is ±0.01 mm and mill diameter tolerance is 0 to -0.02 mm. Specified SKUs cover R5, R6, R8, R10, R12.5, R15 and R16 ball-nose options. Select the modular head size required for the intended ball-nose milling operation. The replaceable-head format supports configuration of an i-Smart modular end mill system.
- Carbide modular head for i-Smart modular end mill systems
- Two-flute ball nose cutting geometry
- 30° helix with centre-match design
- Y-Coating
- R5.0 to R16.0 ball radii
- ±0.01 mm radius tolerance
No specifications available.
