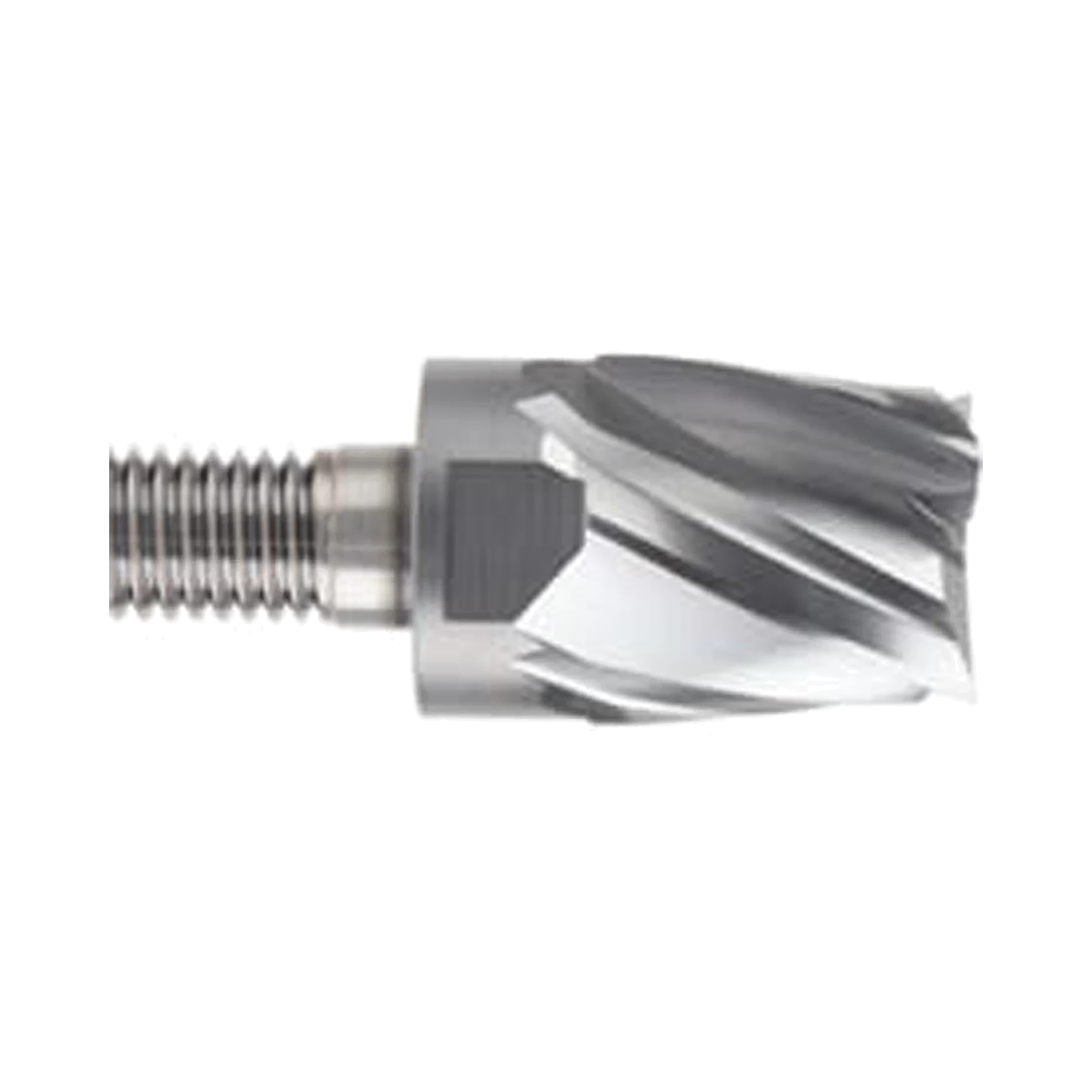

(XSEME36) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix End Mill
Code: XSEME36100
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.
Add (XSEME36) i-Smart 4G Mill, Modular Head, 4Flute Multiple Helix End Mill to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Reviews
Product Description
The XSEME36 series multiple helix modular head is designed for ranges in diameter from 10-32mm. The multiple helix design reduces vibration and increases tool life. These heads are suitable for use with i-Smart modular holders and high speed machining of steel
- 4 Flute multiple helix reduces vibration and increases tool life in heavy machining conditions.
- Change the carbide head on the machine, no need to reset tool length.
- Y1200 coated ultrafine micrograin carbide for machining up to 1200°C.
- Quick change replaceable heads - multiple head size and styles with just 1 holder.
- High Speed Machining (HSC).
- High precision.
- Large cost savings compared to solid carbide tools.
- High precision head location.
- Reduced machine downtime.
- YG-1 provides high accuracy and performance at an economical price.
Product Data
| Workpiece Material | P M K H |
| Cutting Shape | Square |
| Hardened Steels(HRc40~45) | Excellent |
| Helix Angle | Multiple Helix 27/30 |
| No. Flutes | 4 |
| Operation | Die Sinking, Facing, Side Milling, Slotting |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
| Flutes | 4 |
| Helix Angle | 27°/30° (MULTIPLE HELIX) |
| Cutting Edge Shape | SQUARE |
| Size Min | D10.0 |
| Size Max | D32.0 |
| Length | - |
| Coating | Y-Coating |
Side Milling
Slotting
Die Sinking
Facing
Carbon Steels
Great
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Prehardened Steels
Excellent
Good
Great
Excellent
Stainless Steels
Great
Good
Great
Excellent
Cast Iron
Great
Good
Great
Excellent
Hardened Steels (HRc40~45)
Excellent
Good
Great
Excellent
Hardened Steels (HRc45~55)
Great
Good
Great
Excellent
High Hardened Steels (HRc55~70)
Great
Good
Great
Excellent
No VDI recommendations set for this product.
