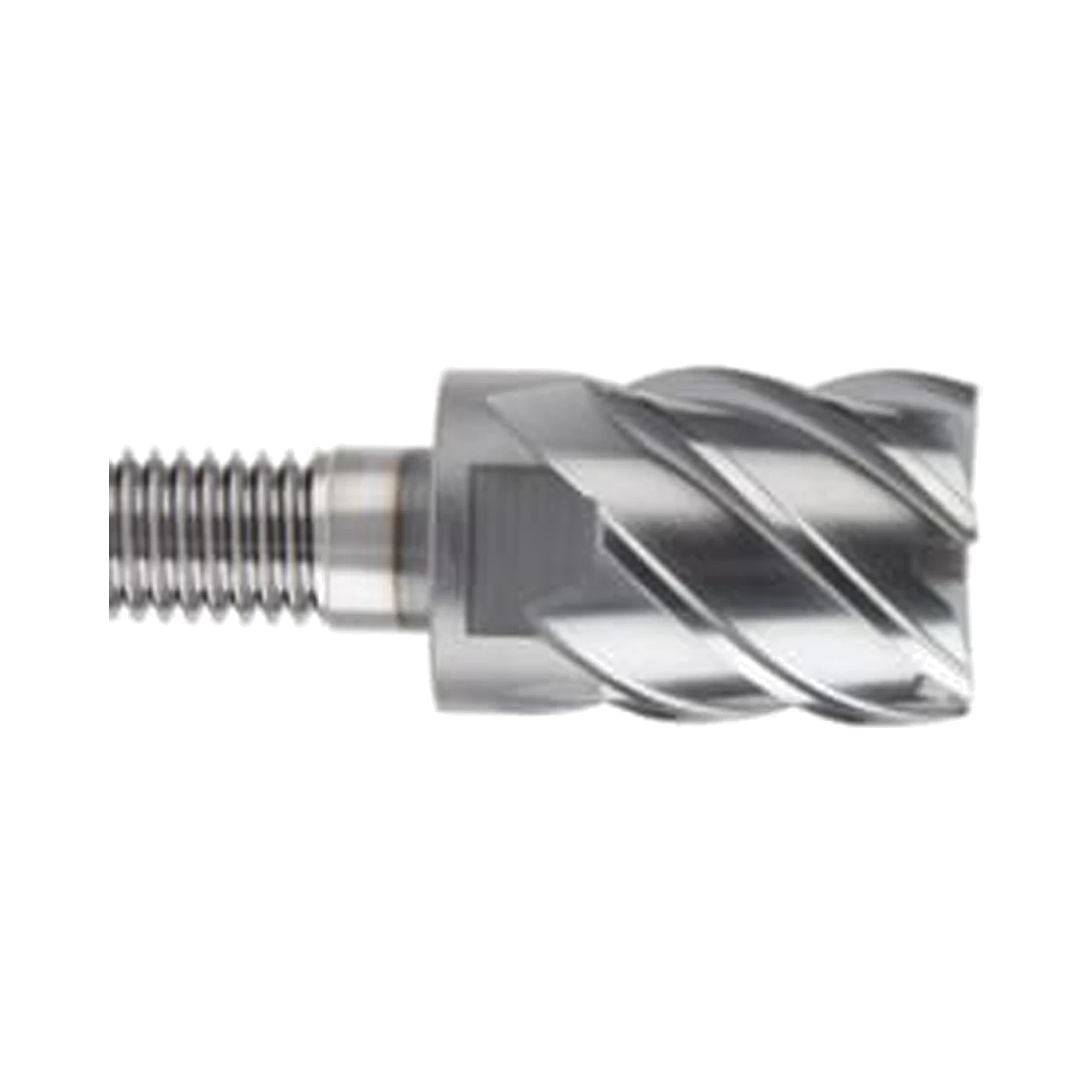

(XSEME75) i-Smart 4G Mill, Modular Head, 6Flute End Mill
Y-coated six-flute modular square end mill headCode: XSEME75100
-
Key Features
- Y-coated carbide modular square end mill head
- Six-flute cutting geometry with 45° helix
- Suitable for steels stainless steel and cast irons
Made in South Korea
Modular cutting head
Threaded coupling options support use with compatible i-Smart modular holders.
Six-flute geometry
A six-flute, 45° helix configuration supports square-end milling applications.
Ferrous material focus
Recommended for specified steel, stainless steel and cast iron material groups.
Add (XSEME75) i-Smart 4G Mill, Modular Head, 6Flute End Mill to comparison
View Comparison- Overview
- Specifications
- Reviews

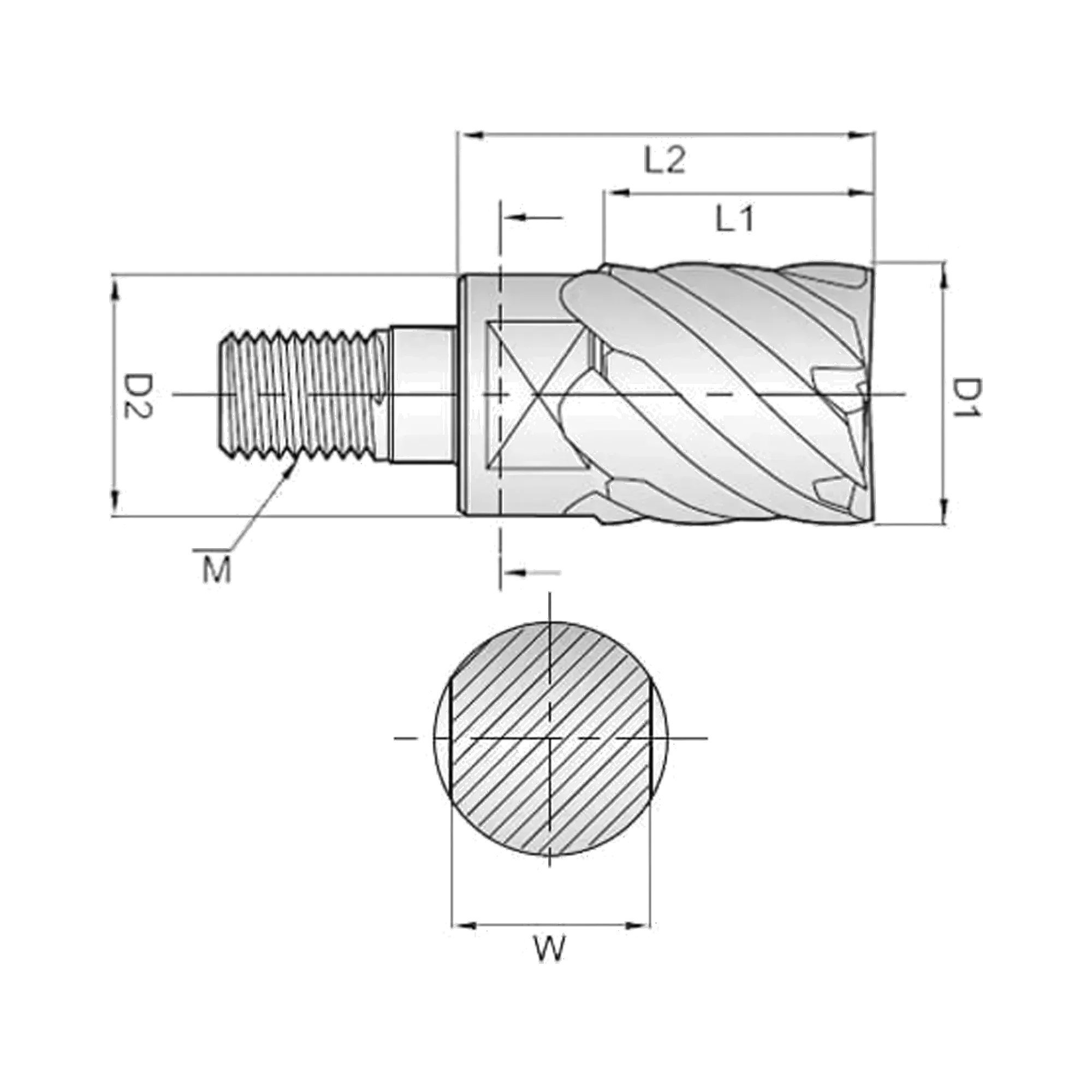

YG-1 XSEME75 is a Y-coated carbide modular square end mill head with six flutes and a 45° helix. It is designed for milling steel, stainless steel and cast iron using compatible modular tooling. Recommended materials include non-alloy, low-alloy, high-alloy and tool steels within the stated application range. The XSEME75 family covers 10 to 32 mm mill diameters with matched length-of-cut dimensions. Each variant has a zero to minus 0.03 mm mill diameter tolerance. Threaded coupling sizes progress from M6 through M16 to suit compatible modular holders. Its square-end geometry supports general machining operations within the i-Smart modular end mill system.
- Y-coated carbide modular square end mill head
- Six-flute cutting geometry with 45° helix
- Suitable for steels stainless steel and cast irons
- 10 to 32 mm mill diameter range
- Mill diameter tolerance from zero to minus 0.03 mm
- M6 to M16 threaded coupling options
No specifications available.
