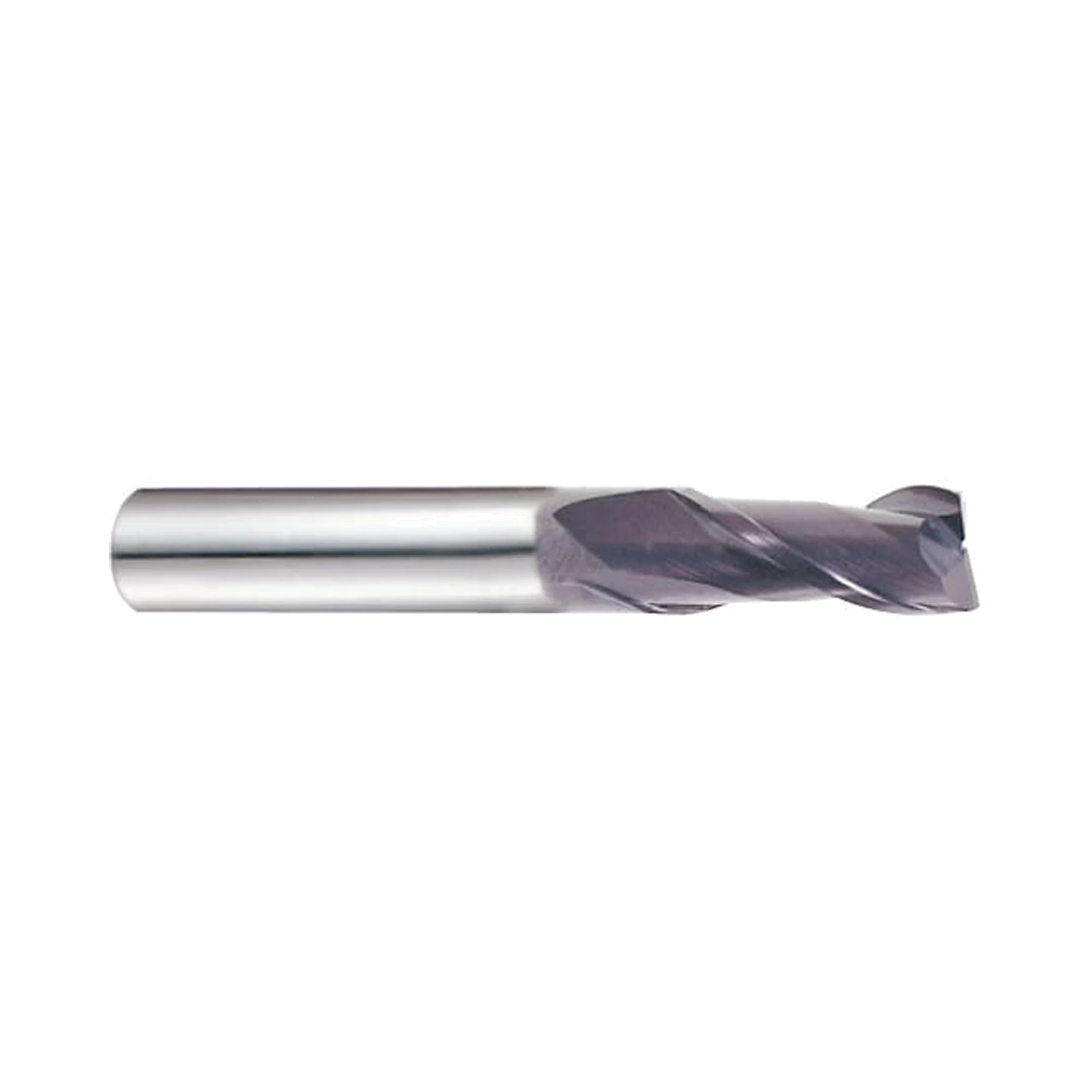

(EH912) Jet-Power Carbide 2Flute End Mill, Short Length for Stainless/Titanium, Flat Shank
Short-Length 2-Flute Carbide End Mill with Flat ShankCode: EH912040
-
Key Features
- Short-length two-flute carbide square end mill with flat shank
- 35° helix supports milling in stainless steel titanium and nickel alloys
- TiAlN coating for demanding milling applications
Made in South Korea
Built for difficult materials
Suitable for stainless steel, titanium and nickel alloys, plus steels under 45 HRc.
Chipping-resistant cutting edge
Ultra micro grain carbide and reinforced cutting edges support reliable milling performance.
Compact short-length range
Choose 4.0 to 11.0 mm diameters for short-reach milling applications.

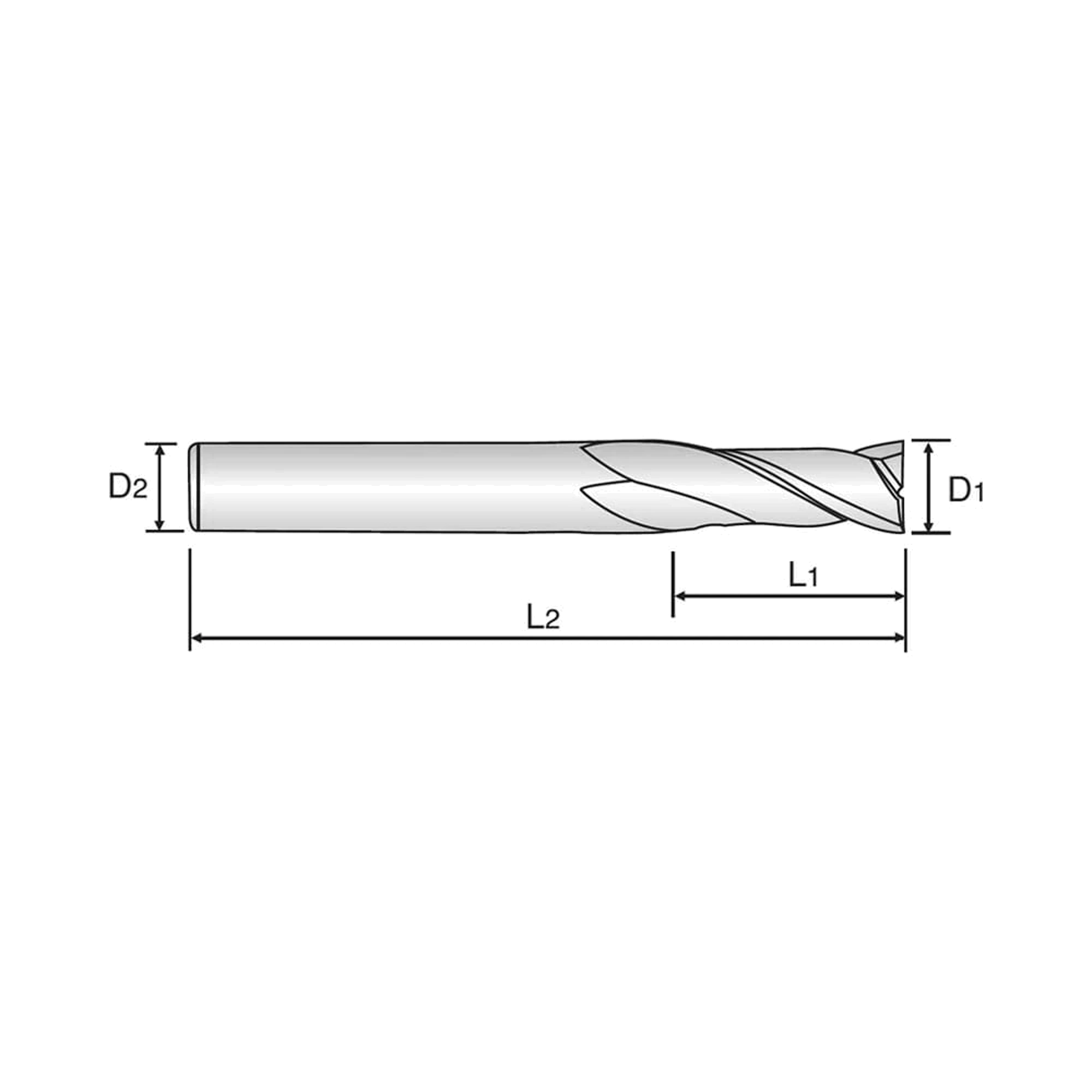

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| EH912040 | 4.0 | 45.0 | 6.0 | 11.0 | 5 days | $69.40 | ||
| EH912045 | 4.5 | 45.0 | 6.0 | 11.0 | 5 days | $69.40 | ||
| EH912050 | 5.0 | 50.0 | 6.0 | 13.0 | 5 days | $69.40 | ||
| EH912070 | 7.0 | 60.0 | 8.0 | 16.0 | 5 days | $88.80 | ||
| EH912110 | 11.0 | 75.0 | 12.0 | 22.0 | 5 days | $180.30 |
Add (EH912) Jet-Power Carbide 2Flute End Mill, Short Length for Stainless/Titanium, Flat Shank to comparison
View Comparison- Overview
- Reviews
YG-1 EH912 Jet-Power is a short-length, two-flute carbide square end mill with a flat shank. It combines a 35° helix and TiAlN coating for machining stainless steel, titanium and nickel alloys. Ultra micro grain carbide and reinforced cutting edges help reduce corner-edge chipping in demanding milling operations. Suitable materials include steels below 45 HRc, alloy steels, tool steels, carbon steels and prehardened steels. The two-flute geometry is paired with a 35° helix in this Jet-Power series. Available diameters cover 4.0 to 11.0 mm, with shank diameters from 6 to 12 mm. This short-length end mill provides a practical choice for compact milling operations.
- Short-length two-flute carbide square end mill with flat shank
- 35° helix supports milling in stainless steel titanium and nickel alloys
- TiAlN coating for demanding milling applications
- Ultra micro grain carbide construction
- Reinforced cutting edges help reduce corner-edge chipping
- Available in 4.0 to 11.0 mm cutting diameters
No specifications available.
