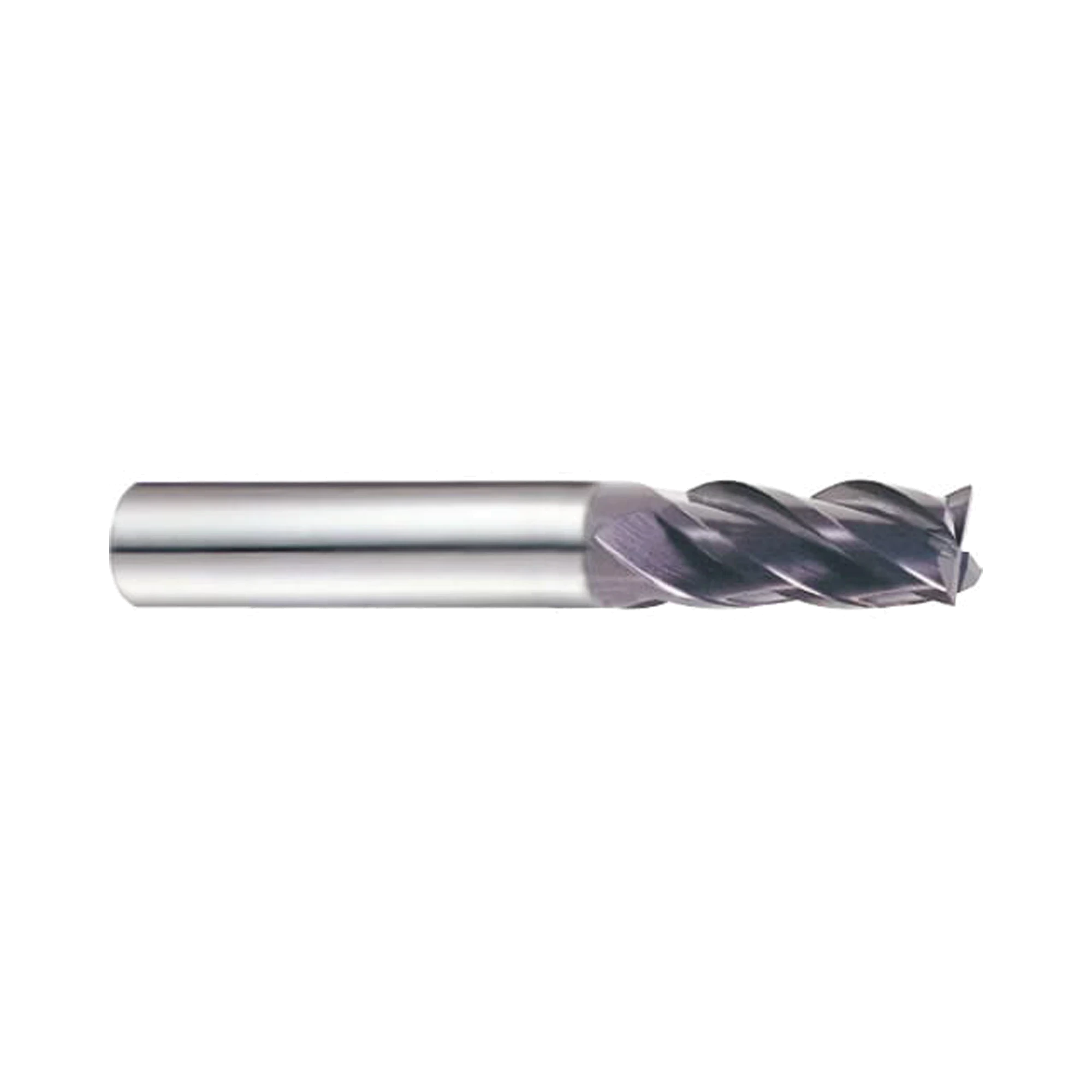

(EH914) Jet-Power Carbide 4Flute End Mill, Short Length for Stainless/Titanium, Flat Shank
Short-Length TiAlN-Coated Four-Flute Carbide End MillCode: EH914901
-
Key Features
- Four-flute 35° helix short-length carbide end mill
- TiAlN coating for the specified Jet-Power series
- Ultra micro grain carbide substrate
Made in South Korea
Built for demanding materials
Suitable for stainless steels, titanium, nickel alloys and materials below 45 HRc.
Protected cutting edges
Reinforced cutting edges are specified to reduce corner-edge chipping during machining.
Compact milling format
Short-length geometry and a flat shank suit compact tool setups and square-end milling.

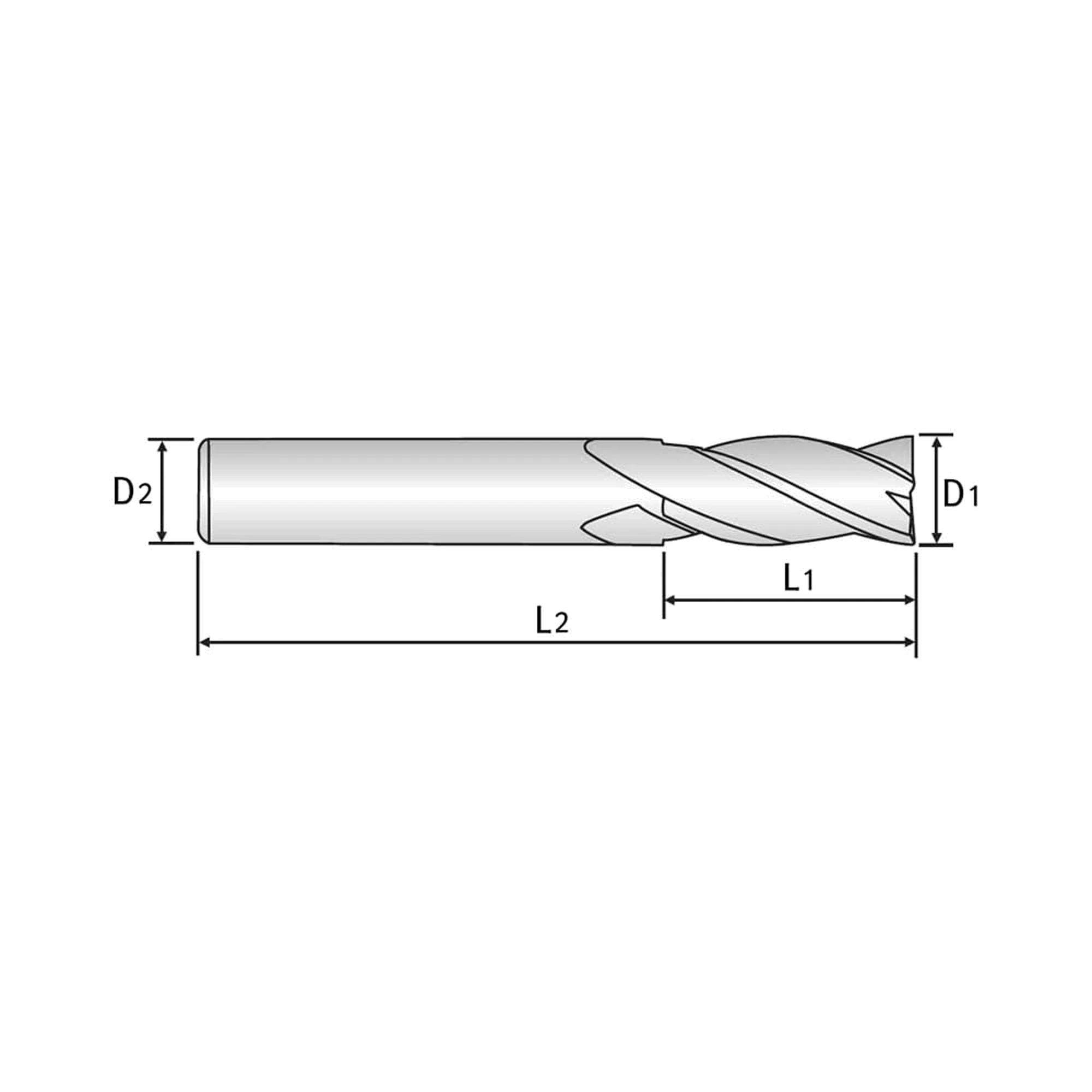

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| EH914901 | 2.0 | 40.0 | 6.0 | 6.0 | 5 days | $69.40 | ||
| EH914902 | 2.5 | 40.0 | 6.0 | 8.0 | 5 days | $69.40 | ||
| EH914030 | 3.0 | 45.0 | 6.0 | 8.0 | 5 days | $69.40 | ||
| EH914040 | 4.0 | 45.0 | 6.0 | 11.0 | 5 days | $69.40 | ||
| EH914045 | 4.5 | 45.0 | 6.0 | 11.0 | 5 days | $69.40 | ||
| EH914050 | 5.0 | 50.0 | 6.0 | 13.0 | 5 days | $69.40 | ||
| EH914060 | 6.0 | 50.0 | 6.0 | 13.0 | 5 days | $69.40 | ||
| EH914070 | 7.0 | 60.0 | 8.0 | 16.0 | 5 days | $88.80 | ||
| EH914085 | 8.5 | 70.0 | 10.0 | 19.0 | 5 days | $131.50 | ||
| EH914100 | 10.0 | 70.0 | 10.0 | 22.0 | 5 days | $131.50 |
Add (EH914) Jet-Power Carbide 4Flute End Mill, Short Length for Stainless/Titanium, Flat Shank to comparison
View Comparison- Overview
- Reviews
YG-1 Jet-Power EH914 is a short-length four-flute carbide square end mill with flat shank and TiAlN coating. It is designed for milling stainless steels, titanium, nickel alloys, and material hardnesses below 45 HRc. Ultra micro grain carbide provides the specified substrate for alloy, tool, carbon and prehardened steels. Reinforced cutting edges reduce chipping at corner edges during machining. Available supplied variants cover 2.0 to 10.0 mm cutting diameters, with short lengths supporting compact tool setups. The square cutting end supports general milling operations requiring a flat-bottomed profile. Its flat shank identifies the EH914 variant family within the Jet-Power short-length range.
- Four-flute 35° helix short-length carbide end mill
- TiAlN coating for the specified Jet-Power series
- Ultra micro grain carbide substrate
- Reinforced cutting edges reduce corner-edge chipping
- Suitable for stainless steels titanium and nickel alloys
- 2.0 to 10.0 mm cutting-diameter options
No specifications available.
