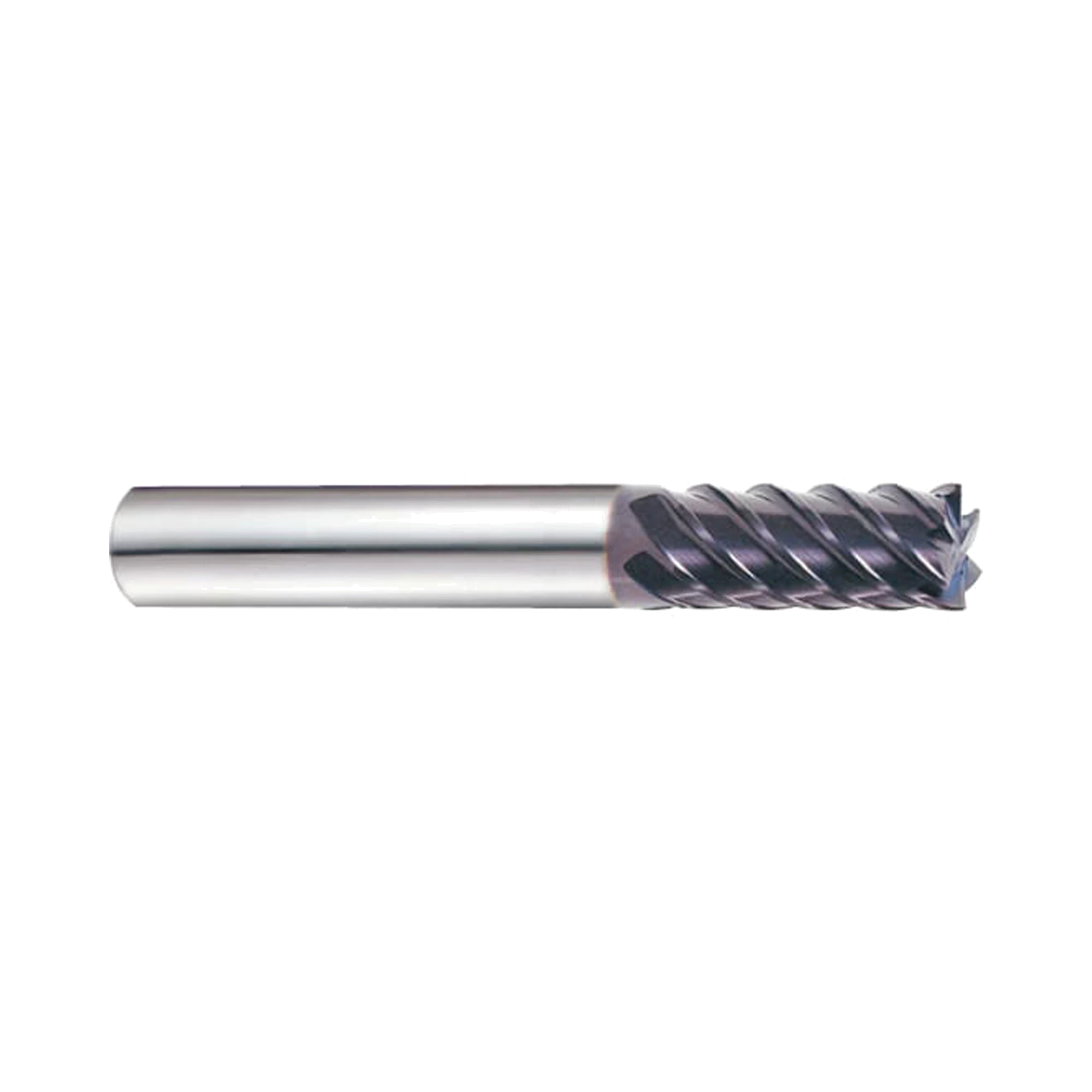

(EH916) Jet-Power Carbide 6&8Flute End Mill, Long Length for Stainless/Titanium, Flat Shank
Long-Length TiAlN Carbide Square End MillCode: EH916060
-
Key Features
- TiAlN-coated carbide square end mill with long-length geometry
- 45° helix and positive rake angle
- Ultra micro grain carbide construction
Made in South Korea
Built for tough materials
Suitable for stainless steels, titanium alloys and other materials below HRc45.
Long-length reach
Long-length geometry supports milling applications requiring extended cutting reach.
Protected cutting edges
Ultra micro grain carbide and reinforced edges help reduce corner-edge chipping.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| EH916060 | 6.0 | 57.0 | 6.0 | 6 | 13.0 | 5 days | $81.20 | ||
| EH916070 | 7.0 | 63.0 | 8.0 | 6 | 16.0 | 5 days | $102.80 | ||
| EH916090 | 9.0 | 72.0 | 10.0 | 6 | 19.0 | 5 days | $153.90 | ||
| EH916100 | 10.0 | 72.0 | 10.0 | 6 | 22.0 | 5 days | $153.90 | ||
| EH916180 | 18.0 | 92.0 | 18.0 | 8 | 32.0 | 5 days | $411.30 | ||
| EH916200 | 20.0 | 104.0 | 20.0 | 8 | 38.0 | 5 days | $516.80 | ||
| EH916250 | 25.0 | 104.0 | 25.0 | 8 | 44.0 | 5 days | $911.80 |
Add (EH916) Jet-Power Carbide 6&8Flute End Mill, Long Length for Stainless/Titanium, Flat Shank to comparison
View Comparison- Overview
- Reviews
YG-1 EH916 Jet-Power is a TiAlN-coated carbide square end mill with a long length. It uses a 45° helix and positive rake angle for milling stainless and titanium alloys. Ultra micro grain carbide and reinforced cutting edges help reduce corner-edge chipping in demanding operations. Flat-shank EH916 tools suit low-hardness materials under HRc45, including alloy, tool, carbon and prehardened steels. The range covers listed diameters from 6 to 25 mm with six or eight flutes. Selected smaller diameters use six flutes, while 18, 20 and 25 mm variants use eight. This multi-flute long-length design suits stainless steel and titanium alloy milling applications.
- TiAlN-coated carbide square end mill with long-length geometry
- 45° helix and positive rake angle
- Ultra micro grain carbide construction
- Reinforced cutting edges help reduce corner-edge chipping
- Suitable for materials under HRc45 including stainless steels
- Available in 6 to 25 mm diameters with six or eight flutes
No specifications available.
