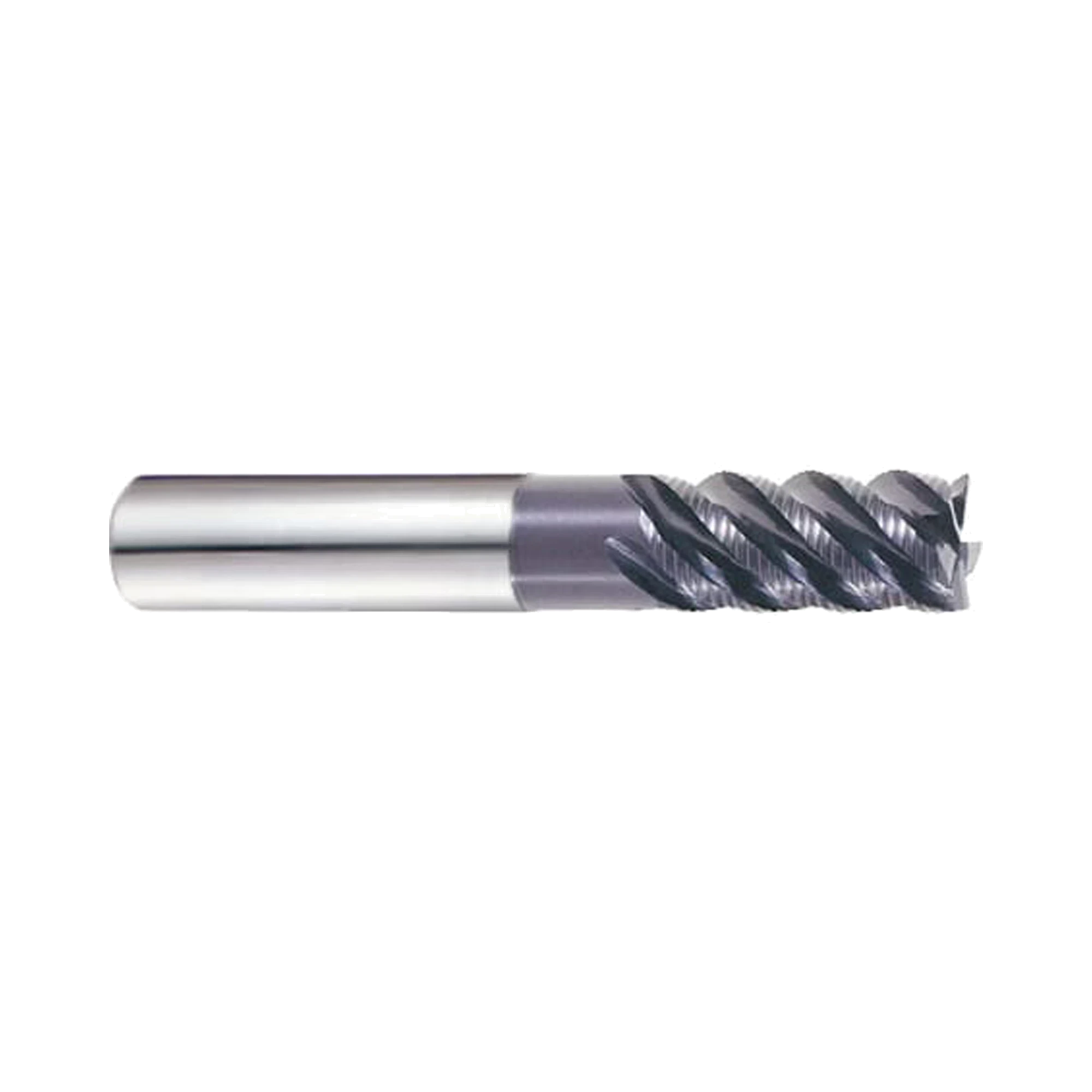

(EH942) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Flat Shank
Long-reach 45° helix roughing-fine carbide end millCode: EH942060
-
Key Features
- Features TiAlN-coated carbide construction
- Uses a 45° helix long-reach roughing-fine geometry
- Incorporates a flat shank
Made in South Korea
Extended-reach geometry
Length below the shank ranges from 20 to 59 mm for deeper feature access.
Stainless and titanium application
The EH942 series is recommended for stainless steel and titanium alloy machining.
Useful size selection
Choose from 6 to 20 mm cutter diameters with four or six flutes.

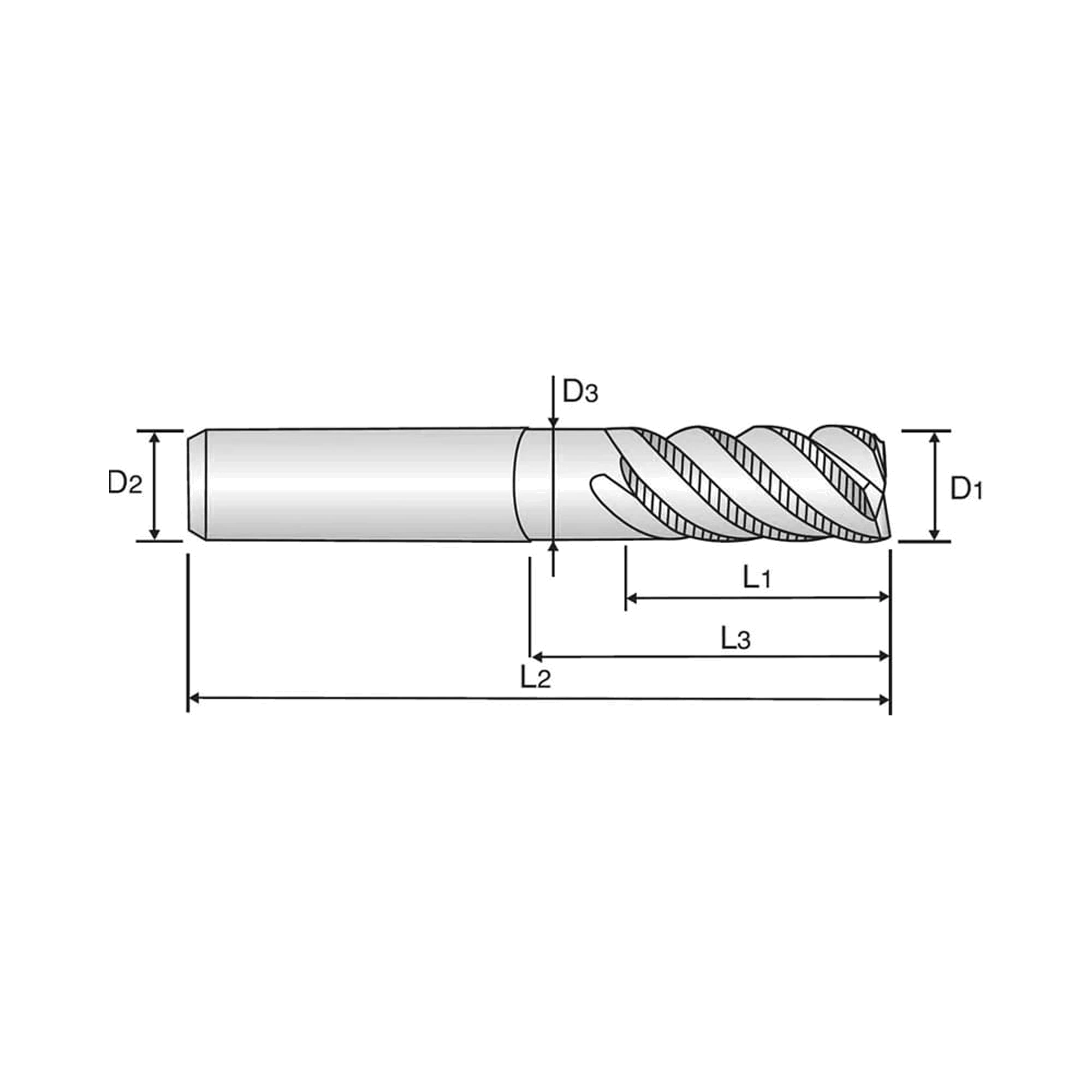

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EH942060 | 6.0 | 0.15 | 57.0 | 6.0 | 4 | 16.0 | 20.0 | 5.5 | 5 days | $90.80 | ||
| EH942080 | 8.0 | 0.18 | 63.0 | 8.0 | 4 | 16.0 | 26.0 | 7.5 | 5 days | $98.90 | ||
| EH942100 | 10.0 | 0.2 | 72.0 | 10.0 | 4 | 22.0 | 31.0 | 9.5 | 5 days | $193.50 | ||
| EH942120 | 12.0 | 0.2 | 83.0 | 12.0 | 4 | 26.0 | 37.0 | 11.5 | 5 days | $248.30 | ||
| EH942200 | 20.0 | 0.2 | 110.0 | 20.0 | 6 | 38.0 | 59.0 | 19.2 | 5 days | $651.20 |
Add (EH942) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Flat Shank to comparison
View Comparison- Overview
- Reviews
YG-1 JET-POWER EH942 is a TiAlN-coated carbide multi-flute roughing-fine end mill with long reach. It combines a 45° helix and flat shank for long-reach roughing and fine milling operations. EH942 is recommended for stainless steel and titanium alloys, alongside selected steel and cast iron materials. Available cutter diameters span 6 to 20 mm, with four or six flute configurations. The range uses chamfered square cutting ends, with 0.15 to 0.20 mm chamfers. Listed tools have 57 to 110 mm overall lengths and 16 to 38 mm cutting lengths. Lengths below the shank range from 20 to 59 mm for extended-reach machining.
- Features TiAlN-coated carbide construction
- Uses a 45° helix long-reach roughing-fine geometry
- Incorporates a flat shank
- Recommended for stainless steel and titanium alloys
- Offers 6 to 20 mm cutter diameters
- Provides four or six flute configurations
