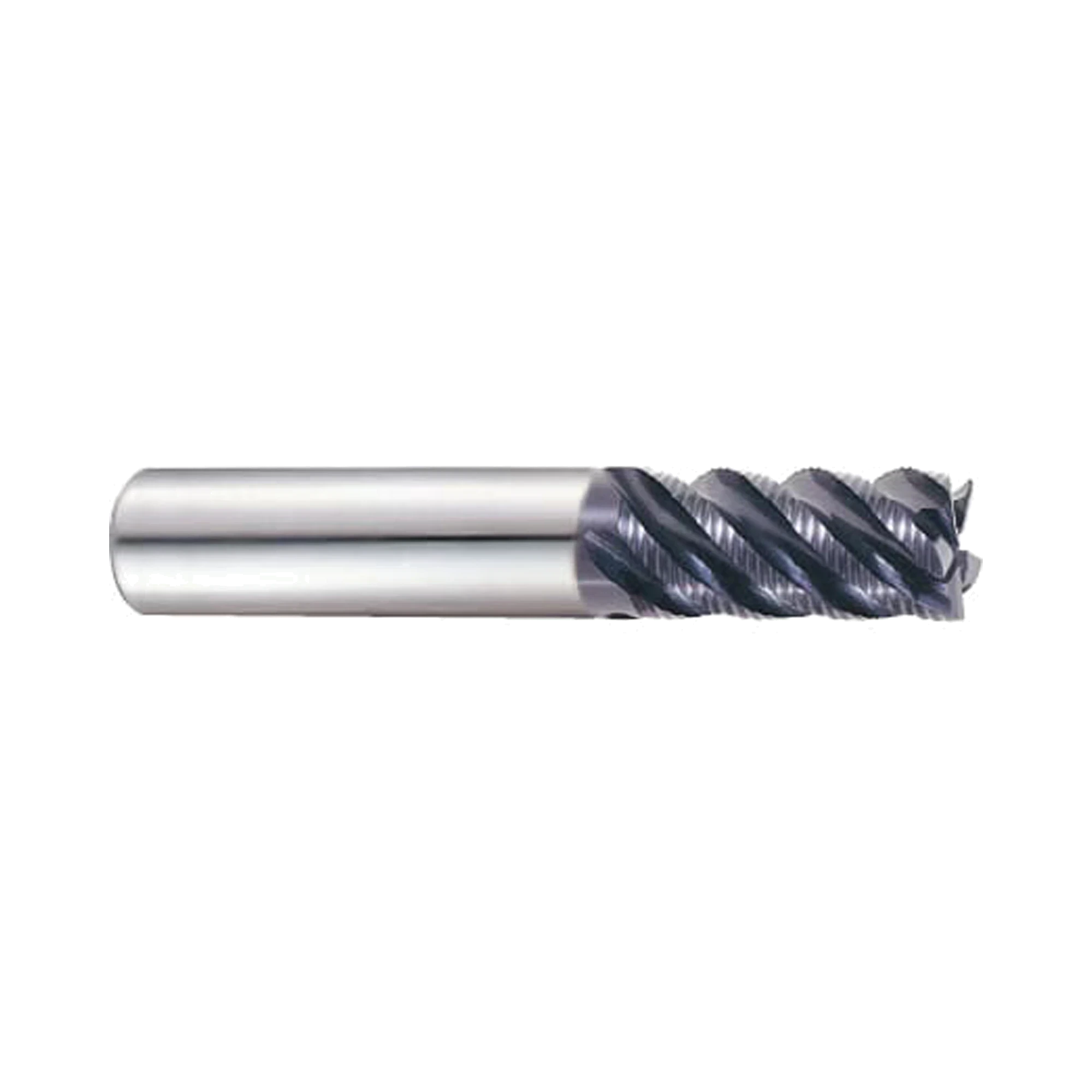

(EH920) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Flat Shank
Long-Length Fine Roughing End MillCode: EH920040
-
Key Features
- TiAlN-coated ultra micro grain carbide construction
- 45° helix with fine roughing geometry
- Long-length flat-shank design
Made in South Korea
Fine roughing geometry
Fine roughing geometry supports material removal while retaining a multi flute cutting format.
Longer milling reach
Long-length dimensions provide added reach for suitable machining applications.
Broad steel capability
Recommended for stainless steel, titanium alloys and selected steels below 45 HRc.

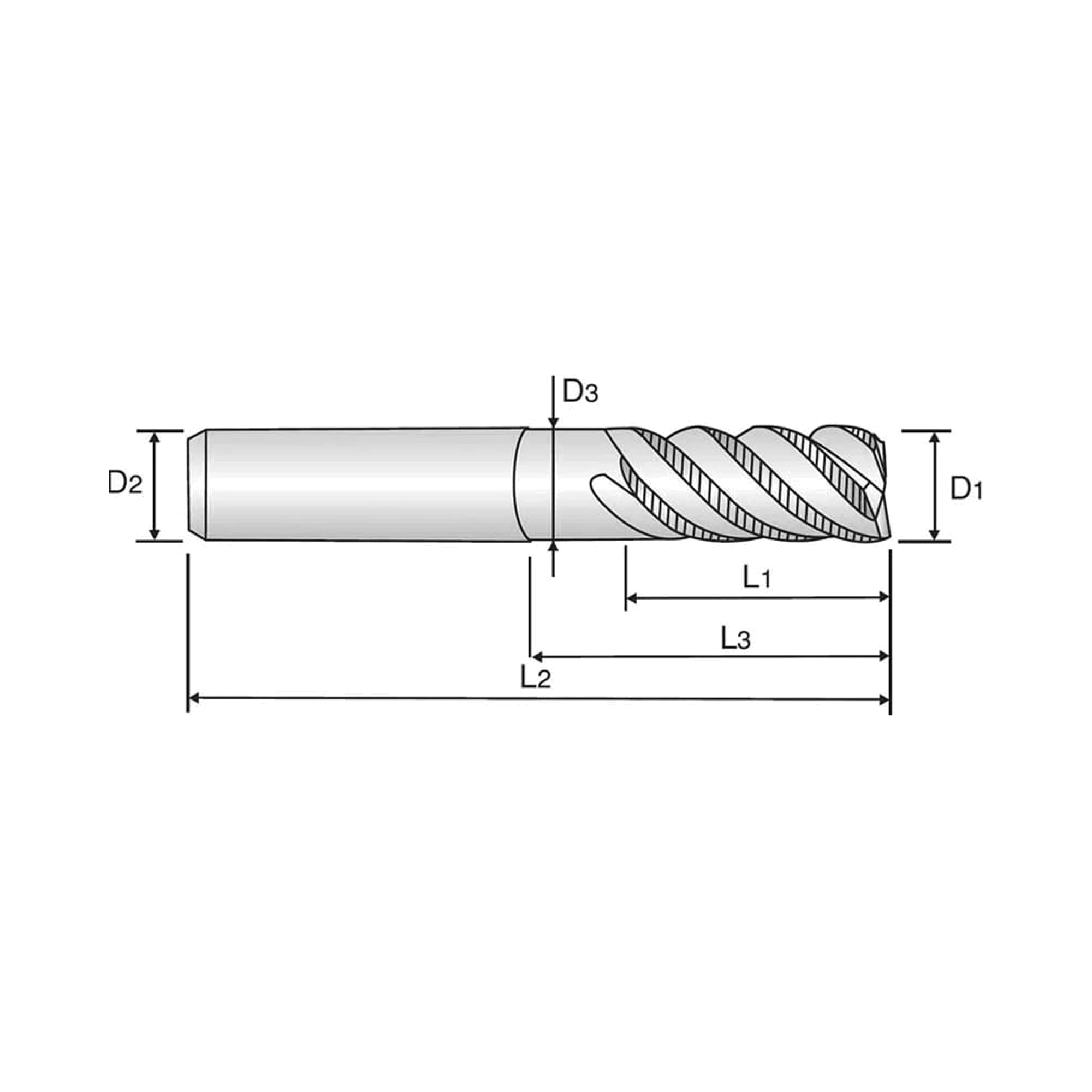

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| EH920040 | 4.0 | 0.1 | 57.0 | 6.0 | 3 | 11.0 | 5 days | $92.30 | ||
| EH920050 | 5.0 | 0.13 | 57.0 | 6.0 | 4 | 13.0 | 5 days | $92.30 | ||
| EH920060 | 6.0 | 0.15 | 57.0 | 6.0 | 4 | 16.0 | 5 days | $92.30 | ||
| EH920070 | 7.0 | 0.15 | 63.0 | 8.0 | 4 | 16.0 | 5 days | $108.00 | ||
| EH920080 | 8.0 | 0.18 | 63.0 | 8.0 | 4 | 16.0 | 5 days | $108.00 | ||
| EH920090 | 9.0 | 0.18 | 72.0 | 10.0 | 4 | 19.0 | 5 days | $161.30 | ||
| EH920100 | 10.0 | 0.2 | 72.0 | 10.0 | 4 | 22.0 | 5 days | $161.30 | ||
| EH920120 | 12.0 | 0.2 | 83.0 | 12.0 | 4 | 26.0 | 5 days | $207.00 | ||
| EH920140 | 14.0 | 0.2 | 83.0 | 14.0 | 5 | 26.0 | 5 days | $192.00 | ||
| EH920160 | 16.0 | 0.2 | 92.0 | 16.0 | 5 | 32.0 | 5 days | $337.20 | ||
| EH920200 | 20.0 | 0.2 | 104.0 | 20.0 | 6 | 38.0 | 5 days | $542.70 | ||
| EH920250 | 25.0 | 0.2 | 121.0 | 25.0 | 6 | 45.0 | 5 days | $951.30 |
Add (EH920) Jet-Power Carbide Multi Flute Roughing End Mill, Long Length for Stainless/Titanium, Flat Shank to comparison
View Comparison- Overview
- Reviews
YG-1 EH920 Jet-Power carbide multi flute roughing end mill is a long-length, TiAlN-coated flat-shank milling tool. It combines a 45° helix with fine roughing geometry for productive material-removal machining operations. Designed for materials below 45 HRc, it suits alloy, tool, carbon and prehardened steels. The range is also recommended for stainless steel and titanium-alloy machining applications. Flat-shank variants span 4 to 25 mm milling diameters, with three to six flutes. Lengths of cut extend from 11 to 45 mm, supporting long-length milling reach in suitable applications. Each listed tool includes a 0.1 to 0.2 mm chamfer for reinforced cutting-edge protection.
- TiAlN-coated ultra micro grain carbide construction
- 45° helix with fine roughing geometry
- Long-length flat-shank design
- Suitable for stainless steel and titanium alloys
- Milling diameters from 4 to 25 mm
- Three to six flute configurations
