(EH917) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Plain Shank

45° Helix Short Roughing-Fine End Mill
  • $72.16INC GST $65.60 EX GST
(EH917) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Plain Shank
(EH917) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Plain Shank

(EH917) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Plain Shank

45° Helix Short Roughing-Fine End Mill
  • $72.16INC GST $65.60 EX GST

Code: EH917060

    Key Features
  • Carbide multi-flute 45° helix roughing-fine geometry
  • TiAlN-coated cutting tool
  • EH917 plain-shank series
Mill Diameter (mm)
Chamfer (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Short roughing format

Short cutting lengths support compact roughing-fine milling setups.

Material-focused range

Suitable for stainless steel, titanium alloys and heat-resistant superalloys.

Matched plain shanks

Listed cutting diameters use matching plain-shank sizes.

SKUMill Diameter (mm)Chamfer (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)Stock Price Qty Add
EH9170606.00.1554.06.047.0 In stock $65.60
EH9170808.00.1858.08.049.0 Low stock $76.70
EH91710010.00.266.010.0414.0 Low stock $114.60
EH91712012.00.273.012.0416.0 Low stock $147.20

Add (EH917) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Plain Shank to comparison

View Comparison
  • Overview
  • Reviews
Product Description

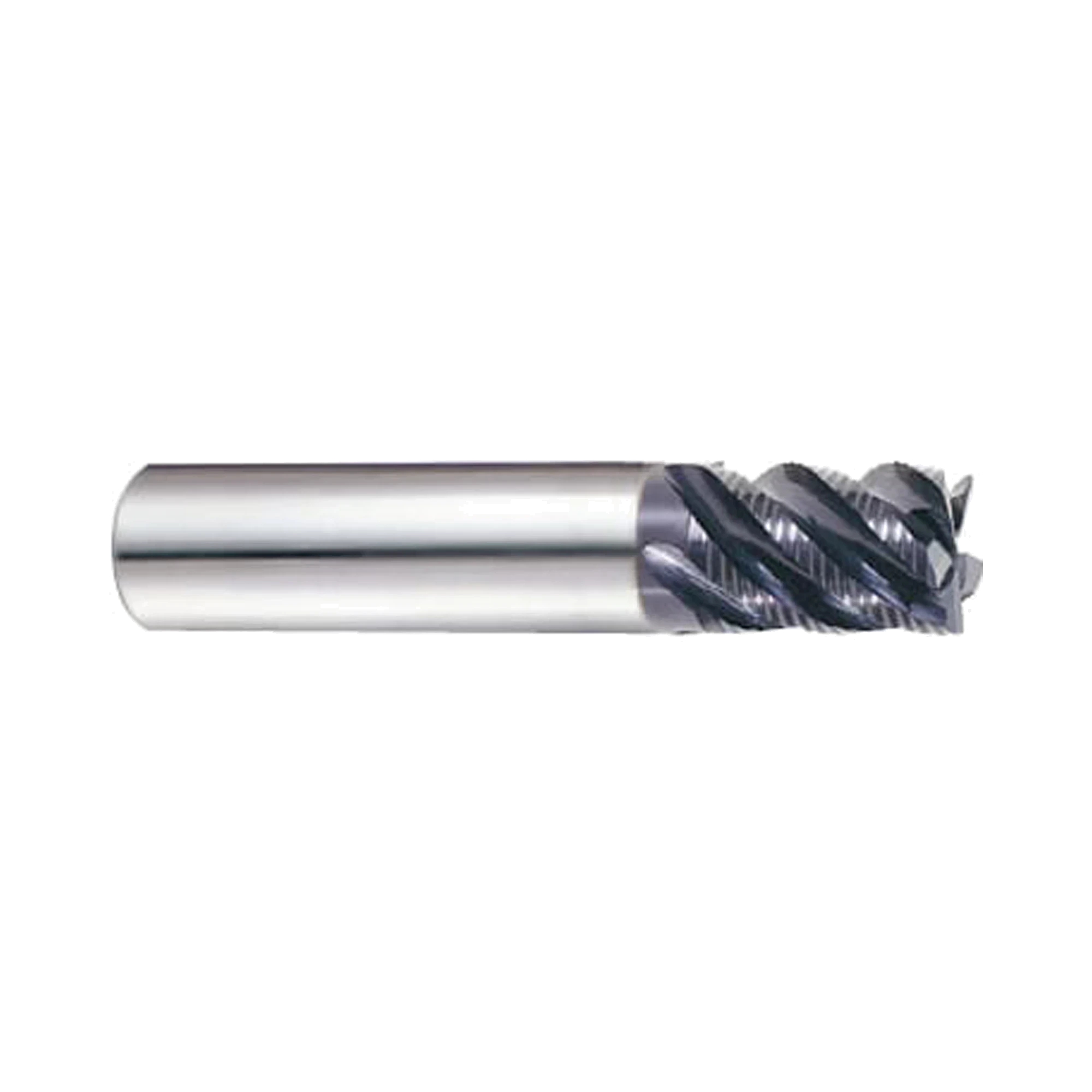

YG-1 EH917 is a carbide multi-flute 45° helix short-length roughing-fine end mill with a plain shank. It is designed for roughing operations in stainless steel, titanium alloys and heat-resistant superalloys. The carbide tool has a TiAlN coating and is suitable for listed materials up to 45 HRc. Four flutes provide the cutting configuration throughout the available 6 to 12 mm diameter range.

The series includes 6, 8, 10 and 12 mm cutting diameters with matching plain shanks. Cutting lengths span 7 to 16 mm, while overall lengths span 54 to 73 mm. Each listed cutter includes a 0.15 to 0.20 mm chamfer. EH917 provides a short-length option for multi-flute roughing-fine milling applications.

  • Carbide multi-flute 45° helix roughing-fine geometry
  • TiAlN-coated cutting tool
  • EH917 plain-shank series
  • Four flutes on every listed variant
  • 6 to 12 mm cutting diameter range
  • Suitable for stainless steel titanium alloys and heat-resistant superalloys
Product Data

No specifications available.
