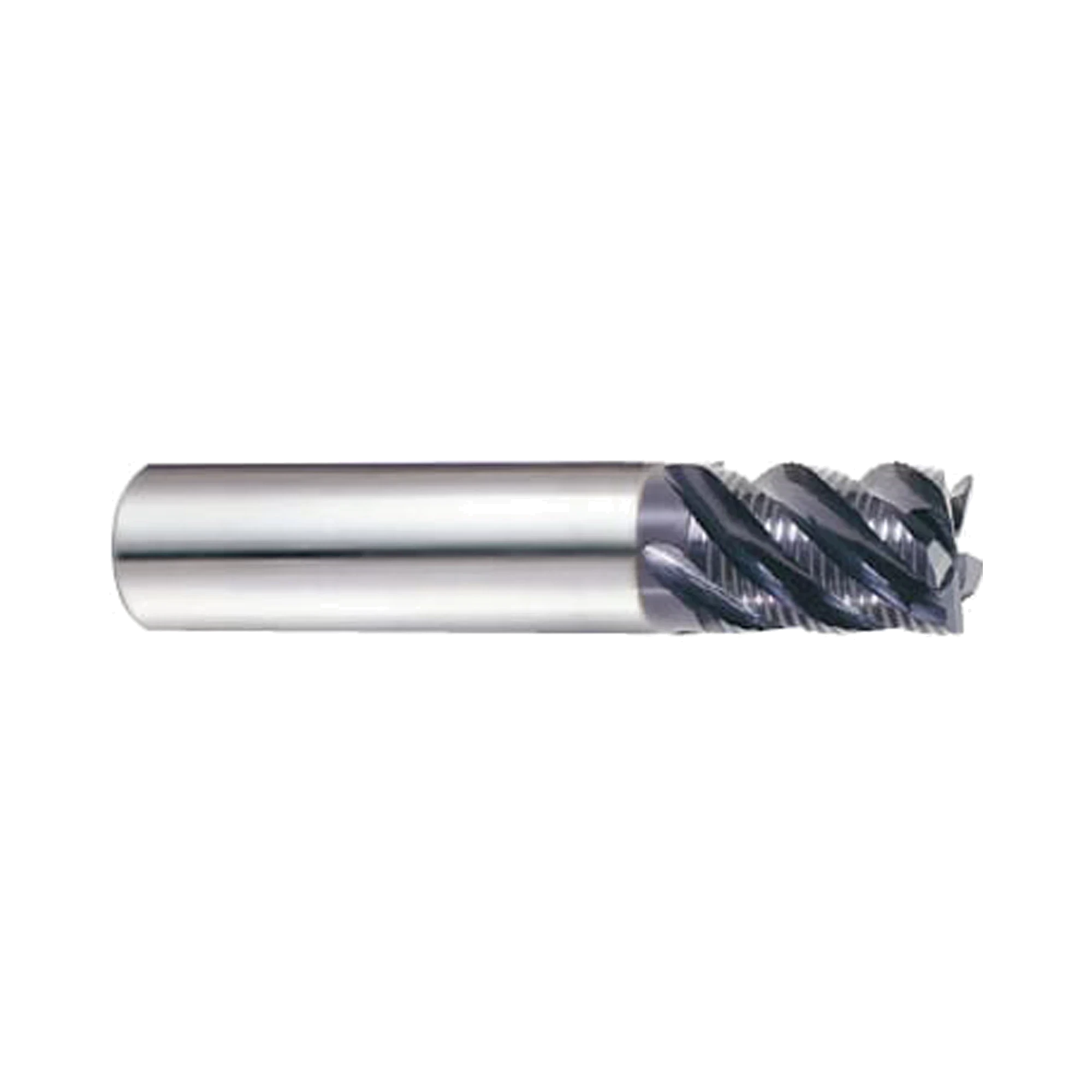

(EH918) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Flat Shank
Short-length 45° helix roughing-fine end millCode: EH918060
-
Key Features
- Carbide roughing-fine end mill with 45° helix
- TiAlN coating for the EH918 series
- Recommended for materials up to 45 HRc
Made in South Korea
Short-length milling geometry
Combines a 45° helix with a short-length roughing-fine end mill design
Material-focused selection
Recommended for stainless steels titanium alloys nickel alloys and materials up to 45 HRc
Useful diameter range
Offers five flat-shank diameters from 6 to 16 mm with defined chamfer sizes
| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| EH918060 | 6.0 | 0.15 | 54.0 | 6.0 | 4 | 7.0 | 5 days | $85.90 | ||
| EH918080 | 8.0 | 0.18 | 58.0 | 8.0 | 4 | 9.0 | 5 days | $100.40 | ||
| EH918100 | 10.0 | 0.2 | 66.0 | 10.0 | 4 | 14.0 | 5 days | $149.90 | ||
| EH918120 | 12.0 | 0.2 | 73.0 | 12.0 | 4 | 16.0 | 5 days | $192.50 | ||
| EH918160 | 16.0 | 0.2 | 82.0 | 16.0 | 5 | 22.0 | 5 days | $313.60 |
Add (EH918) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Flat Shank to comparison
View Comparison- Overview
- Reviews
YG-1 EH918 Jet-Power carbide roughing-fine end mills combine a 45° helix with a short-length design. They are flat-shank, multi-flute tools for milling stainless steels, titanium and nickel alloys in suitable grades. The TiAlN-coated series is recommended for materials up to 45 HRc, including stainless steels and titanium alloys.
Diameters range from 6 to 16 mm, with four flutes through 12 mm and five at 16 mm. Listed EH918 tools feature chamfers from 0.15 to 0.20 mm. Each size uses a flat shank matching its nominal mill diameter for straightforward toolholder selection. Cutting lengths increase from 7 mm at 6 mm diameter to 22 mm at 16 mm diameter.
- Carbide roughing-fine end mill with 45° helix
- TiAlN coating for the EH918 series
- Recommended for materials up to 45 HRc
- Suitable for stainless steels titanium and nickel alloys
- Flat-shank diameters from 6 to 16 mm
- Four flutes through 12 mm and five flutes at 16 mm
