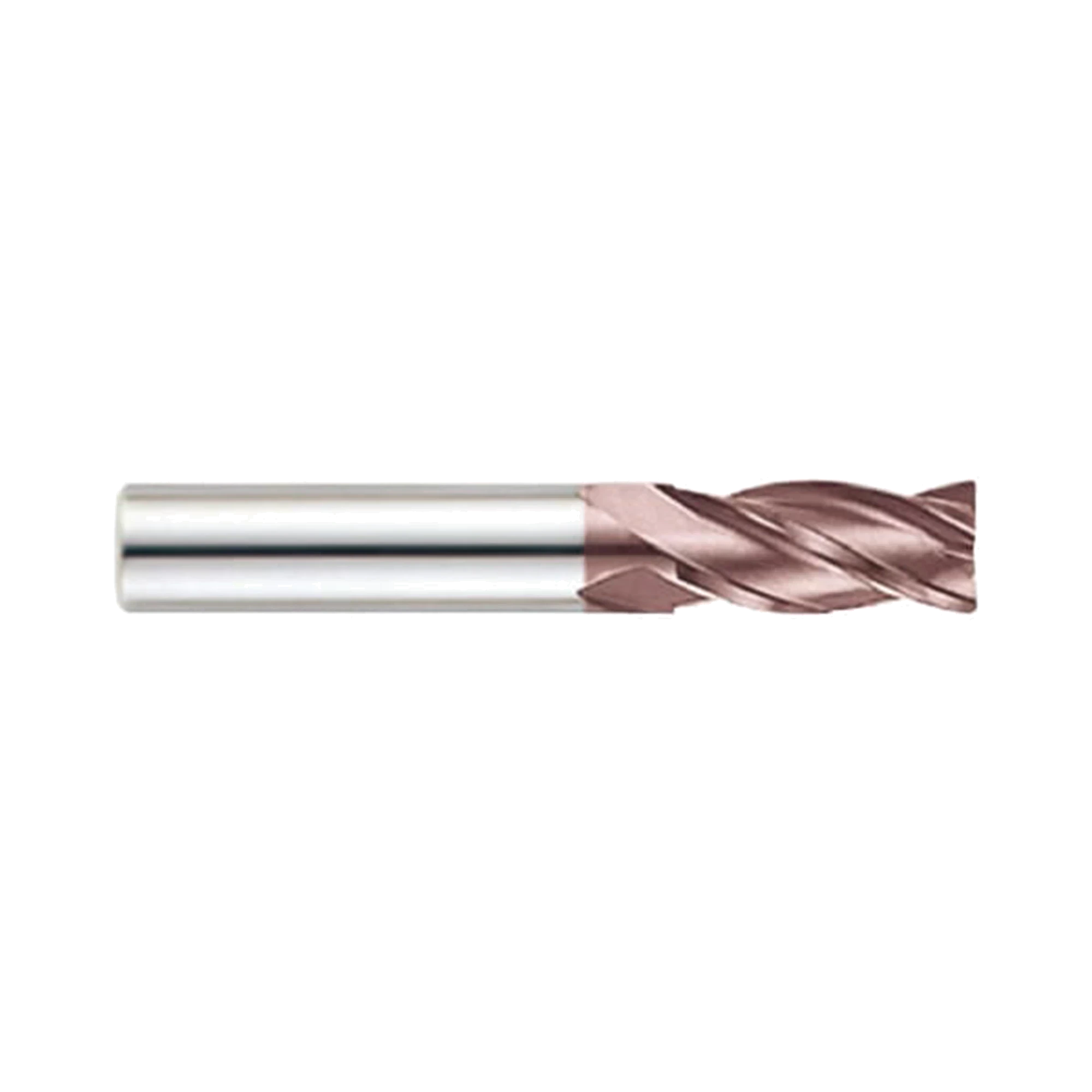

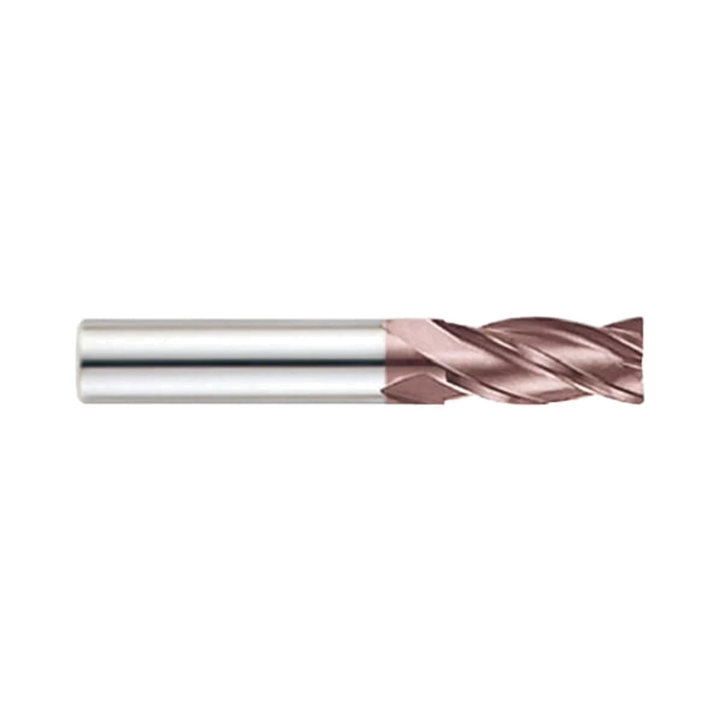

(G9B84) K-2 Carbide, 4Flute Corner Radius End Mill, Short Length
K2 coated carbide corner radius end mills
- SKU
- G9B84020
Key features
- K2 coated carbide construction with high heat and wear resistance
- Four-flute corner radius geometry for general milling
- Corner radius reduces cutting forces and supports tool life
Made in South Korea
Reduced cutting forces
Corner radius geometry supports smoother engagement and reduced cutting forces.
General milling capability
Suitable for general milling of steel, stainless steel, cast iron and non-ferrous materials.
Compact size range
Short-length cutters cover 2 to 12 mm diameters and R0.2 to R2.5 radii.

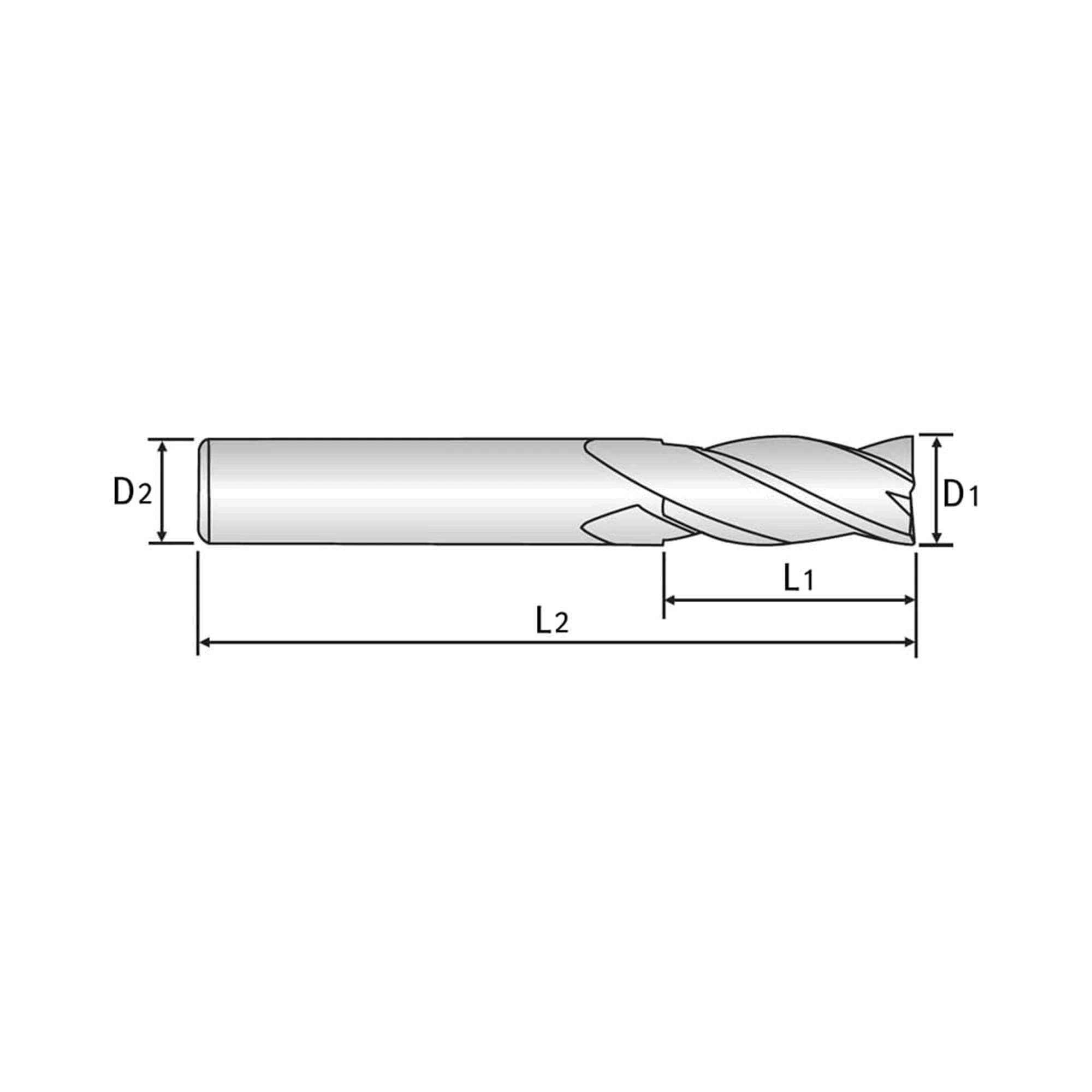

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| G9B84020 | 2 | R0.2 | 50.0 | 4.0 | 4.0 | Low stock | $37.50 | ||
| G9B84901 | 2 | R0.3 | 50.0 | 4.0 | 4.0 | 1-2 Weeks | $37.50 | ||
| G9B84902 | 2 | R0.5 | 50.0 | 4.0 | 4.0 | 1-2 Weeks | $37.50 | ||
| G9B84904 | 2.5 | R0.5 | 50.0 | 4.0 | 5.0 | Low stock | $37.50 | ||
| G9B84030 | 3 | R0.2 | 50.0 | 4.0 | 6.0 | Low stock | $37.50 | ||
| G9B84906 | 3 | R0.5 | 50.0 | 4.0 | 6.0 | In stock | $37.50 | ||
| G9B84907 | 3 | R1.0 | 50.0 | 4.0 | 6.0 | 1-2 Weeks | $37.50 | ||
| G9B84040 | 4 | R0.2 | 50.0 | 4.0 | 8.0 | 1-2 Weeks | $37.50 | ||
| G9B84908 | 4 | R0.3 | 50.0 | 4.0 | 8.0 | 1-2 Weeks | $37.50 | ||
| G9B84910 | 4 | R1.0 | 50.0 | 4.0 | 8.0 | Low stock | $37.50 | ||
| G9B84050 | 5 | R0.2 | 50.0 | 6.0 | 10.0 | 1-2 Weeks | $40.80 | ||
| G9B84911 | 5 | R0.3 | 50.0 | 6.0 | 10.0 | 1-2 Weeks | $40.80 | ||
| G9B84912 | 5 | R0.5 | 50.0 | 6.0 | 10.0 | In stock | $40.80 | ||
| G9B84913 | 5 | R1.0 | 50.0 | 6.0 | 10.0 | Low stock | $40.80 | ||
| G9B84060 | 6 | R0.2 | 50.0 | 6.0 | 12.0 | In stock | $40.80 | ||
| G9B84914 | 6 | R0.3 | 50.0 | 6.0 | 12.0 | 1-2 Weeks | $40.80 | ||
| G9B84915 | 6 | R0.5 | 50.0 | 6.0 | 12.0 | In stock | $40.80 | ||
| G9B84916 | 6 | R1.0 | 50.0 | 6.0 | 12.0 | In stock | $40.80 | ||
| G9B84080 | 8 | R0.5 | 60.0 | 8.0 | 16.0 | In stock | $61.60 | ||
| G9B84917 | 8 | R1.0 | 60.0 | 8.0 | 16.0 | Low stock | $58.70 | ||
| G9B84918 | 8 | R1.5 | 60.0 | 8.0 | 16.0 | In stock | $61.10 | ||
| G9B84919 | 8 | R2.0 | 60.0 | 8.0 | 16.0 | 1-2 Weeks | $61.10 | ||
| G9B84920 | 8 | R2.5 | 60.0 | 8.0 | 20.0 | 1-2 Weeks | $61.10 | ||
| G9B84100 | 10 | R0.5 | 75.0 | 10.0 | 20.0 | In stock | $88.80 | ||
| G9B84921 | 10 | R1.0 | 75.0 | 10.0 | 20.0 | In stock | $88.80 | ||
| G9B84922 | 10 | R1.5 | 75.0 | 10.0 | 20.0 | In stock | $92.30 | ||
| G9B84923 | 10 | R2.0 | 75.0 | 10.0 | 20.0 | Low stock | $92.30 | ||
| G9B84924 | 10 | R2.5 | 75.0 | 10.0 | 24.0 | 1-2 Weeks | $92.30 | ||
| G9B84120 | 12 | R0.5 | 75.0 | 12.0 | 24.0 | In stock | $122.90 | ||
| G9B84925 | 12 | R1.0 | 75.0 | 12.0 | 24.0 | In stock | $122.90 | ||
| G9B84926 | 12 | R1.5 | 75.0 | 12.0 | 24.0 | Low stock | $127.70 | ||
| G9B84927 | 12 | R2.0 | 75.0 | 12.0 | 24.0 | In stock | $127.70 | ||
| G9B84928 | 12 | R2.5 | 75.0 | 12.0 | 6.0 | Low stock | $127.70 |
Add (G9B84) K-2 Carbide, 4Flute Corner Radius End Mill, Short Length to comparison
View Comparison- Overview
- Specifications
- Speeds & Feeds
- Reviews
YG-1 G9B84 is a K2 coated carbide, four-flute corner radius end mill for general milling. Its short-length geometry and corner radius support controlled machining while reducing cutting forces. The K2 coating provides high heat and wear resistance for dependable cutting tool life. This carbide corner radius end mill suits general milling of steel, stainless steel, cast iron and non-ferrous materials.
The G9B84 range covers 2 to 12 mm cutter diameters with corner radii from R0.2 to R2.5. Four flutes provide a practical configuration for facing, side milling and helical interpolation. Select the required diameter and corner radius for die sinking, slotting and small-part machining applications.
- K2 coated carbide construction with high heat and wear resistance
- Four-flute corner radius geometry for general milling
- Corner radius reduces cutting forces and supports tool life
- Suitable for steel stainless steel cast iron and non-ferrous materials
- Short-length range from 2 to 12 mm diameters
- Corner radius options from R0.2 to R2.5
No specifications available.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
